Home / Semiconductors / 55C120B
55C120B
View detailed images (5)

55C120B

SKU: 55C120B

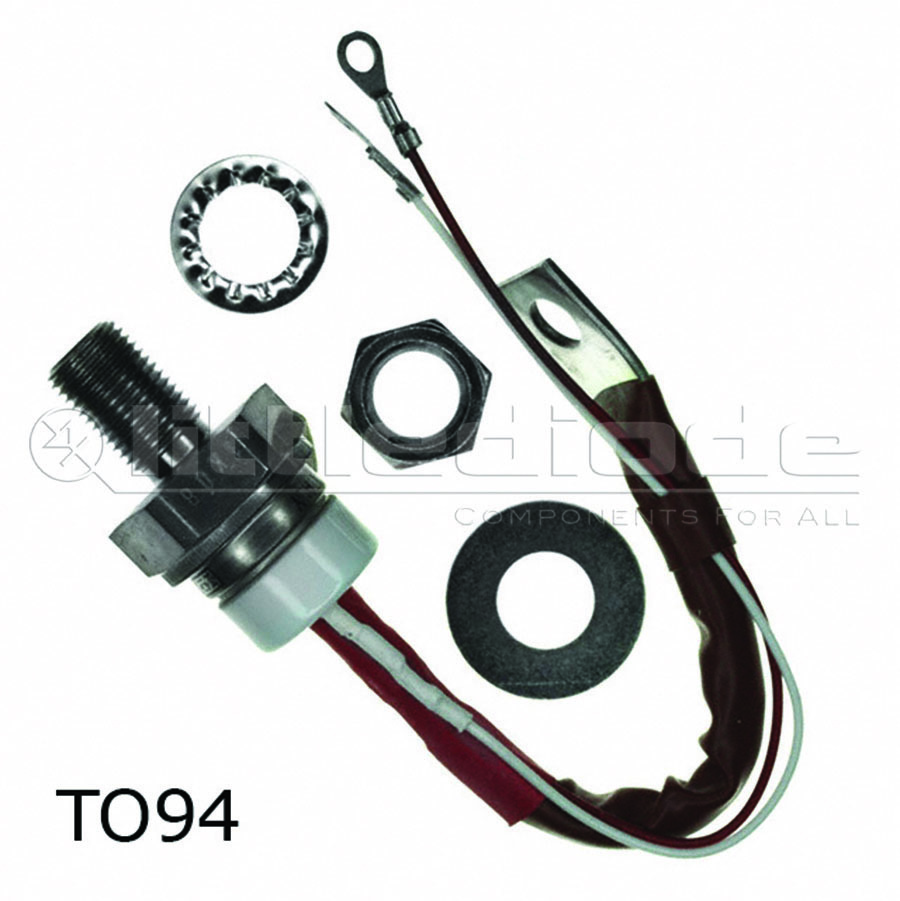

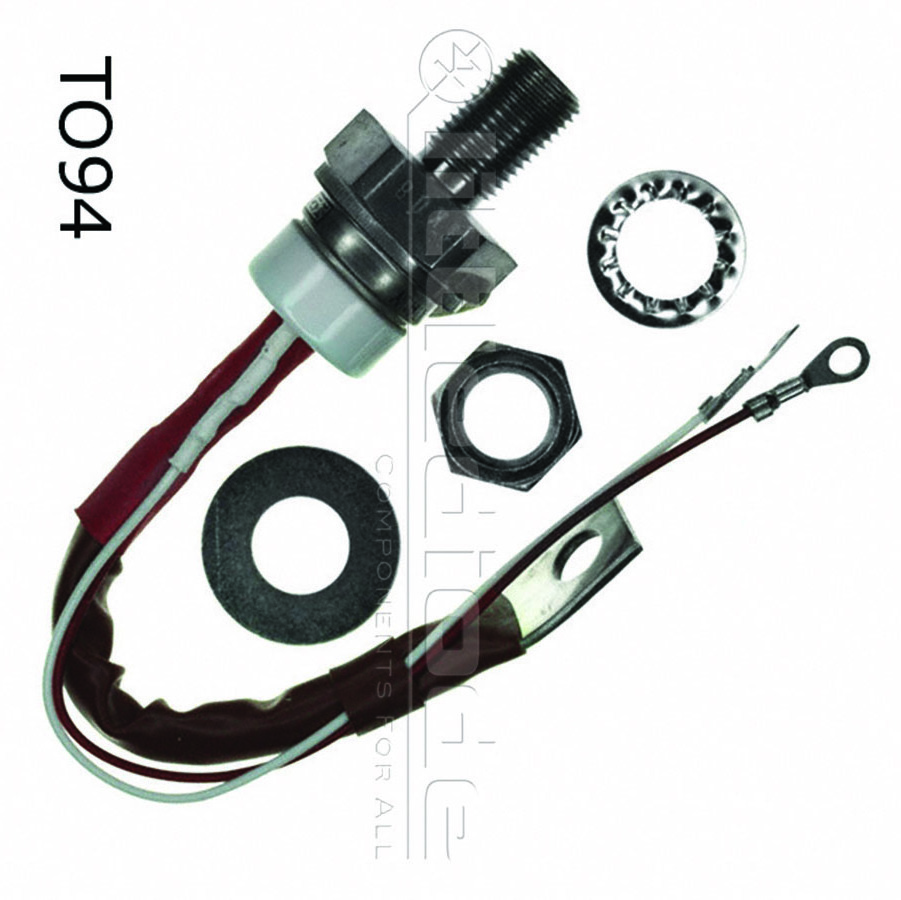

55C120B SemiConductor CASE: TO94 MAKE: Generic
Datasheet
55C120B Datasheet
Product specifications
Type SemiConductor
Case TO94
Manufacturer Microsemi
Dv/Dt Worst Case 200+
Firing Char-Igt Max. 100m
Firing Char-Vgt Max. 3.0
I(h) Max. (A) 200m
Id(off) Max. (A) 10m
@It (test) (A) 50
It(stat) Max. (A) 86
Supp Curr. I(TSM) 1.2k
t(switch) Off Typ. Time (S) 100u
t(switch) Off Typ. Time (S) 5.0u
V(drm) Max. 1.2k
V(T) Max. 2.2
@Temp. (test) (°C) 125
@Temp. (test) (°C) 125
Oper. Temp (°C) Min -45
Oper. Temp (°C) Max. 125
@It (A) 220
Surface Mounted Yes/No NO
SKU 755650
