Home / Semiconductors / 71RC15B
71RC15B
View detailed images (5)

71RC15B

SKU: 71RC15B

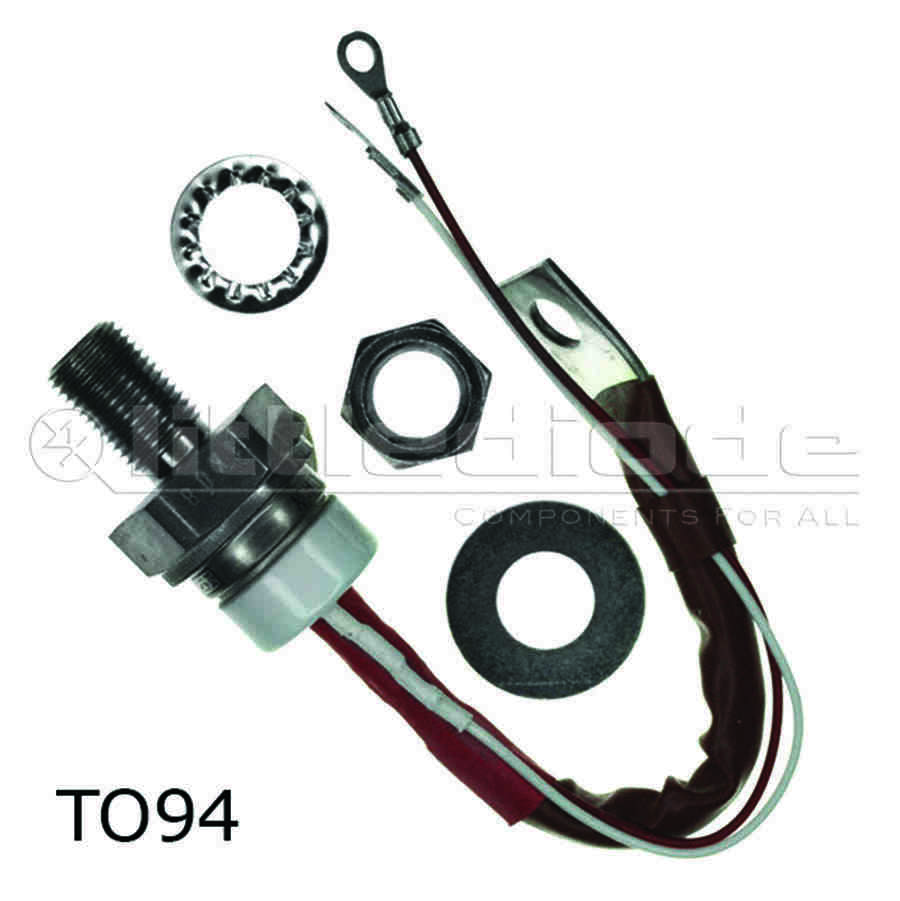

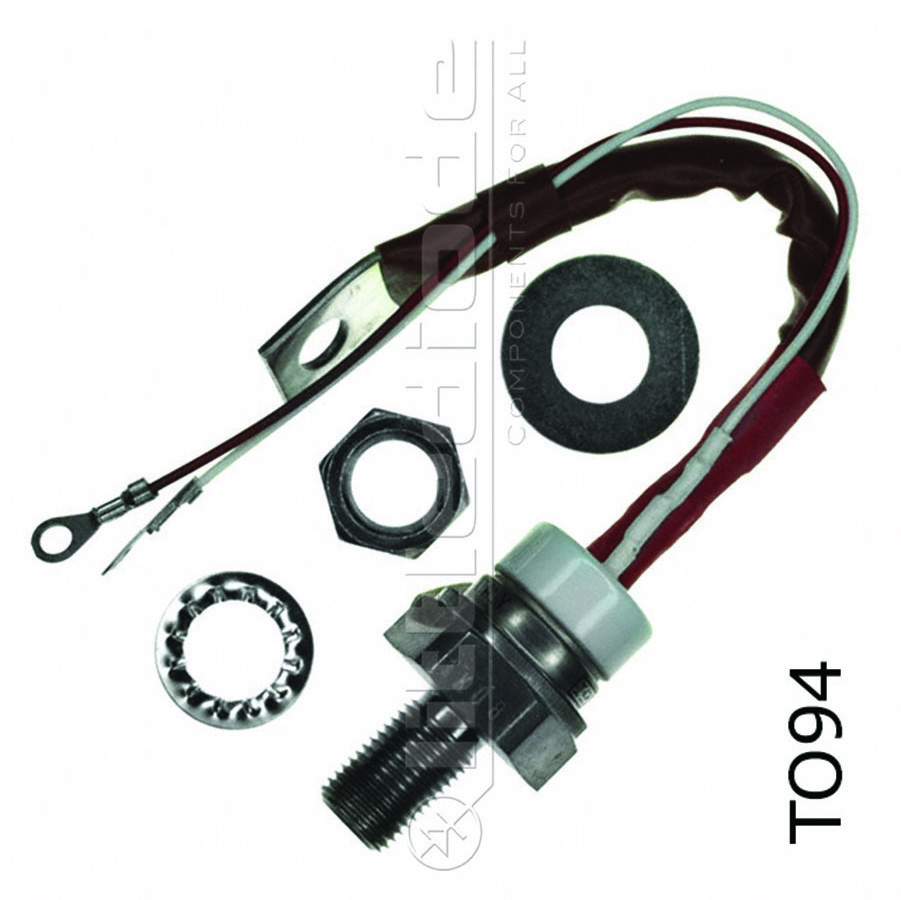

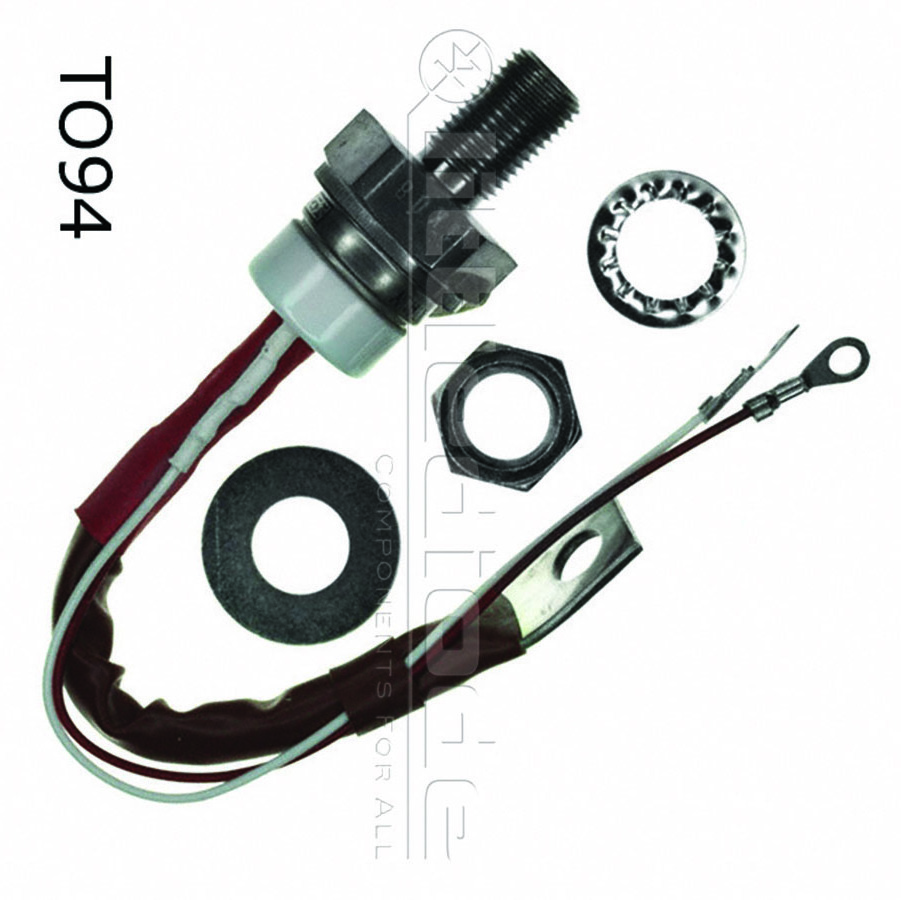

71RC15B Semiconductor CASE: TO94 MAKE: International Rectifier - IR
Product specifications
Type Semiconductor
Case TO94
Manufacturer International Rectifier - IR
Dv/Dt Worst Case 20
Firing Char-Igt Max. 70m
Firing Char-Vgt Max. 2.5
I(h) Max. (A) 20m-
Id(off) Max. (A) 6.5m
@It (test) (A) 50
It(stat) Max. (A) 110
Supp Curr. I(TSM) 1.0k+
t(switch) Off Typ. Time (S) 40u
t(switch) Off Typ. Time (S) 2.5u
V(drm) Max. 150
V(T) Max. 1.9
@Temp. (test) (°C) 150
@Temp. (test) (°C) 85#
Oper. Temp (°C) Min -60
Oper. Temp (°C) Max. 155
@It (A) 220
Surface Mounted Yes/No NO
SKU 1312211
