Home / Integrated Circuit / 74HC4052N
74HC4052N

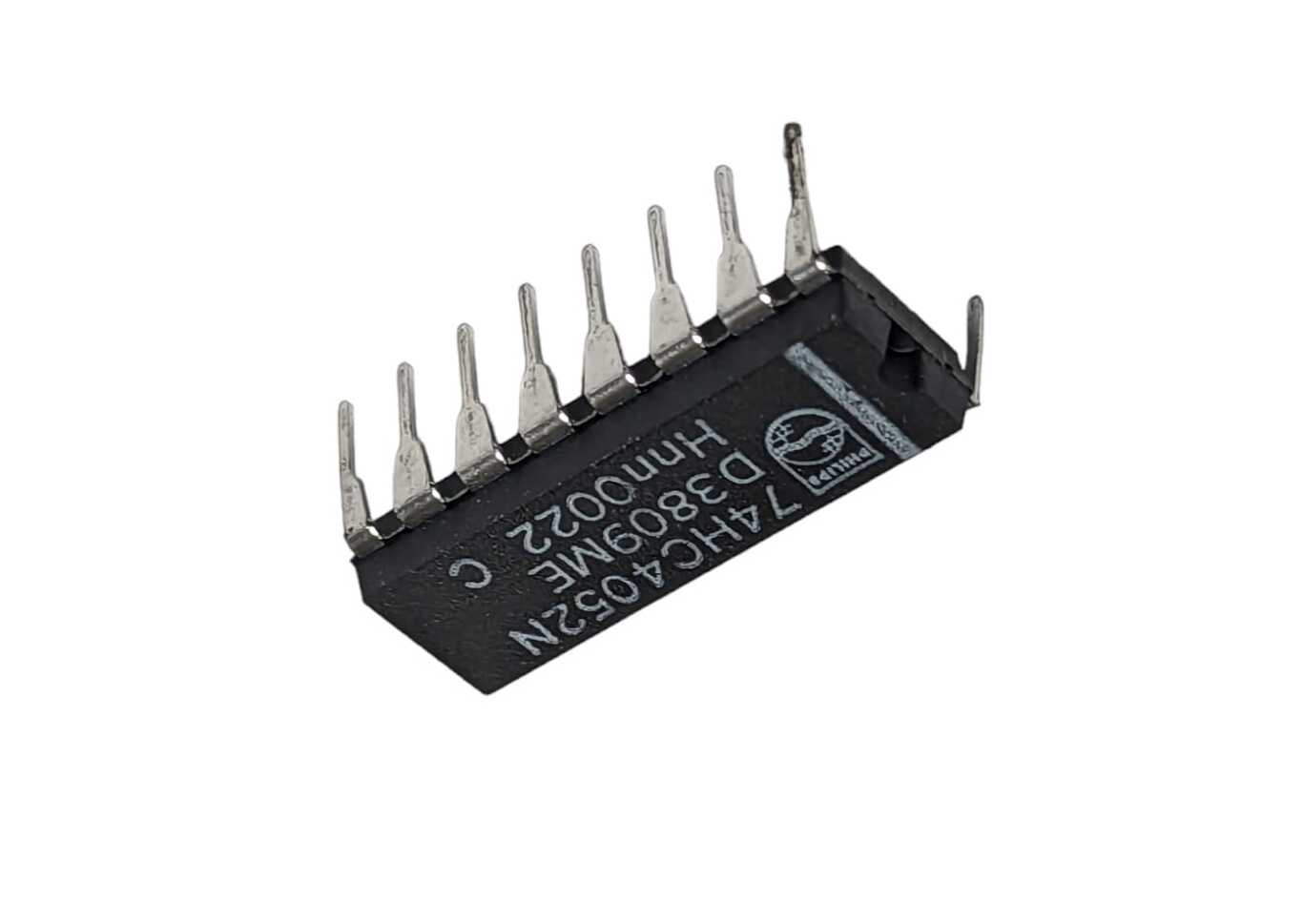

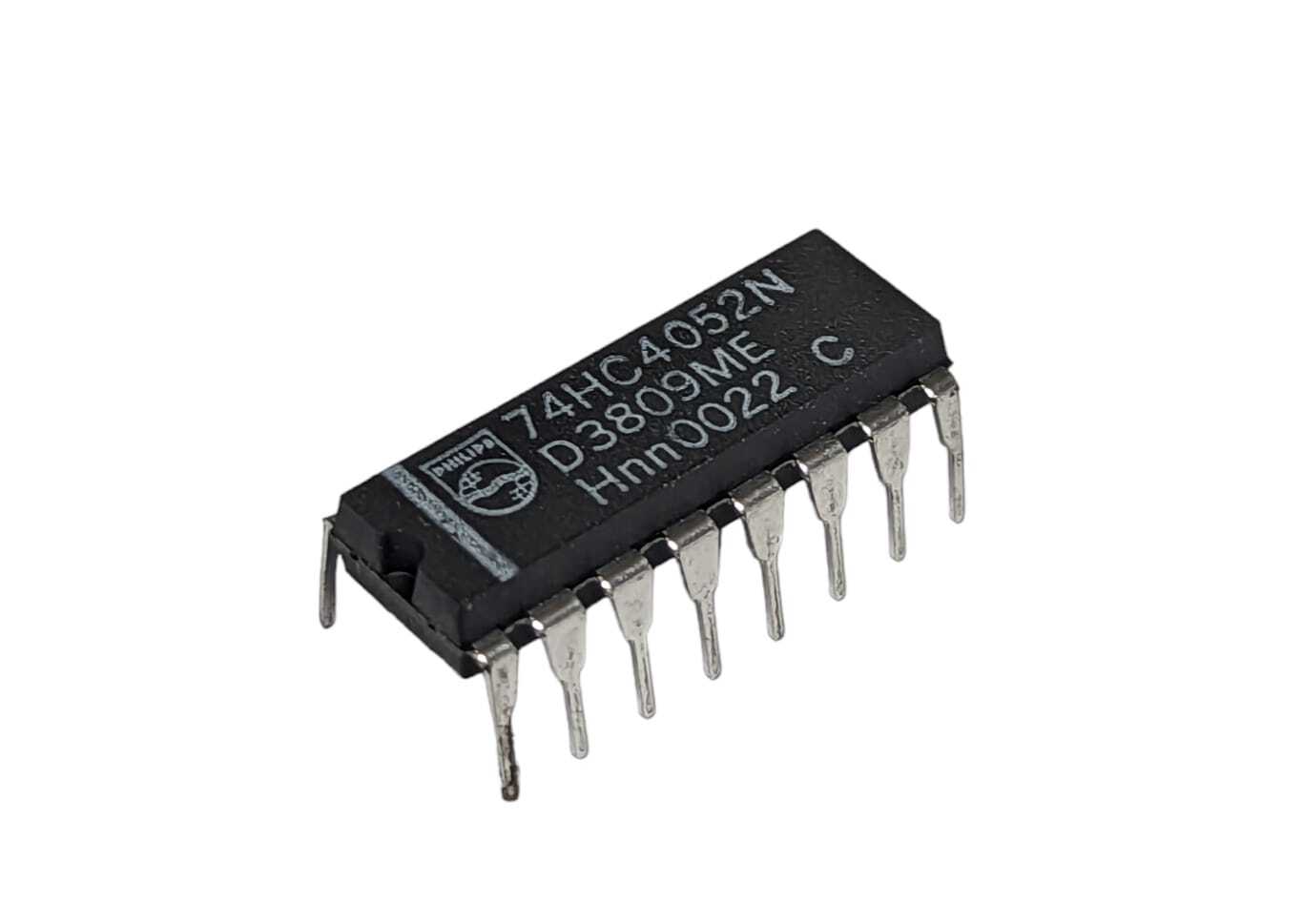

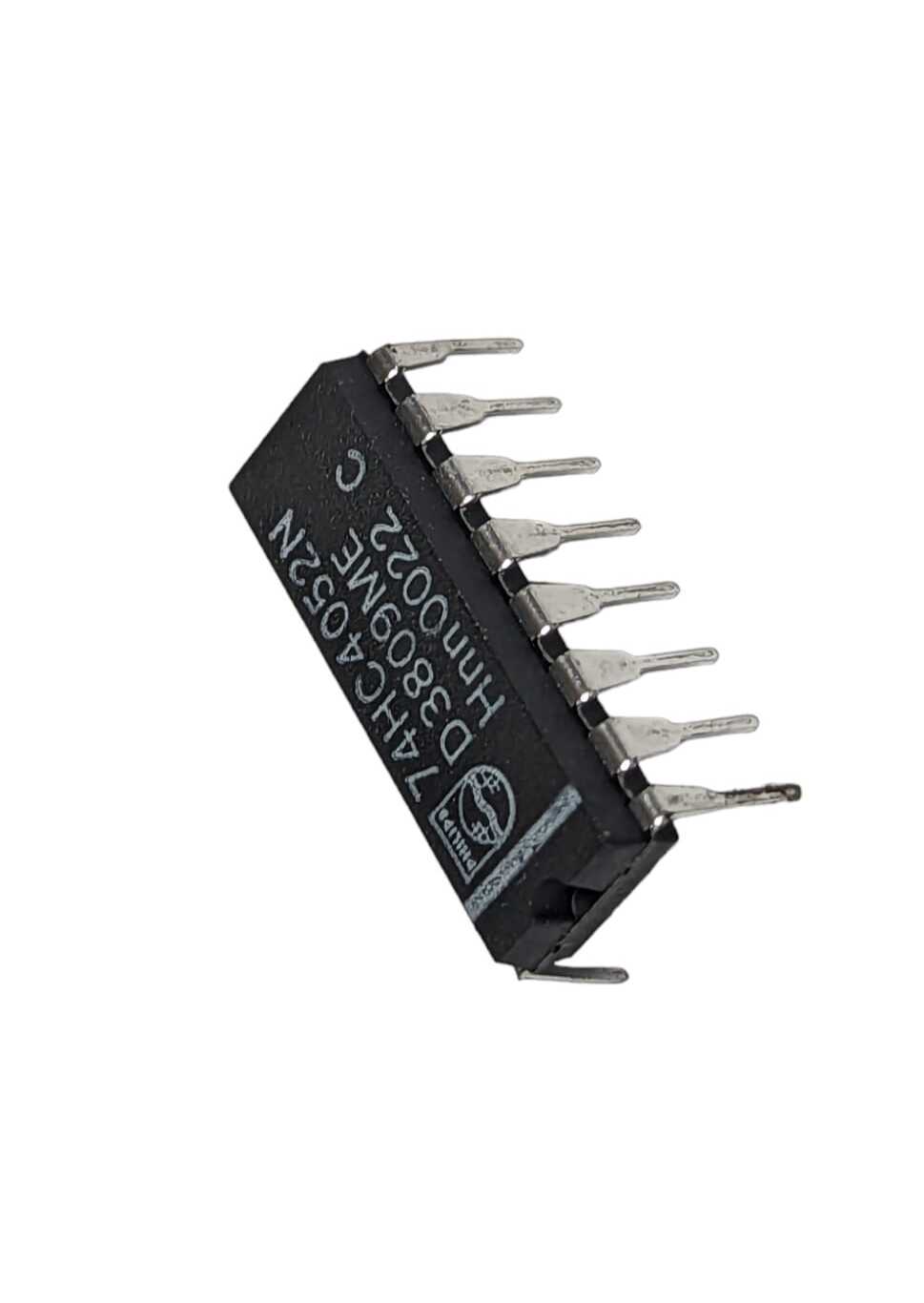

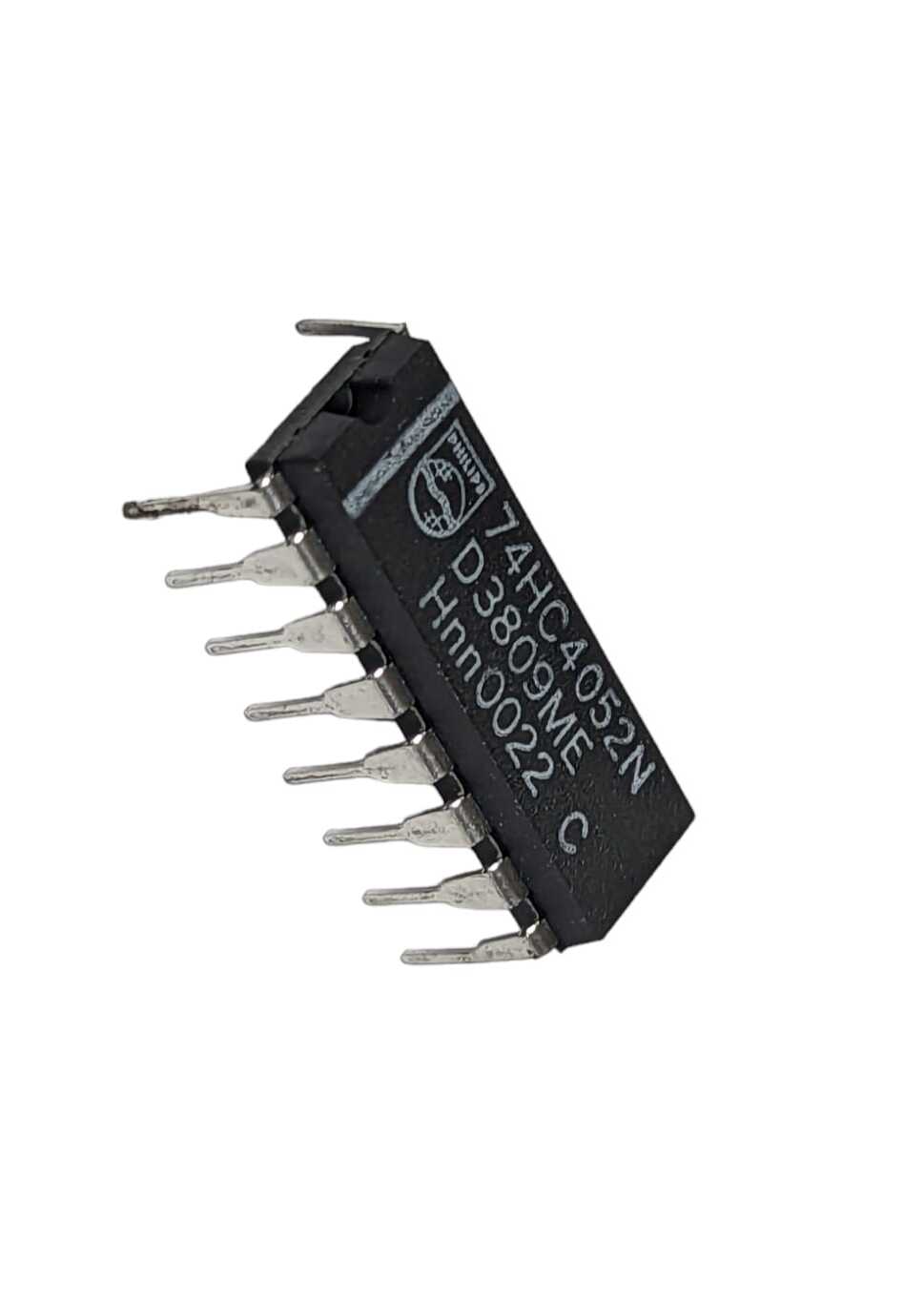

View detailed images (4)

74HC4052N

SKU: 74HC4052N
74HC4052N Logic IC CASE: DIP16 MAKE: NXP Semiconductors
Price:
£14.39 Inc. VAT (£11.99 Ex. VAT)
£14.39 Inc. VAT (£11.99 Ex. VAT)
Qty
  • 102 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Datasheet
74HC4052N Datasheet
Product specifications
Equivalent 74HC4052
Type Logic IC
Case DIP16
Manufacturer NXP Semiconductors
Ckts Per Dev. 1
Vcntl (Hi) (V) 3.15
Vcntl (Lo) (V) 1.35
@Is (test) (A) 1.0m
Input Chan./ Ckt 4
PD Max. (W) 500m
tPD Max. (S) 81n
Nom. Neg Supp 0.0
Nom. Pos. Supp 10.0
R(ds) On (Û) 200
Tech. CMOS Integrated Circuit
@Vd (test) (V) 4.5
Oper. Temp (°C) Min -40
Oper. Temp (°C) Max. 85
Pinout Equivalence Number 16-281
Surface Mounted Yes/No NO
SKU 341275
