AC106
View detailed images (4)

AC106

SKU: AC106

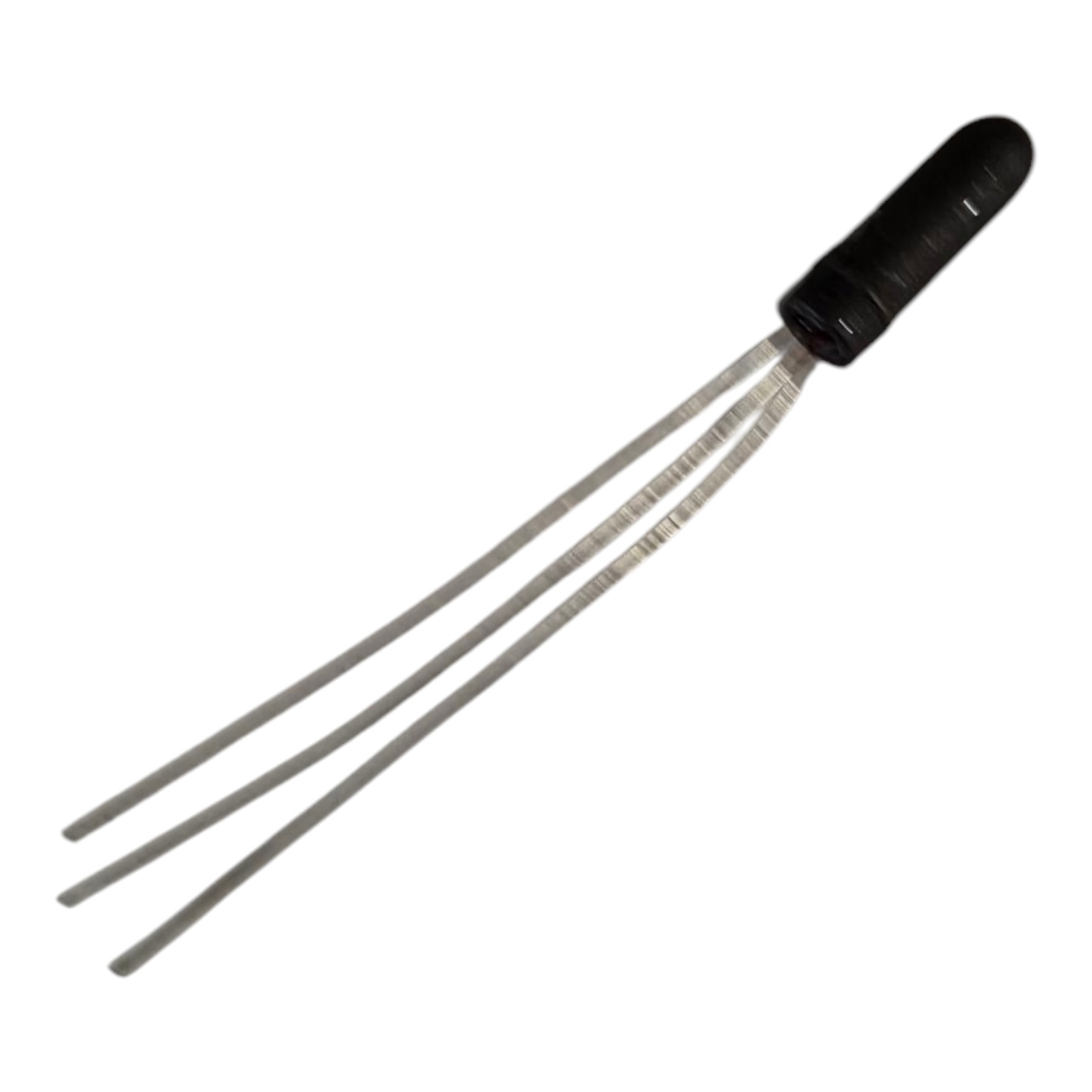

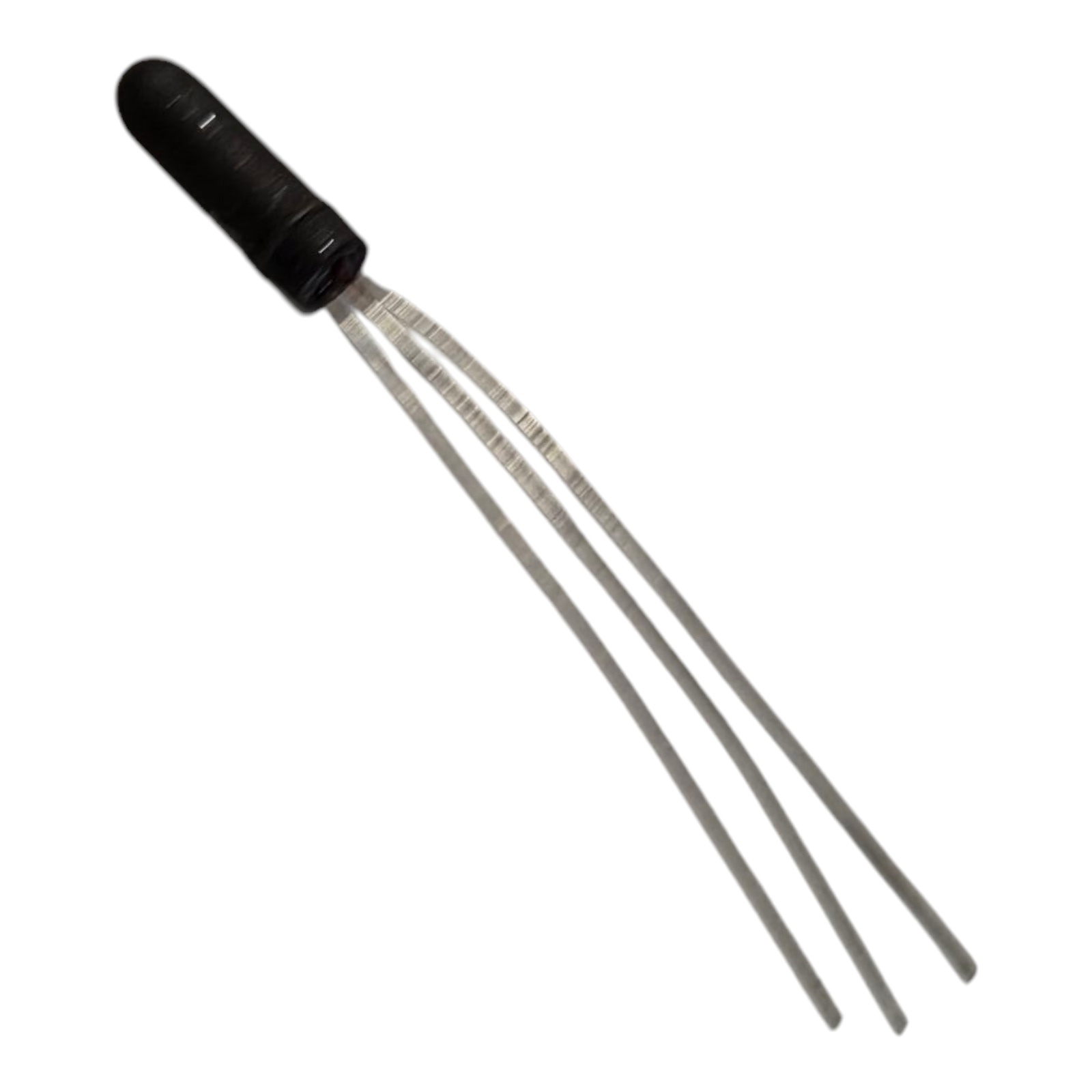

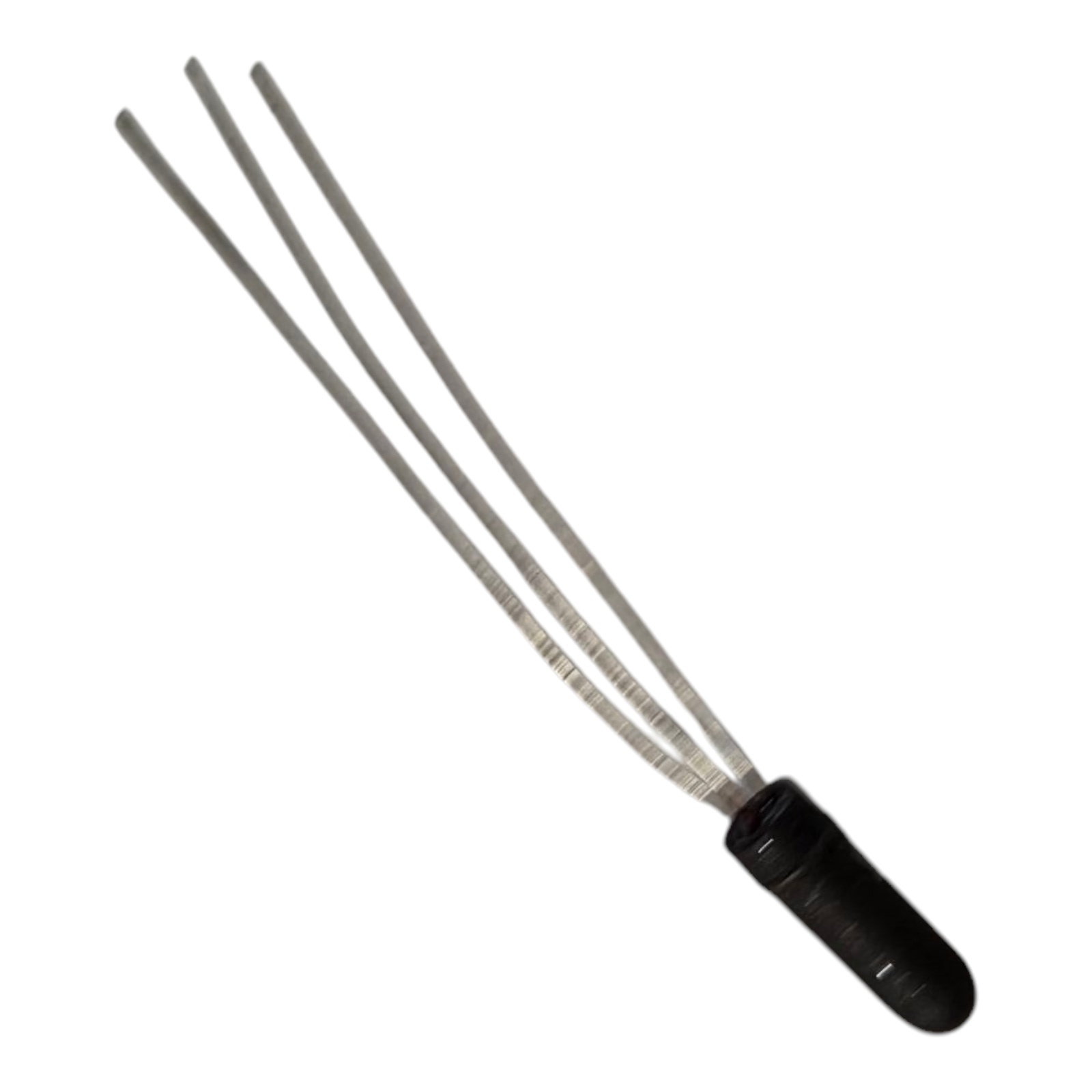

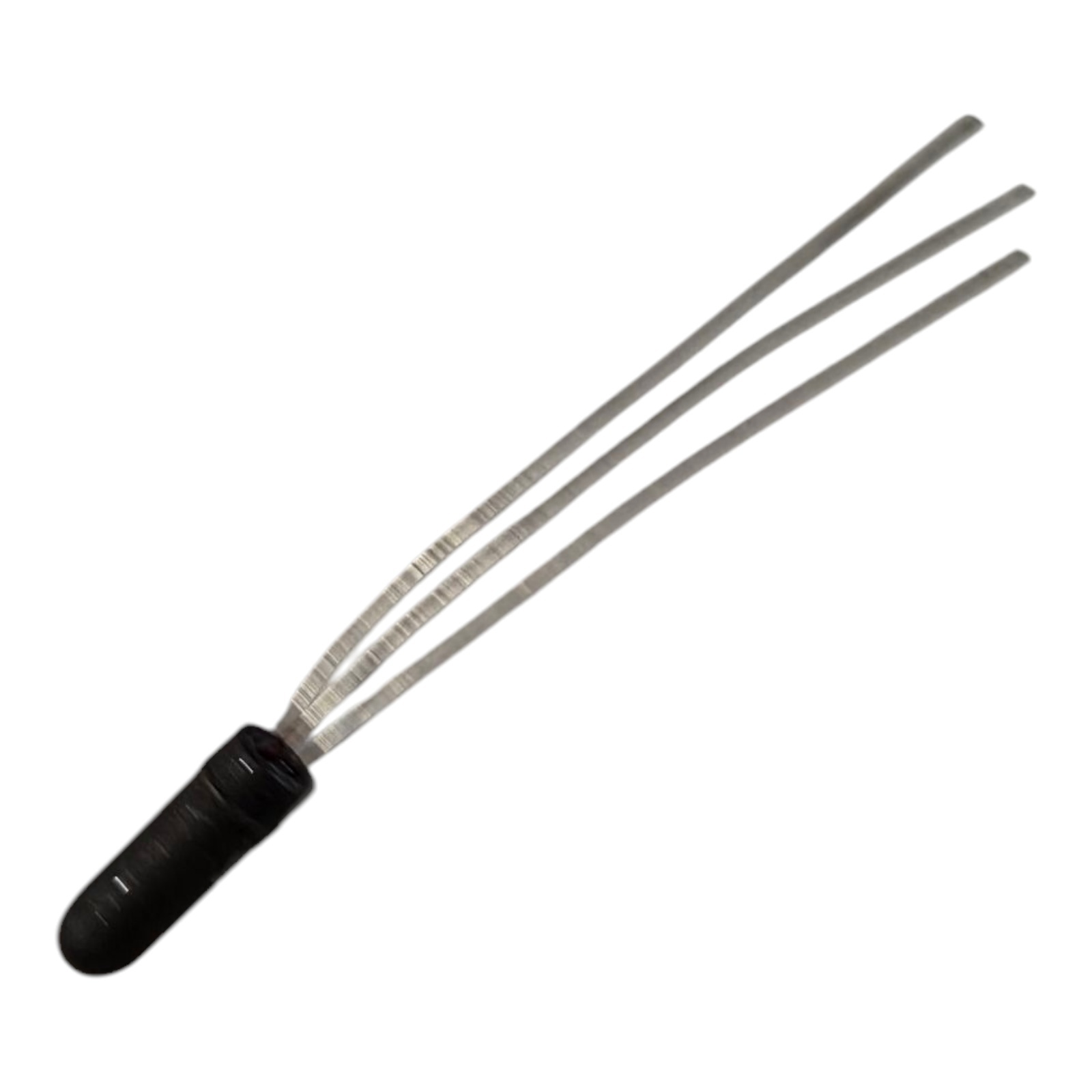

AC106 Transistor Germanium PNP CASE: X01 MAKE: Temic
Price:
£14.39 Inc. VAT (£11.99 Ex. VAT)
£14.39 Inc. VAT (£11.99 Ex. VAT)
Qty
  • More pieces shipped in 14 days
?
Product specifications
Type Transistor Germanium PNP
Case X01
Manufacturer Temic
Vbr CBO 40
Vbr CEO 18
Max. PD (W) 400m
Derate (Amb) (W/°C) 13m
hfe 150
Ic Max. (A) 1
Icbo Max. @Vcb Max. (A) 8.0u
Polarity PNP
@VCE (test) (V) 1.0
@Ic (A) 2.7m
Pinout Equivalence Number N/A
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.4 W
Maximum Collector-Base Voltage |Vcb| 40 V
Maximum Collector-Emitter Voltage |Vce| 18 V
Maximum Emitter-Base Voltage |Veb| 10 V
Maximum Collector Current |Ic max| 1 A
Max. Operating Junction Temperature (Tj) 75 °C
Forward Current Transfer Ratio (hFE), MIN 25
SKU 83577
