AC109

SKU: AC109

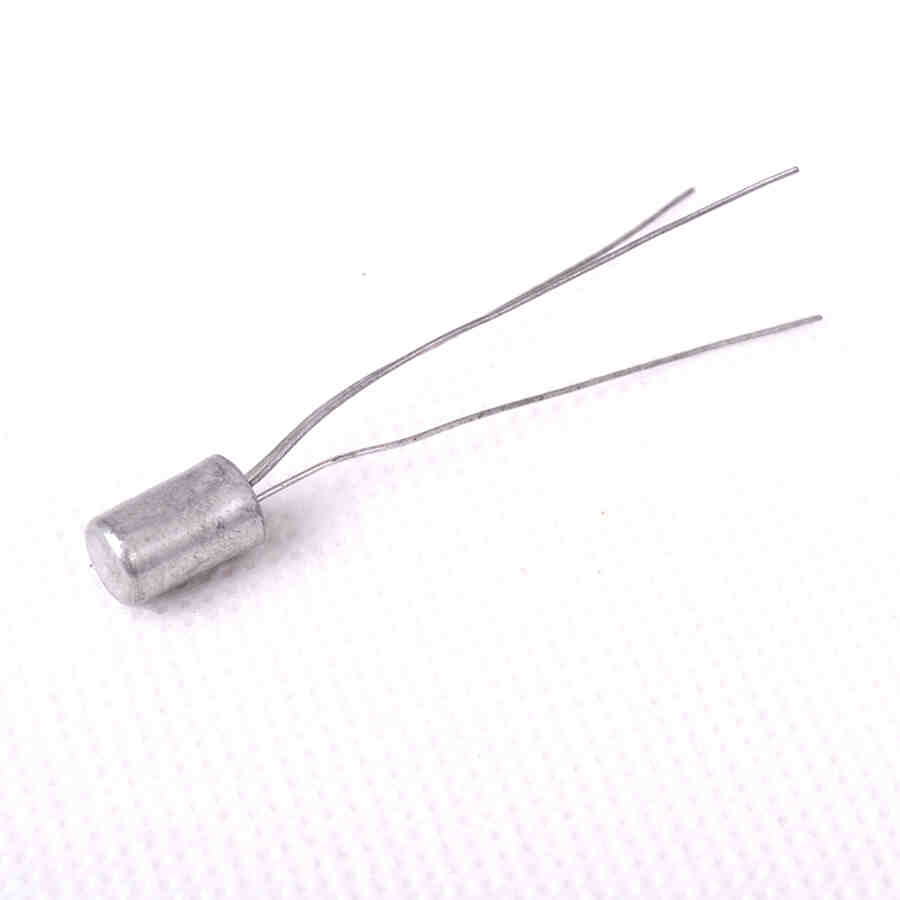

AC109 Transistor Germanium PNP CASE: TO1 MAKE: Motorola Semiconductor
Price: £4.79
+ VAT 20% for UK purchases
£4.79
Qty
+ VAT 20% for UK purchases
  • 3 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Product specifications
Type Transistor Germanium PNP
Case TO1
Manufacturer Motorola Semiconductor
Vbr CBO 20
Max. PD (W) 30m
C(ob) (F) 25p
Derate (Amb) (W/°C) 2.0m
hfe 50
Ic Max. (A) 50m
Icbo Max. @Vcb Max. (A) 5.0u
Polarity PNP
Trans. Freq (Hz) Min. 1.0M
@VCE (test) (V) 5.0
Oper. Temp (°C) Max. 75
@Ic (A) 1.0m
Pinout Equivalence Number N/A
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.03 W
Maximum Collector-Base Voltage |Vcb| 20 V
Maximum Collector-Emitter Voltage |Vce| 15 V
Maximum Emitter-Base Voltage |Veb| 10 V
Maximum Collector Current |Ic max| 0.05 A
Max. Operating Junction Temperature (Tj) 80 °C
Collector Capacitance (Cc) 50 pF
Transition Frequency (ft): 0.5 MHz
Forward Current Transfer Ratio (hFE), MIN 50
