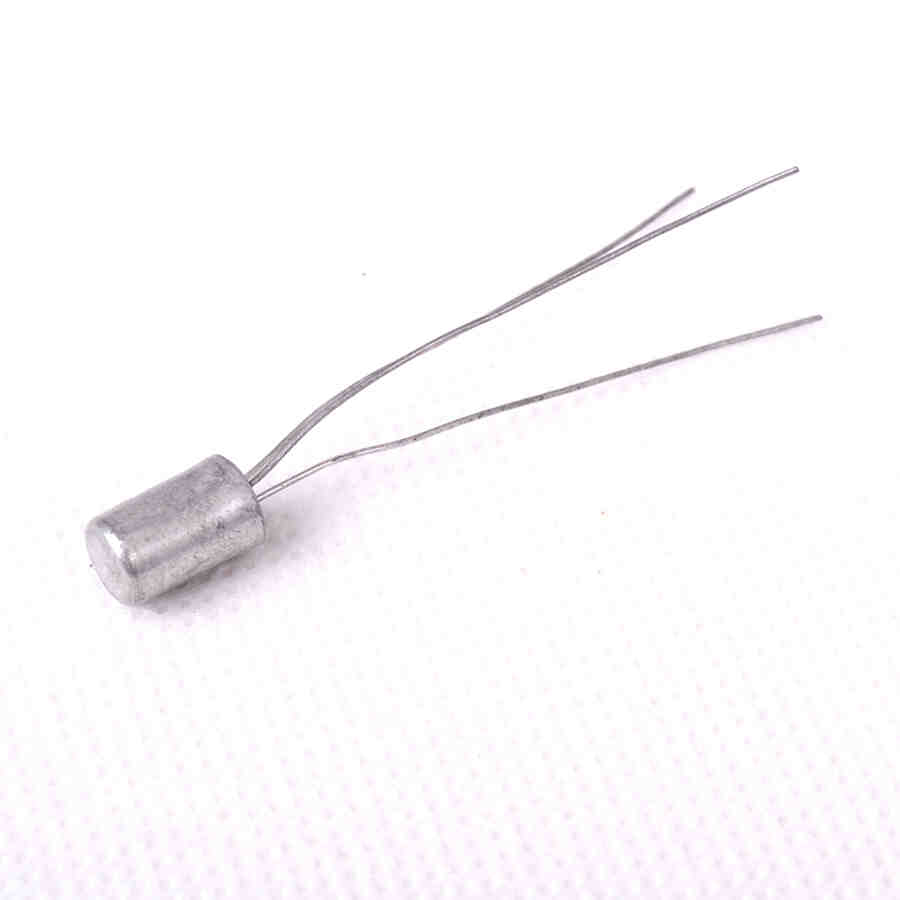

AC120V Transistor Germanium PNP CASE: TO1 MAKE: Siemens Semiconductors
Product specifications
Equivalent AC120
Type Transistor Germanium PNP
Case TO1
Manufacturer Siemens Semiconductors
Vbr CBO 20
Vbr CEO 20
Max. PD (W) 210m
C(ob) (F) 85p
Derate (Amb) (W/°C) 20m
hfe 50
Ic Max. (A) 300m
Icbo Max. @Vcb Max. (A) 30u
Polarity PNP
Trans. Freq (Hz) Min. 1.5M
@VCE (test) (V) 5.0
Oper. Temp (°C) Max. 75
@Ic (A) 100m
Pinout Equivalence Number N/A
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.21 W
Maximum Collector-Base Voltage |Vcb| 20 V
Maximum Collector-Emitter Voltage |Vce| 20 V
Maximum Emitter-Base Voltage |Veb| 10 V
Maximum Collector Current |Ic max| 0.3 A
Max. Operating Junction Temperature (Tj) 80 °C
Collector Capacitance (Cc) 85 pF
Transition Frequency (ft): 0.8 MHz
Forward Current Transfer Ratio (hFE), MIN 50
SKU 577352
