AC192
View detailed images (4)

AC192

SKU: AC192

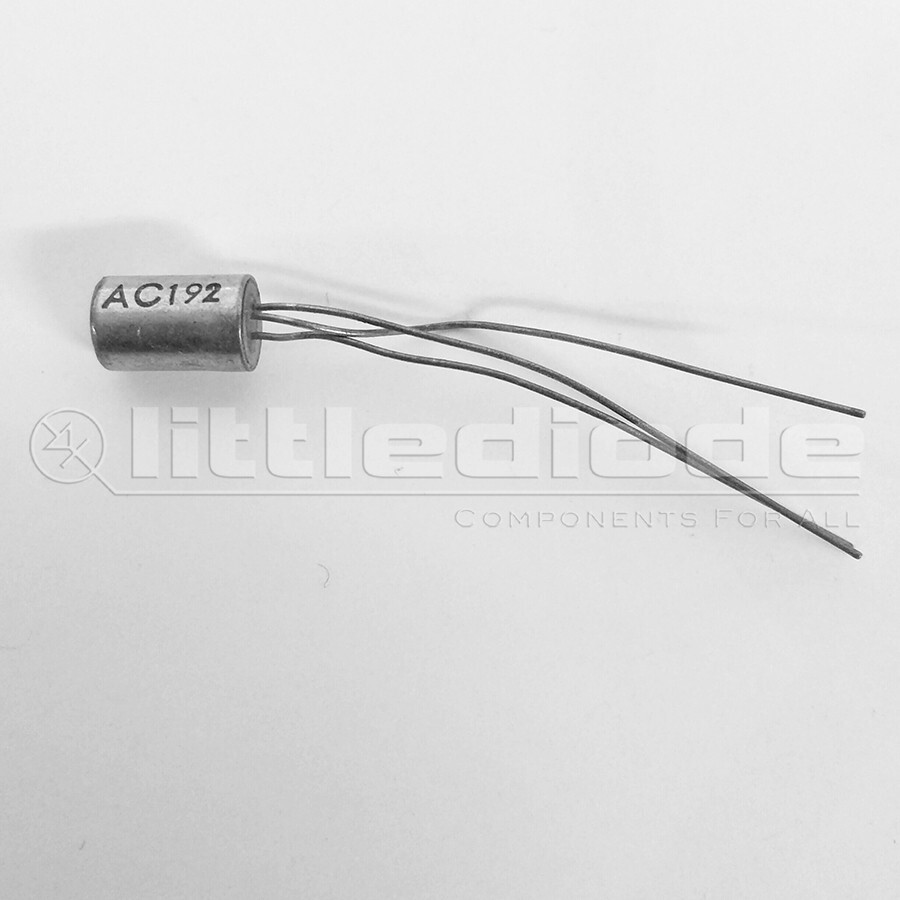

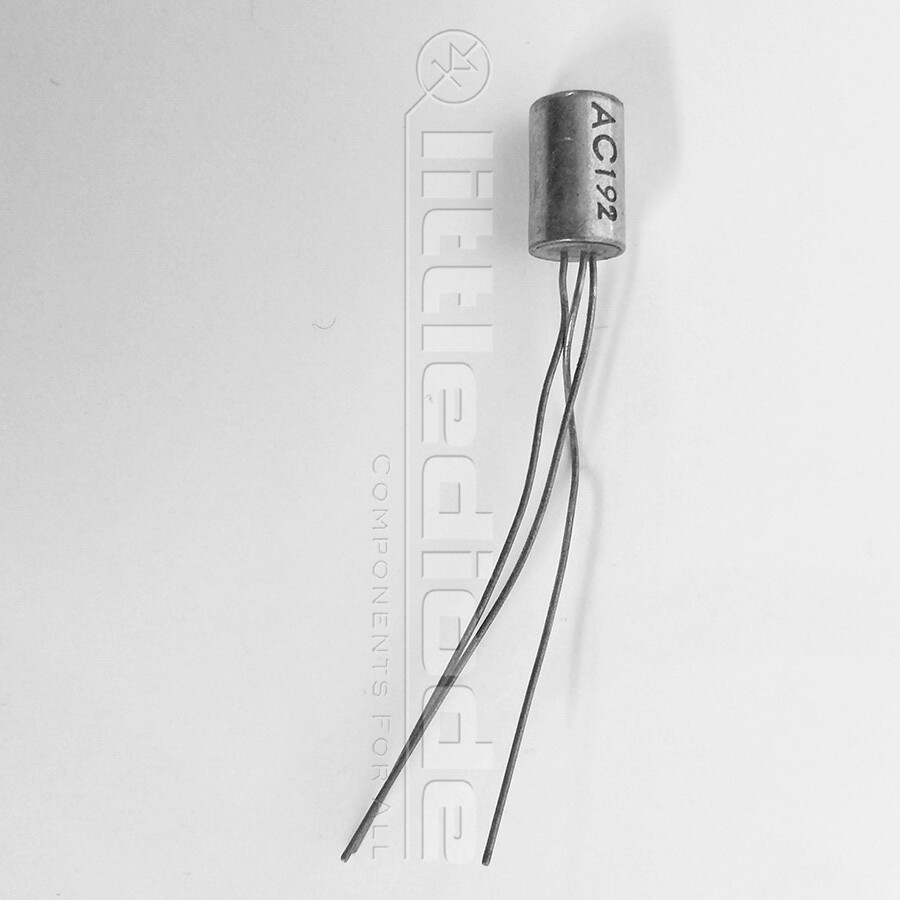

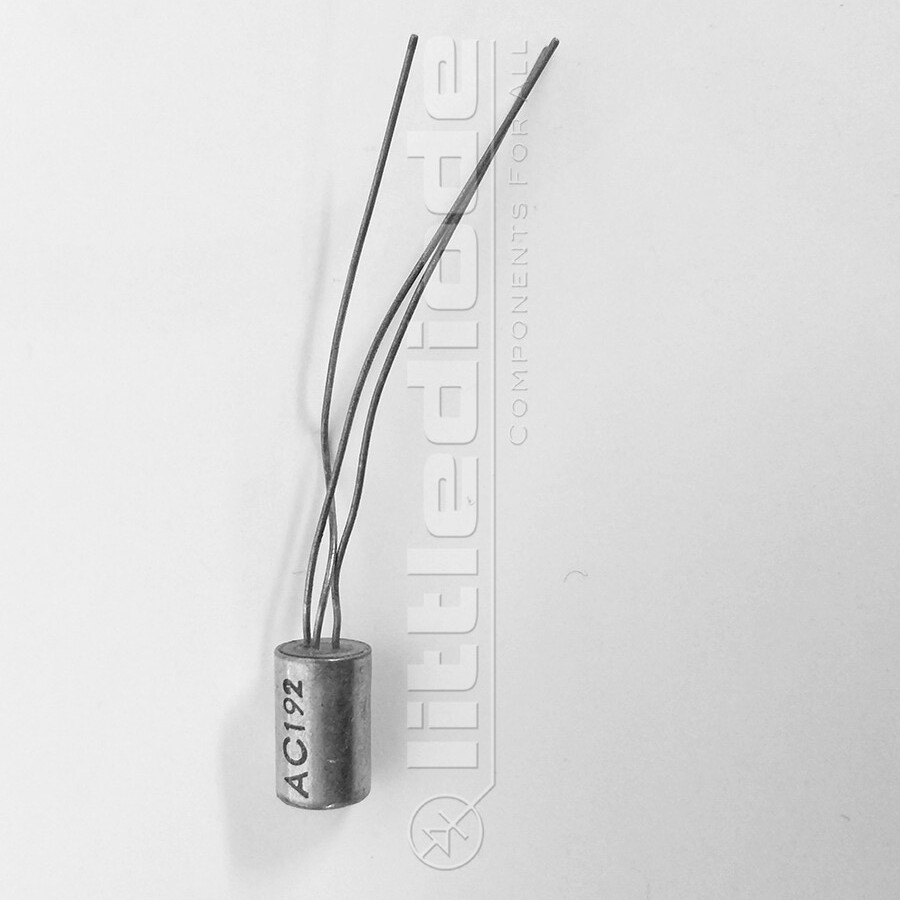

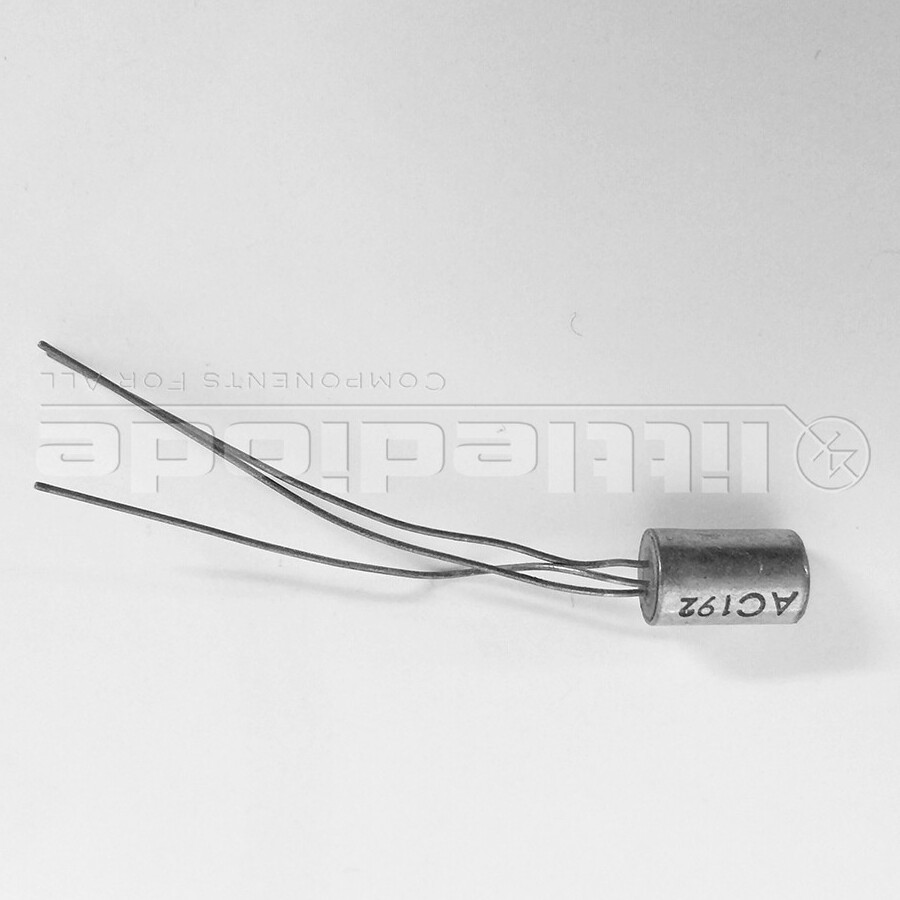

AC192 Transistor Germanium PNP CASE: TO1 MAKE: Werner
Price:
£5.75 Inc. VAT (£4.79 Ex. VAT)
£5.75 Inc. VAT (£4.79 Ex. VAT)
Qty
  • 13 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Product specifications
Type Transistor Germanium PNP
Case TO1
Manufacturer Werner
Vbr CBO 32
Vbr CEO 32
Max. PD (W) 185m
C(ob) (F) 7.0p
Derate (Amb) (W/°C) 2.9m
hfe 100
Ic Max. (A) 250m
Icbo Max. @Vcb Max. (A) 14u
Polarity PNP
Trans. Freq (Hz) Min. 7.0M
@VCE (test) (V) 6.0
Oper. Temp (°C) Max. 100
@Ic (A) 1.0m
Pinout Equivalence Number N/A
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.43 W
Maximum Collector-Base Voltage |Vcb| 32 V
Maximum Collector-Emitter Voltage |Vce| 15 V
Maximum Emitter-Base Voltage |Veb| 10 V
Maximum Collector Current |Ic max| 0.25 A
Max. Operating Junction Temperature (Tj) 90 °C
Collector Capacitance (Cc) 60 pF
Transition Frequency (ft): 1 MHz
Forward Current Transfer Ratio (hFE), MIN 30
SKU 313449
