ACY50
View detailed images (4)

ACY50

SKU: ACY50

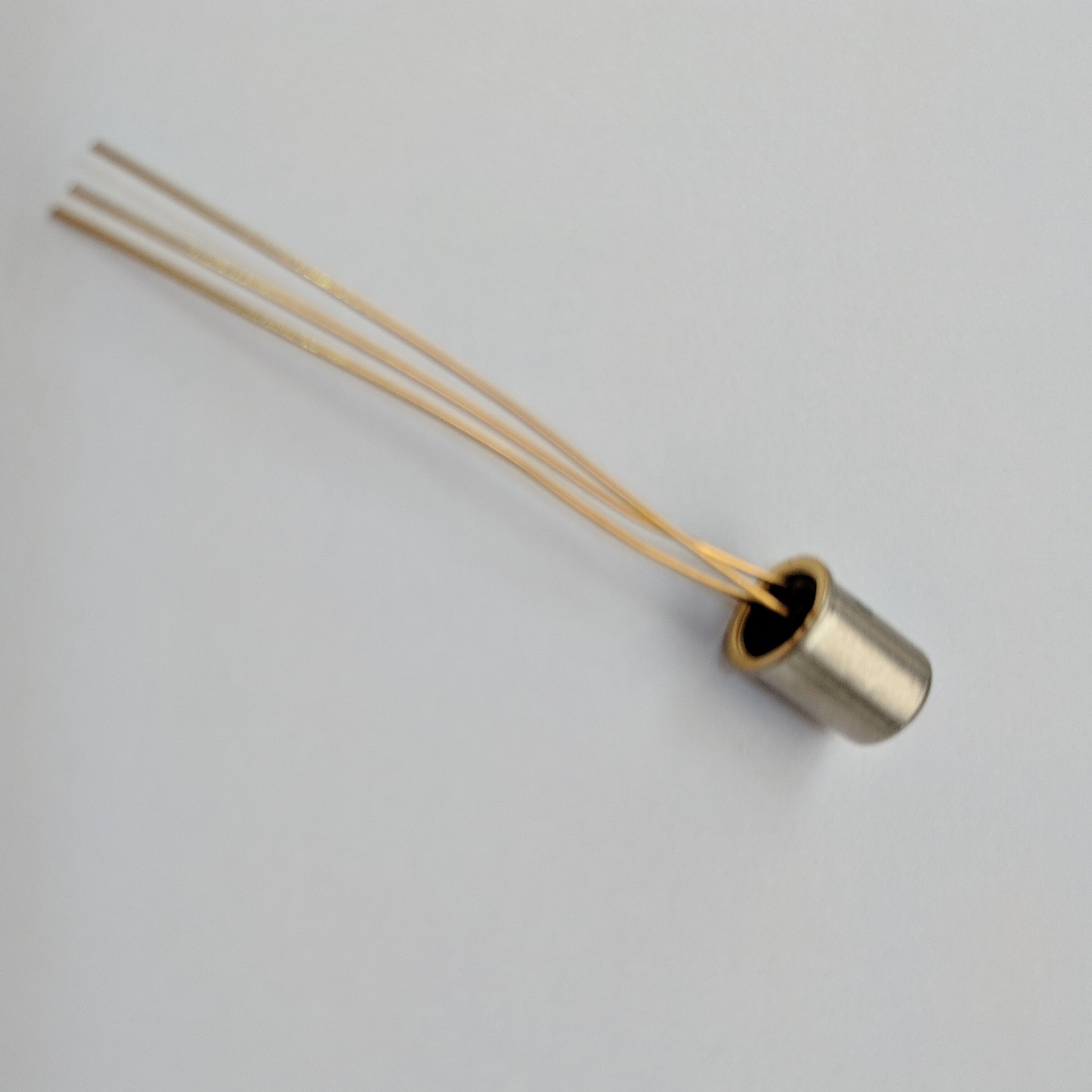

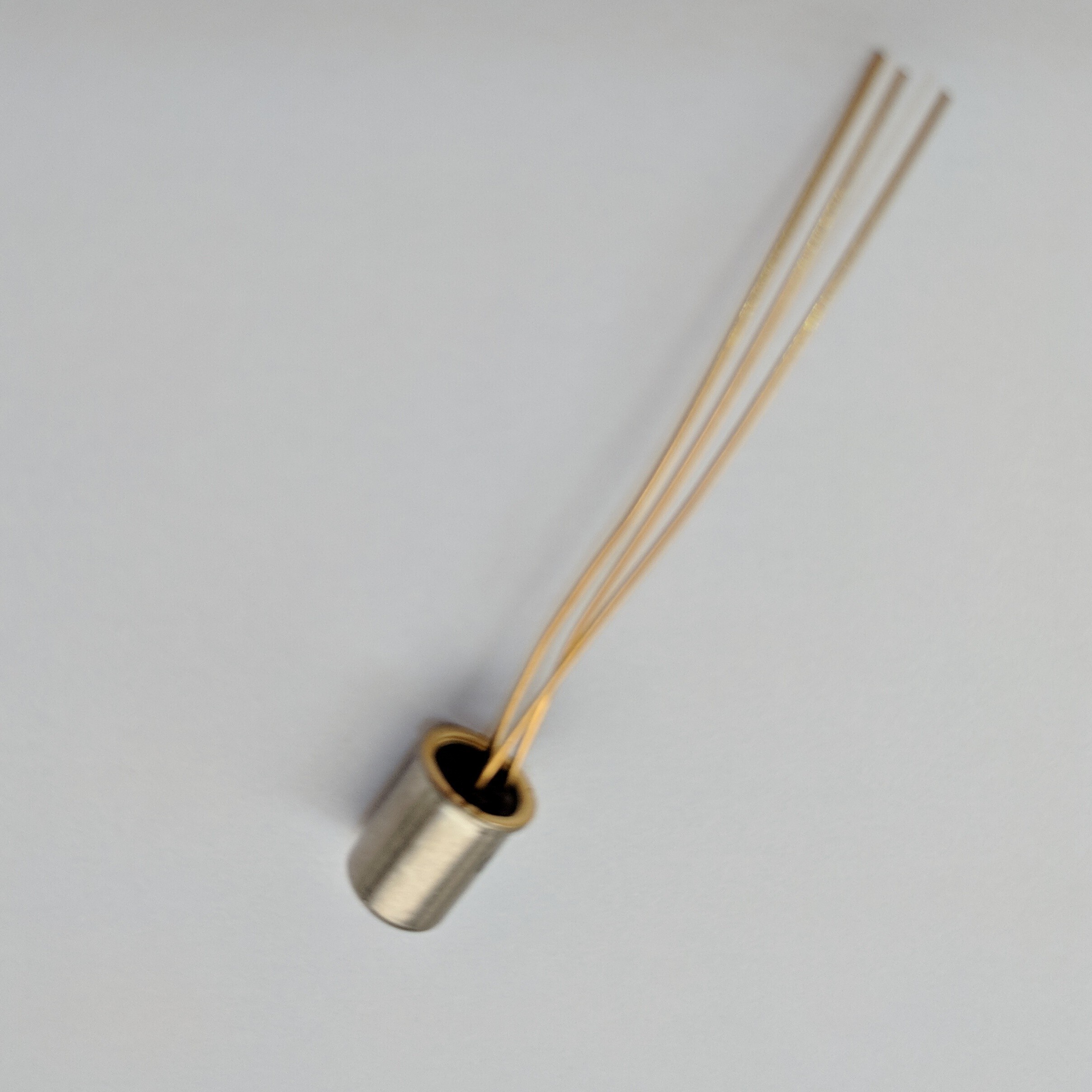

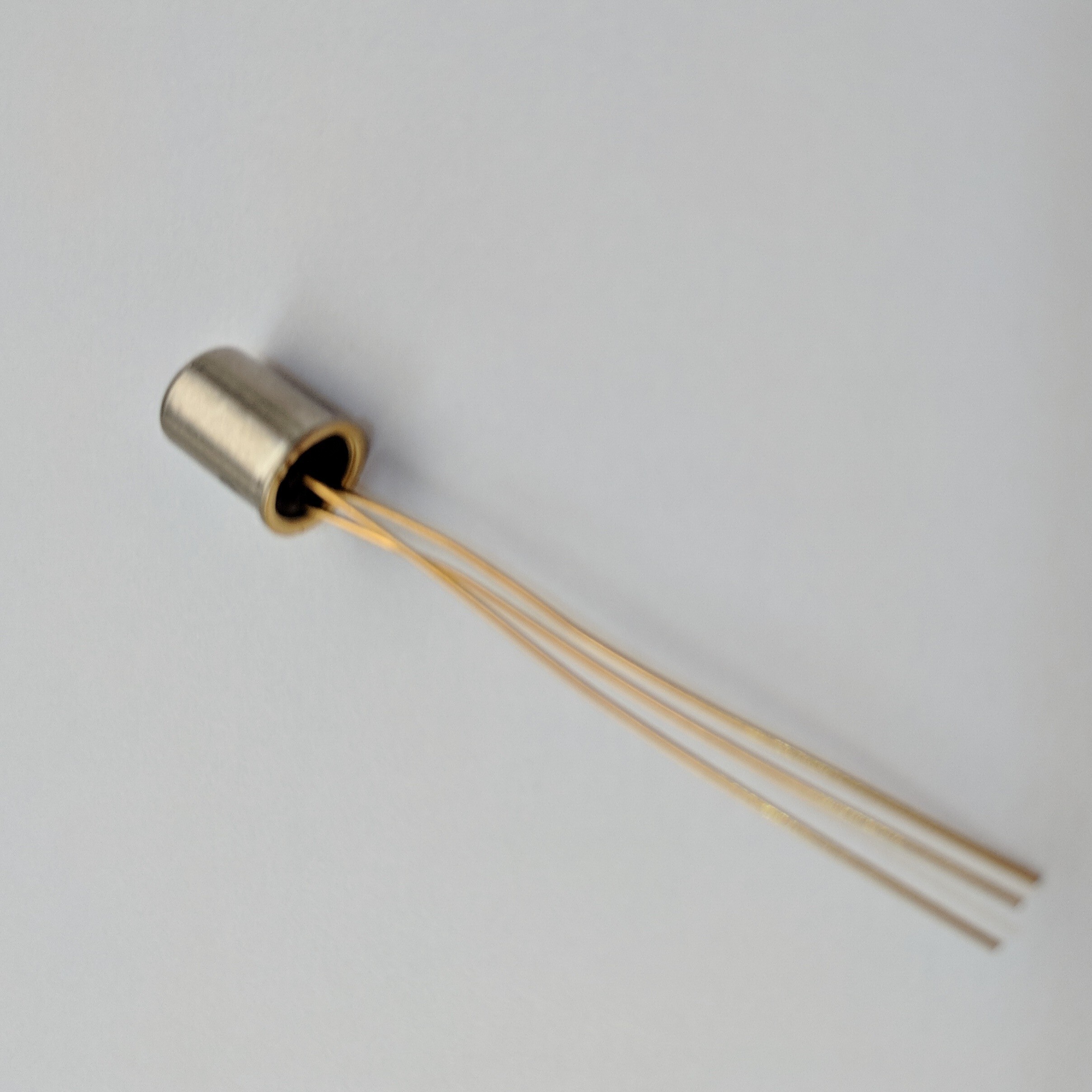

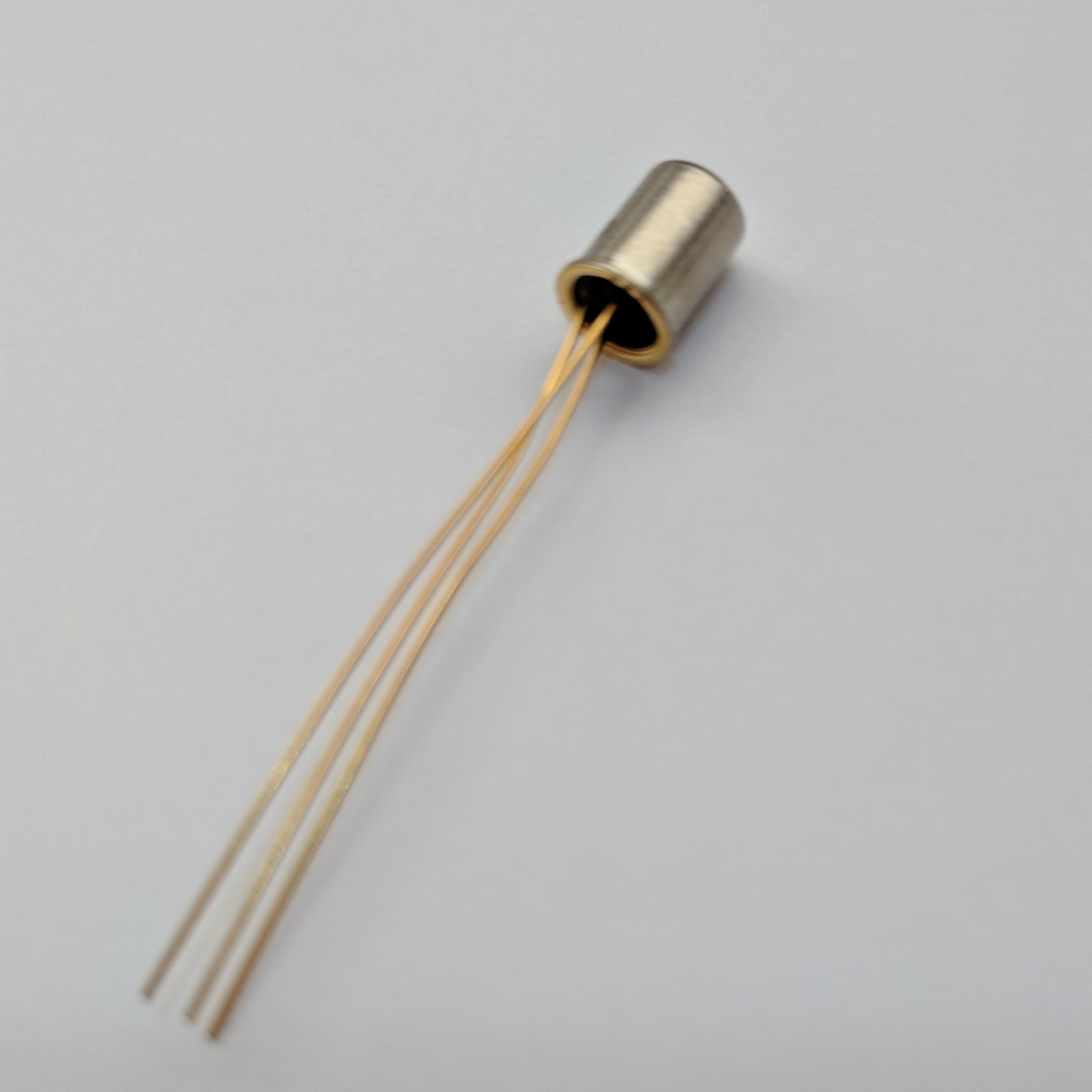

ACY50 Transistor Germanium PNP CASE: TO58 MAKE: El Elektronskaja Industrija
Product specifications
Type Transistor Germanium PNP
Case TO58
Manufacturer El Elektronskaja Industrija
Polarity PNP
Maximum Collector Power Dissipation (Pc) 0.22 W
Maximum Collector-Base Voltage |Vcb| 15 V
Maximum Collector-Emitter Voltage |Vce| 15 V
Maximum Emitter-Base Voltage |Veb| 6 V
Maximum Collector Current |Ic max| 0.2 A
Max. Operating Junction Temperature (Tj) 85 °C
Collector Capacitance (Cc) 50 pF
Transition Frequency (ft): 1 MHz
Forward Current Transfer Ratio (hFE), MIN 30
SKU 536033
