AD133
View detailed images (9)

AD133

SKU: AD133

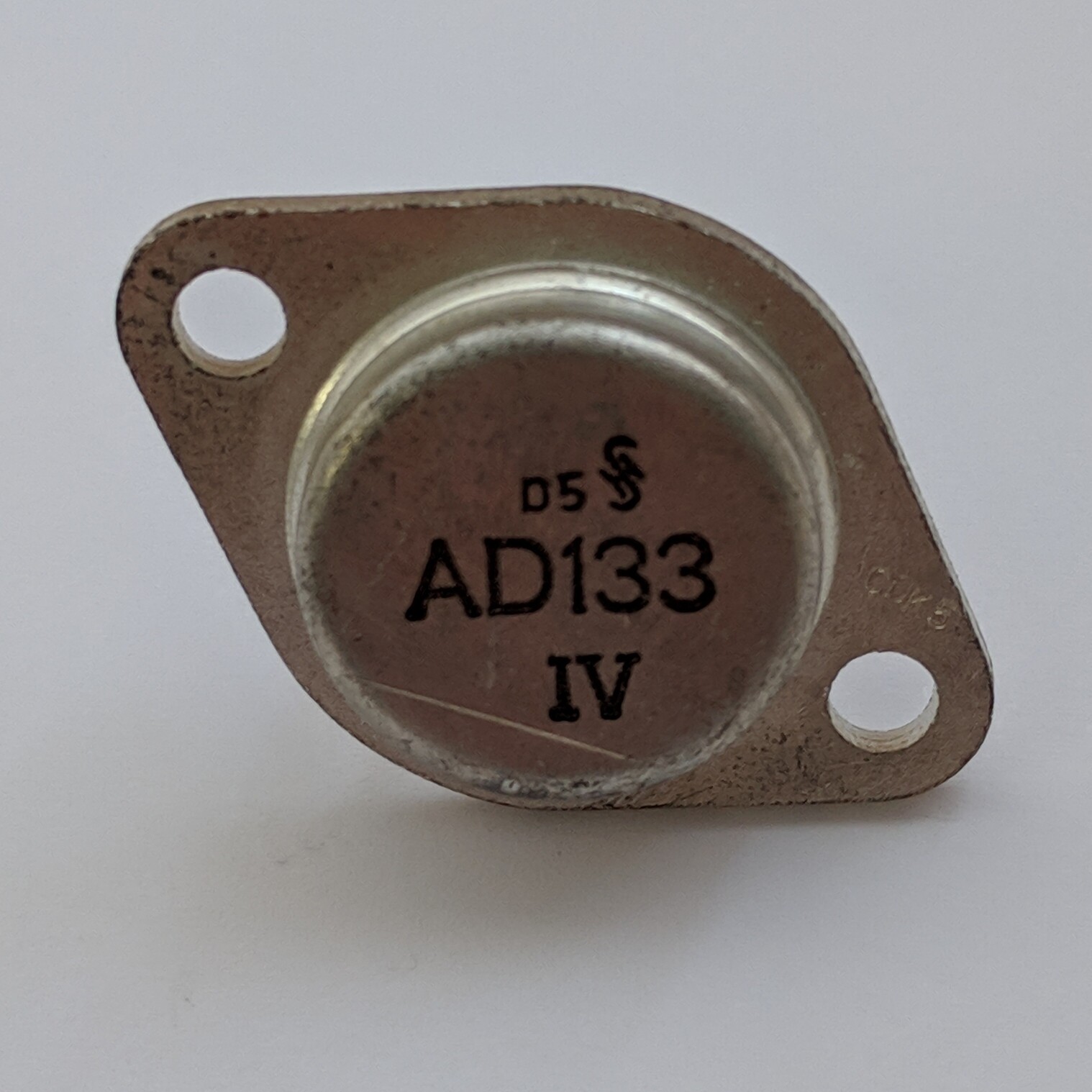

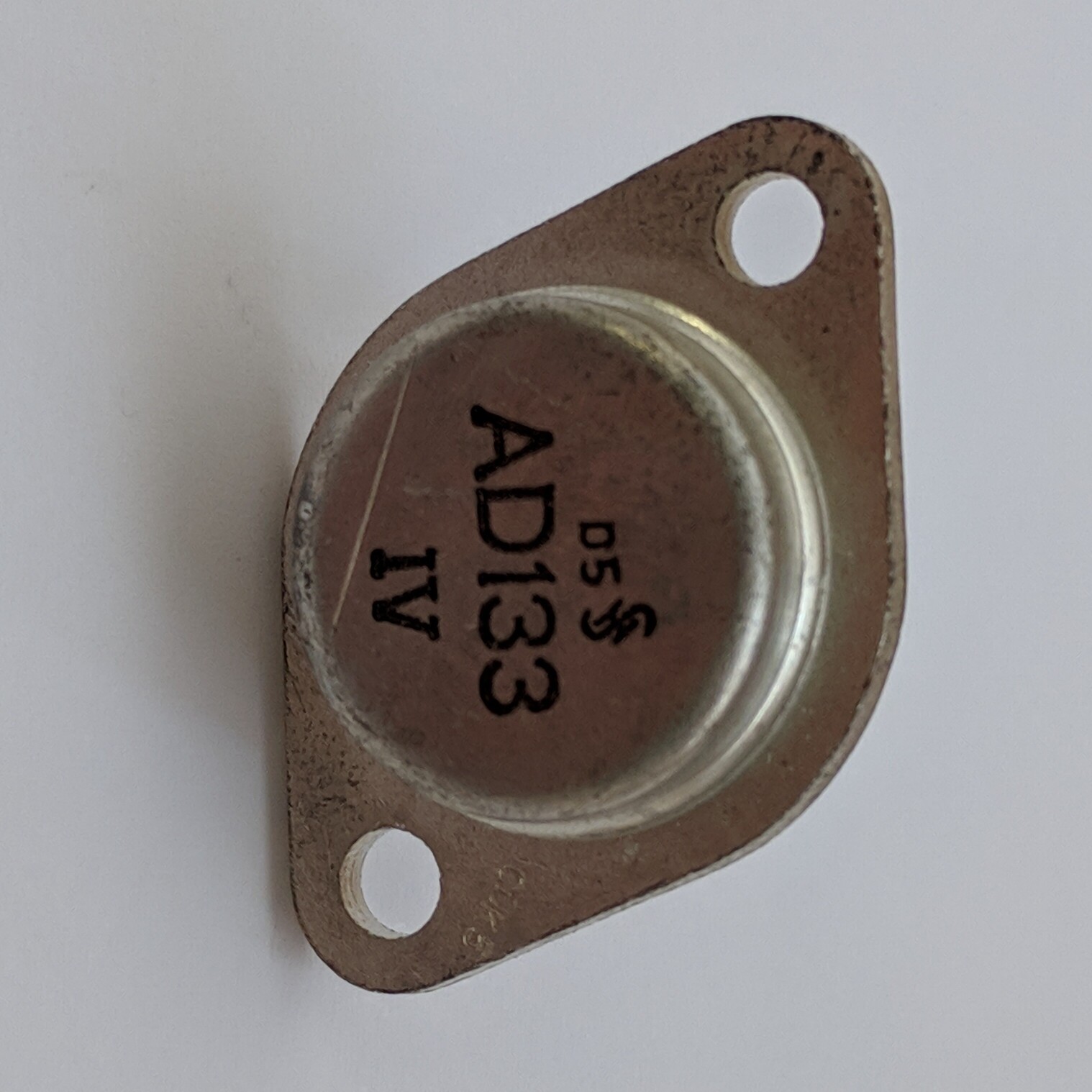

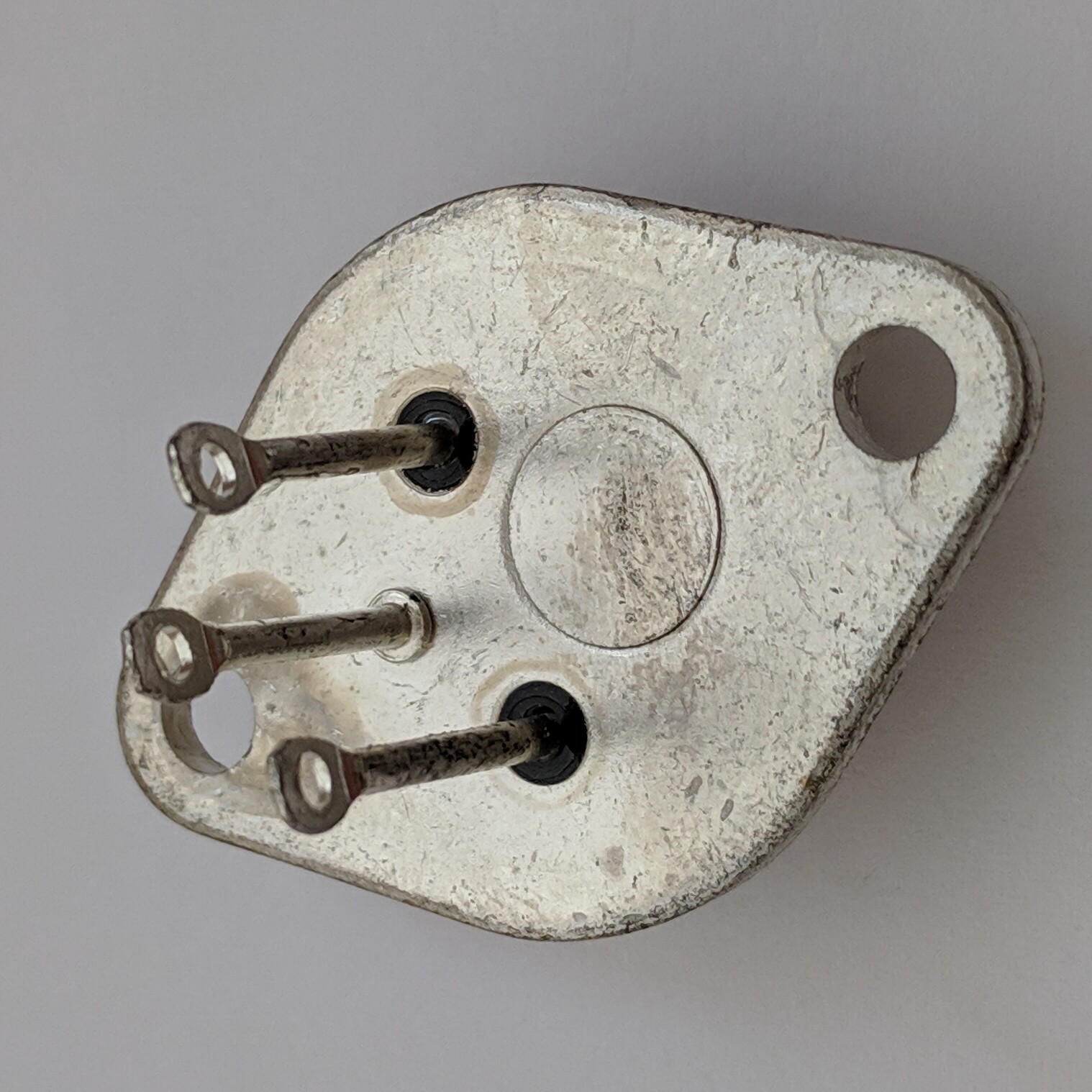

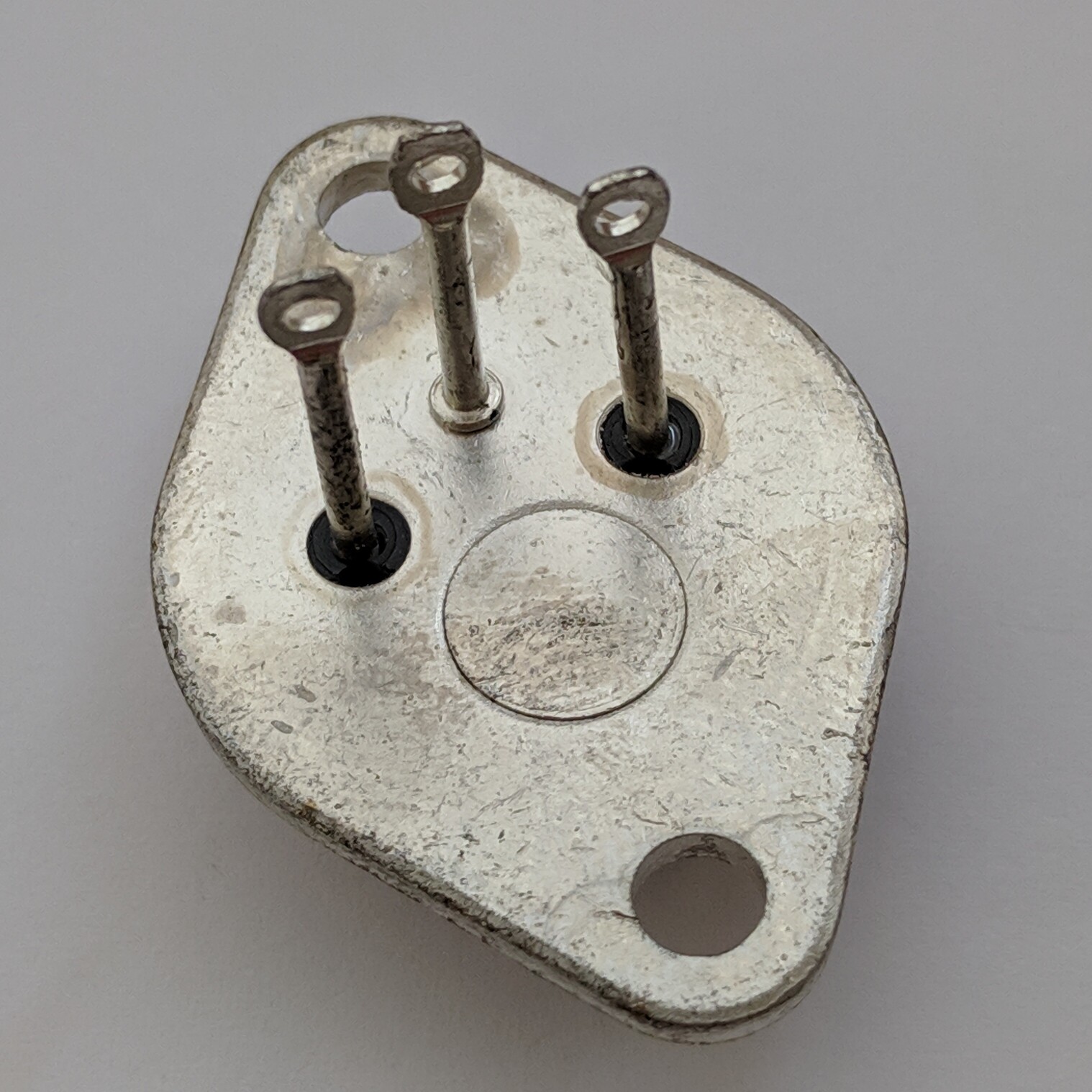

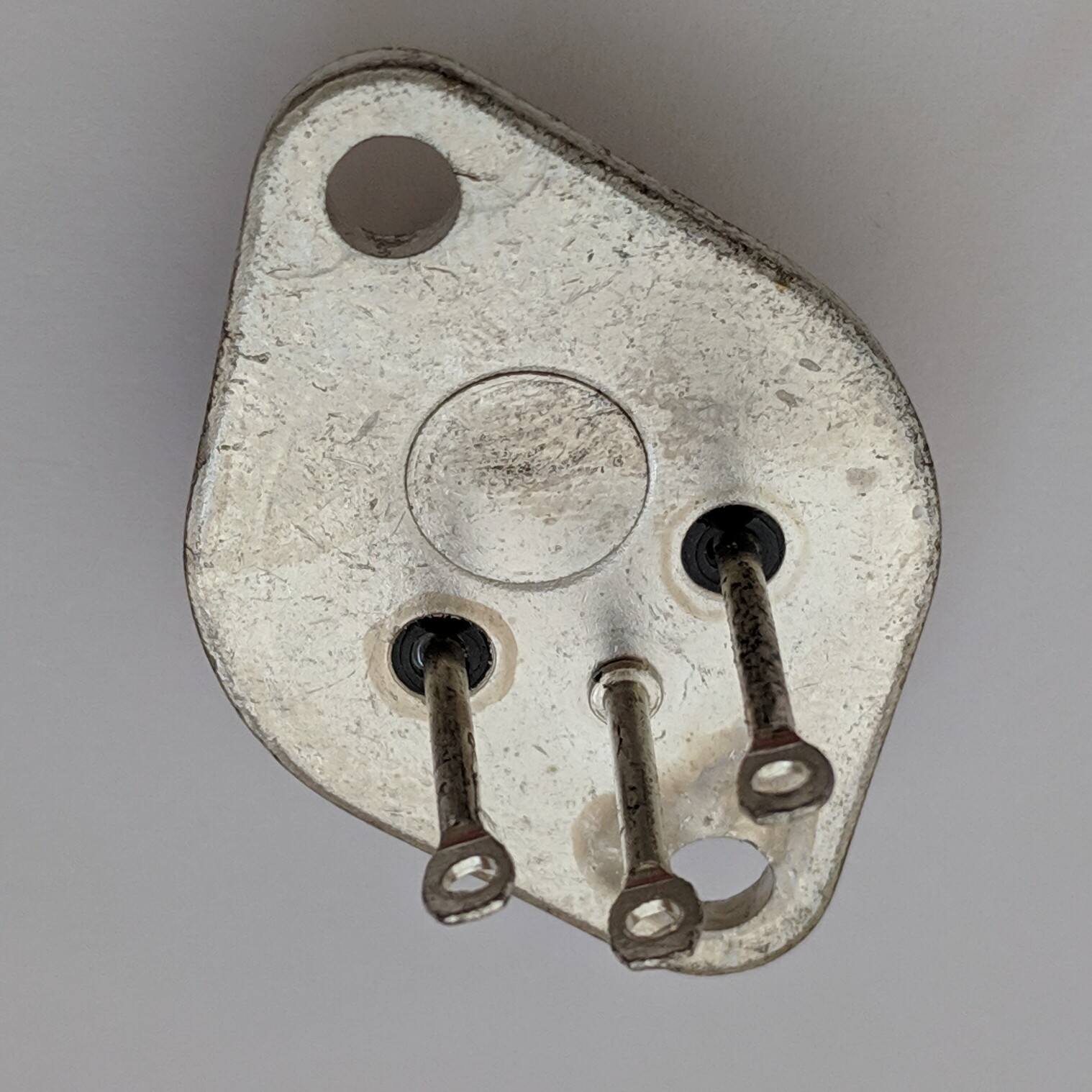

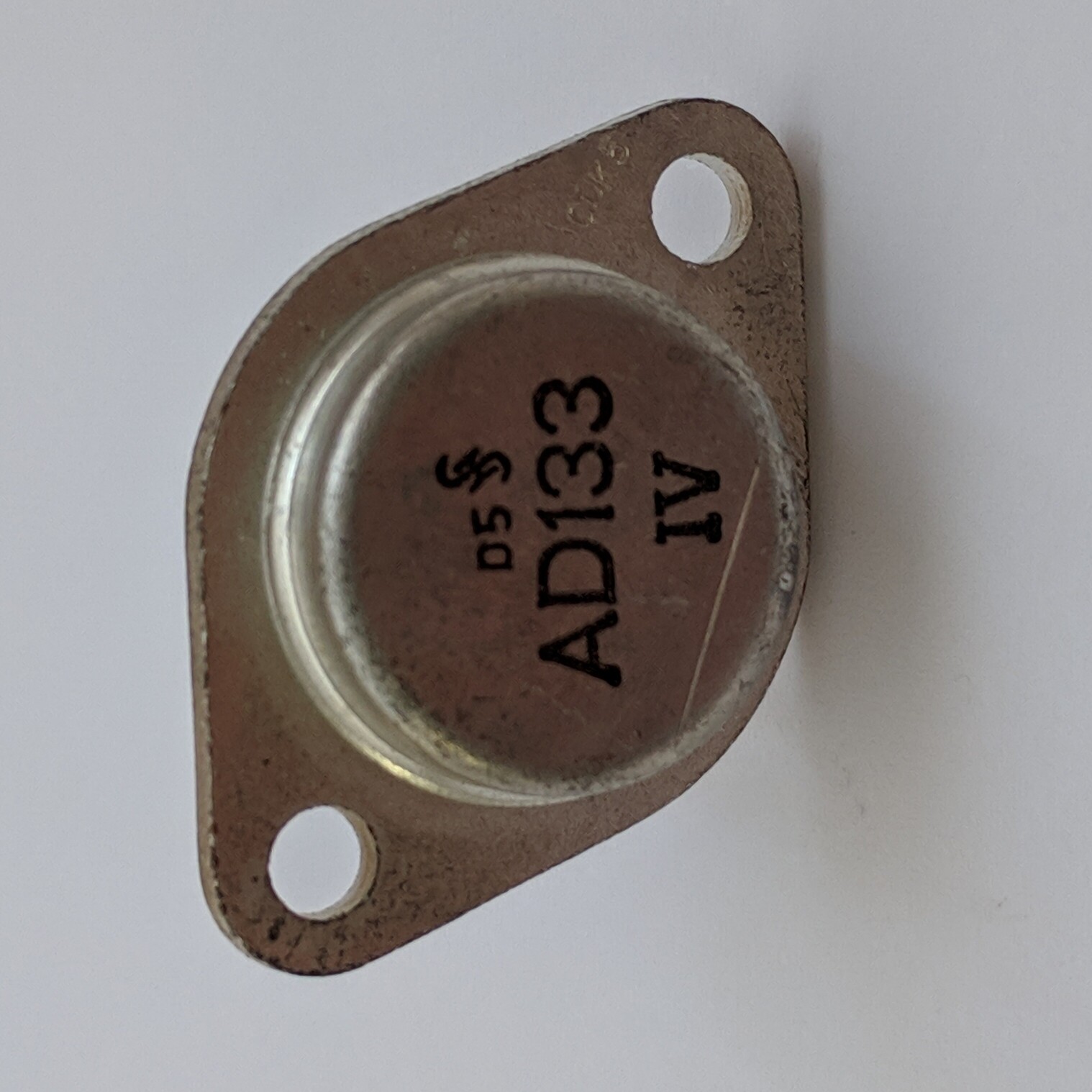

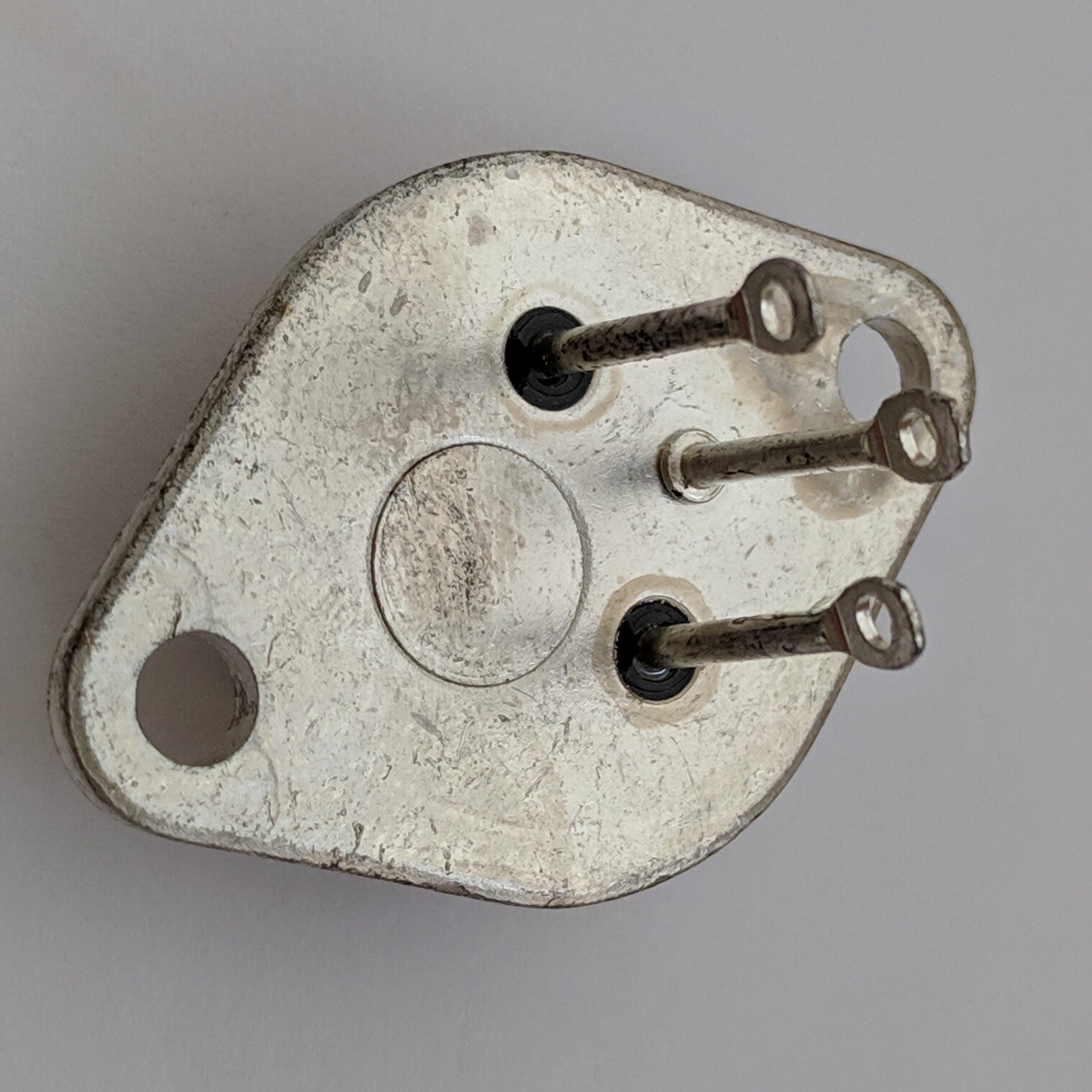

AD133 Transistor Germanium PNP CASE: TO41 MAKE: Siemens Semiconductors
Price:
£5.75 Inc. VAT (£4.79 Ex. VAT)
£5.75 Inc. VAT (£4.79 Ex. VAT)
Qty
  • More pieces shipped in 14 days
?
Product specifications
Type Transistor Germanium PNP
Case TO41
Manufacturer Siemens Semiconductors
Vbr CBO 50
Vbr CEO 32
Max. PD (W) 30
Max. hFE 100
Min hFE 20
Ic Max. (A) 15
@Ic (test) (A) 5.0
Polarity PNP
Tr Max. (s) 25u
Derate Above 25°C 666m
Trans. Freq (Hz) Min. 300k
Oper. Temp (°C) Max. 100
@VCE (V) .50
Pinout Equivalence Number 3-14
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 30 W
Maximum Collector-Base Voltage |Vcb| 50 V
Maximum Collector-Emitter Voltage |Vce| 32 V
Maximum Emitter-Base Voltage |Veb| 10 V
Maximum Collector Current |Ic max| 15 A
Max. Operating Junction Temperature (Tj) 100 °C
Transition Frequency (ft): 0.3 MHz
Forward Current Transfer Ratio (hFE), MIN 20
SKU 84661
