AD241AR

AD241AR

SKU: AD241AR

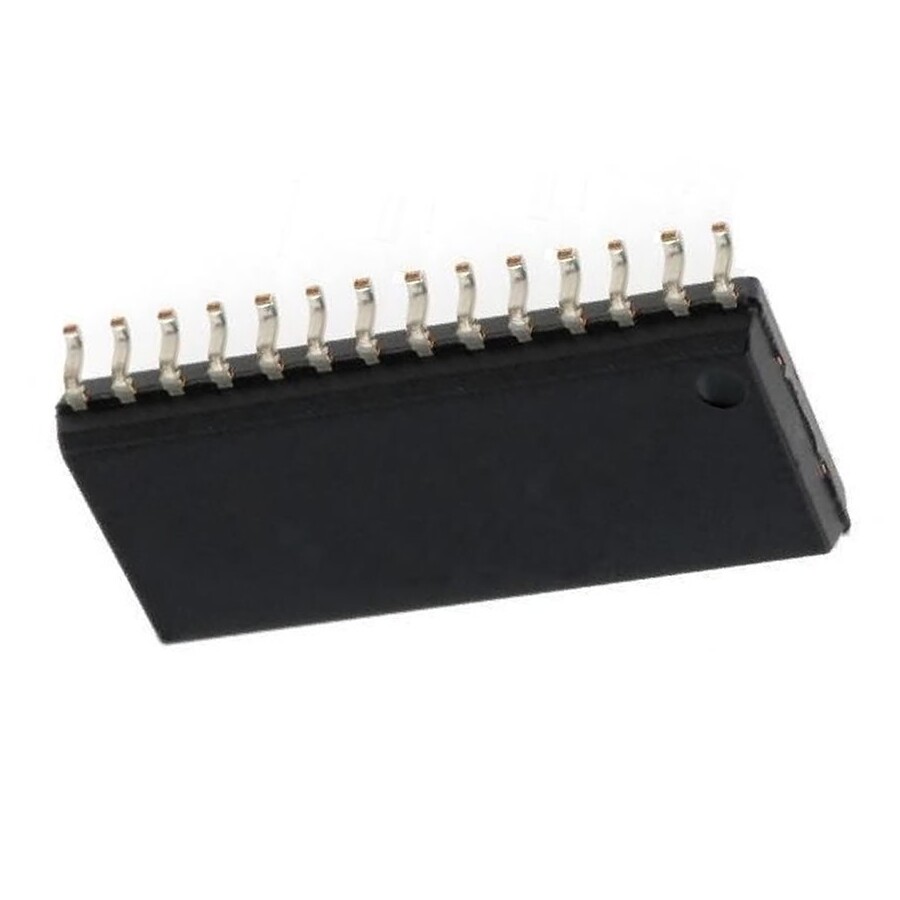

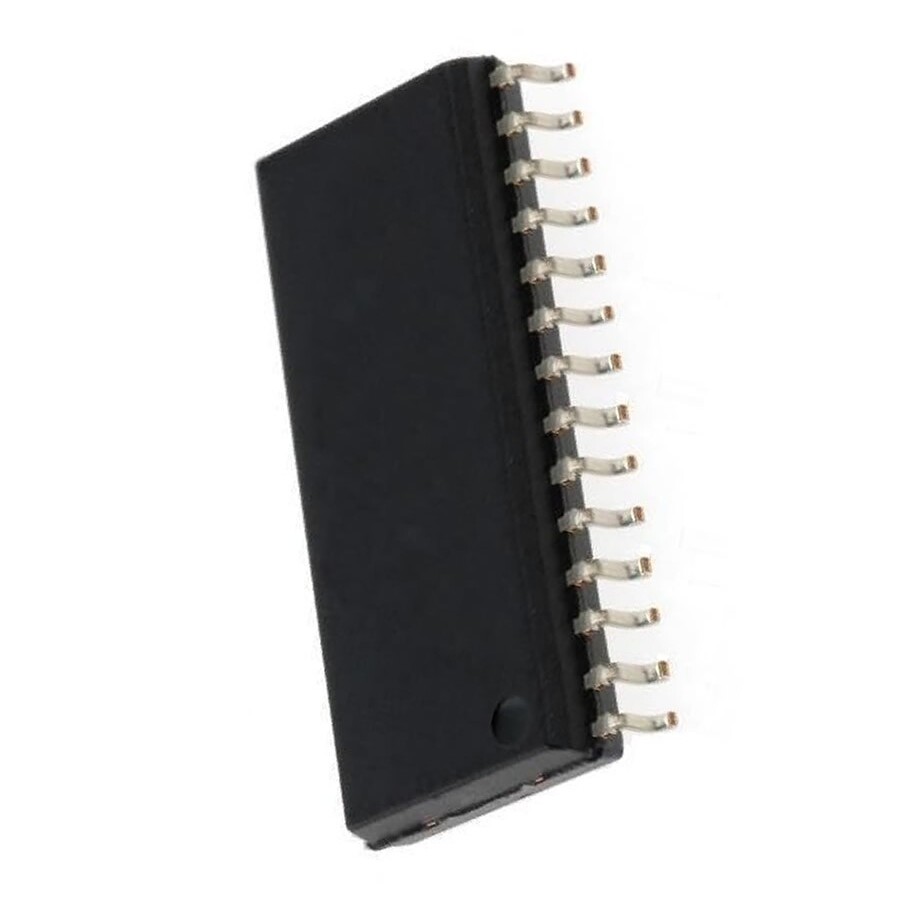

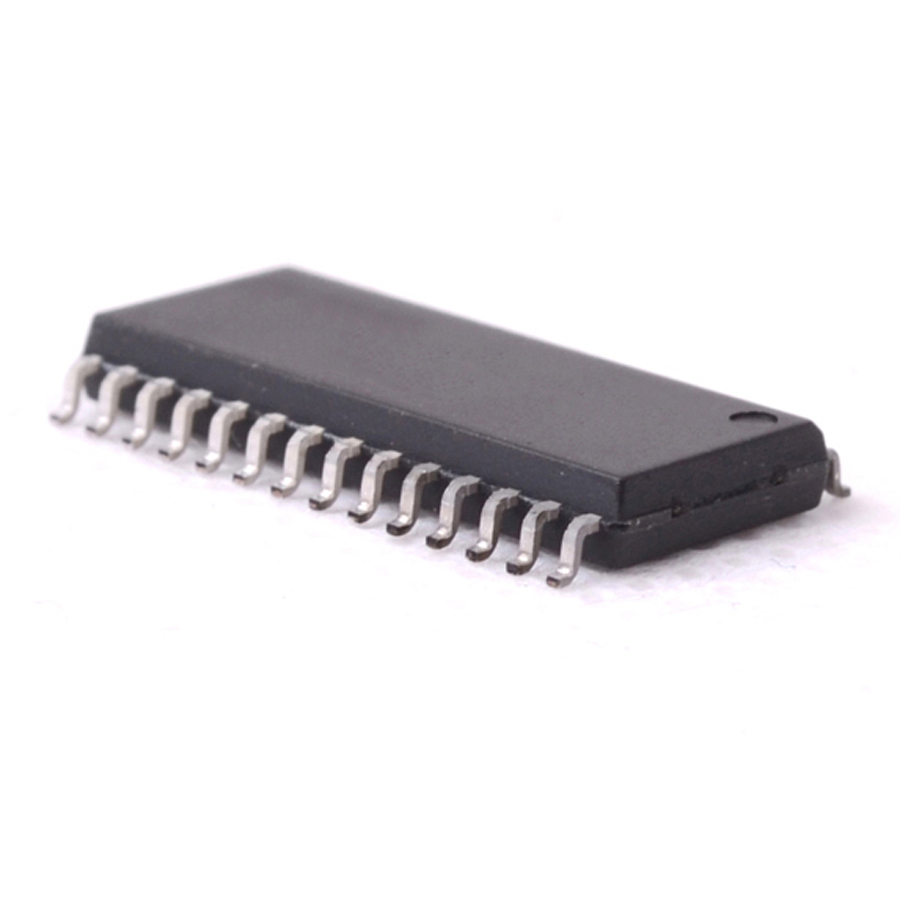

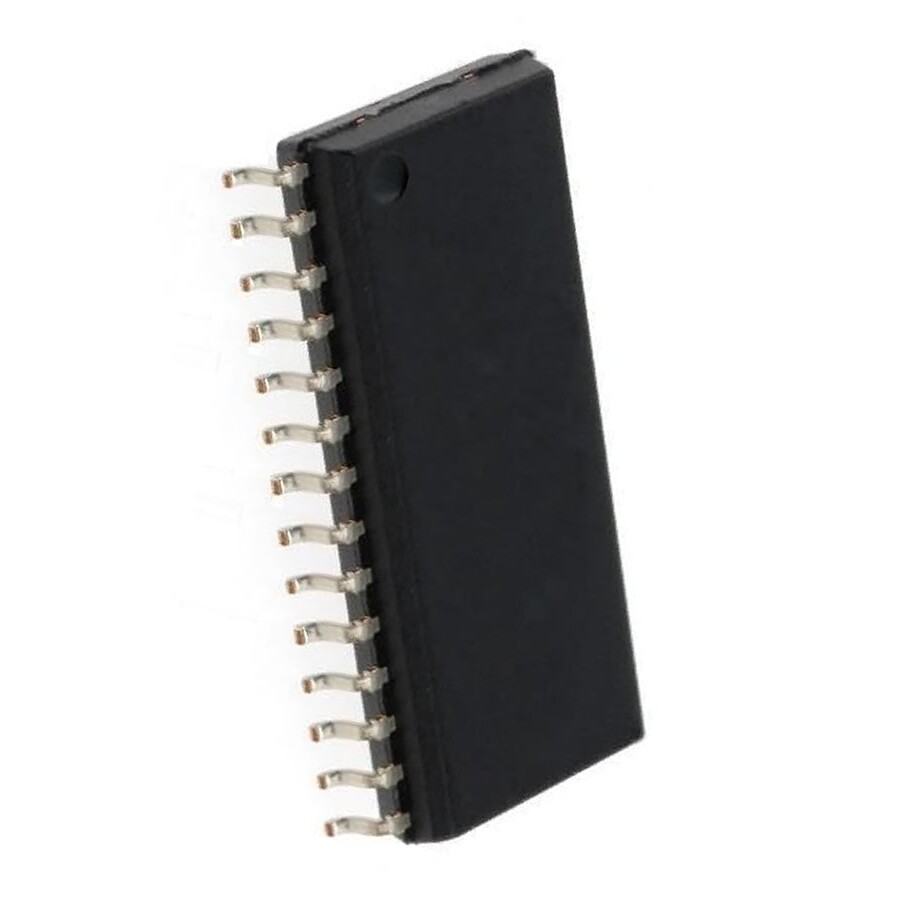

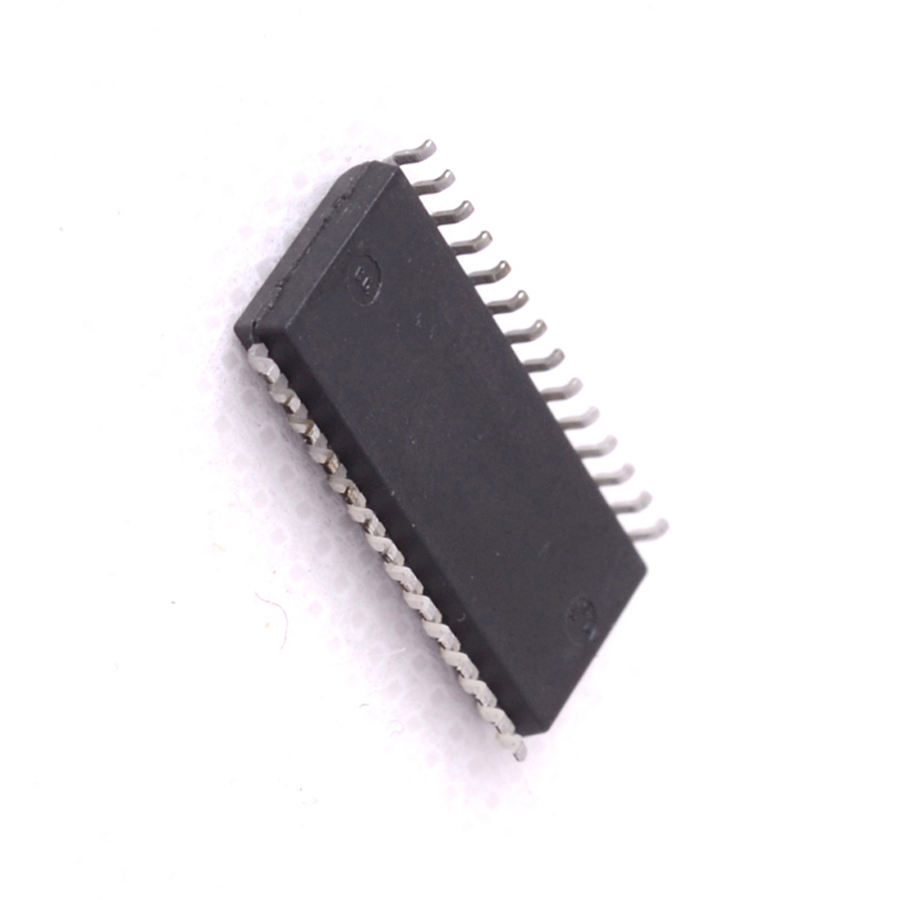

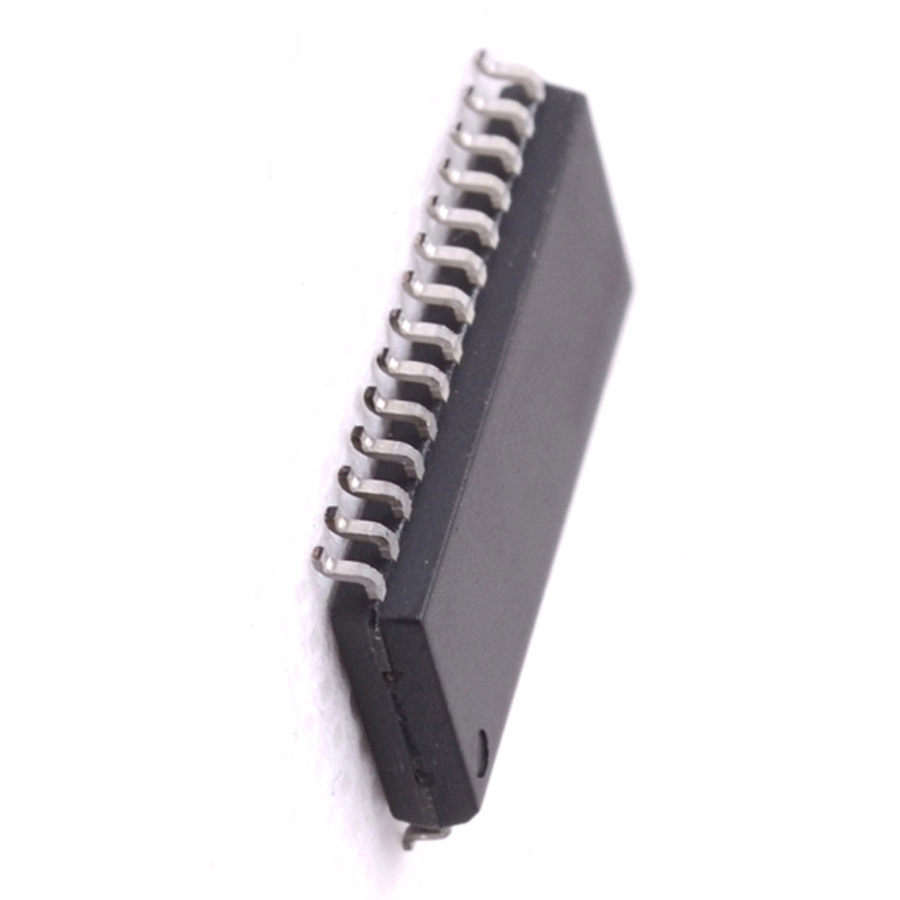

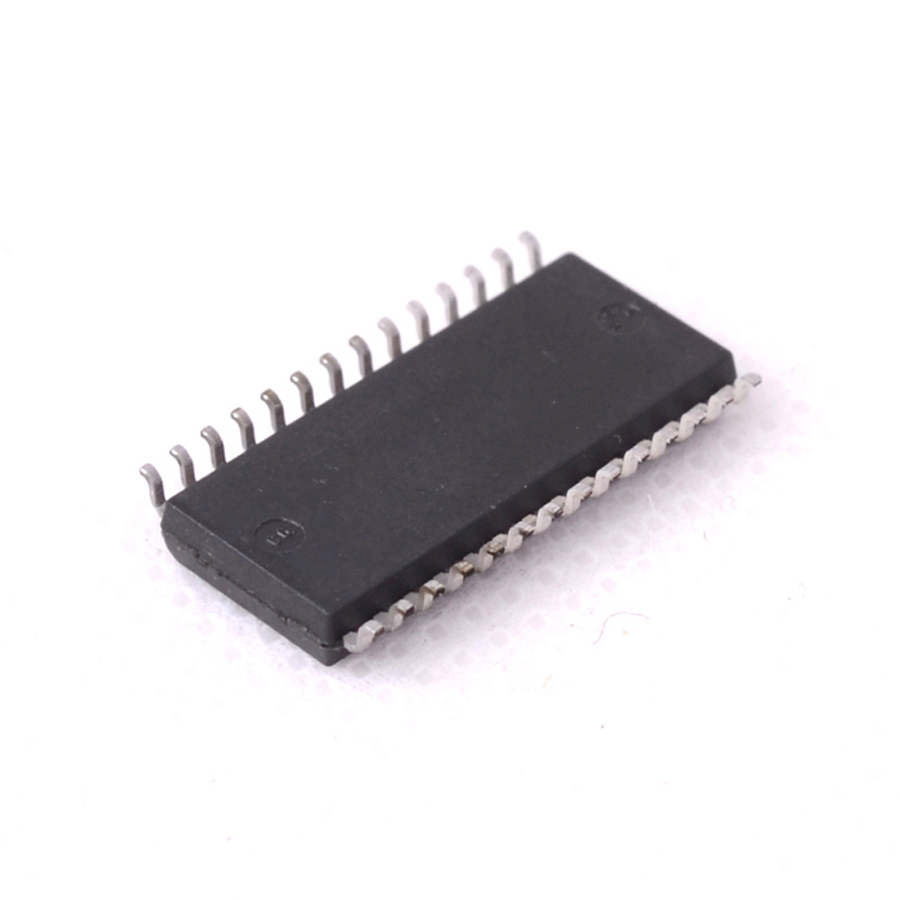

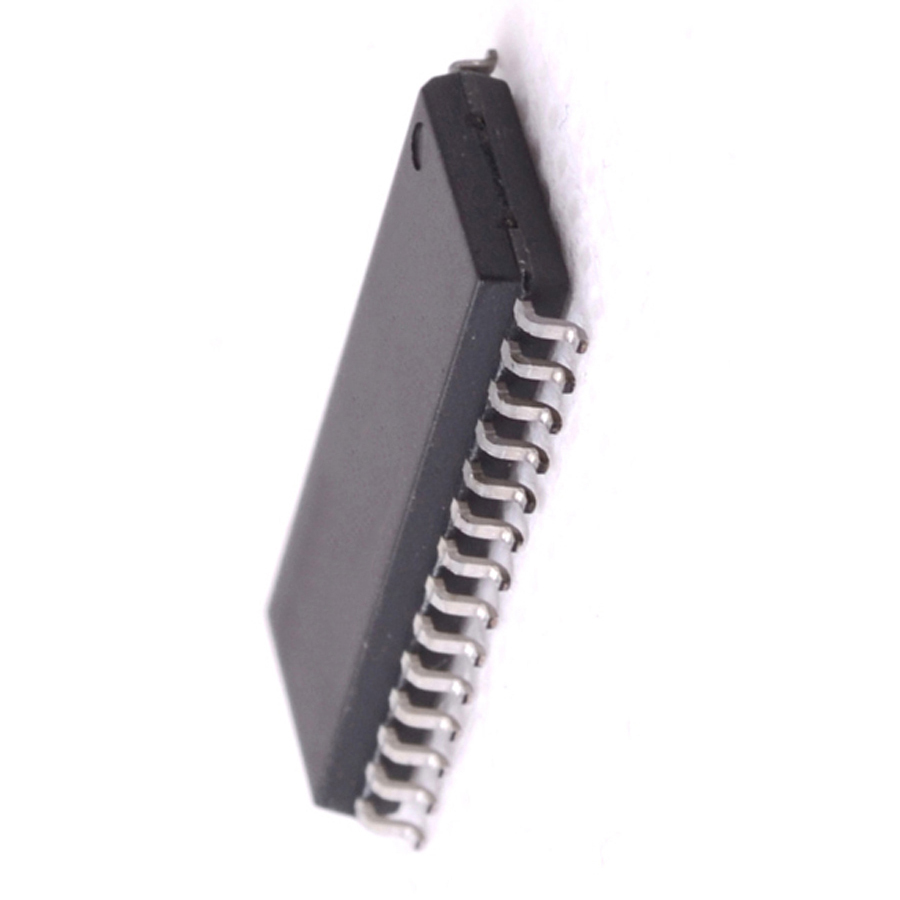

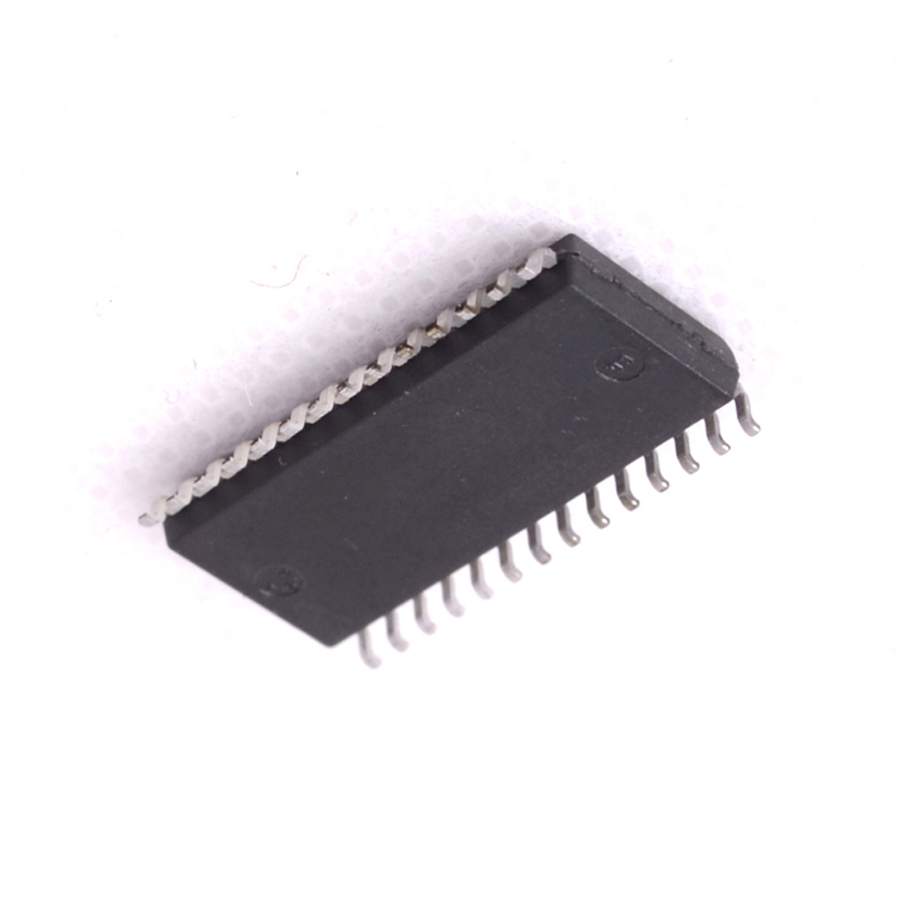

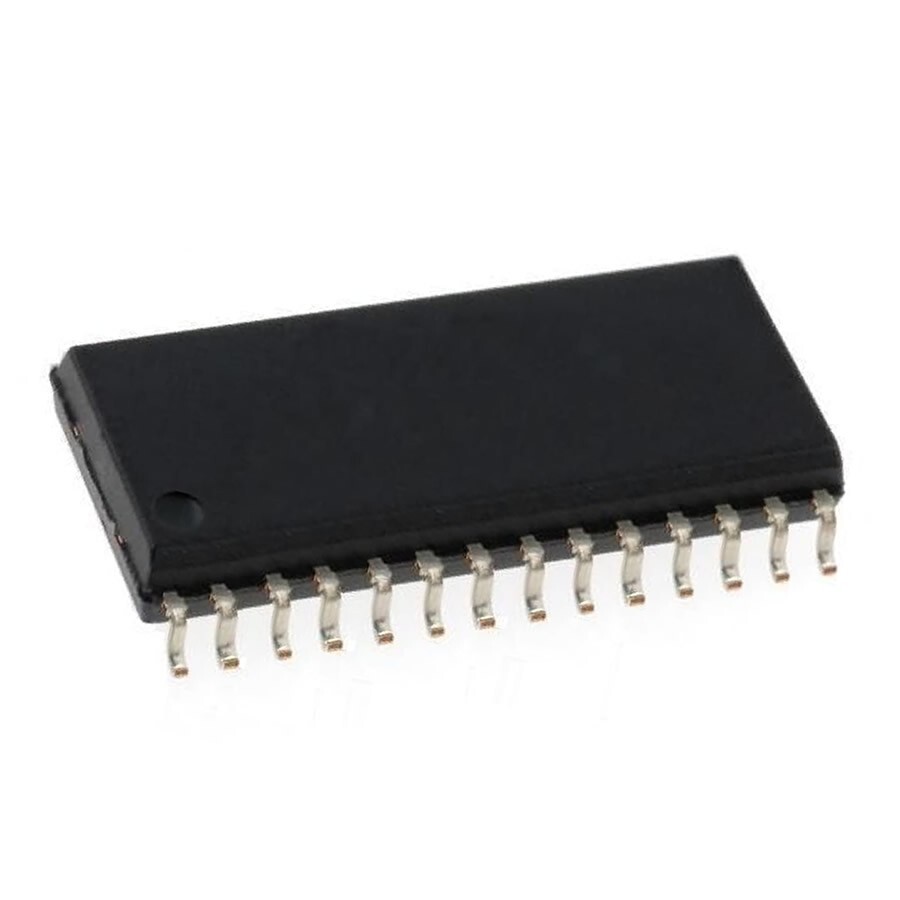

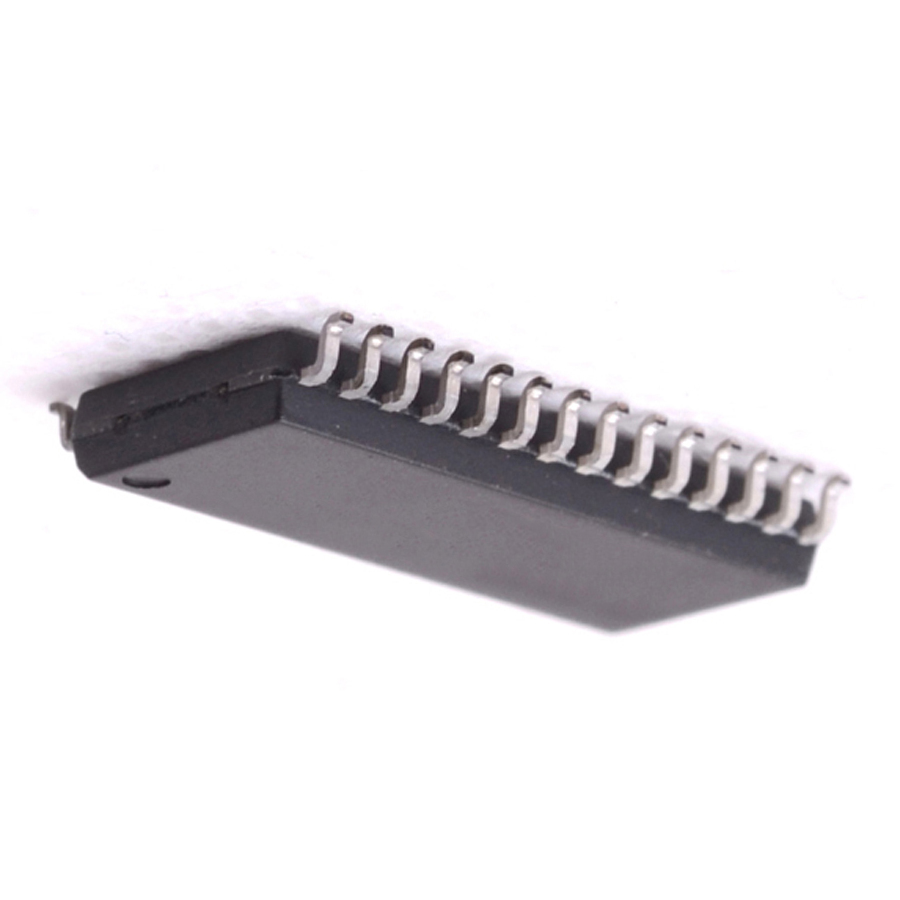

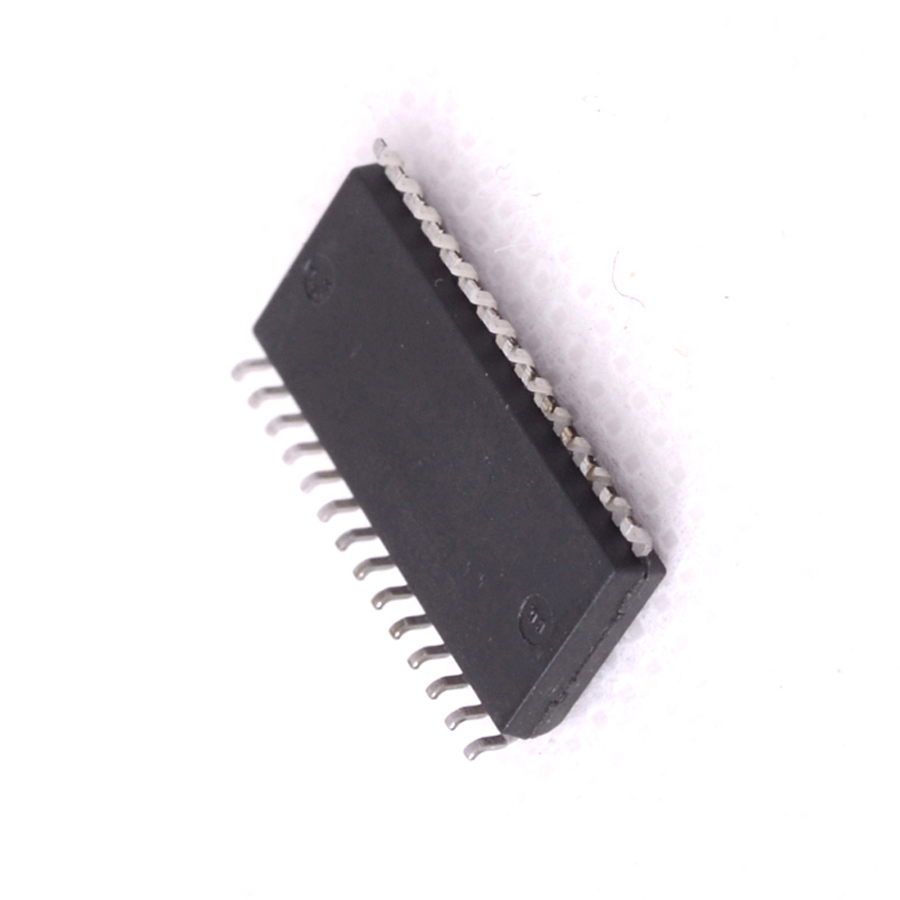

AD241AR Integrated Circuit CASE: SO28 MAKE: Analog Devices - AMD
Product specifications
Type Integrated Circuit
Case SO28
Manufacturer Analog Devices - AMD
Inp Thrshld Hi (V) 2.4
Inp Thrshld Lo (V) 0.8
Mode I/O D or S S
tPD Max. (S) 0.5u
Nom. Neg Supp 0.0
Nom. Pos. Supp 5.0
Tech. CMOS Integrated Circuit
Oper. Temp (°C) Min -40
Oper. Temp (°C) Max. 85
@IOL (A) 3.2m
VOL Max. (Drvr) 0.4
VOL Max. (Rcvr) 0.4
VOH Min (Rcvr) 3.5
Pinout Equivalence Number 28-841
No. of Pins 28
Surface Mounted Yes/No YES
SKU 403484
