AD503SH

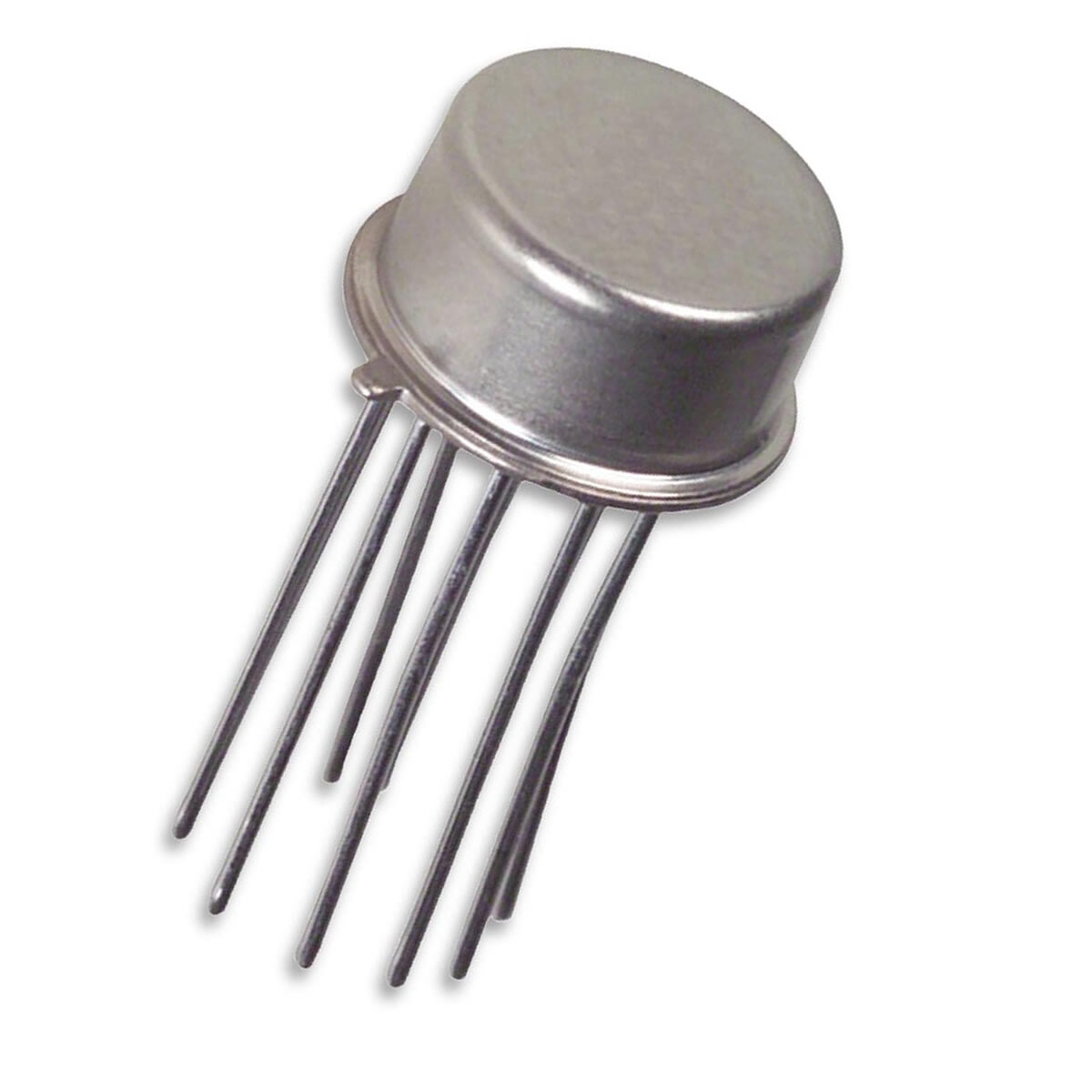

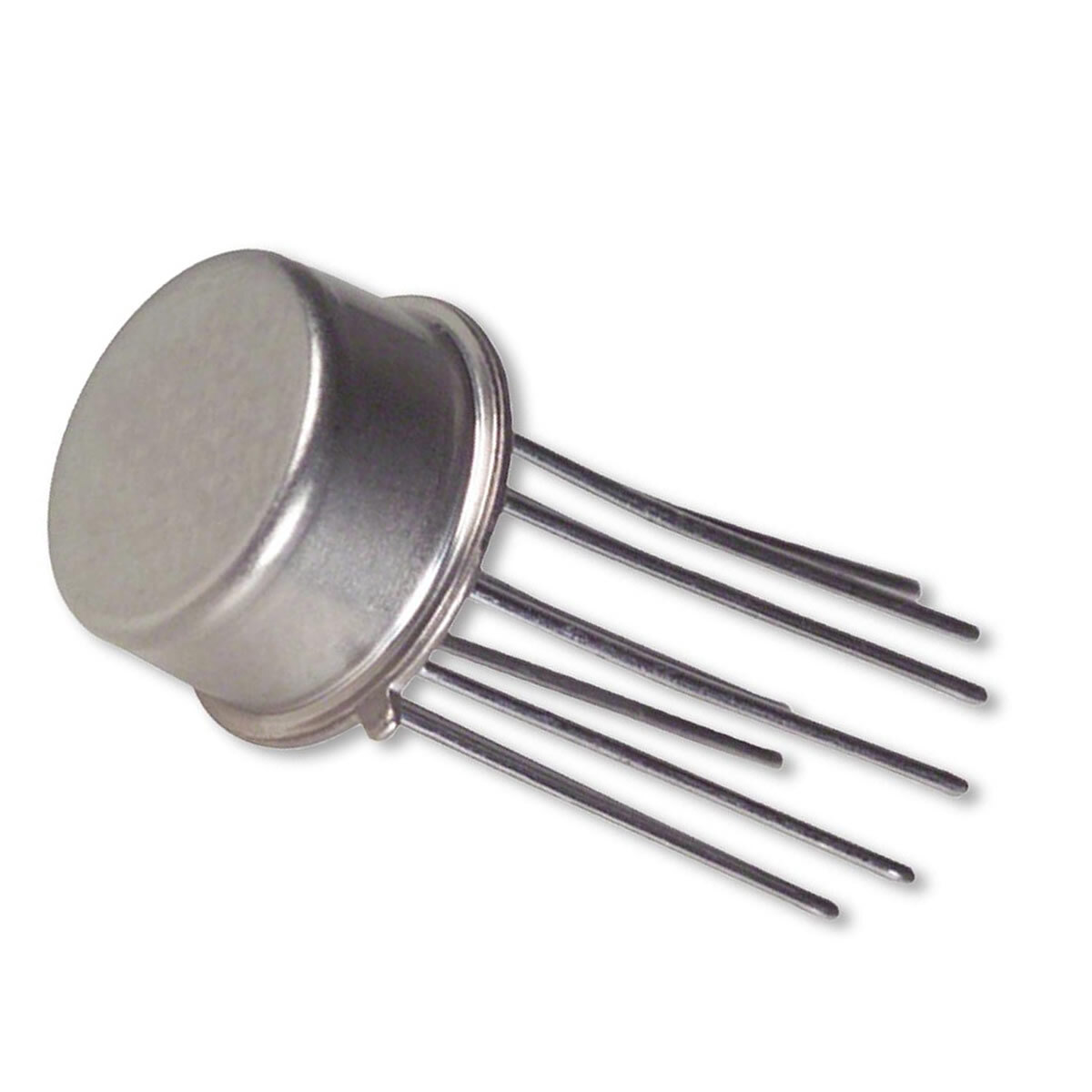

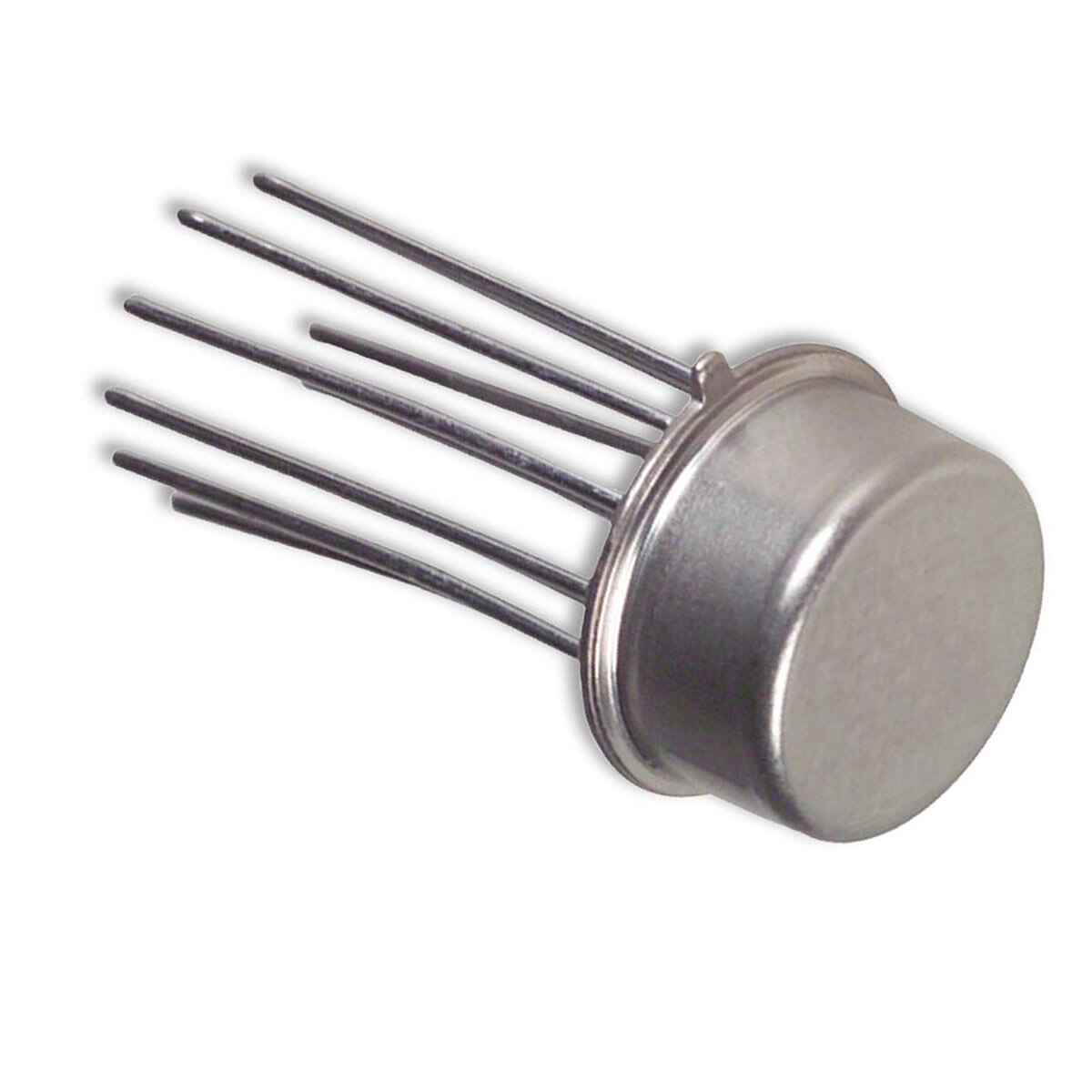

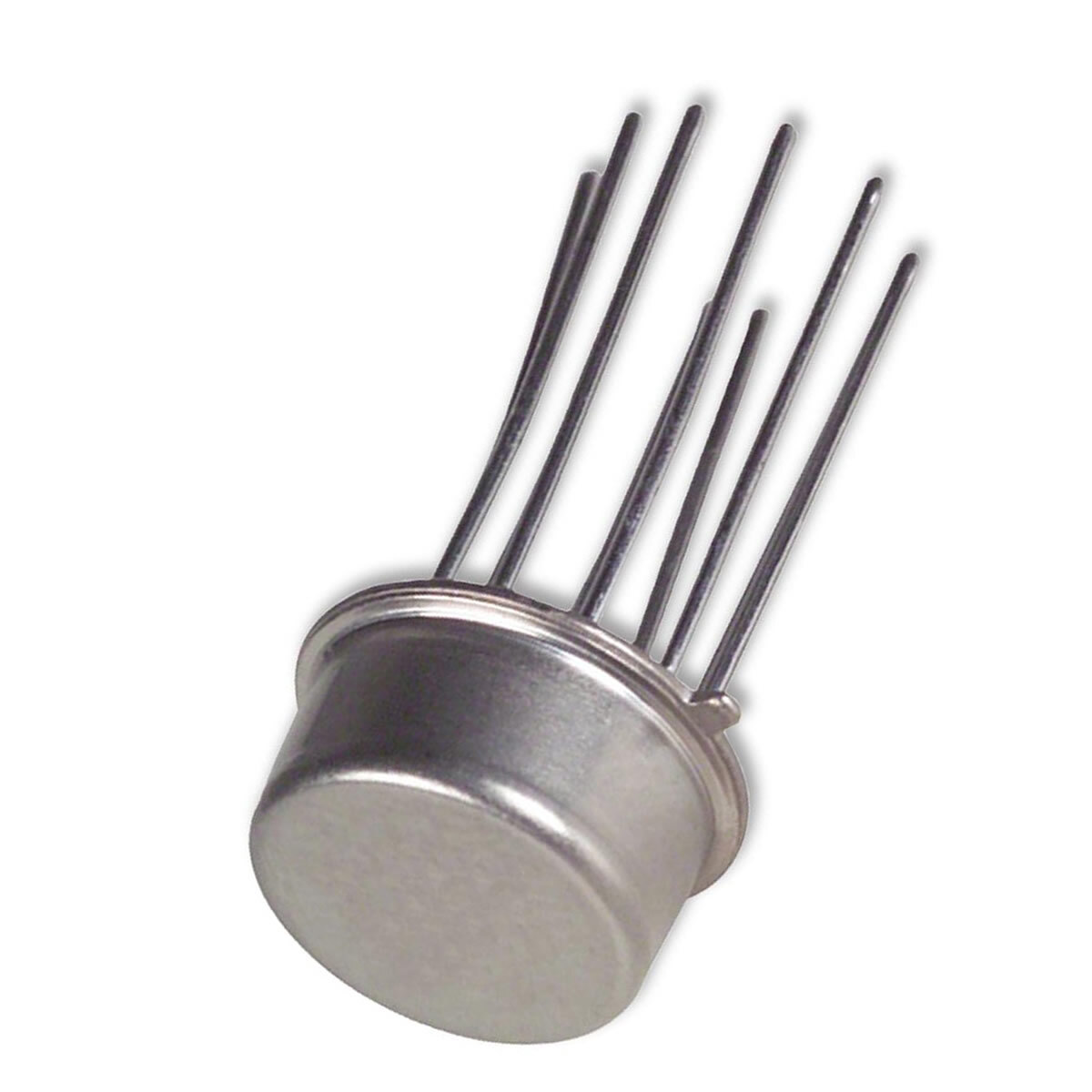

View detailed images (4)

AD503SH

SKU: AD503SH
AD503SH SemiConductor CASE: TO99-8 MAKE: Analog Devices - AMD
Product specifications
Type SemiConductor
Case TO99-8
Manufacturer Analog Devices - AMD
R(in) (Û) 100G
I(io) Max. (A) 5.0p
V(io) Max. (V) 20m
PD Max. (W) 210m
Inp Bias Curr. Max. (A) 10p
Unity Gain BW (Hz) 1.0M-
Com Mode Inp Range (VICR) 20
Temp Coef. of VIO 20u
Oper. Temp (°C) Min -55
Oper. Temp (°C) Max. 125
Pinout Equivalence Number 8-215
No. of Pins 8
Surface Mounted Yes/No NO
SKU 119136
