AD504JH

AD504JH

SKU: AD504JH

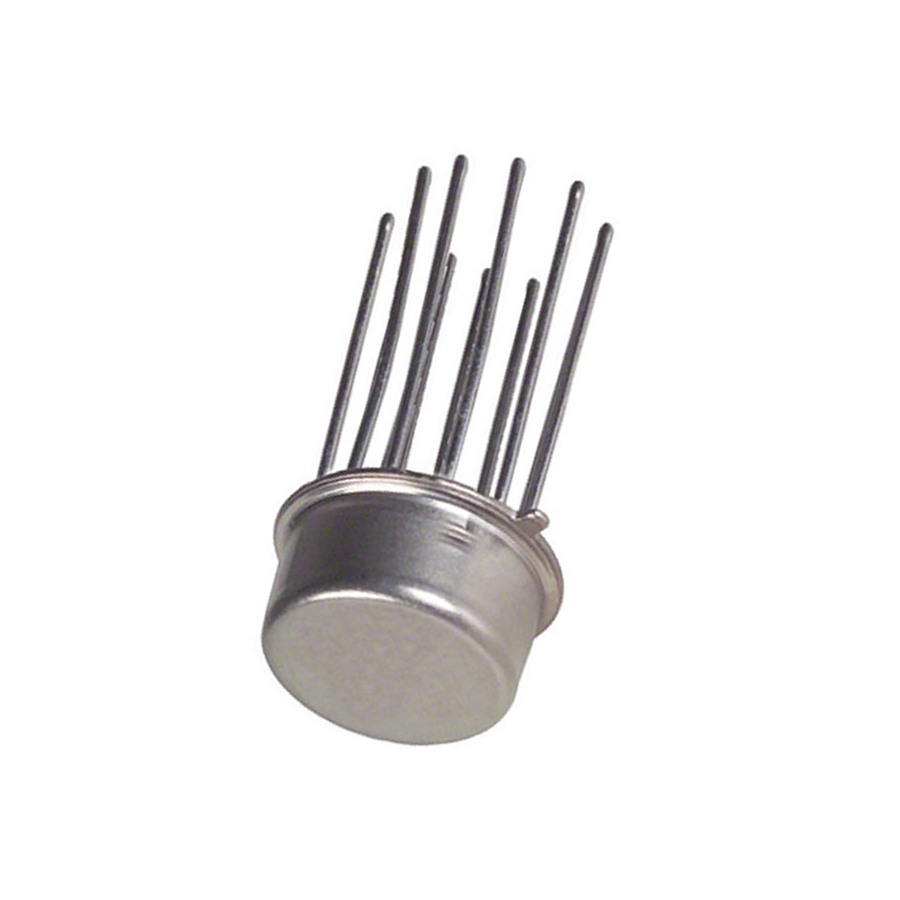

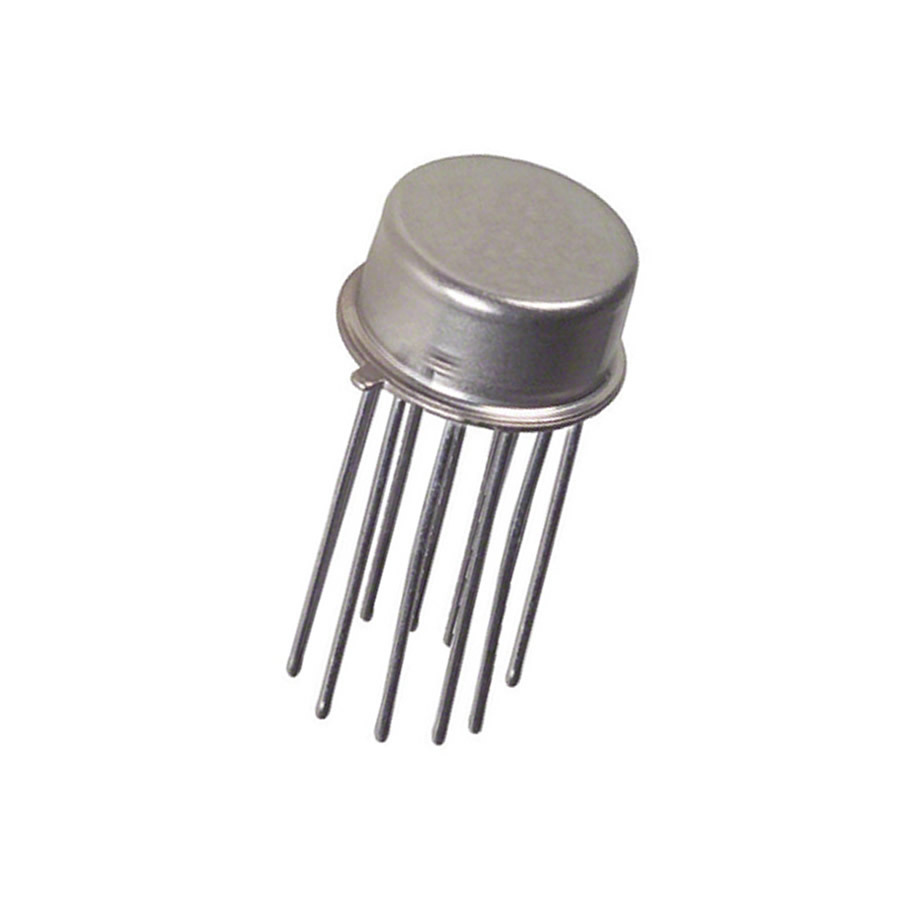

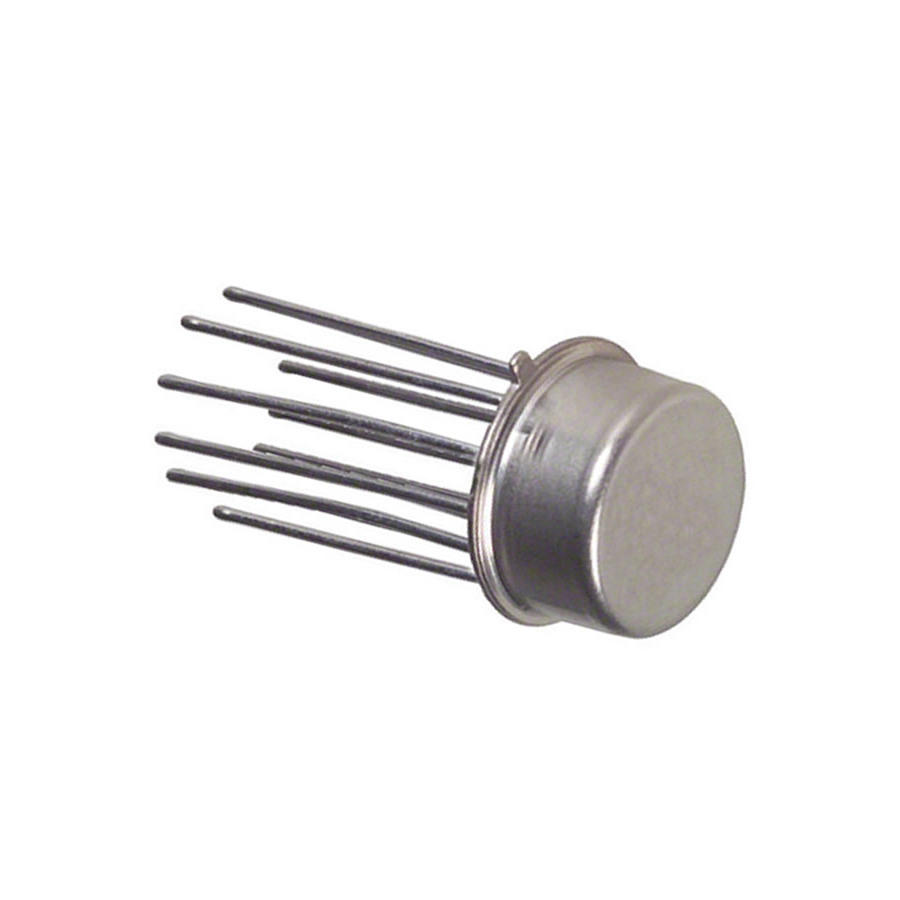

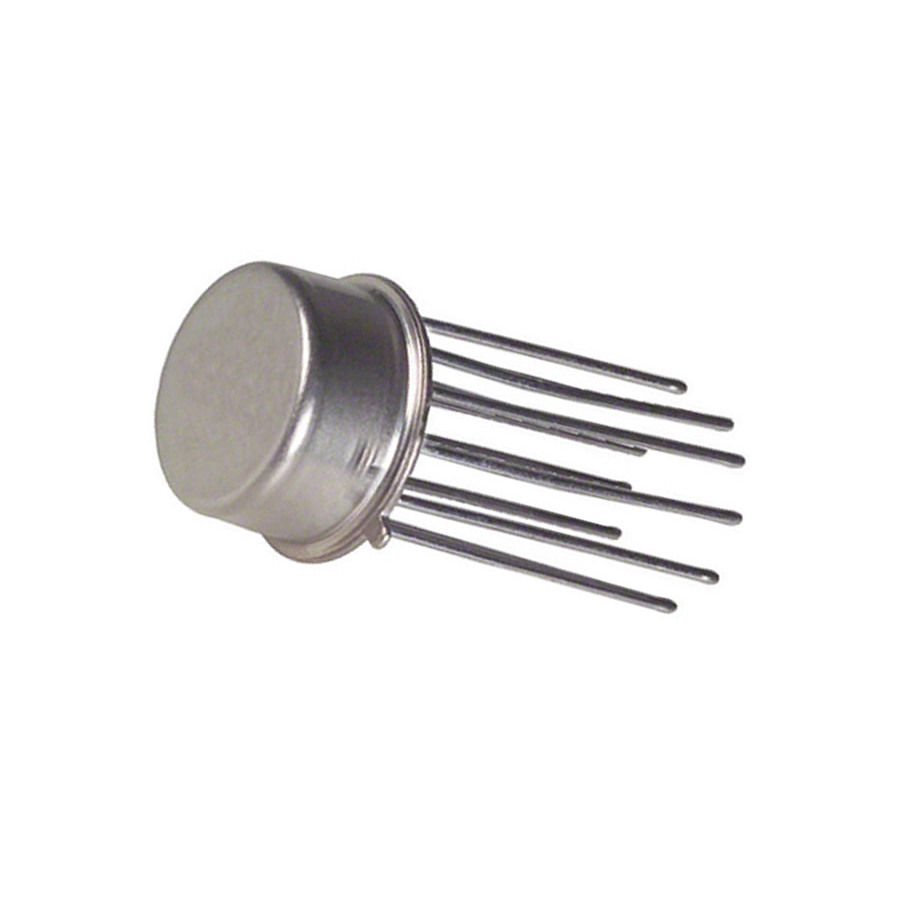

AD504JH SemiConductor CASE: TO100 MAKE: Analog Devices - AMD
Product specifications
Type SemiConductor
Case TO100
Manufacturer Analog Devices - AMD
R(in) (Û) 0.5M
I(io) Max. (A) 40n
V(io) Max. (V) 2.5m
PD Max. (W) 120m
Inp Bias Curr. Max. (A) 200n
Unity Gain BW (Hz) 300k-
Com Mode Inp Range (VICR) 30
Temp Coef. of VIO 0.5u
Oper. Temp (°C) Min 0
Oper. Temp (°C) Max. 70
Pinout Equivalence Number 8-76
No. of Pins 8
Surface Mounted Yes/No NO
SKU 119153
