AD504LH

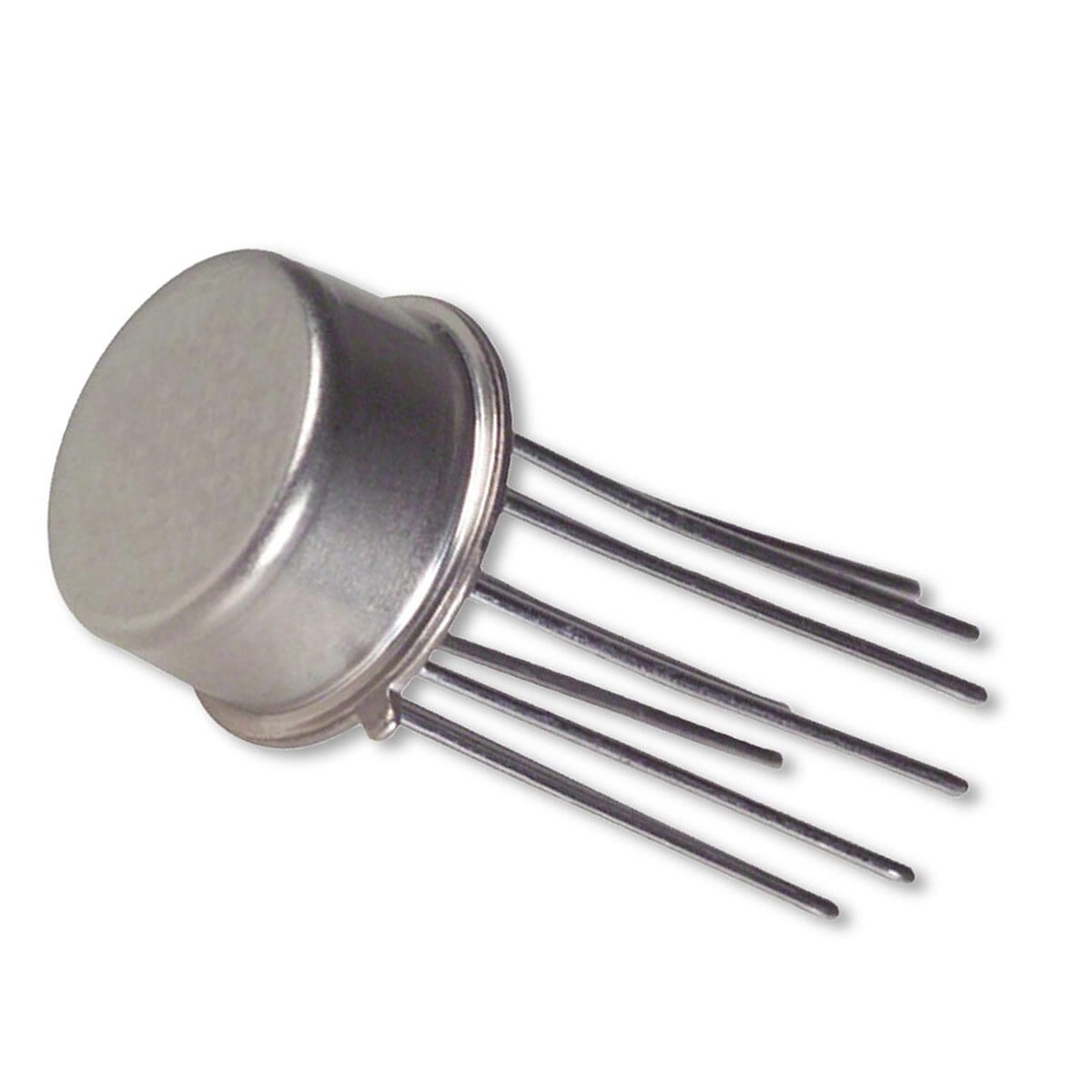

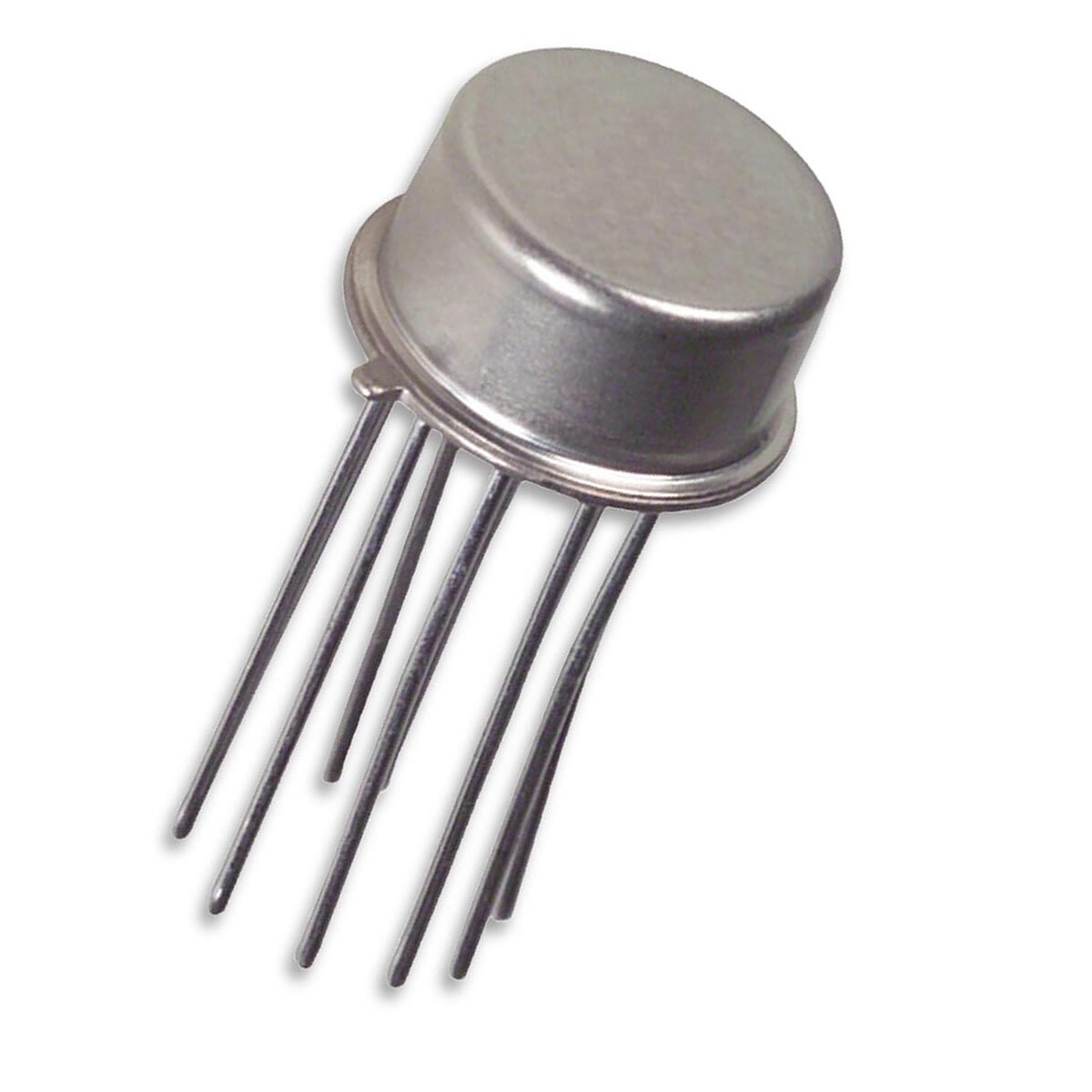

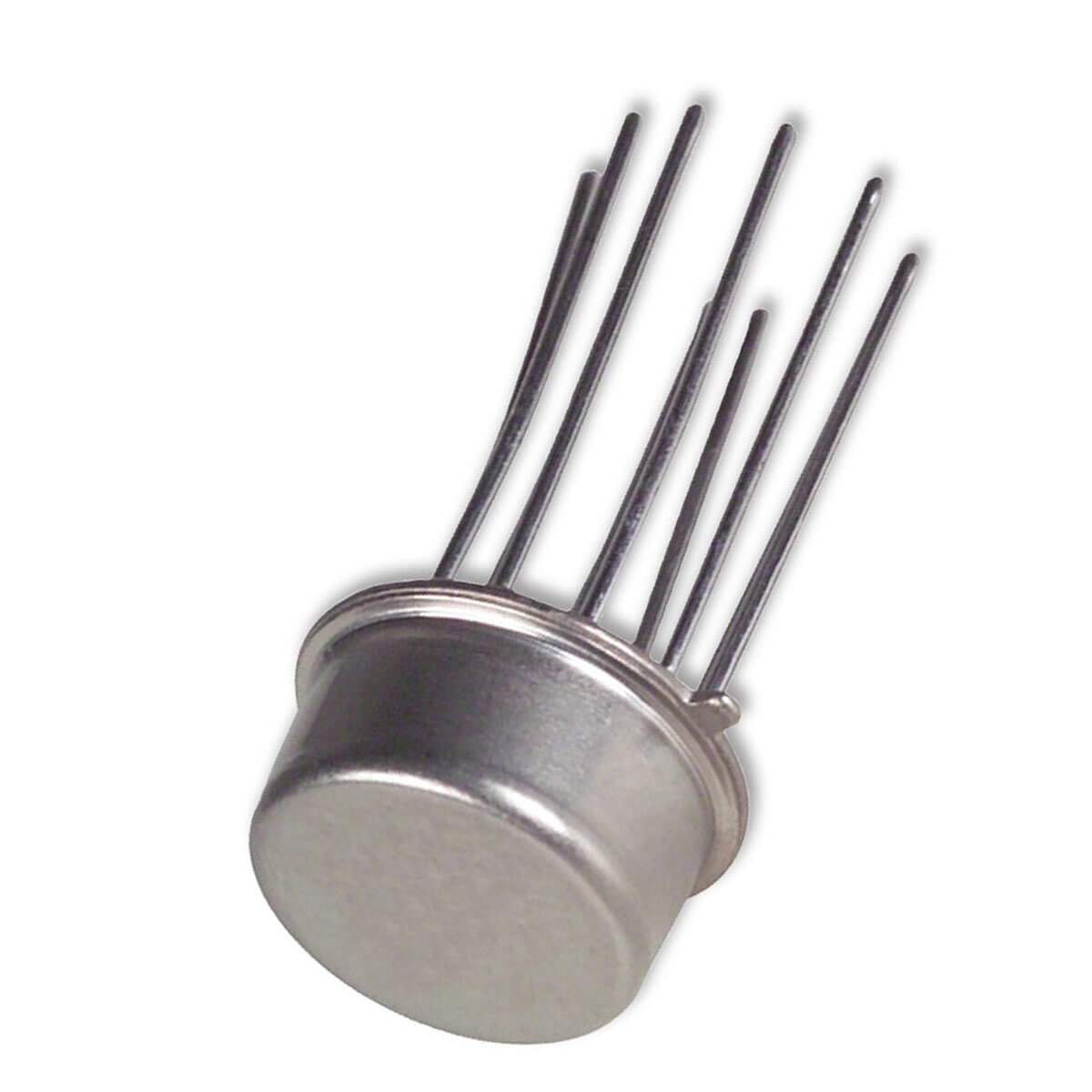

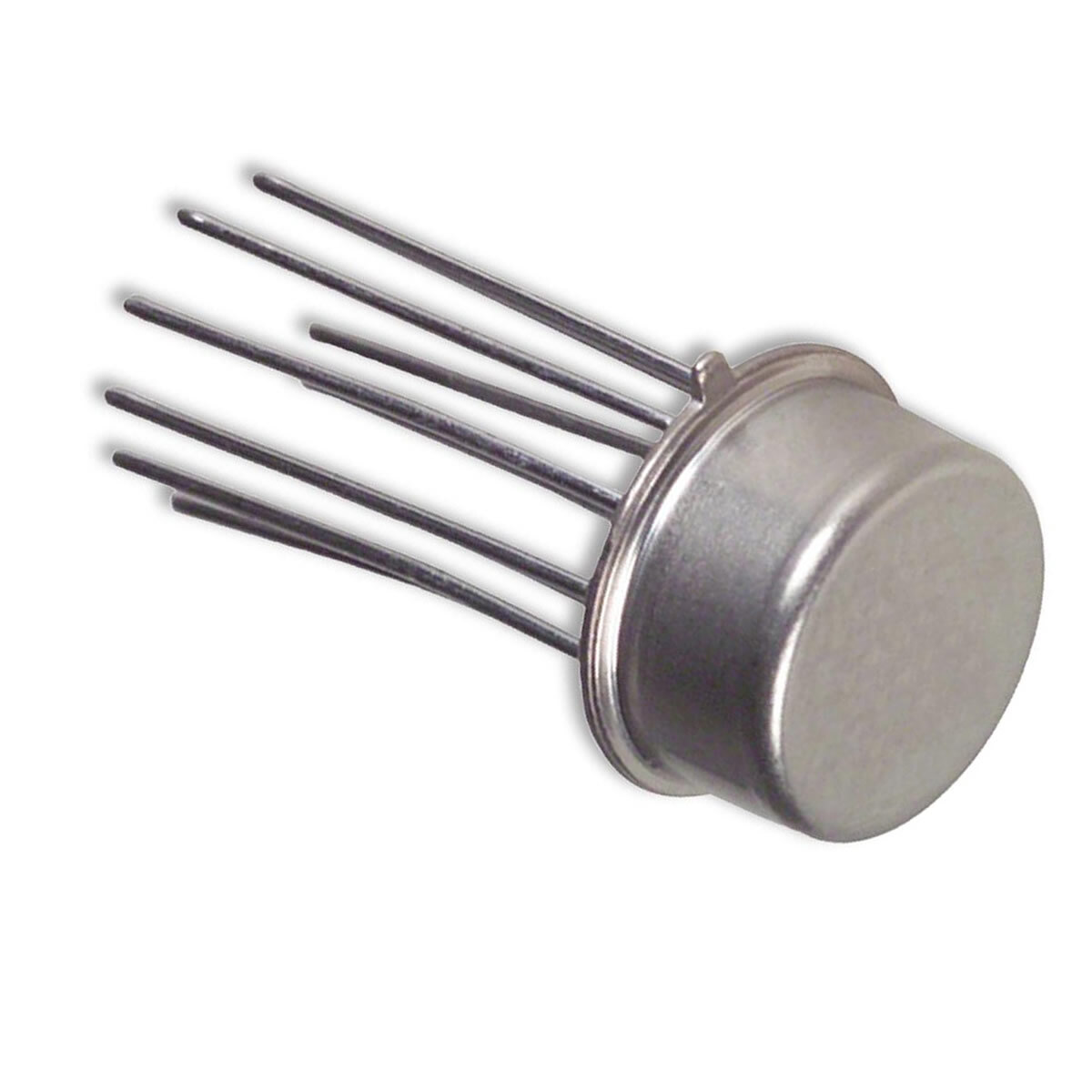

View detailed images (4)

AD504LH

SKU: AD504LH
AD504LH SemiConductor CASE: TO99-8 MAKE: Analog Devices - AMD
Product specifications
Type SemiConductor
Case TO99-8
Manufacturer Analog Devices - AMD
R(in) (Û) 0.5M
I(io) Max. (A) 10n
V(io) Max. (V) 0.5m
PD Max. (W) 90m
Inp Bias Curr. Max. (A) 80n
Unity Gain BW (Hz) 300k-
Com Mode Inp Range (VICR) 30
Temp Coef. of VIO 0.3u
Oper. Temp (°C) Min 0
Oper. Temp (°C) Max. 70
Pinout Equivalence Number 8-76
No. of Pins 8
Surface Mounted Yes/No NO
SKU 119157
