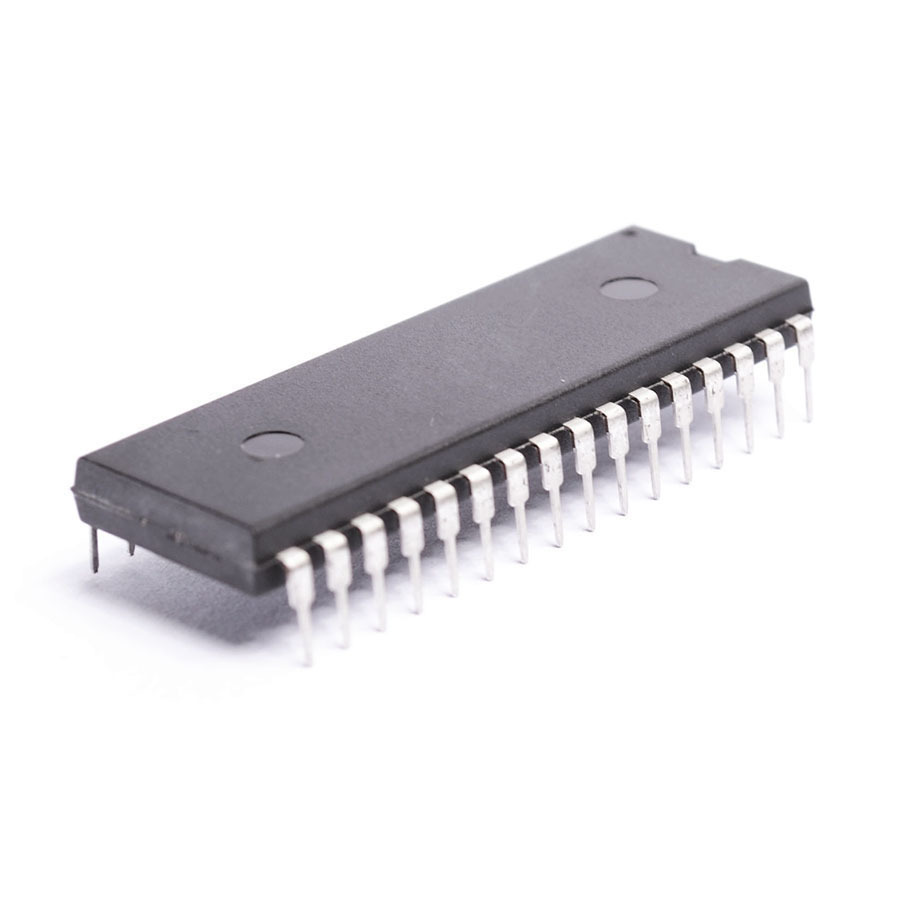

AD578KD

AD578KD

SKU: AD578KD
AD578KD Semiconductor CASE: DIP32 MAKE: Analog Devices - AMD
Datasheet
AD578KD Datasheet
Product specifications
Type Semiconductor
Case DIP32
Manufacturer Analog Devices - AMD
t(conv) (S) 4.5u
FSR Error (LSB/%) .50%
Vin Range (Vp-p) 20
Outp Arith. Code A
VOH Min. 3.0
VOL Max. 0.4
PD Max. (W) 875m
Nom. Neg Supp 15
Nom. Pos. Supp 15
Oper. Temp (°C) Min 0
Oper. Temp (°C) Max. 70
Volt or Cur. Mode Voltage
Logic Level Family TTL
Pinout Equivalence Number 32-27
Descript 12-Bit A/D with Ref. and Clock.
No. of Pins 32
Surface Mounted Yes/No NO
SKU 939526
