AD578SD

AD578SD

SKU: AD578SD

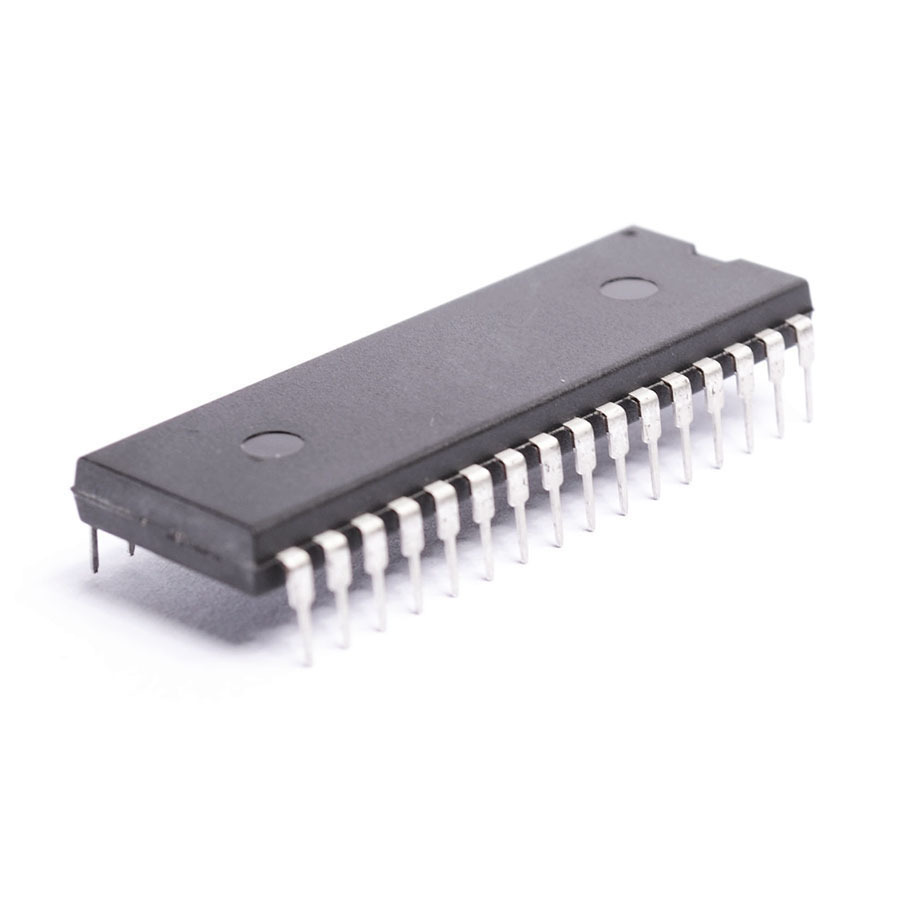

AD578SD Integrated Circuit CASE: DIP32 MAKE: Maxim Integrated
Datasheet
AD578SD Datasheet
Product specifications
Type Integrated Circuit
Case DIP32
Manufacturer Maxim Integrated
t(conv) (S) 6.0u
FSR Error (LSB/%) .50%
Vin Range (Vp-p) 20
Outp Arith. Code A
VOH Min. 3.0
VOL Max. 0.4
PD Max. (W) 875m
Nom. Neg Supp 15
Nom. Pos. Supp 15
Oper. Temp (°C) Min -55
Oper. Temp (°C) Max. 125
Volt or Cur. Mode Voltage
Logic Level Family TTL
Pinout Equivalence Number 32-27
Descript 12-Bit A/D with Ref. and Clock
No. of Pins 32
Surface Mounted Yes/No NO
SKU 93396
