AD7224CQ

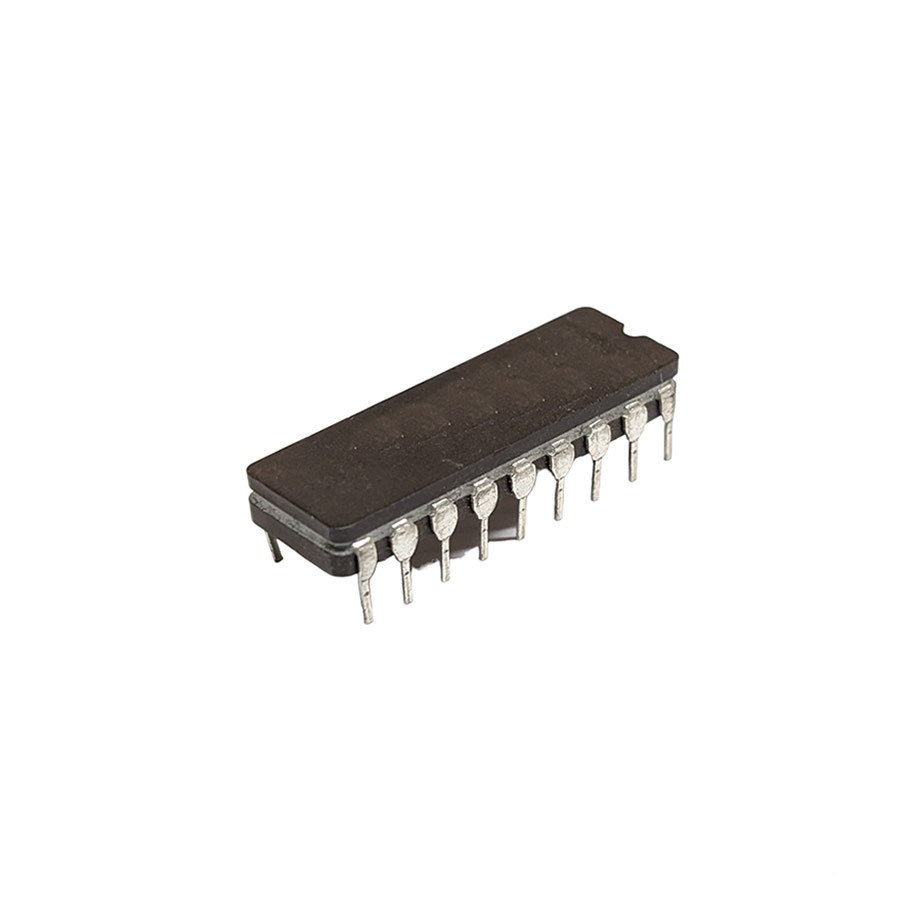

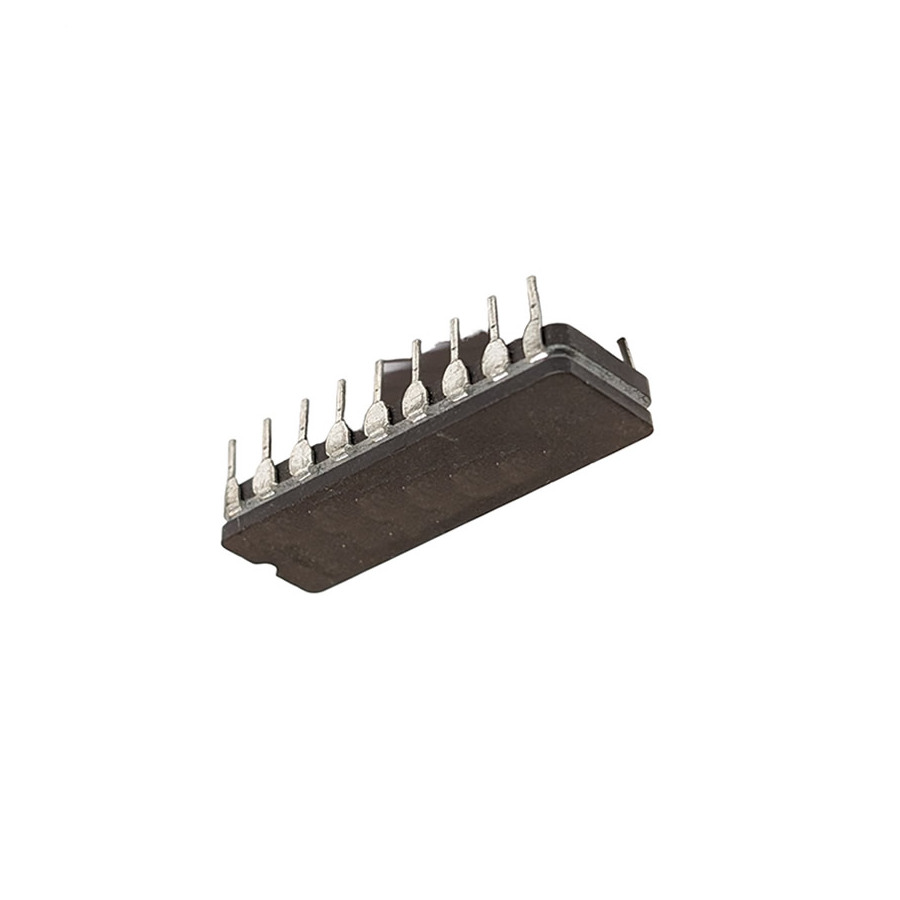

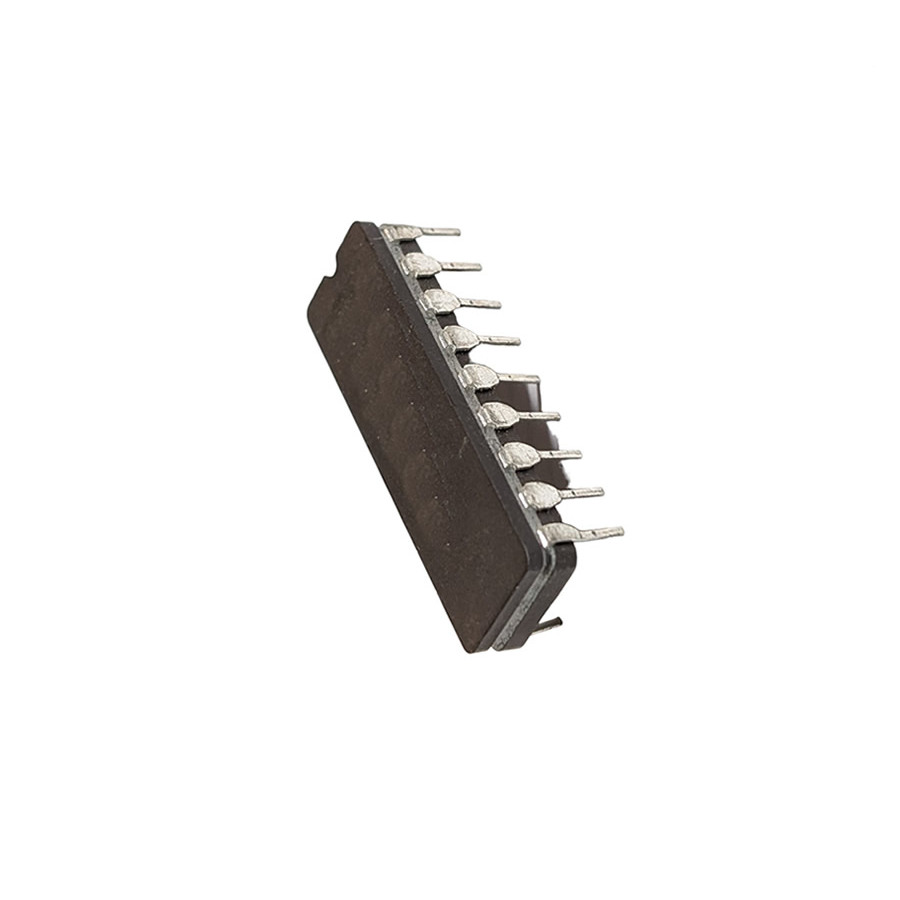

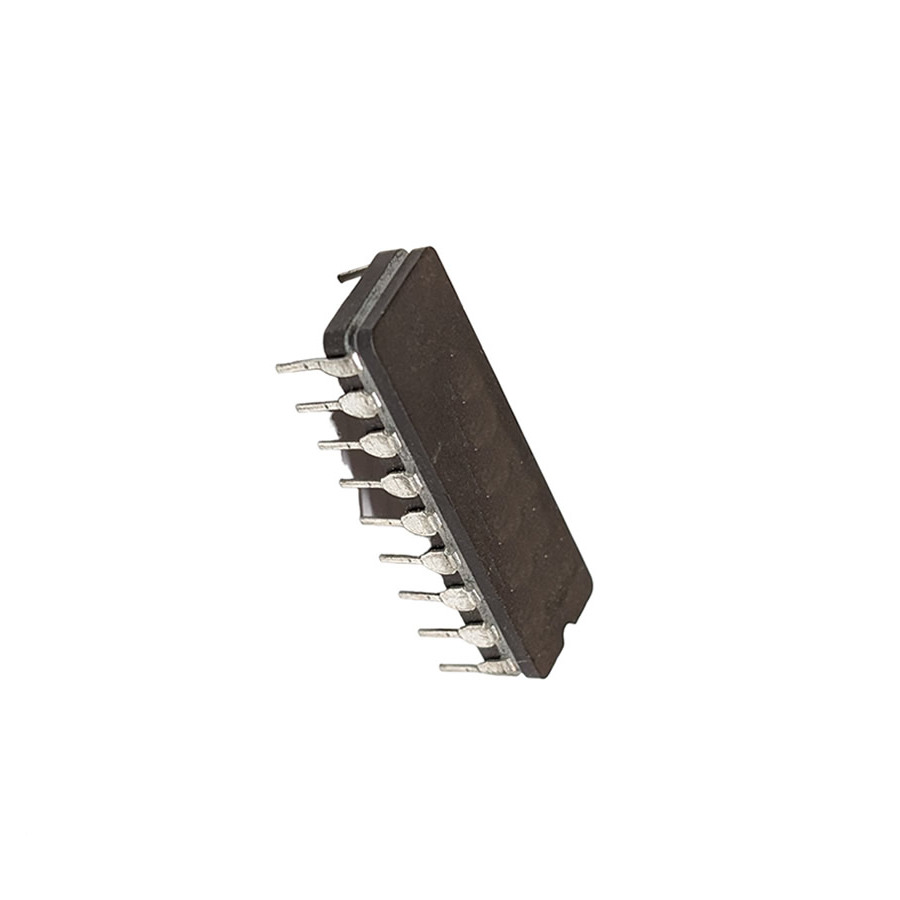

View detailed images (4)

AD7224CQ

SKU: AD7224CQ
AD7224CQ Integrated Circuit CASE: DIC18 MAKE: Analog Devices - AMD
Price:
£38.39 Inc. VAT (£31.99 Ex. VAT)
£38.39 Inc. VAT (£31.99 Ex. VAT)
Qty
  • 5 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Datasheet
AD7224CQ Datasheet
Product specifications
Type Integrated Circuit
Case DIC18
Manufacturer Analog Devices - AMD
FSR Error (LSB/%) 1.0
Inp Arith. Code AK
Vih Min (V) 2.4
Vil Max. (V) 0.8
PD Max. (W) 450m
Nom. Neg Supp 5.0
Nom. Pos. Supp 15
Settling Time (S) 7.0u
Tech. CMOS Integrated Circuit
Temp Drift Max. (ppm/°C) 20
Oper. Temp (°C) Min -25
Oper. Temp (°C) Max. 85
@ Accuracy (% FSR) 0.5
Volt or Cur. Mode Voltage
Logic Level Family TTL
Pinout Equivalence Number 18-35
Surface Mounted Yes/No NO
SKU 95673
