AD7242JR

AD7242JR

SKU: AD7242JR

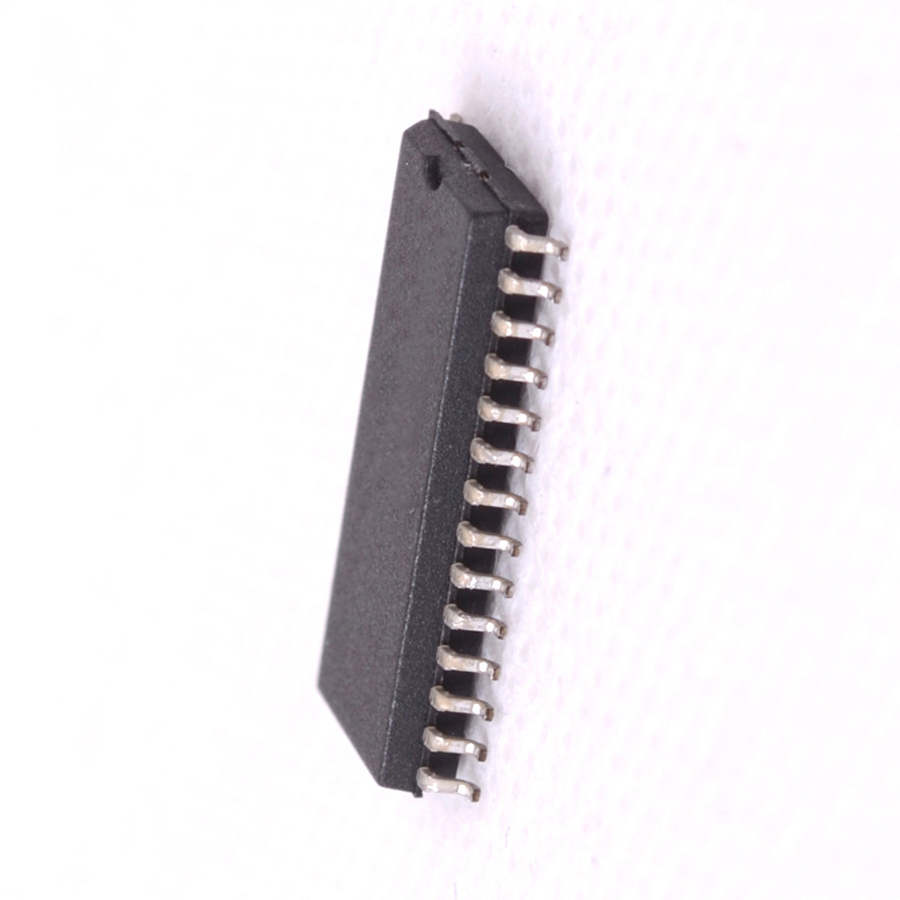

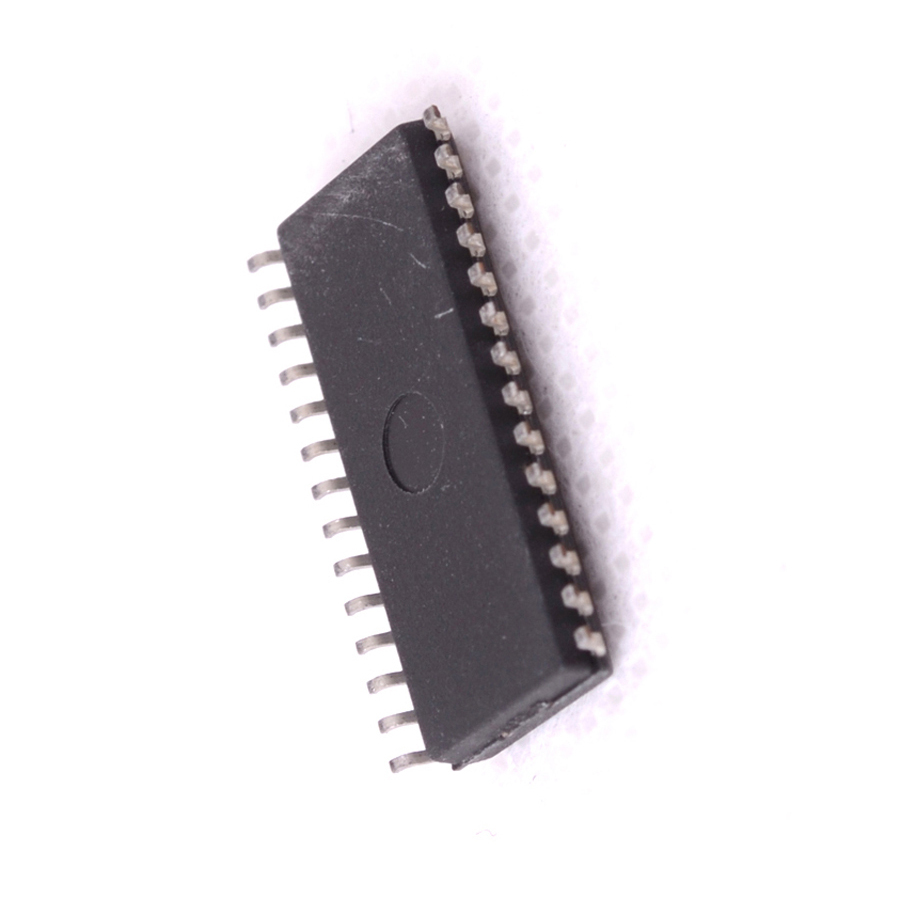

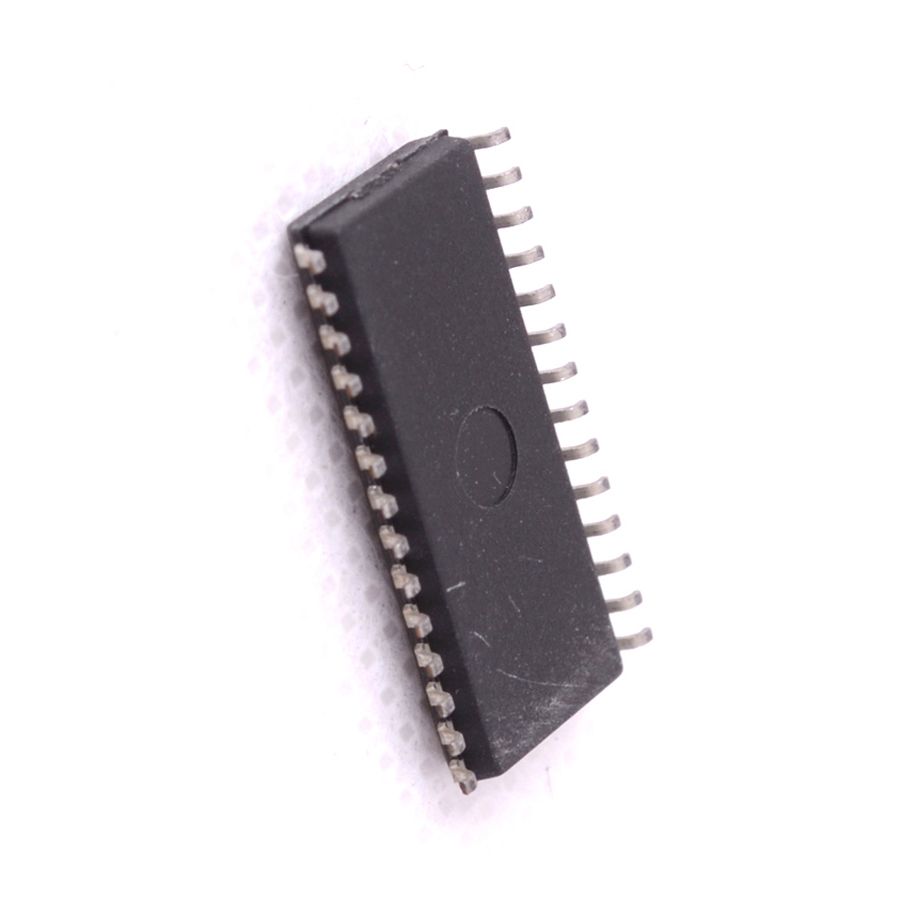

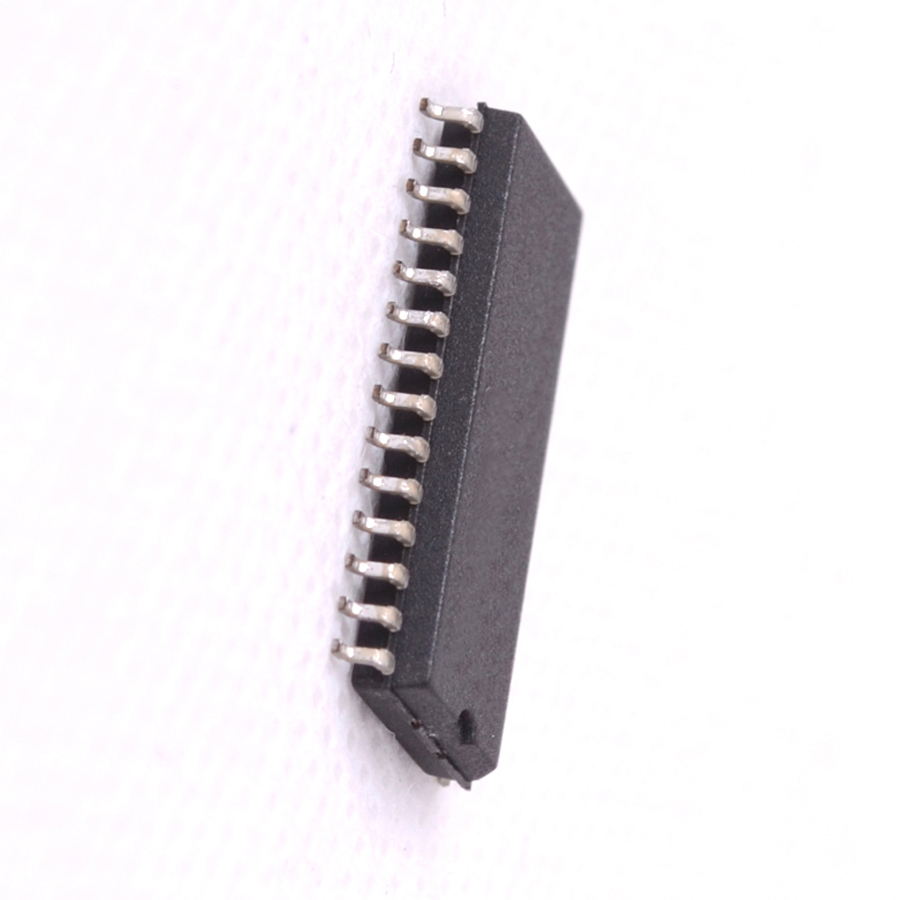

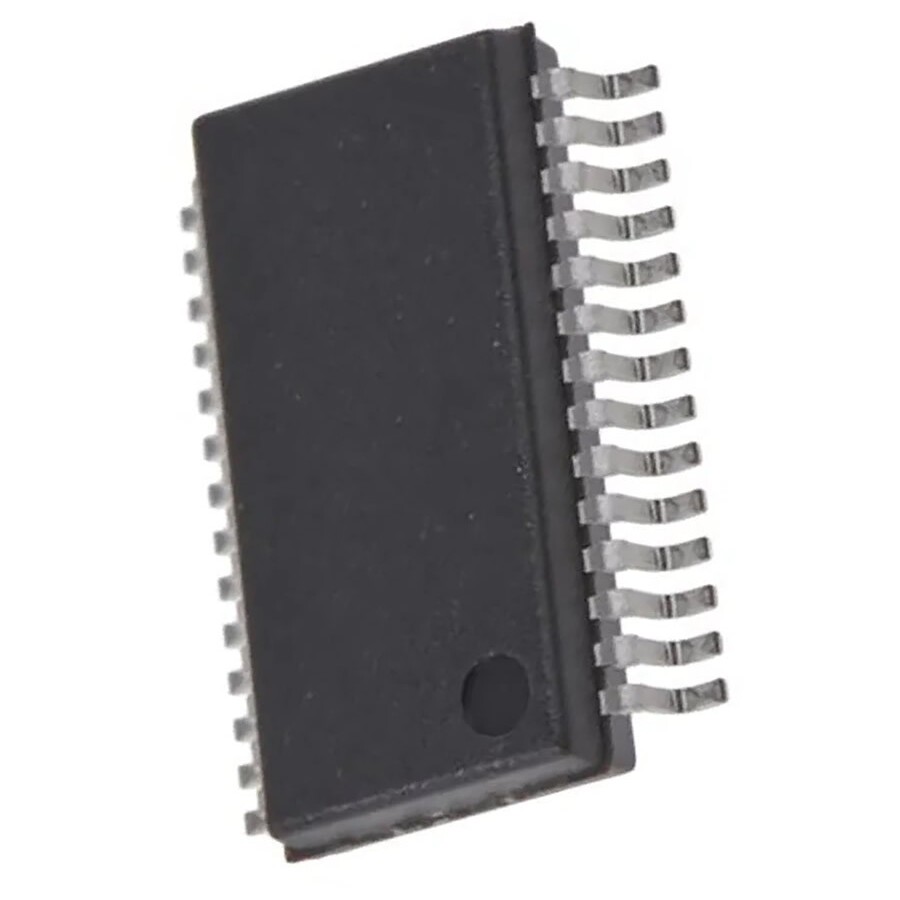

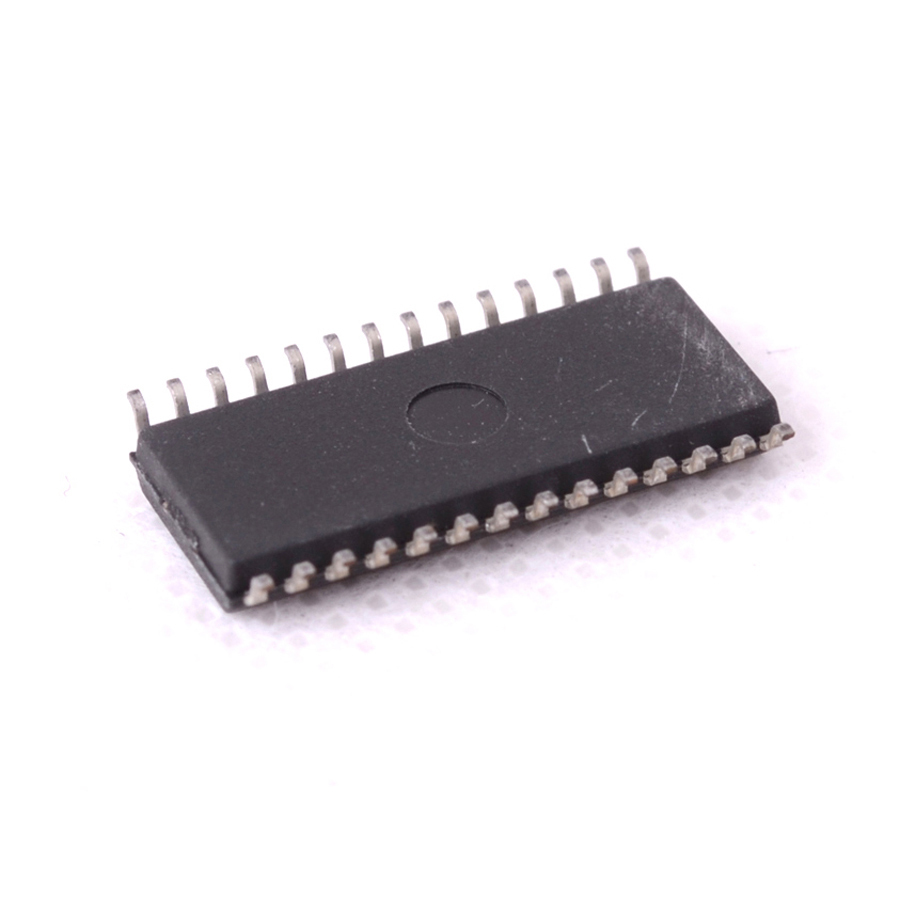

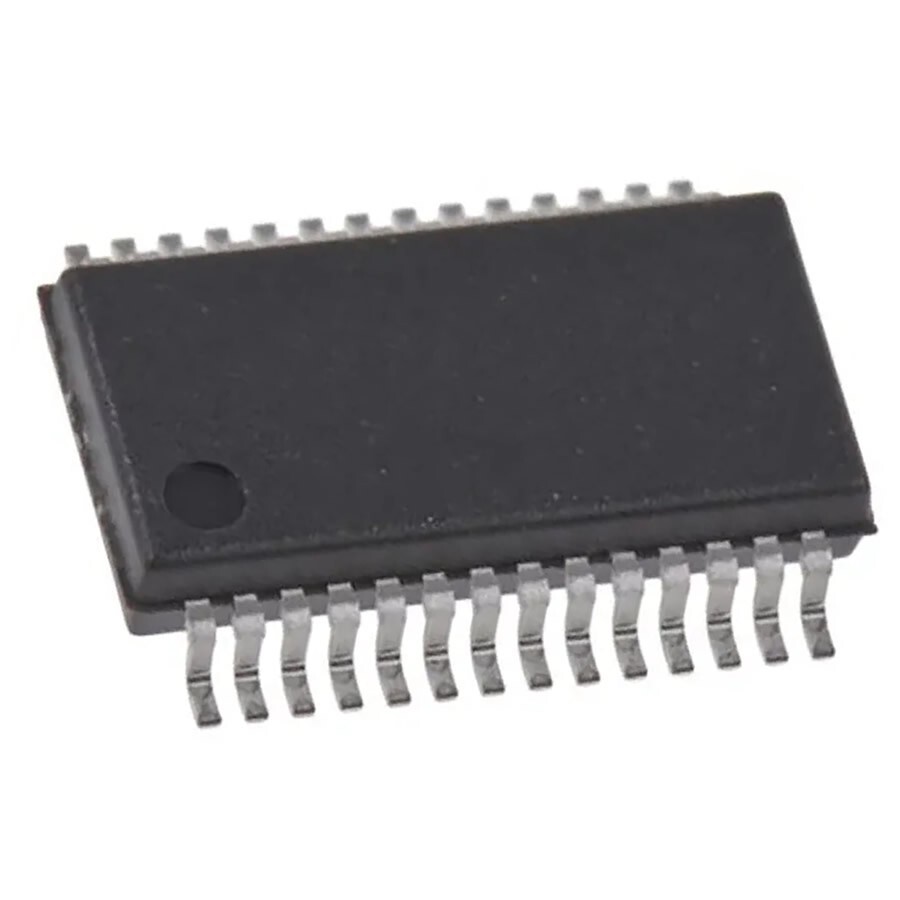

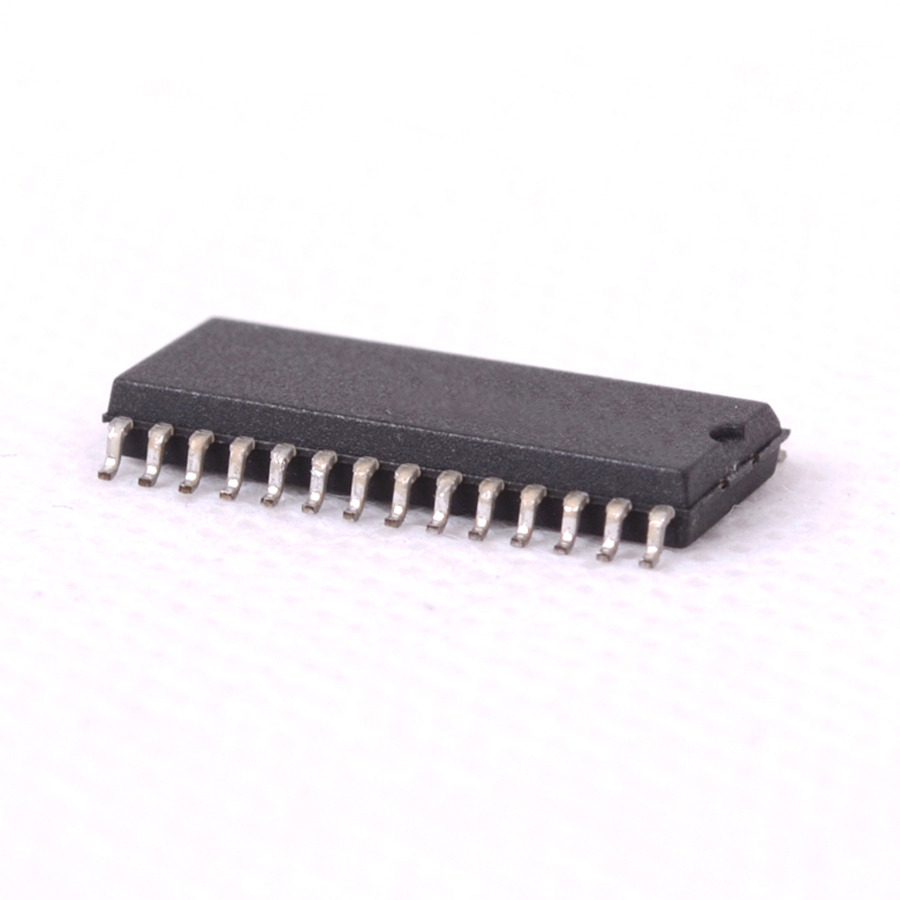

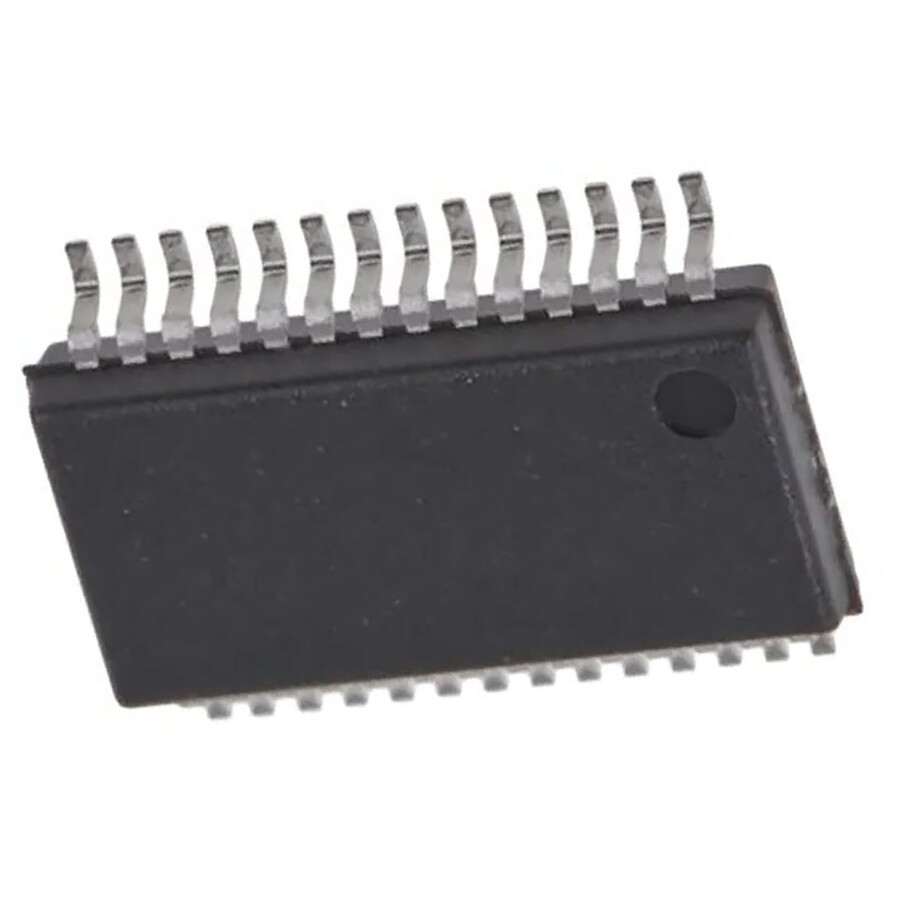

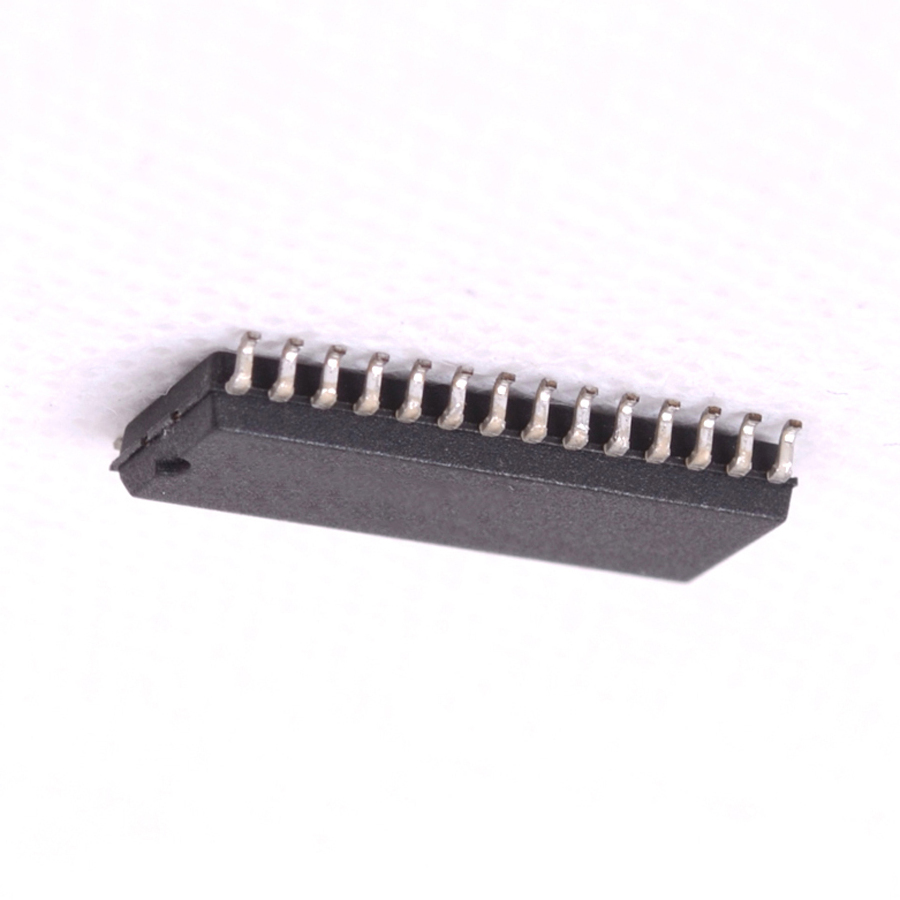

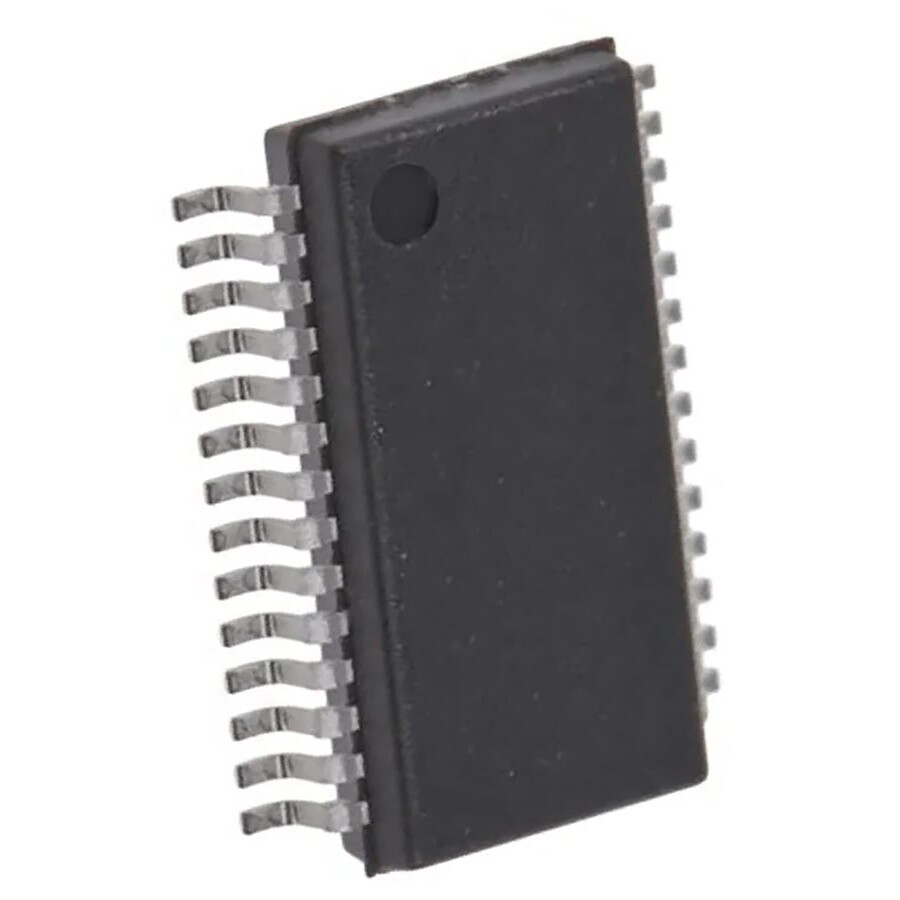

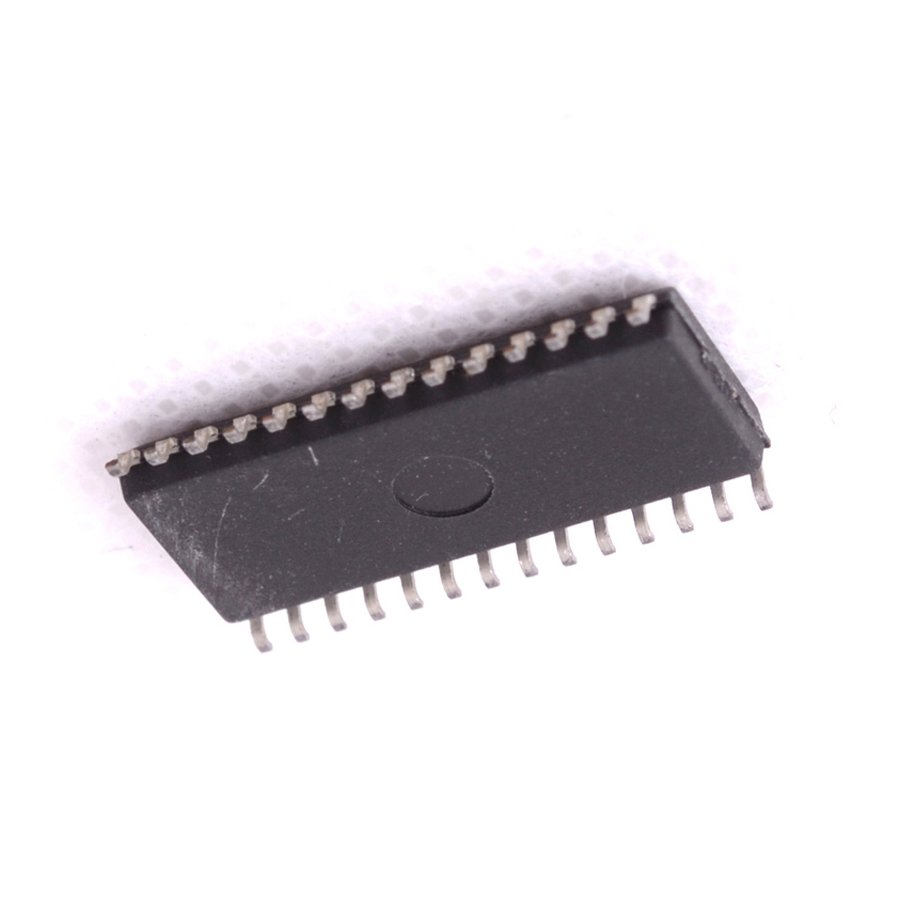

AD7242JR Integrated Circuit CASE: SOP28 MAKE: Analog Devices - AMD
Datasheet
AD7242JR Datasheet
Product specifications
Type Integrated Circuit
Case SOP28
Manufacturer Analog Devices - AMD
FSR Error (LSB/%) 1.0
Inp Arith. Code G
Vih Min (V) 2.4
Vil Max. (V) 0.8
PD Max. (W) 195m
Nom. Neg Supp 5.0
Nom. Pos. Supp 5.0
Settling Time (S) 3.0u
Tech. CMOS Integrated Circuit
Temp Drift Max. (ppm/°C) 35
Oper. Temp (°C) Min 0
Oper. Temp (°C) Max. 70
@ Accuracy (% FSR) 0.5
Volt or Cur. Mode Voltage
Pinout Equivalence Number 28-855
No. of Pins 28
Surface Mounted Yes/No YES
SKU 121325
