AD7513TH

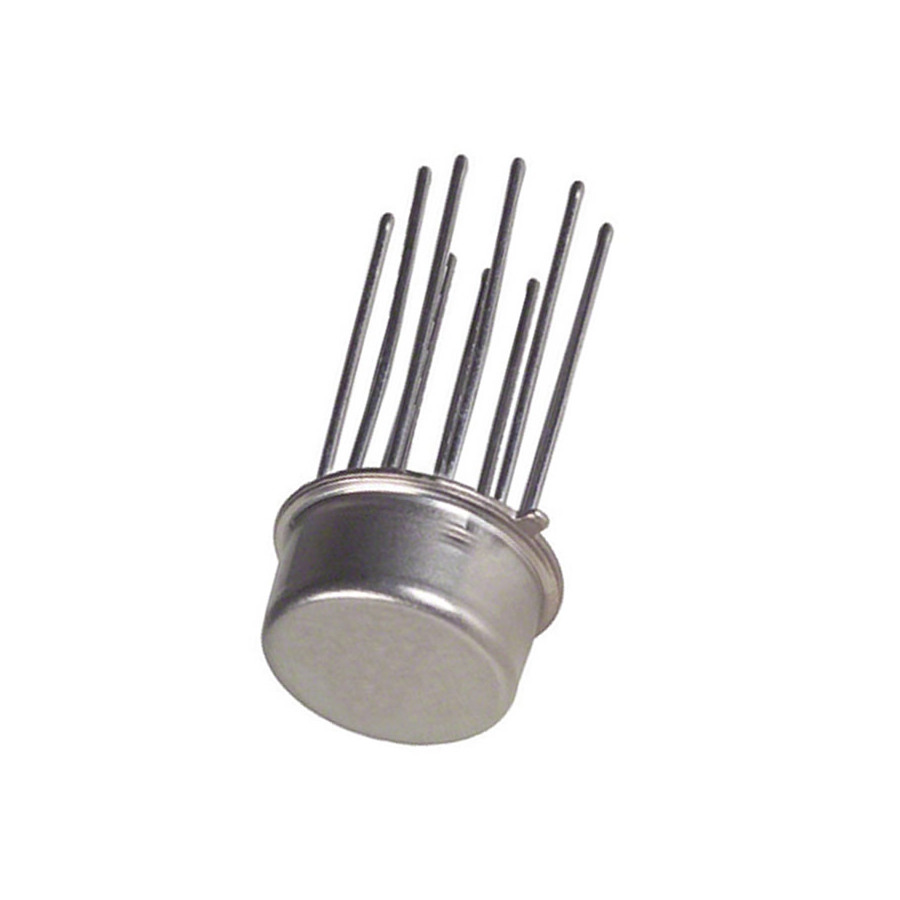

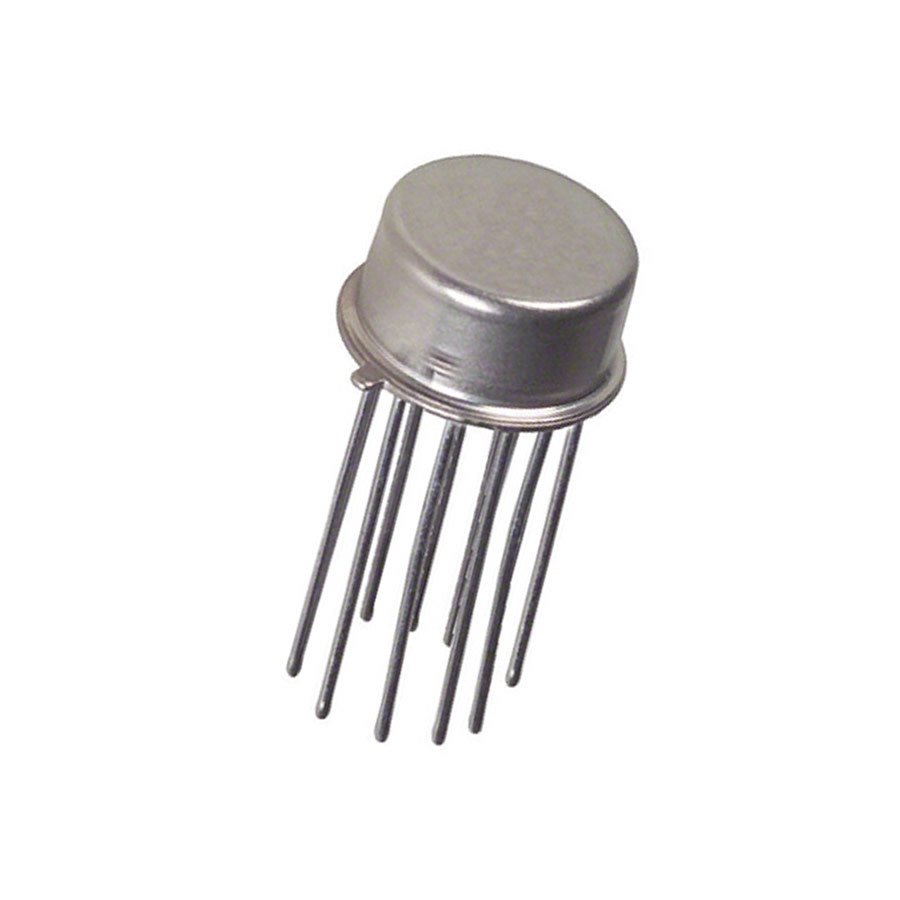

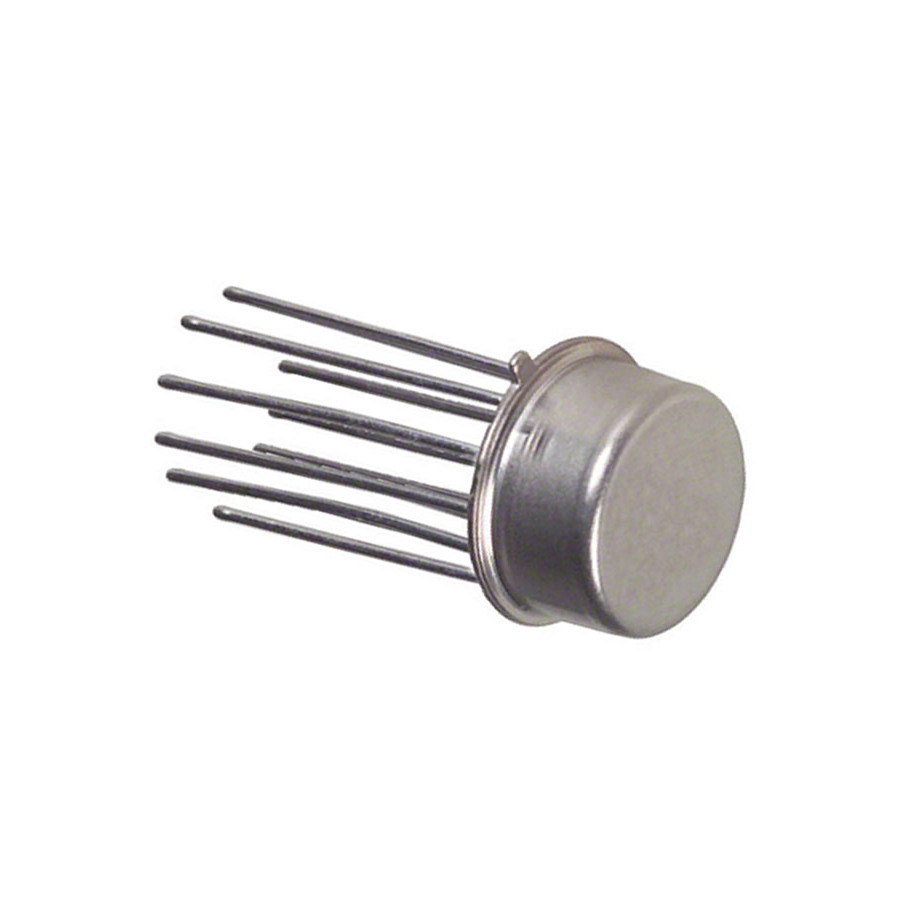

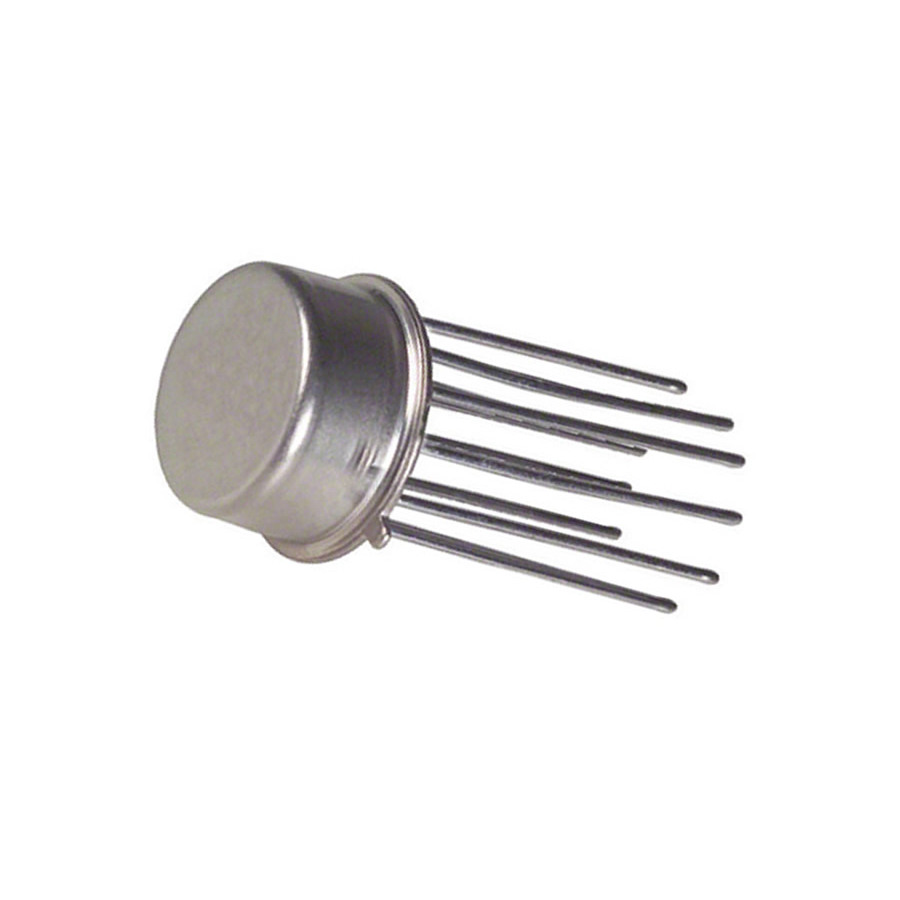

View detailed images (4)

AD7513TH

SKU: AD7513TH
AD7513TH Integrated Circuit CASE: TO100 MAKE: Analog Devices - AMD
Product specifications
Type Integrated Circuit
Case TO100
Manufacturer Analog Devices - AMD
Ckts Per Dev. 2
Vcntl (Hi) (V) 2.4
Vcntl (Lo) (V) 0.8
Features Norm Closd
@Is (test) (A) 1.0m
PD Max. (W) 30m
Nom. Neg Supp 15
Nom. Pos. Supp 15
R(ds) On (Û) 70
Analog Sw. Cur. P-P Max. 50m
Sw. Volt P-P Max.(V) 25
Tech. CMOS Integrated Circuit
t(on) Max. (S) 1.0u
@Vd (test) (V) 10
Oper. Temp (°C) Min -55
Oper. Temp (°C) Max. 125
Pinout Equivalence Number 10-6
Surface Mounted Yes/No NO
SKU 121695
