AD774BKR

AD774BKR

SKU: AD774BKR

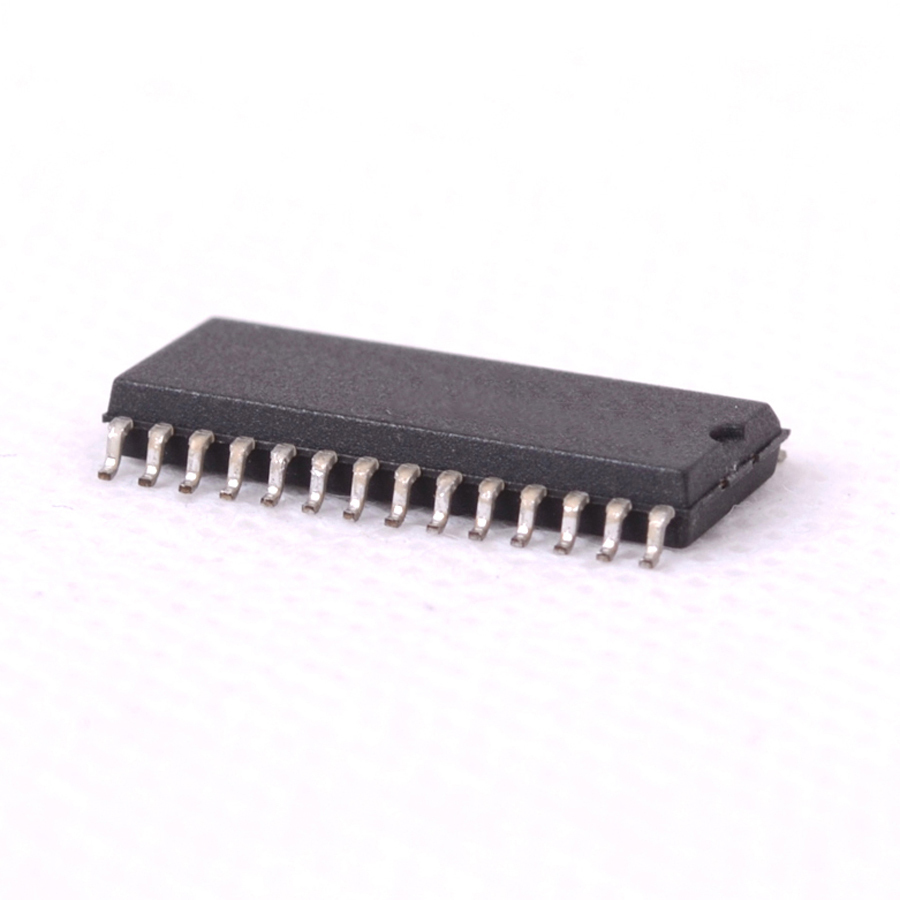

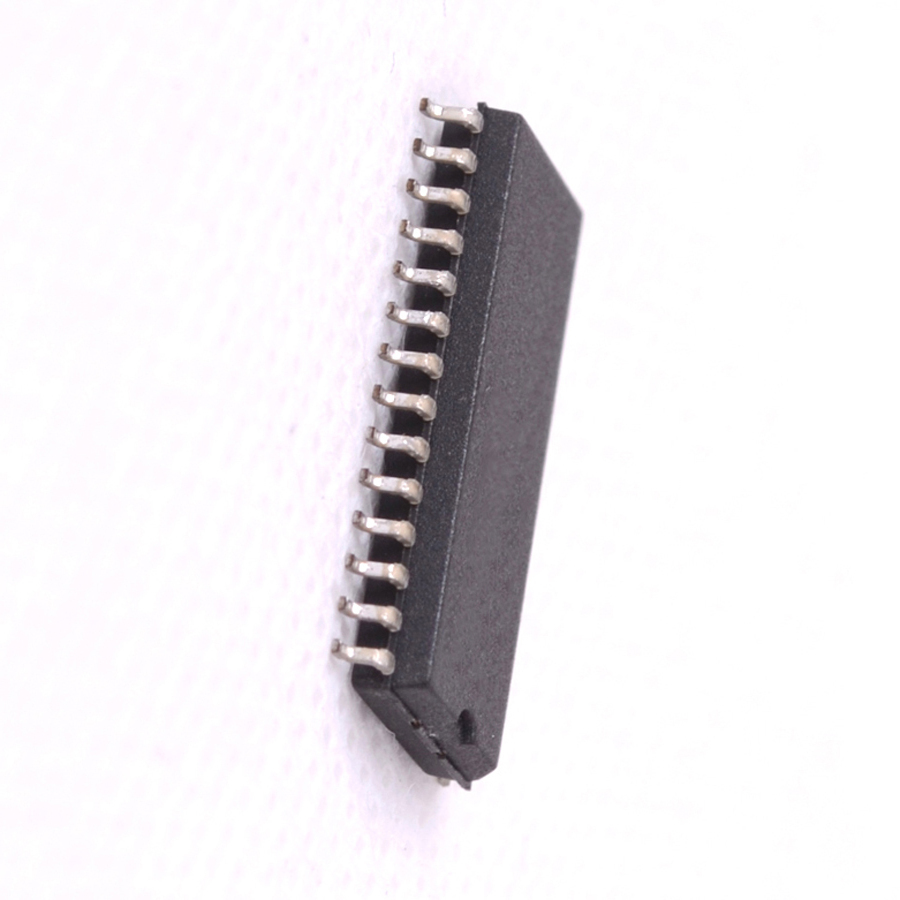

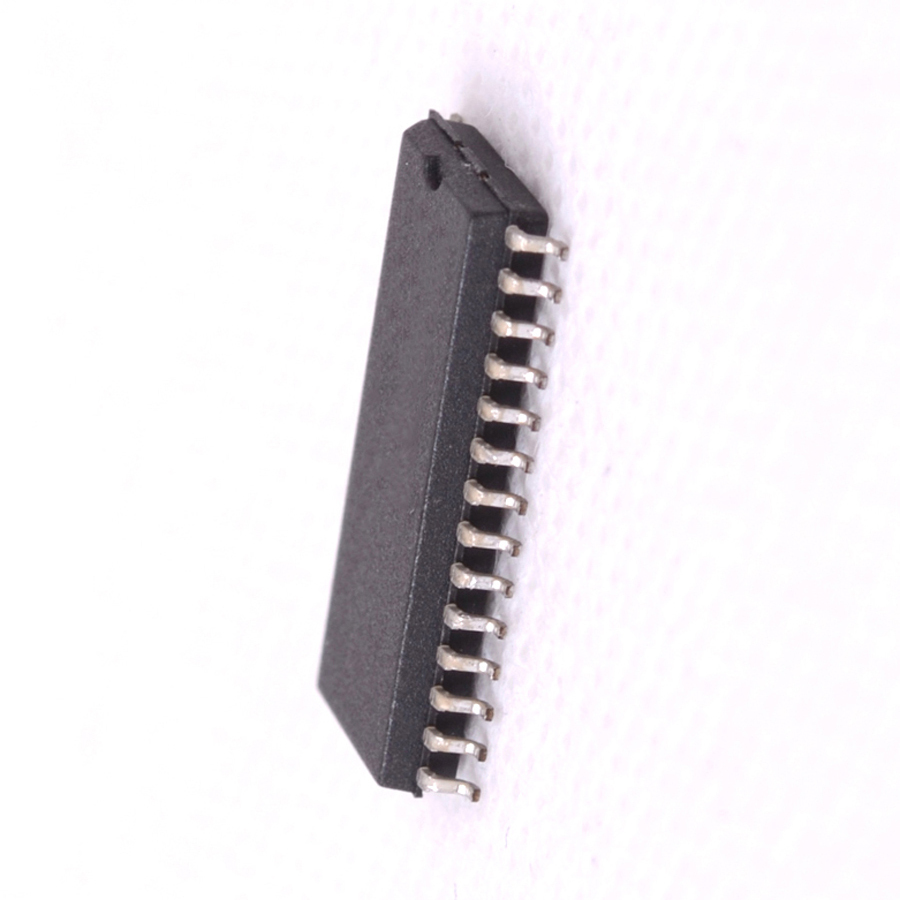

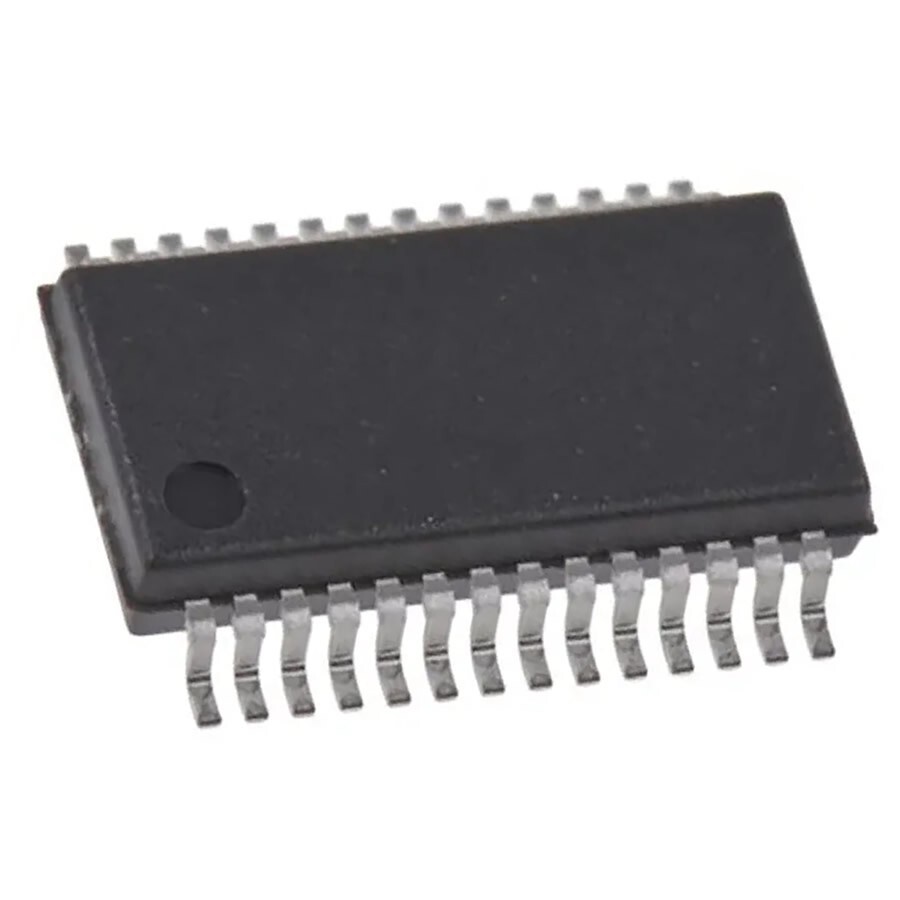

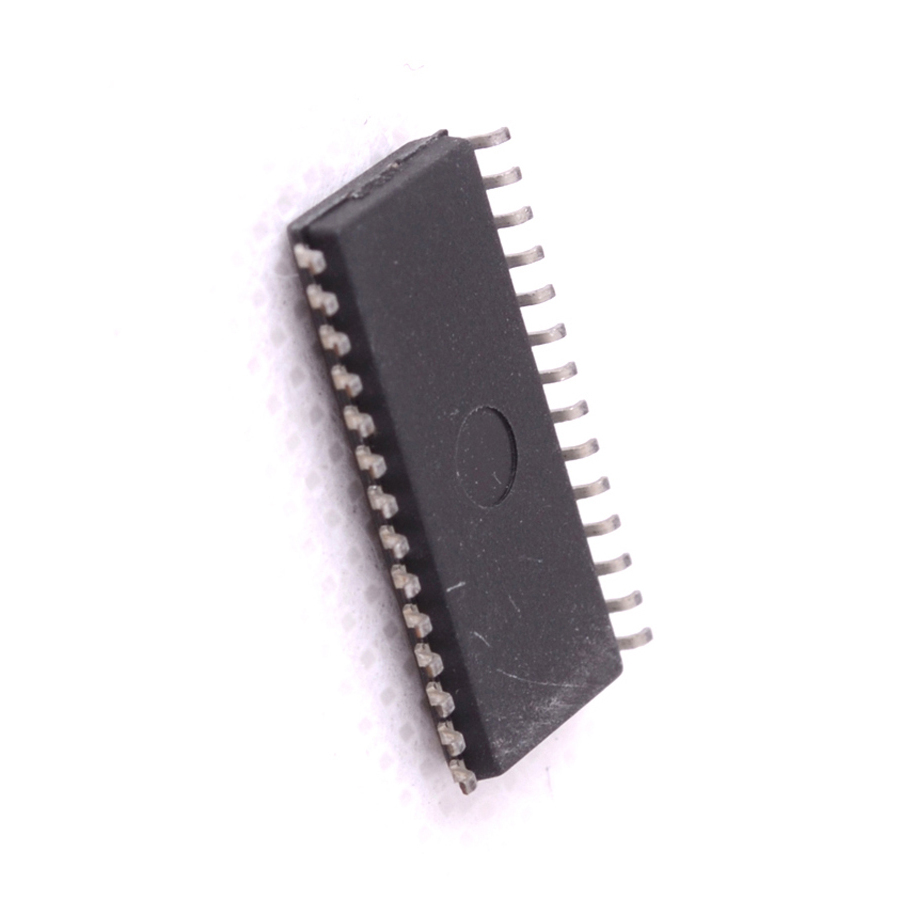

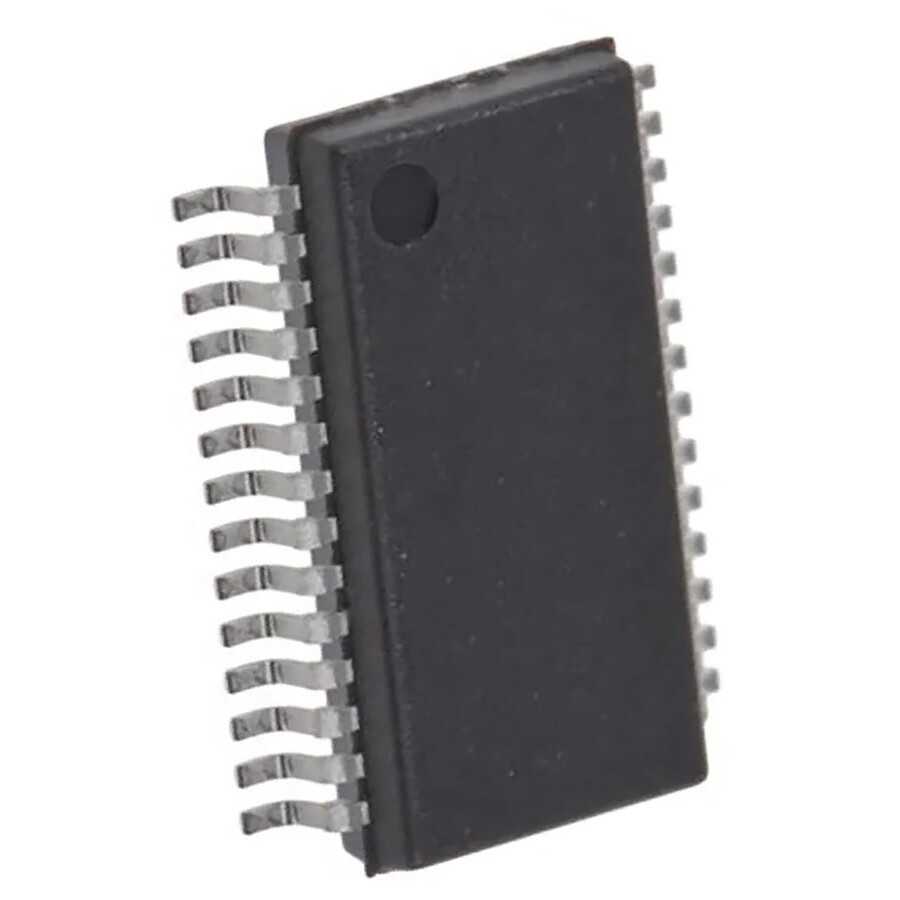

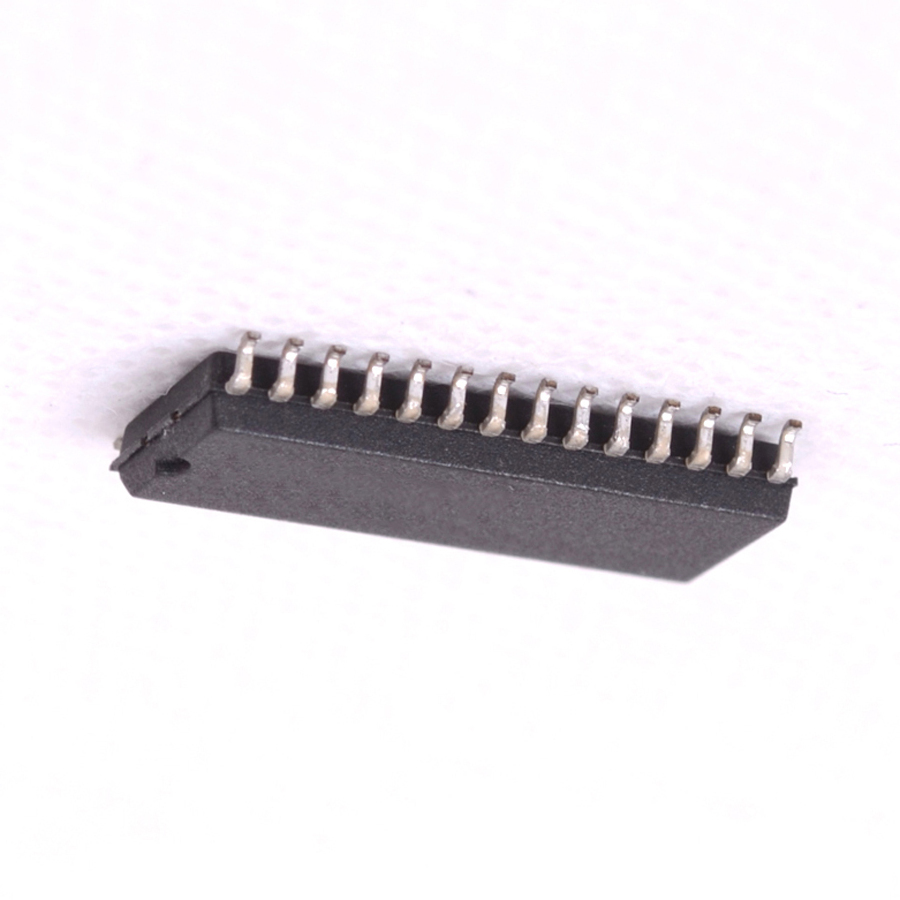

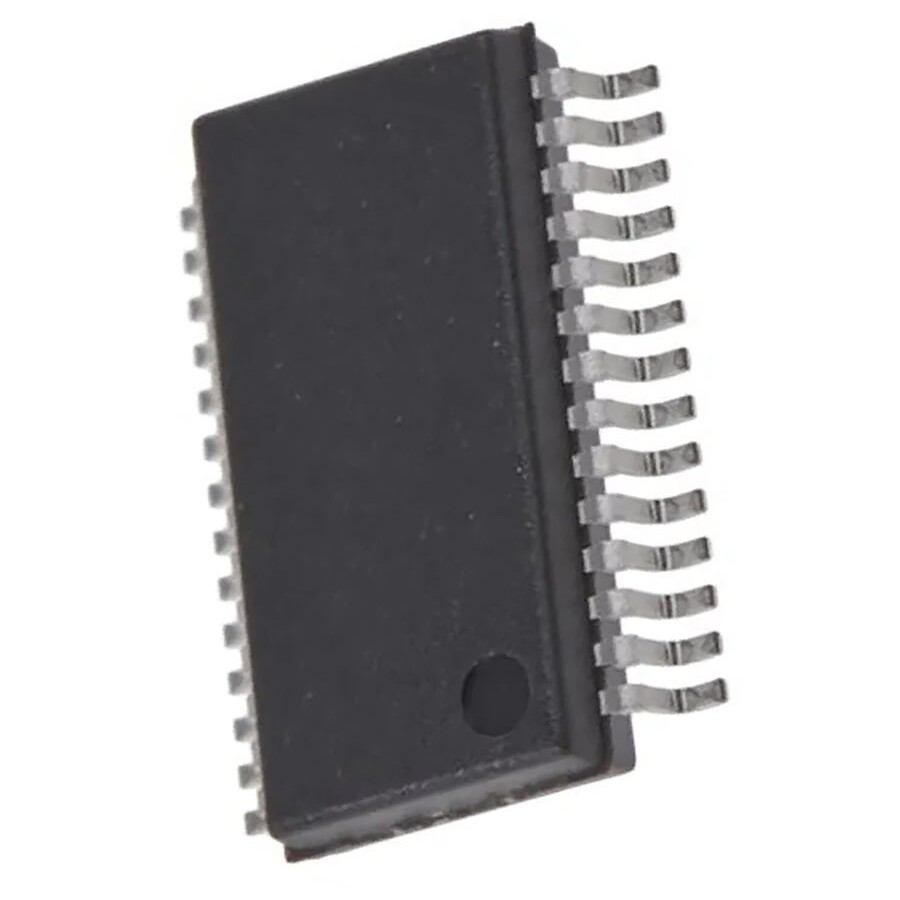

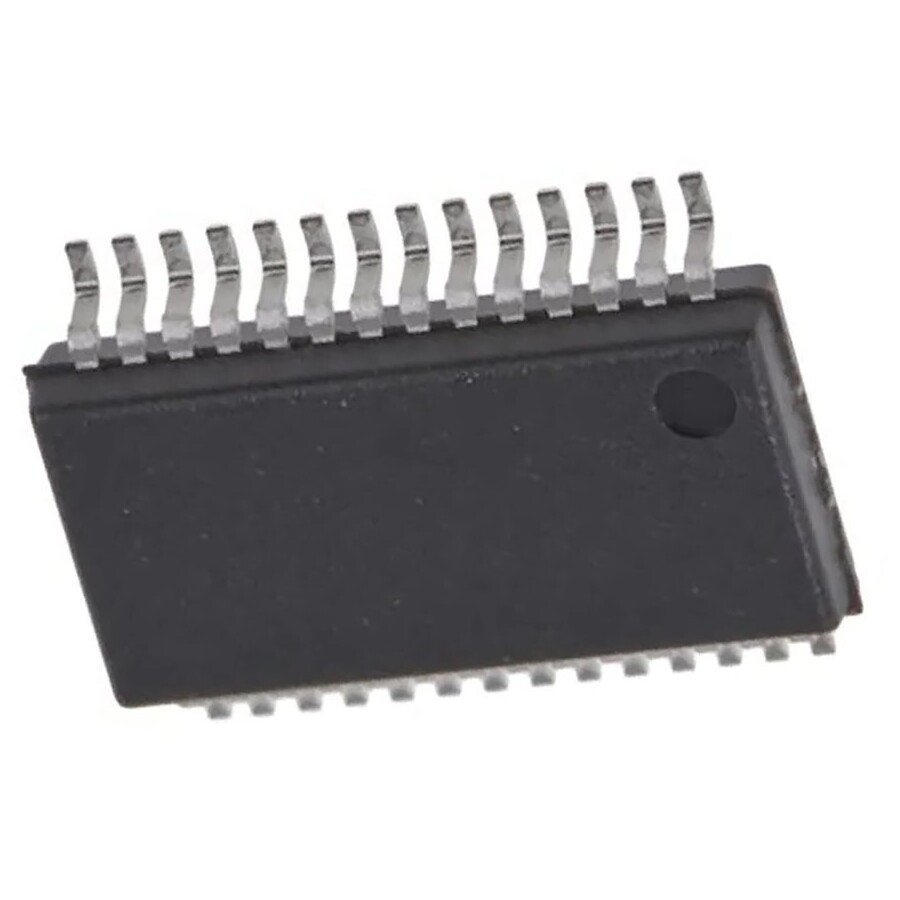

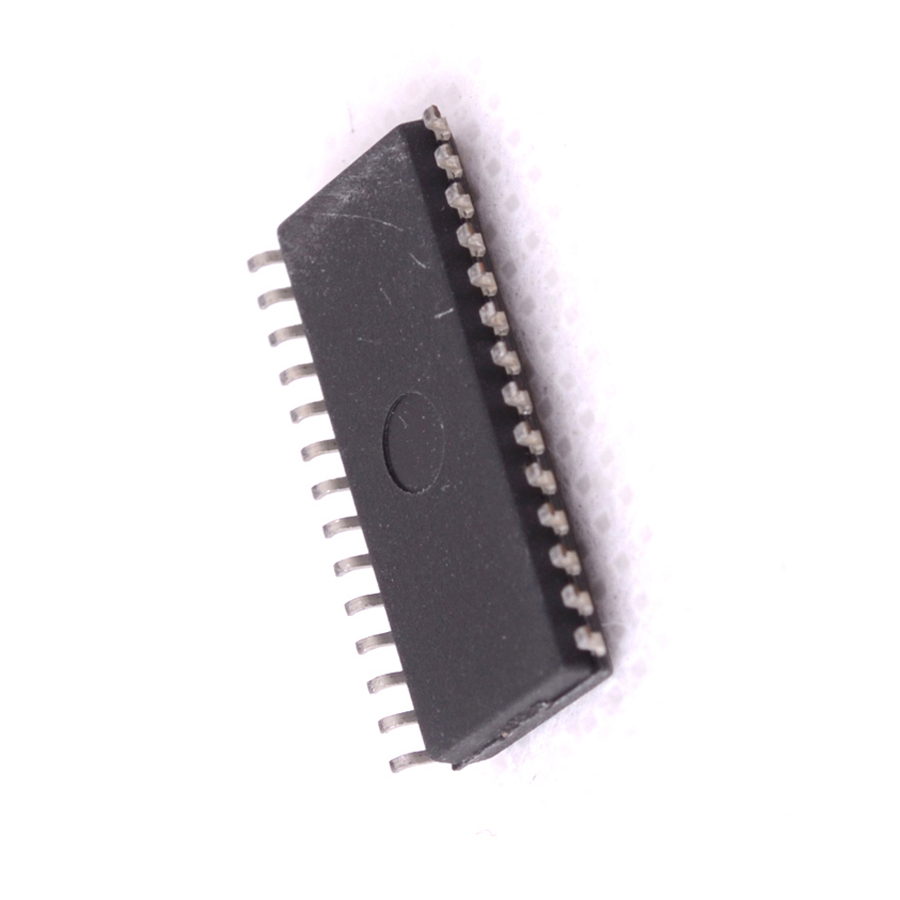

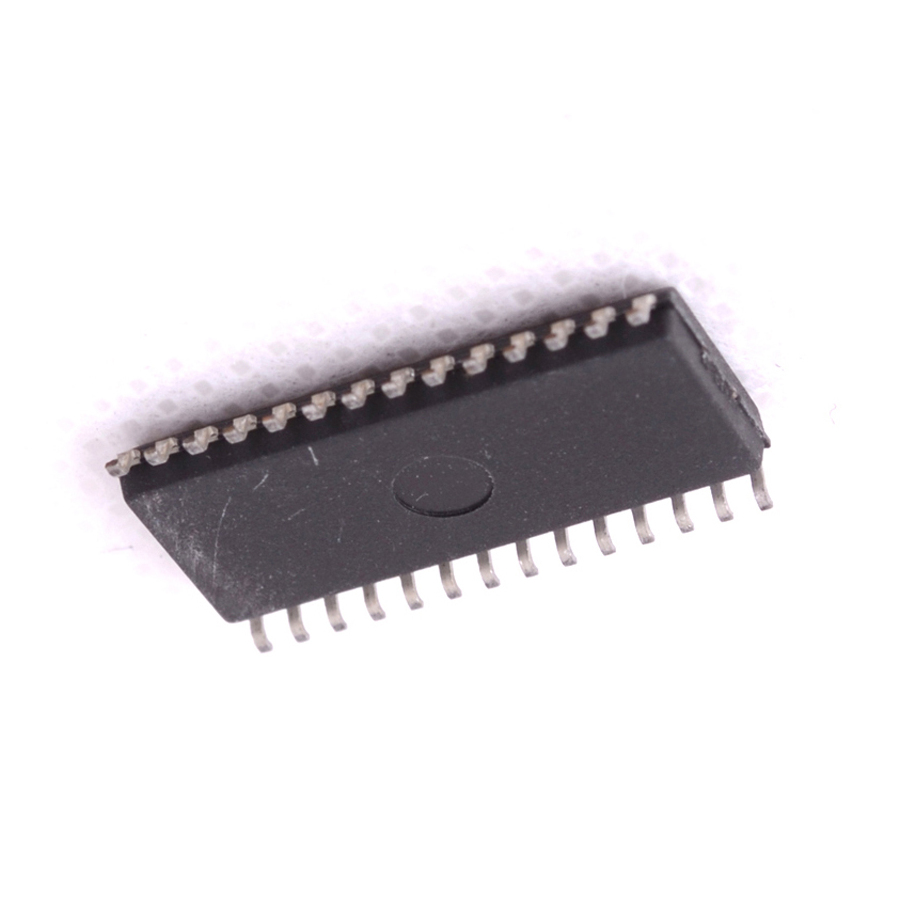

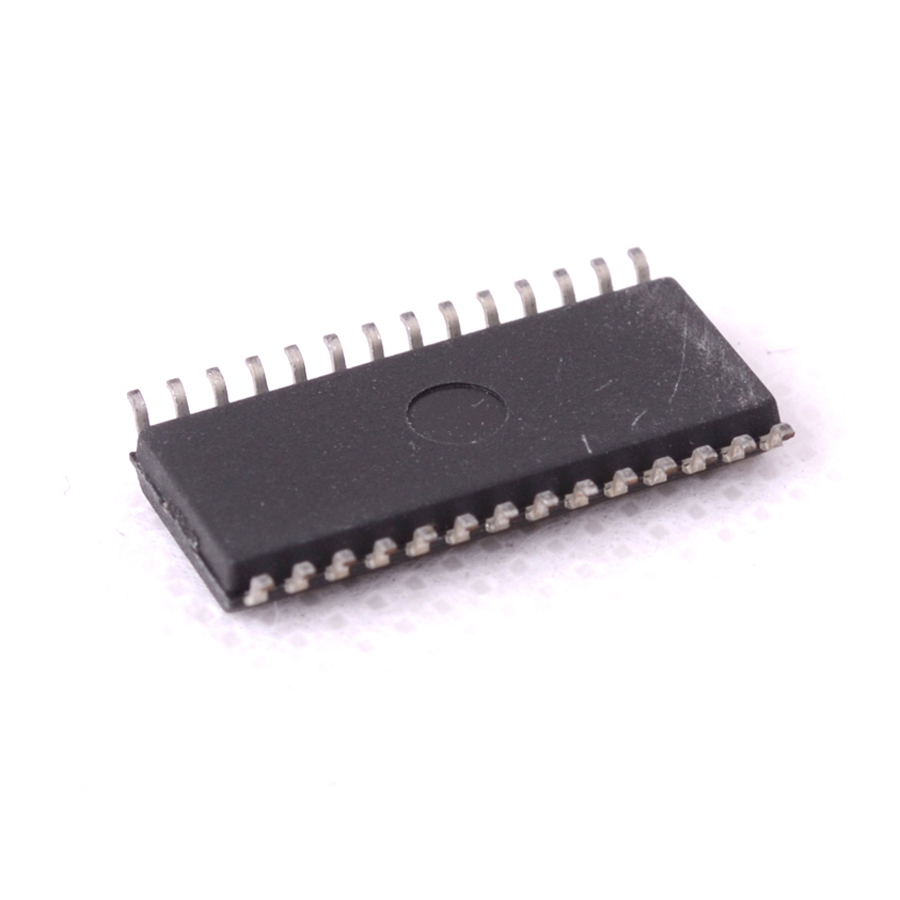

AD774BKR Integrated Circuit CASE: SOP28 MAKE: Analog Devices - AMD
Datasheet
AD774BKR Datasheet
Product specifications
Type Integrated Circuit
Case SOP28
Manufacturer Analog Devices - AMD
t(conv) (S) 15u
FSR Error (LSB/%) 0.5
Vin Range (Vp-p) 20
Outp Arith. Code A
VOH Min. 2.4
VOL Max. 0.4
PD Max. (W) 825m
Nom. Neg Supp 15
Nom. Pos. Supp 15
Tech. Bipolar MOS Integrated Circuit
Oper. Temp (°C) Min 0
Oper. Temp (°C) Max. 70
Volt or Cur. Mode Voltage
Pinout Equivalence Number 28-862
No. of Pins 28
Surface Mounted Yes/No NO
SKU 937549
