Home / Semiconductors / ADADC80Z10

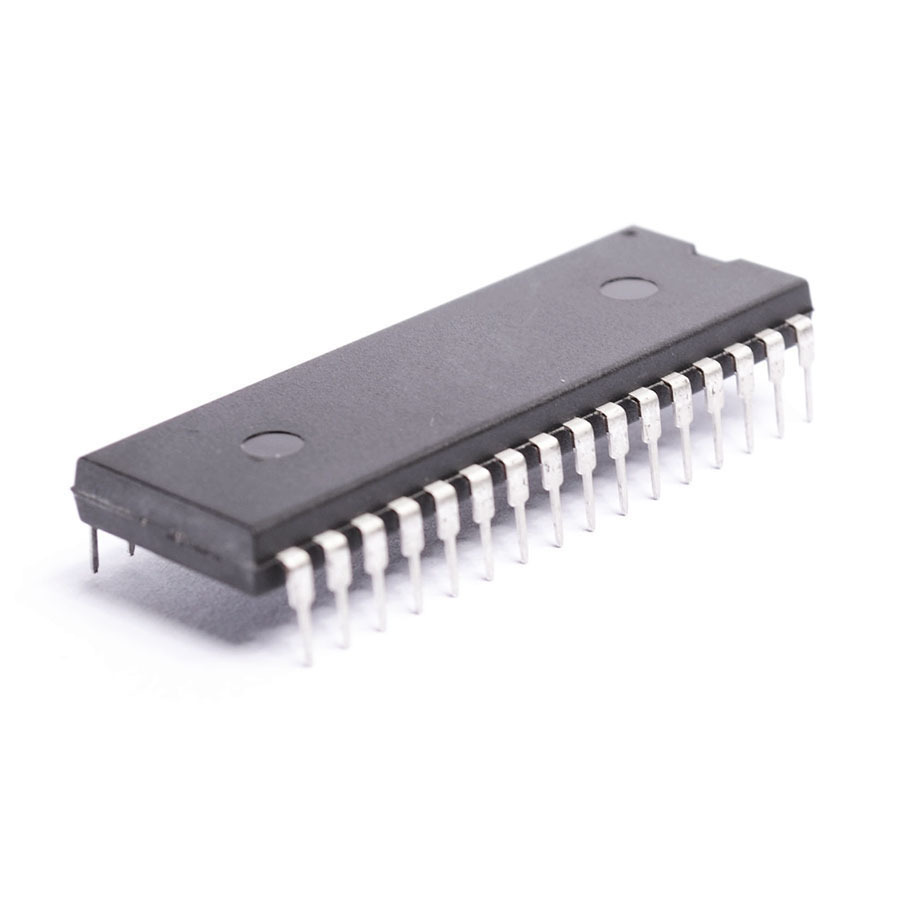

ADADC80Z10

ADADC80Z10

SKU: ADADC80Z10
ADADC80Z10 Semiconductor CASE: DIP32 MAKE: Analog Devices - AMD
Product specifications
Type Semiconductor
Case DIP32
Manufacturer Analog Devices - AMD
t(conv) (S) 25u
FSR Error (LSB/%) 12m%
Vin Range (Vp-p) 20
Outp Arith. Code DM
VOH Min. 2.4
VOL Max. 0.4
Nom. Neg Supp 12
Nom. Pos. Supp 12
Oper. Temp (°C) Min -25
Oper. Temp (°C) Max. 85
Volt or Cur. Mode Voltage
Logic Level Family TTL
Pinout Equivalence Number 32-15
No. of Pins 32
Surface Mounted Yes/No NO
SKU 937194
