ADC0841CCV

ADC0841CCV

SKU: ADC0841CCV

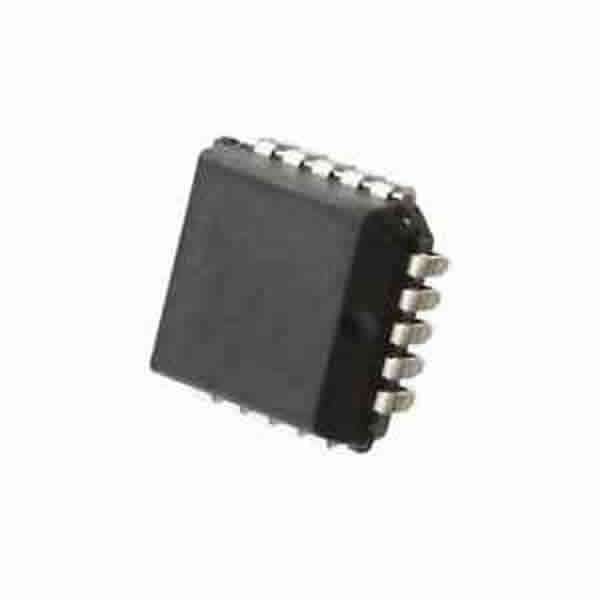

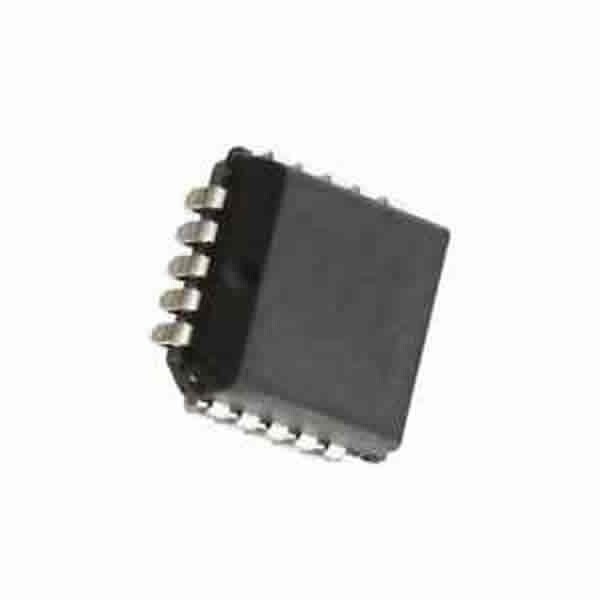

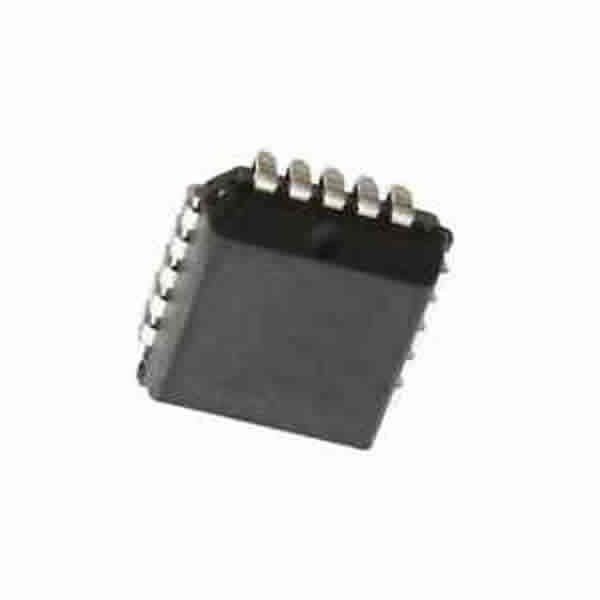

ADC0841CCV Integrated Circuit CASE: PLCC20 MAKE: National Semiconductor - NSC
Datasheet
ADC0841CCV Datasheet
Product specifications
Type Integrated Circuit
Case PLCC20
Manufacturer National Semiconductor - NSC
t(conv) (S) 60u
FSR Error (LSB/%) 1.0
Vin Range (Vp-p) 2.0
VOH Min. 2.4
VOL Max. 0.4
PD Max. (W) 875m
Nom. Neg Supp 0.0
Nom. Pos. Supp 5.0
Oper. Temp (°C) Min 0
Oper. Temp (°C) Max. 70
Volt or Cur. Mode Voltage
Logic Level Family TTL
Pinout Equivalence Number 20-80
No. of Pins 20
Surface Mounted Yes/No NO
SKU 124166
