Home / Semiconductors / ADC505BMC

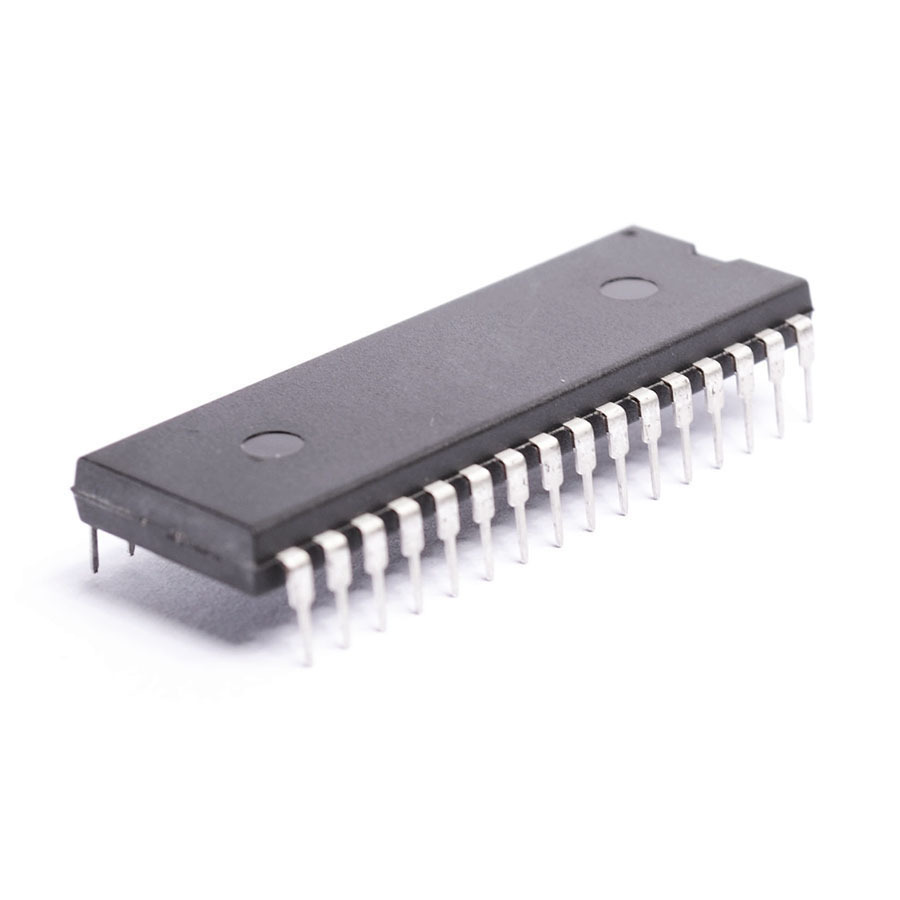

ADC505BMC

ADC505BMC

SKU: ADC505BMC
ADC505BMC Semiconductor CASE: DIP32 MAKE: Analog Devices - AMD
Product specifications
Type Semiconductor
Case DIP32
Manufacturer Analog Devices - AMD
t(conv) (S) 550n
FSR Error (LSB/%) .50
Vin Range (Vp-p) 10
Outp Arith. Code ABCD
VOH Min. 2.4
VOL Max. 0.4
PD Max. (W) 1.9
Nom. Neg Supp 15
Nom. Pos. Supp 15
Oper. Temp (°C) Min 0
Oper. Temp (°C) Max. 70
Volt or Cur. Mode Voltage
Logic Level Family TTL
Pinout Equivalence Number 32-101
No. of Pins 32
Surface Mounted Yes/No NO
SKU 939384
