Home / Semiconductors / ADC71BG

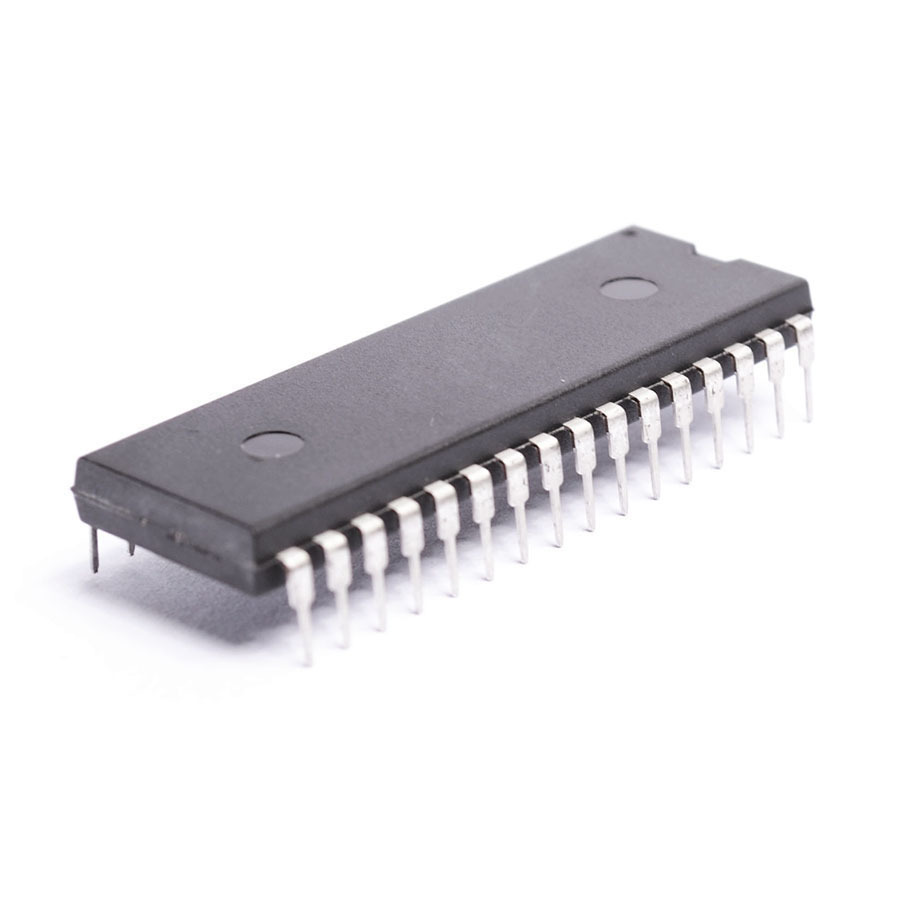

ADC71BG

ADC71BG

SKU: ADC71BG
ADC71BG Semiconductor CASE: DIP32 MAKE: Burr Brown
Datasheet
ADC71BG Datasheet
Product specifications
Type Semiconductor
Case DIP32
Manufacturer Burr Brown
t(conv) (S) 50u
FSR Error (LSB/%) 1.5m%
Vin Range (Vp-p) 10
Outp Arith. Code ABDM
VOH Min. 2.4
VOL Max. 0.4
PD Max. (W) 1.0
Nom. Neg Supp 15
Nom. Pos. Supp 15
Oper. Temp (°C) Min -25
Oper. Temp (°C) Max. 85
Logic Level Family TTL
Pinout Equivalence Number 32-142
No. of Pins 32
Surface Mounted Yes/No NO
SKU 941404
