Home / Integrated Circuit / ADC806XMQ

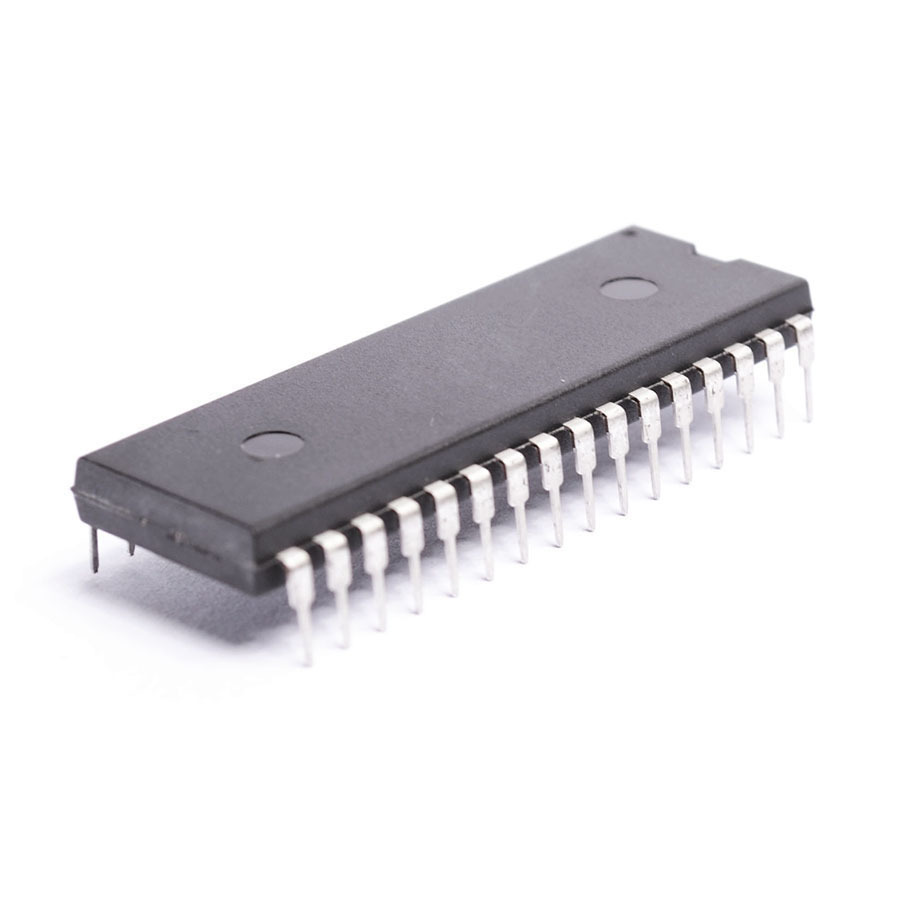

ADC806XMQ

ADC806XMQ

SKU: ADC806XMQ
ADC806XMQ Integrated Circuit CASE: DIP32 MAKE: Burr Brown
Product specifications
Type Integrated Circuit
Case DIP32
Manufacturer Burr Brown
t(conv) (S) 1.5u
FSR Error (LSB/%) .02
Vin Range (Vp-p) 10
Outp Arith. Code BC
VOH Min. 2.4
VOL Max. 0.8
PD Max. (W) 1.3
Nom. Neg Supp 15
Nom. Pos. Supp 15
Tech. TTL Integrated Circuit
Oper. Temp (°C) Min -55
Oper. Temp (°C) Max. 125
Volt or Cur. Mode Voltage
Logic Level Family TTL
Pinout Equivalence Number 32-123
Descript Metal DIP, Quality Screened
No. of Pins 32
Surface Mounted Yes/No NO
SKU 939354
