Home / Semiconductors / ADC80AGZ10
ADC80AGZ10

ADC80AGZ10

SKU: ADC80AGZ10

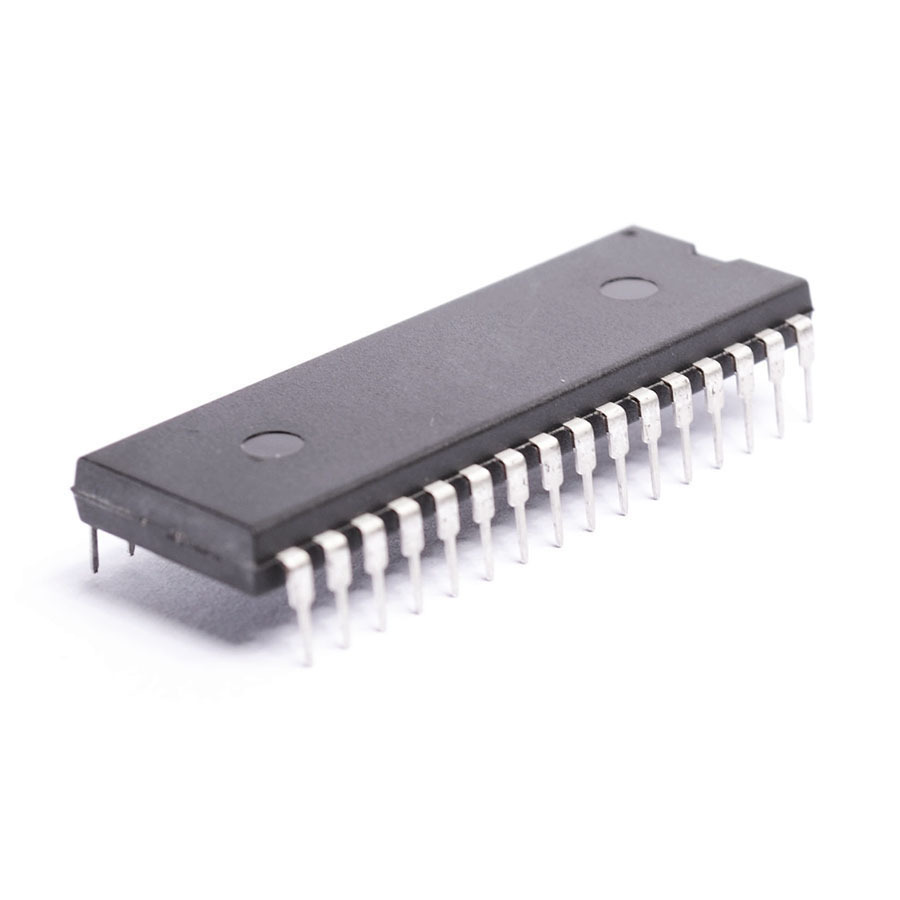

ADC80AGZ10 Semiconductor CASE: DIP32 MAKE: Burr Brown
Product specifications
Type Semiconductor
Case DIP32
Manufacturer Burr Brown
t(conv) (S) 22u
FSR Error (LSB/%) 96m%
Vin Range (Vp-p) 20
Outp Arith. Code BDM
VOH Min. 2.4
VOL Max. 0.4
Nom. Neg Supp 12
Nom. Pos. Supp 12
Oper. Temp (°C) Min -55
Oper. Temp (°C) Max. 100
Volt or Cur. Mode Voltage
Logic Level Family TTL
Pinout Equivalence Number 32-21
No. of Pins 32
Surface Mounted Yes/No NO
SKU 937188
