Home / Integrated Circuit / ADC80AGZ12
ADC80AGZ12

ADC80AGZ12

SKU: ADC80AGZ12

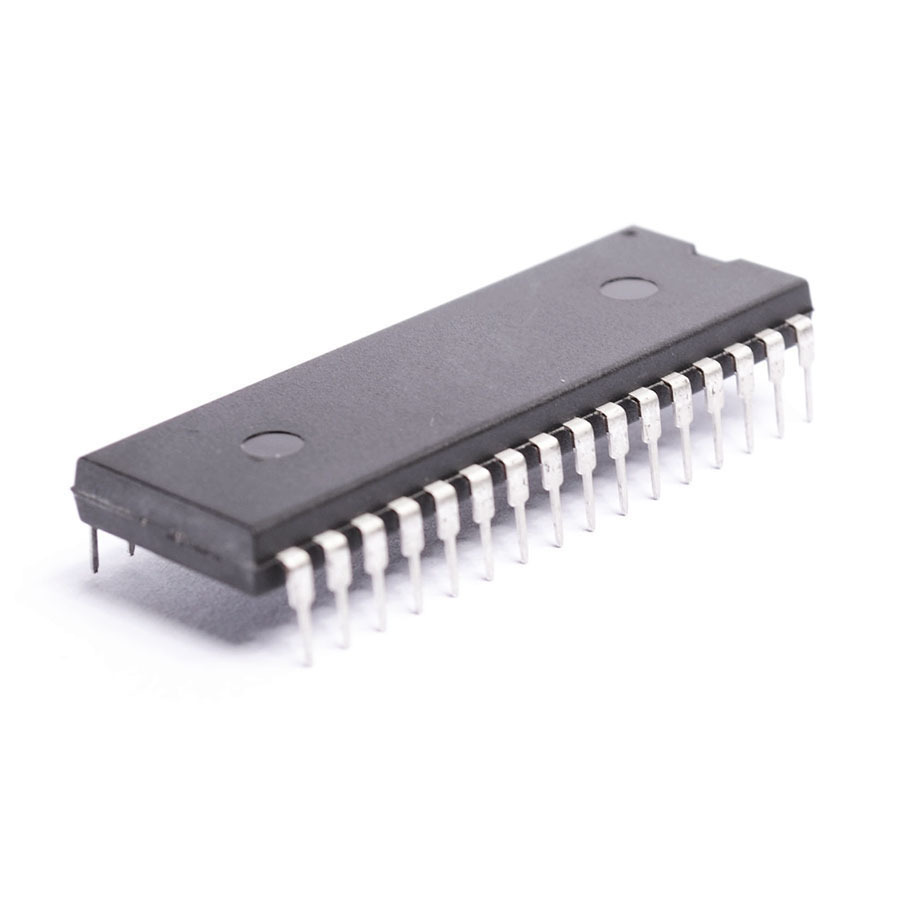

ADC80AGZ12 Integrated Circuit CASE: DIP32 MAKE: Burr Brown
Product specifications
Type Integrated Circuit
Case DIP32
Manufacturer Burr Brown
t(conv) (S) 25u
FSR Error (LSB/%) 12m%
Vin Range (Vp-p) 10
Outp Arith. Code BDM
VOH Min. 2.4
VOL Max. 0.4
PD Max. (W) 595m
Nom. Neg Supp 12
Nom. Pos. Supp 12
Oper. Temp (°C) Min -55
Oper. Temp (°C) Max. 125
Volt or Cur. Mode Voltage
Logic Level Family TTL
Pinout Equivalence Number 32-21
No. of Pins 32
Surface Mounted Yes/No NO
SKU 403820
