ADS7800AH

ADS7800AH

SKU: ADS7800AH

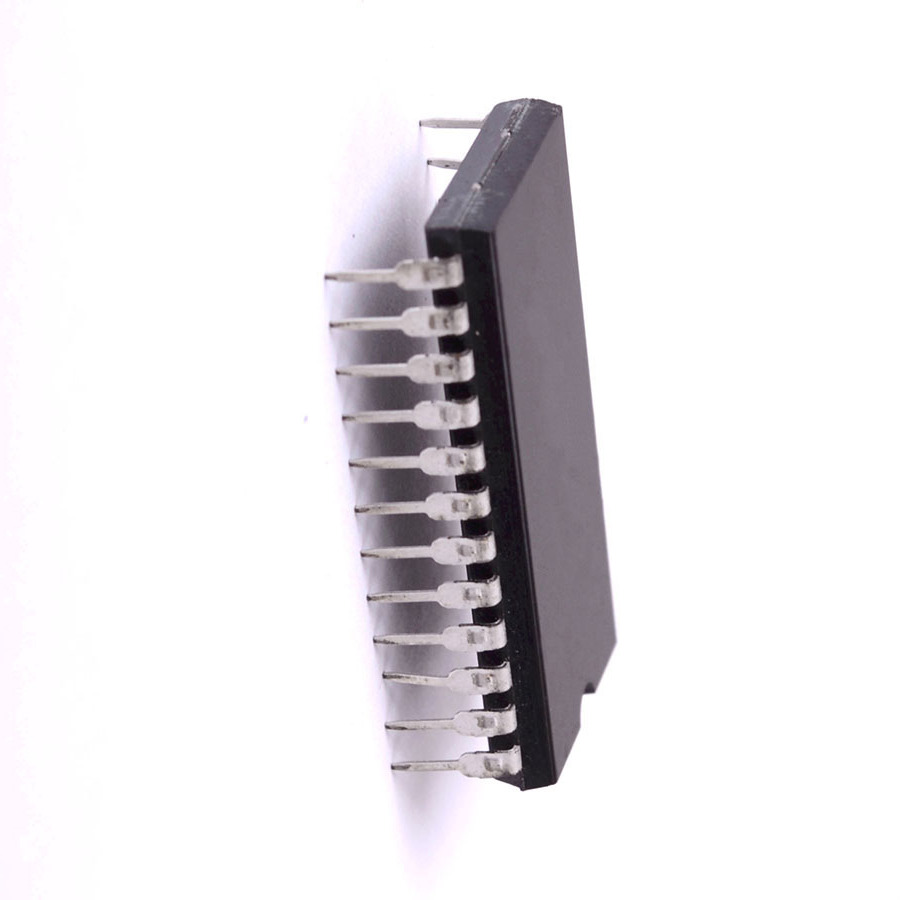

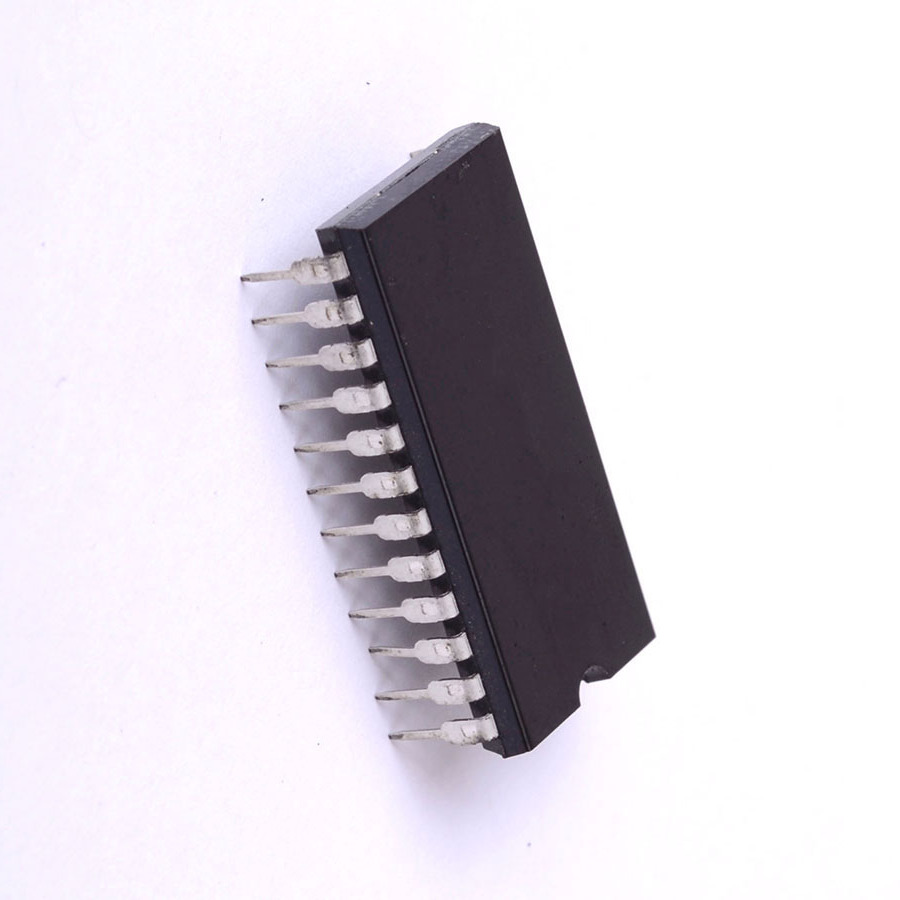

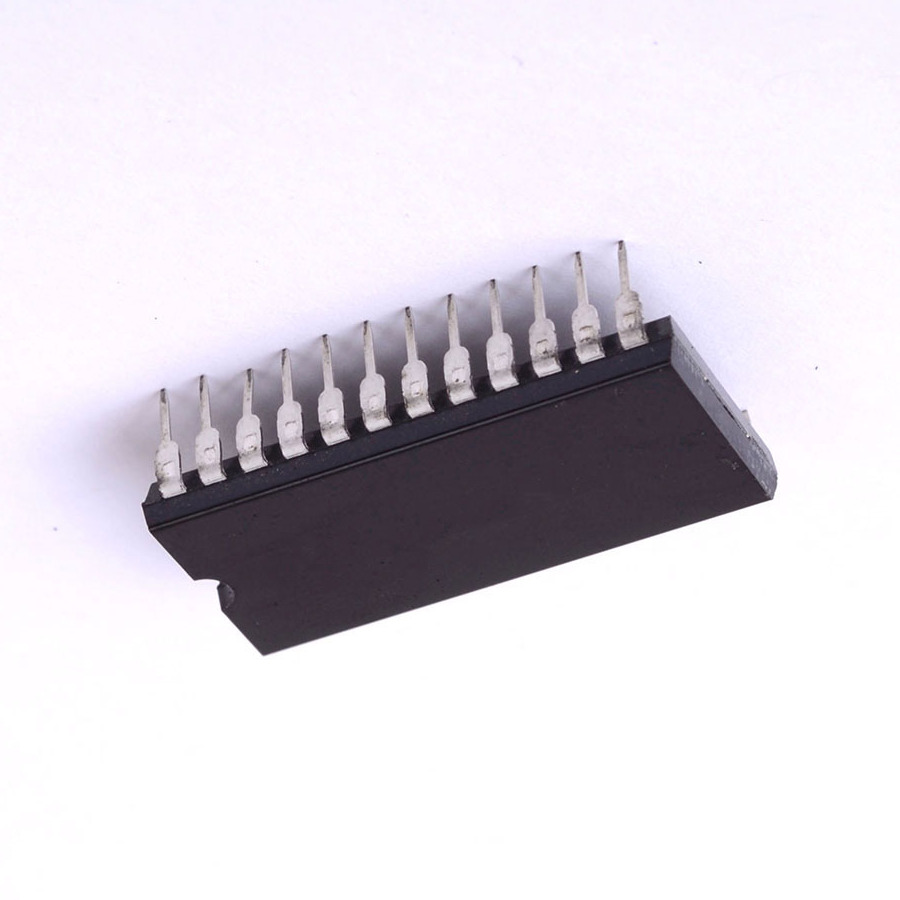

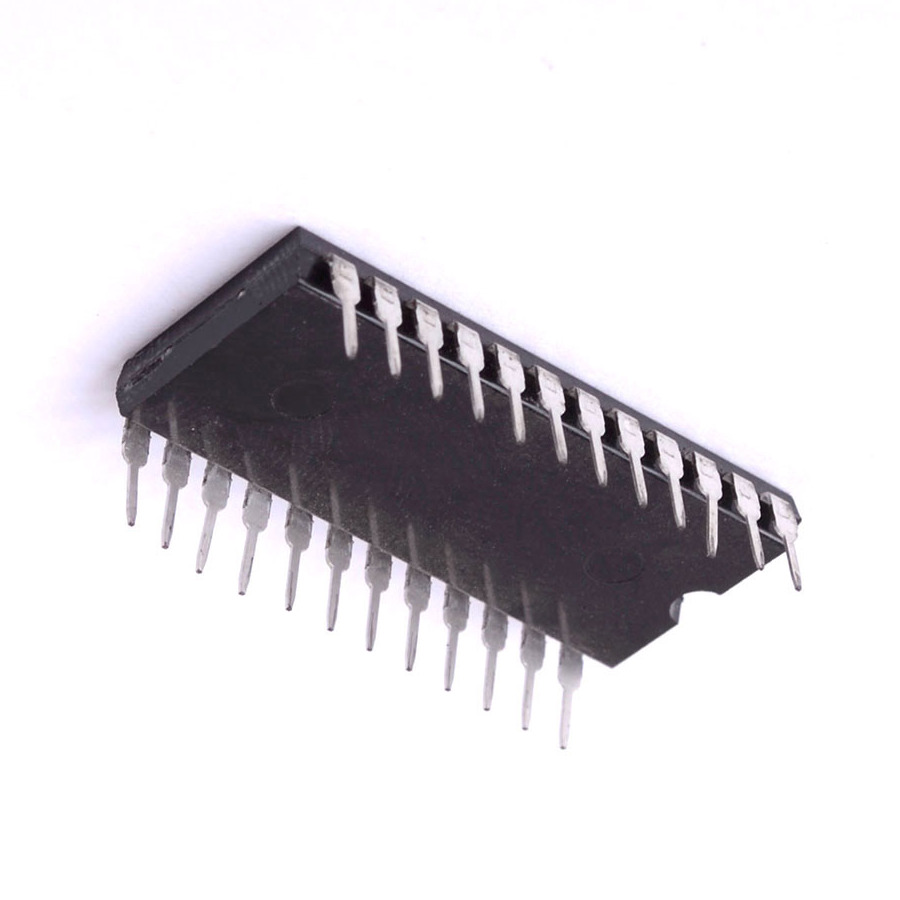

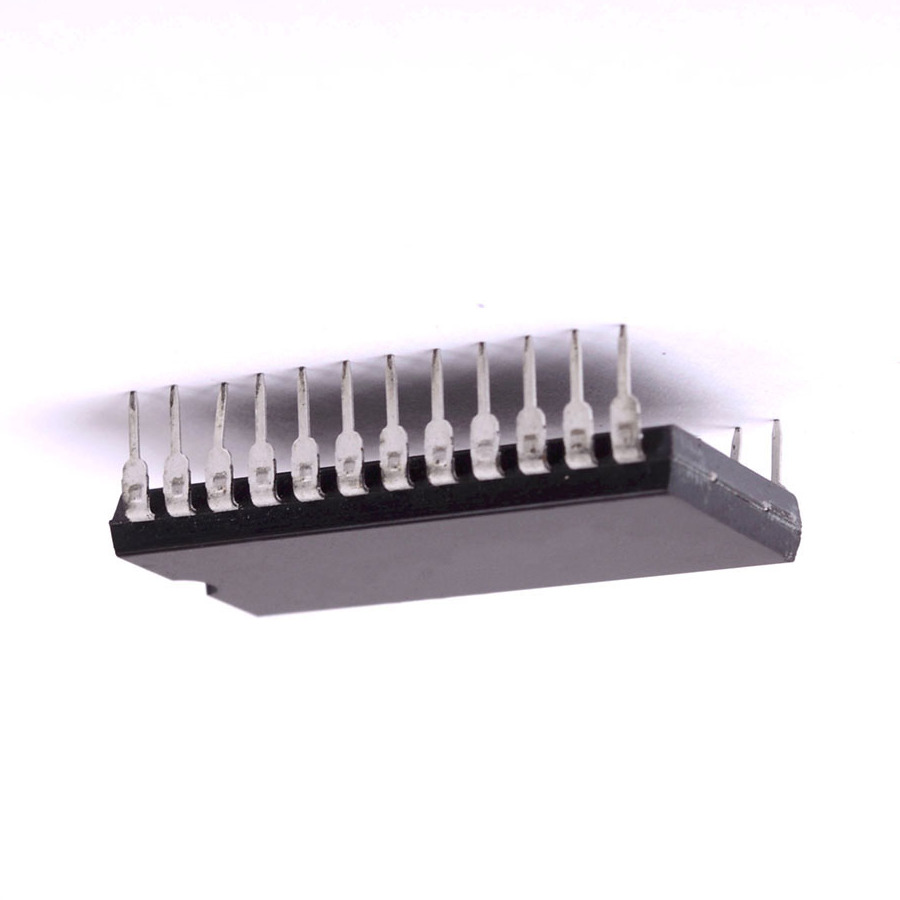

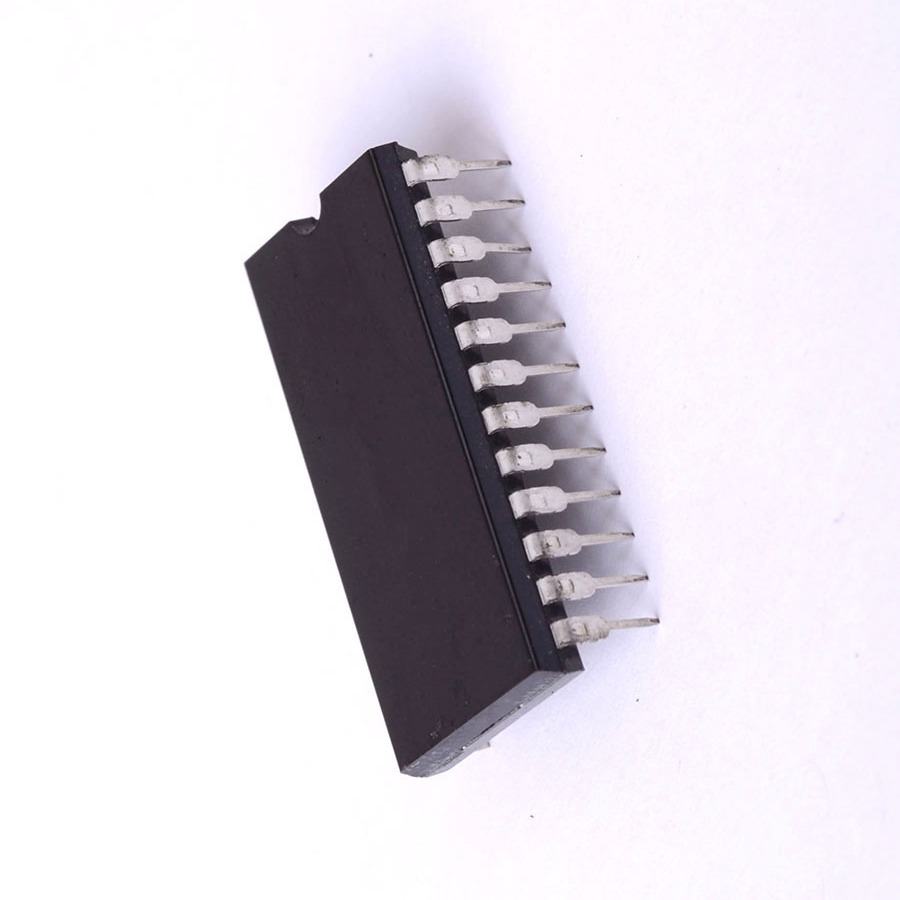

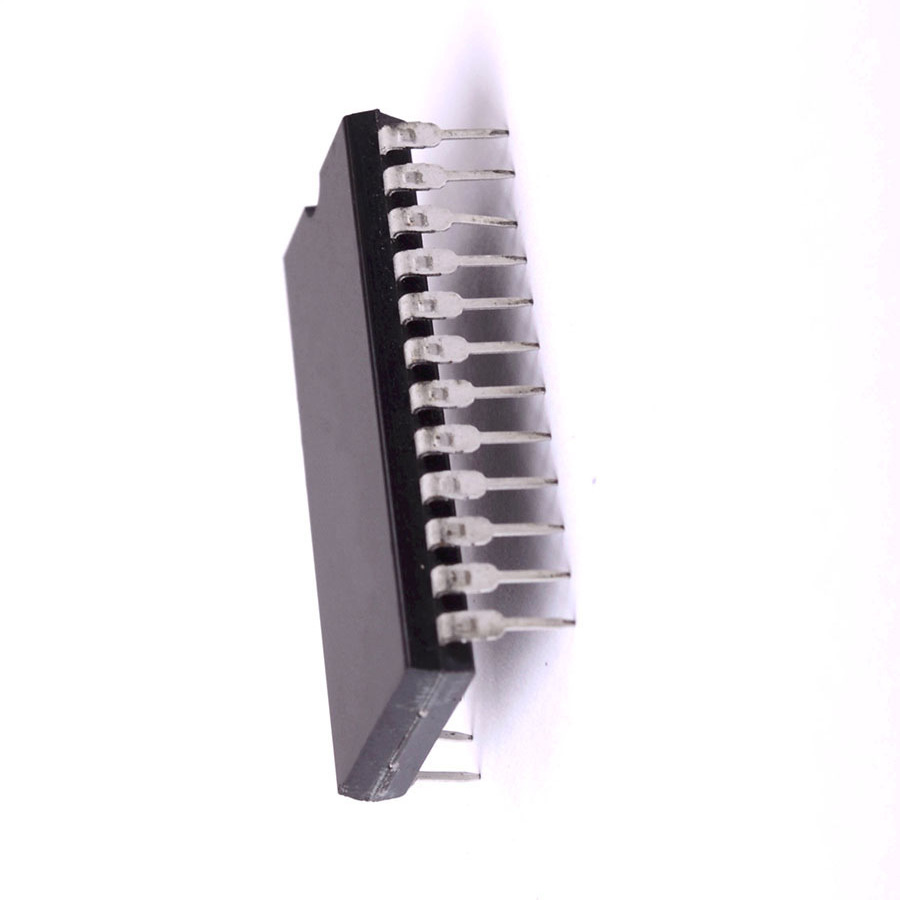

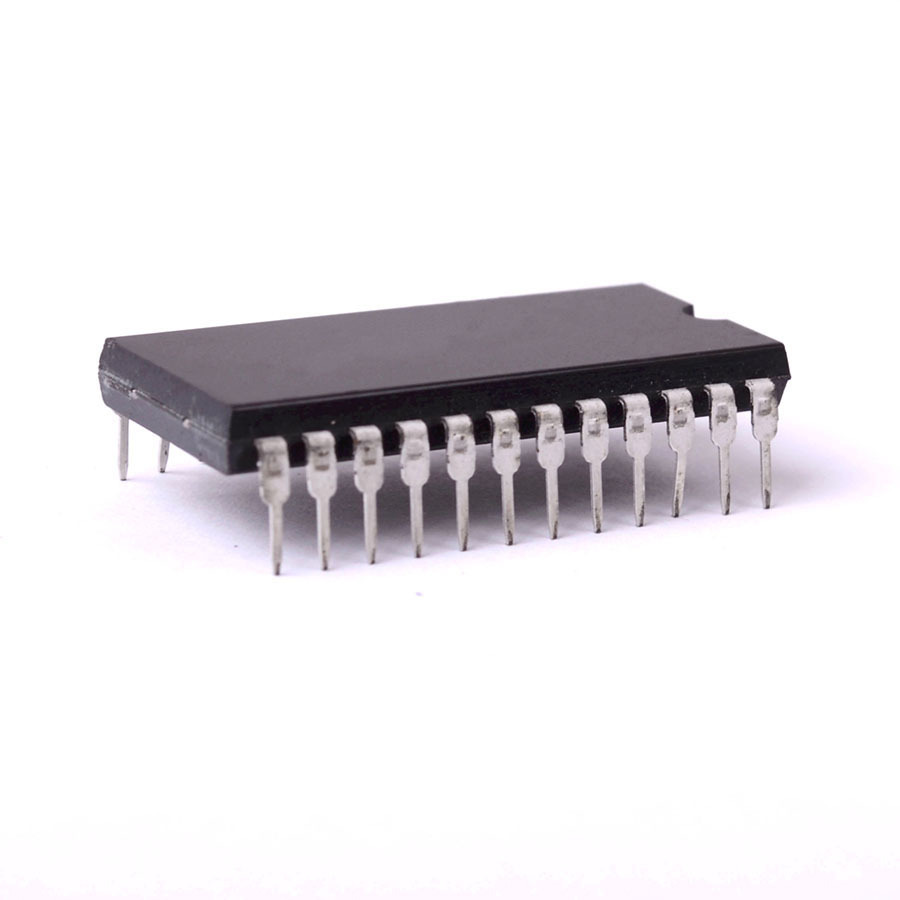

ADS7800AH Integrated Circuit CASE: DIP24 MAKE: Burr Brown
Datasheet
ADS7800AH Datasheet
Product specifications
Type Integrated Circuit
Case DIP24
Manufacturer Burr Brown
t(conv) (S) 2.7u
FSR Error (LSB/%) 1
Vin Range (Vp-p) 10
Outp Arith. Code AC
VOH Min. 2.4
VOL Max. 0.4
PD Max. (W) 215m
Nom. Neg Supp 15
Nom. Pos. Supp 5.0
Tech. CMOS Integrated Circuit
Oper. Temp (°C) Min -40
Oper. Temp (°C) Max. 85
Volt or Cur. Mode Voltage
Logic Level Family TTL
Pinout Equivalence Number 24-732
No. of Pins 24
Surface Mounted Yes/No NO
SKU 125508
