AF269
View detailed images (4)

AF269

SKU: AF269

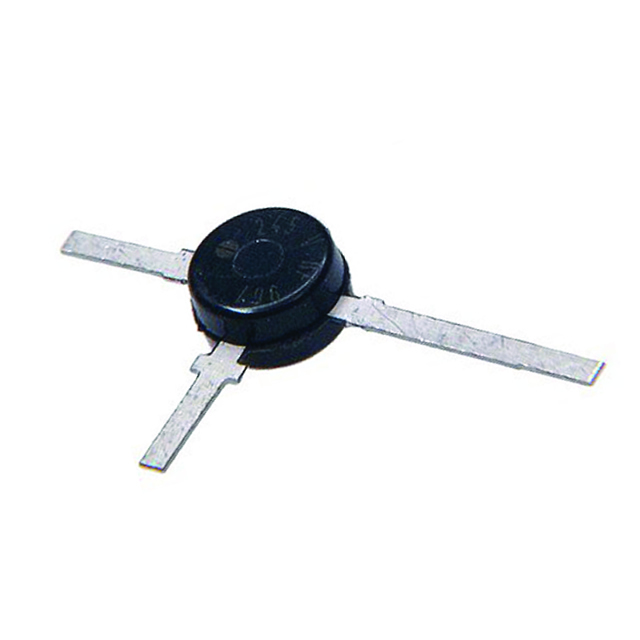

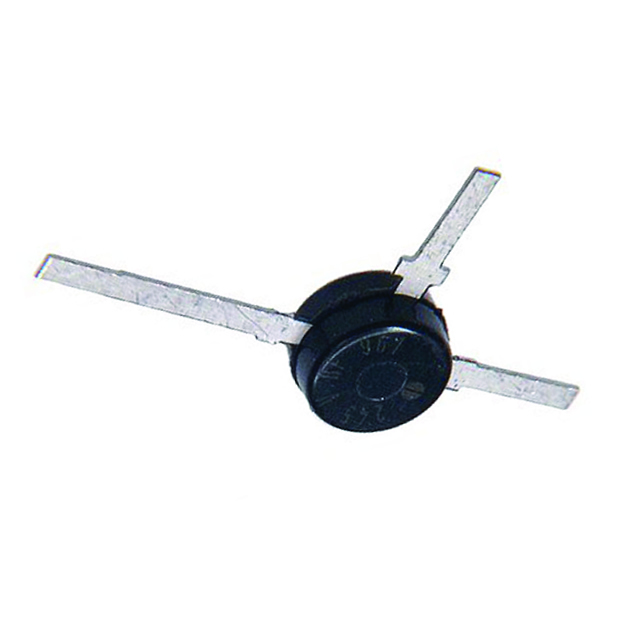

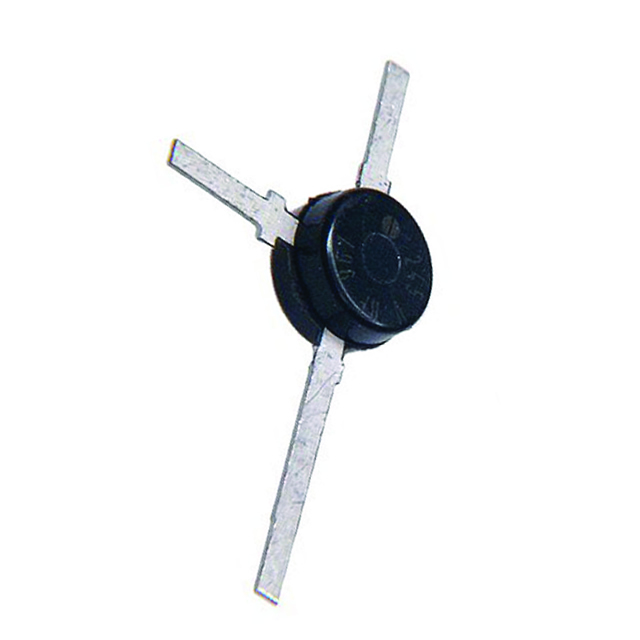

AF269 Transistor Germanium PNP CASE: SOT37 MAKE: Valvo
Product specifications
Type Transistor Germanium PNP
Case SOT37
Manufacturer Valvo
Polarity PNP
Maximum Collector Power Dissipation (Pc) 0.06 W
Maximum Collector-Base Voltage |Vcb| 20 V
Maximum Collector-Emitter Voltage |Vce| 15 V
Maximum Collector Current |Ic max| 0.01 A
Max. Operating Junction Temperature (Tj) 90 °C
Collector Capacitance (Cc) 0.4 pF
Transition Frequency (ft): 550 MHz
Forward Current Transfer Ratio (hFE), MIN 10
SKU 587739
