AF339
View detailed images (4)

AF339

SKU: AF339

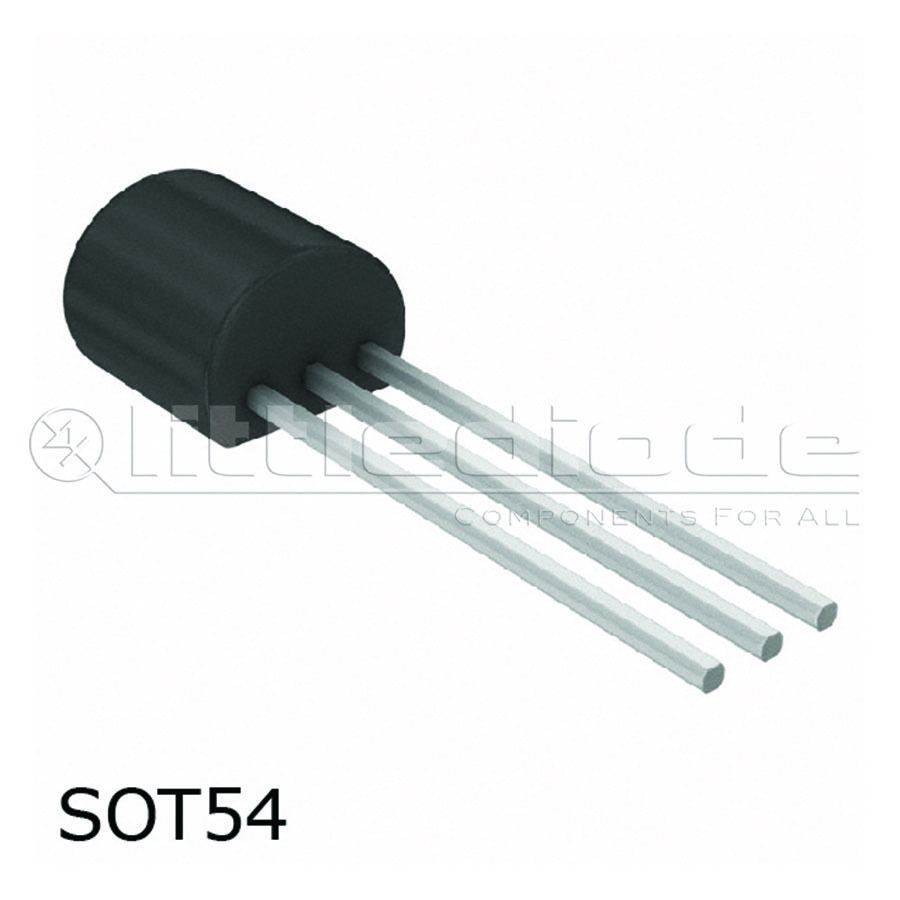

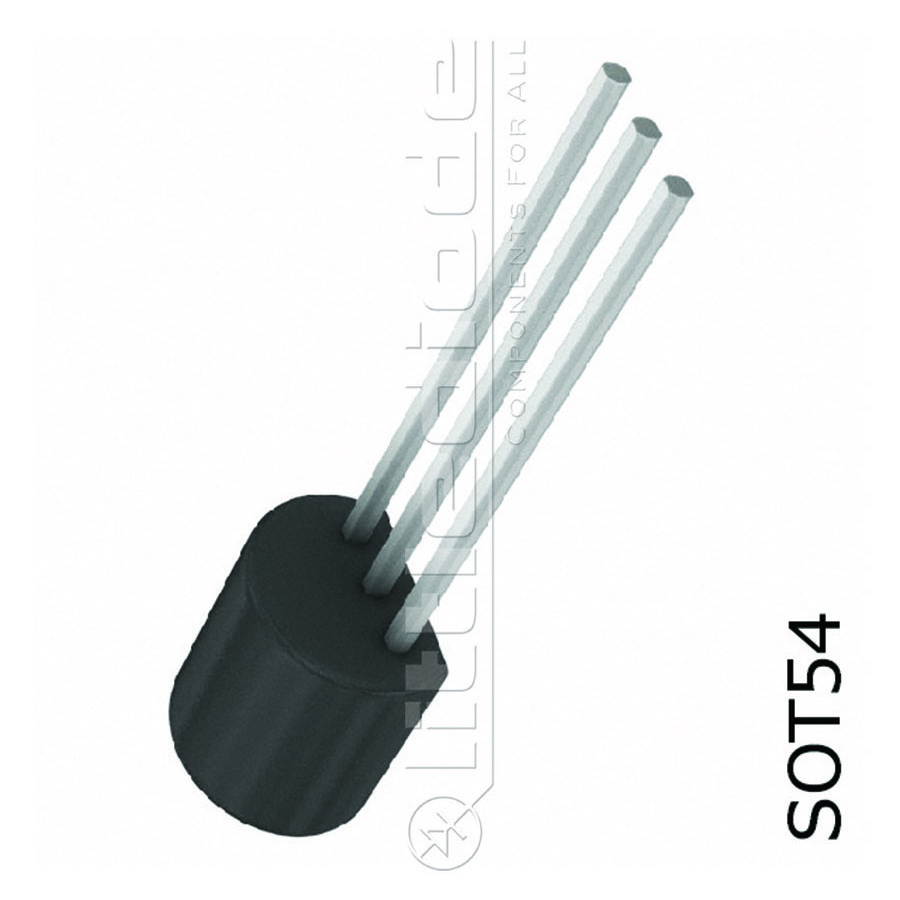

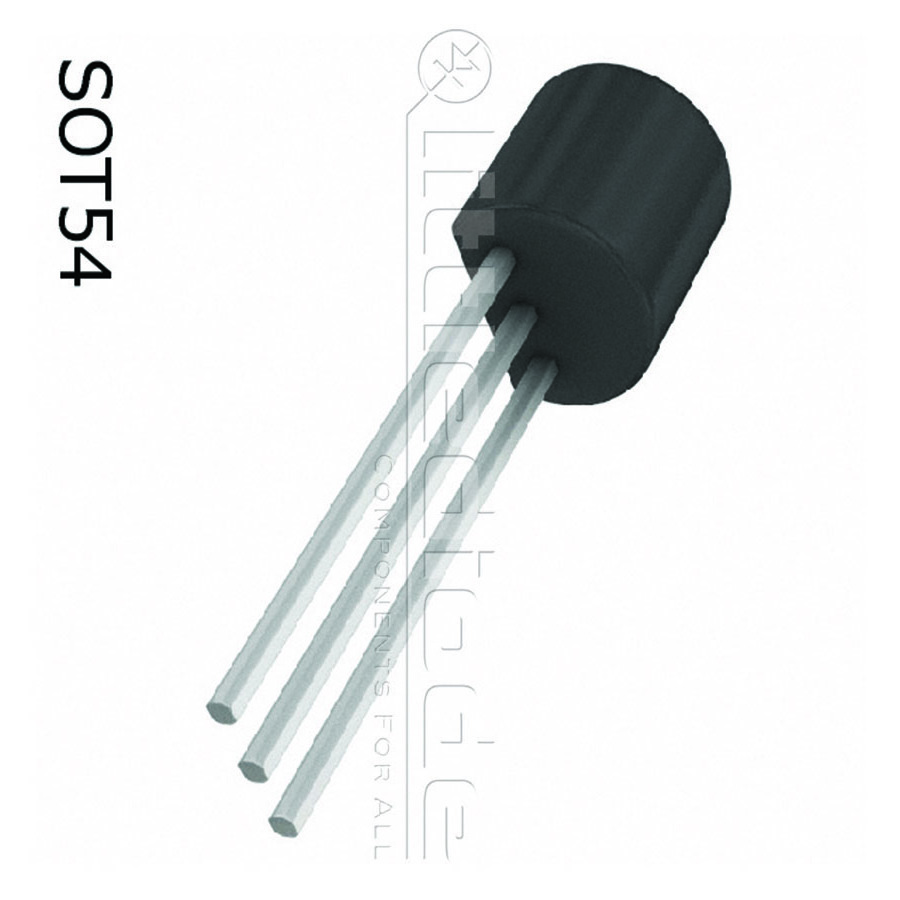

AF339 Transistor - CASE: SOT54 MAKE: Siemens
Price: £11.99
+ VAT 20% for UK purchases
£11.99
Qty
+ VAT 20% for UK purchases
  • More pieces shipped in 14 days
Product specifications
Case SOT54
Type Transistor Germanium PNP
Manufacturer Siemens Semiconductors
Vbr CBO 20
Vbr CEO 15
Max. PD (W) 60m
C(ob) (F) 650f
Derate (Amb) (W/°C) 2.0m
hfe 40
Ic Max. (A) 12m
Polarity PNP
Trans. Freq (Hz) Min. 750M
@VCE (test) (V) 10
Oper. Temp (°C) Max. 100
@Ic (A) 2.0m
Pinout Equivalence Number 3-12
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.12 W
Maximum Collector-Base Voltage |Vcb| 20 V
Maximum Collector-Emitter Voltage |Vce| 15 V
Maximum Emitter-Base Voltage |Veb| 3 V
Maximum Collector Current |Ic max| 0.012 A
Max. Operating Junction Temperature (Tj) 85 °C
Collector Capacitance (Cc) 1.5 pF
Transition Frequency (ft): 400 MHz
Forward Current Transfer Ratio (hFE), MIN 40
SKU 404045
