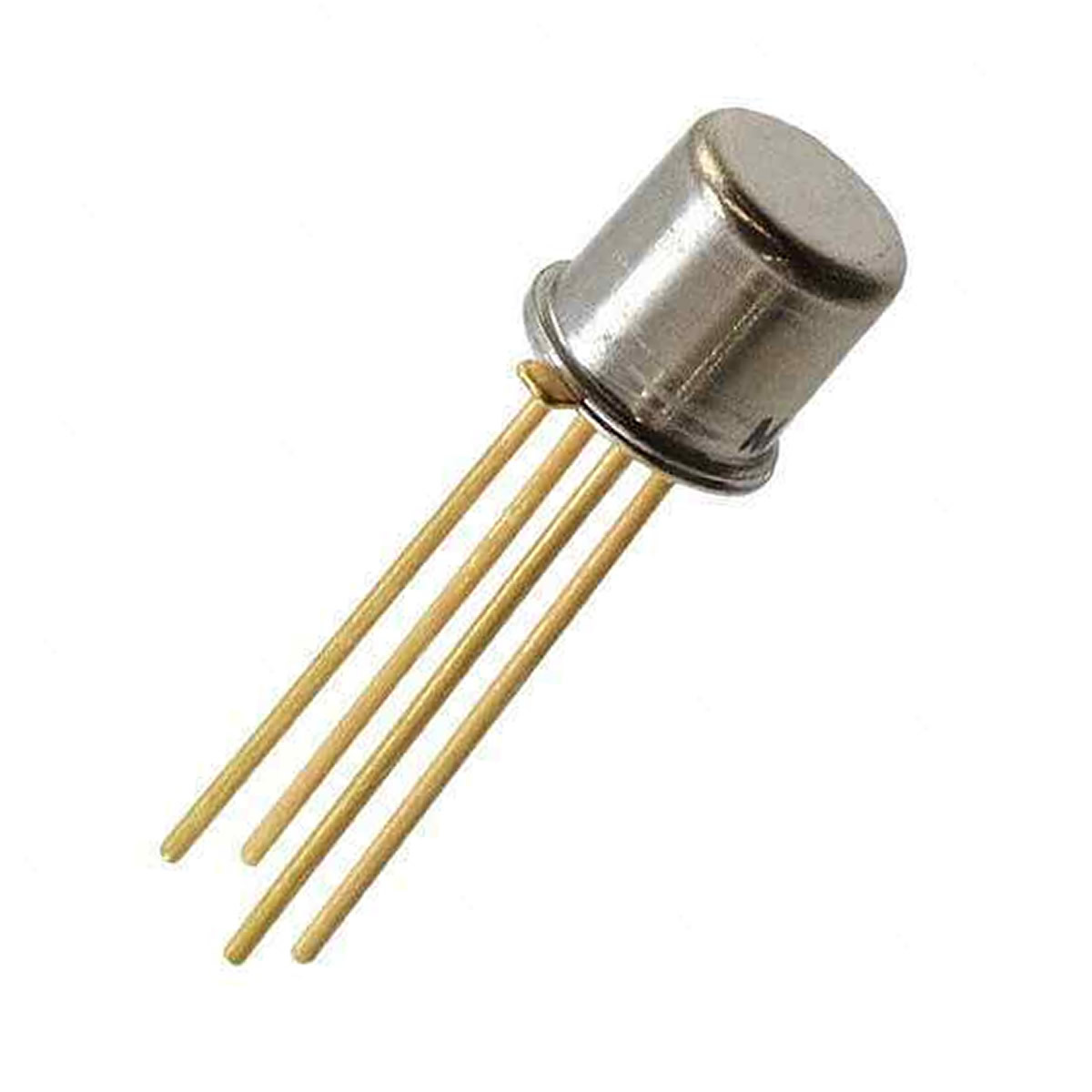

AM1000H

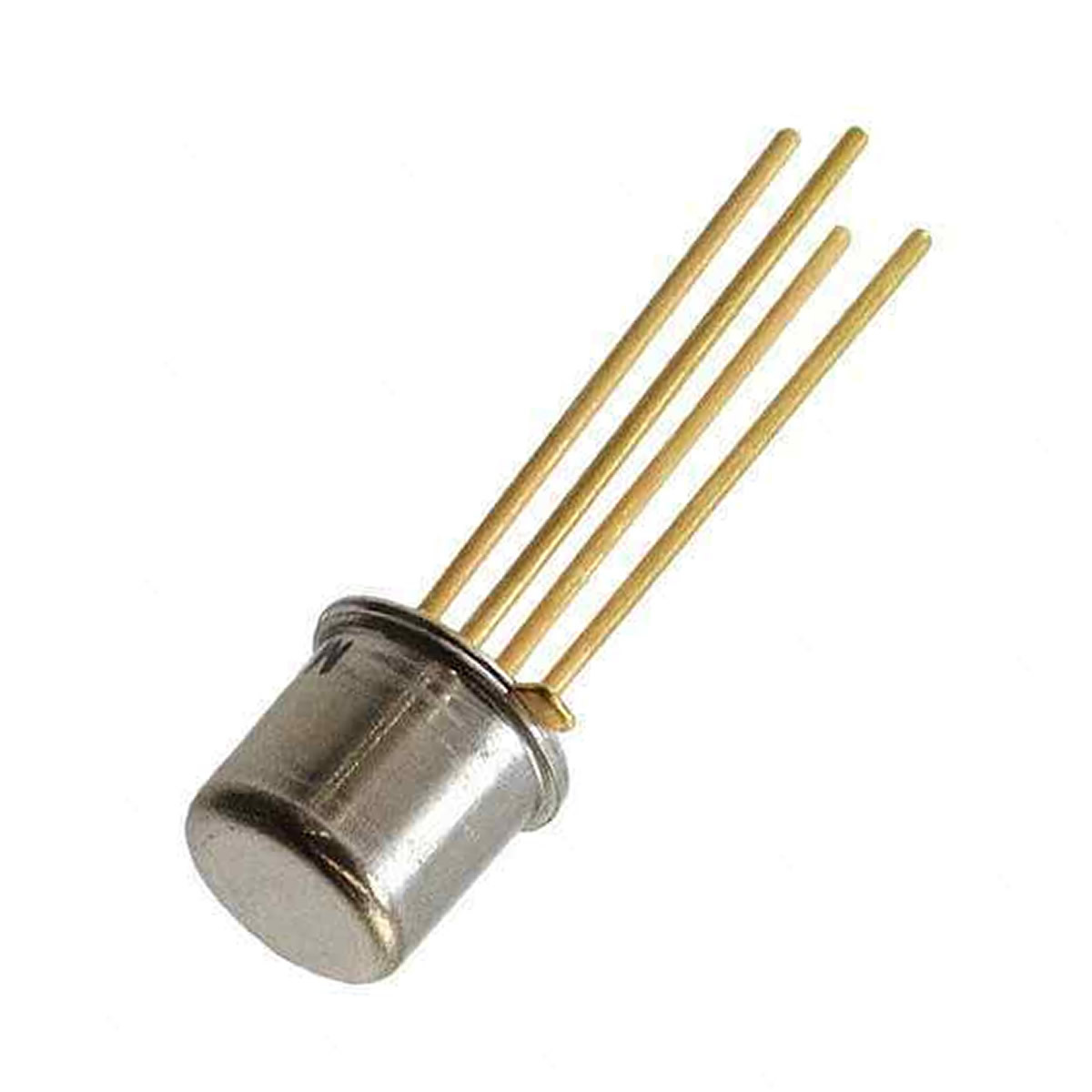

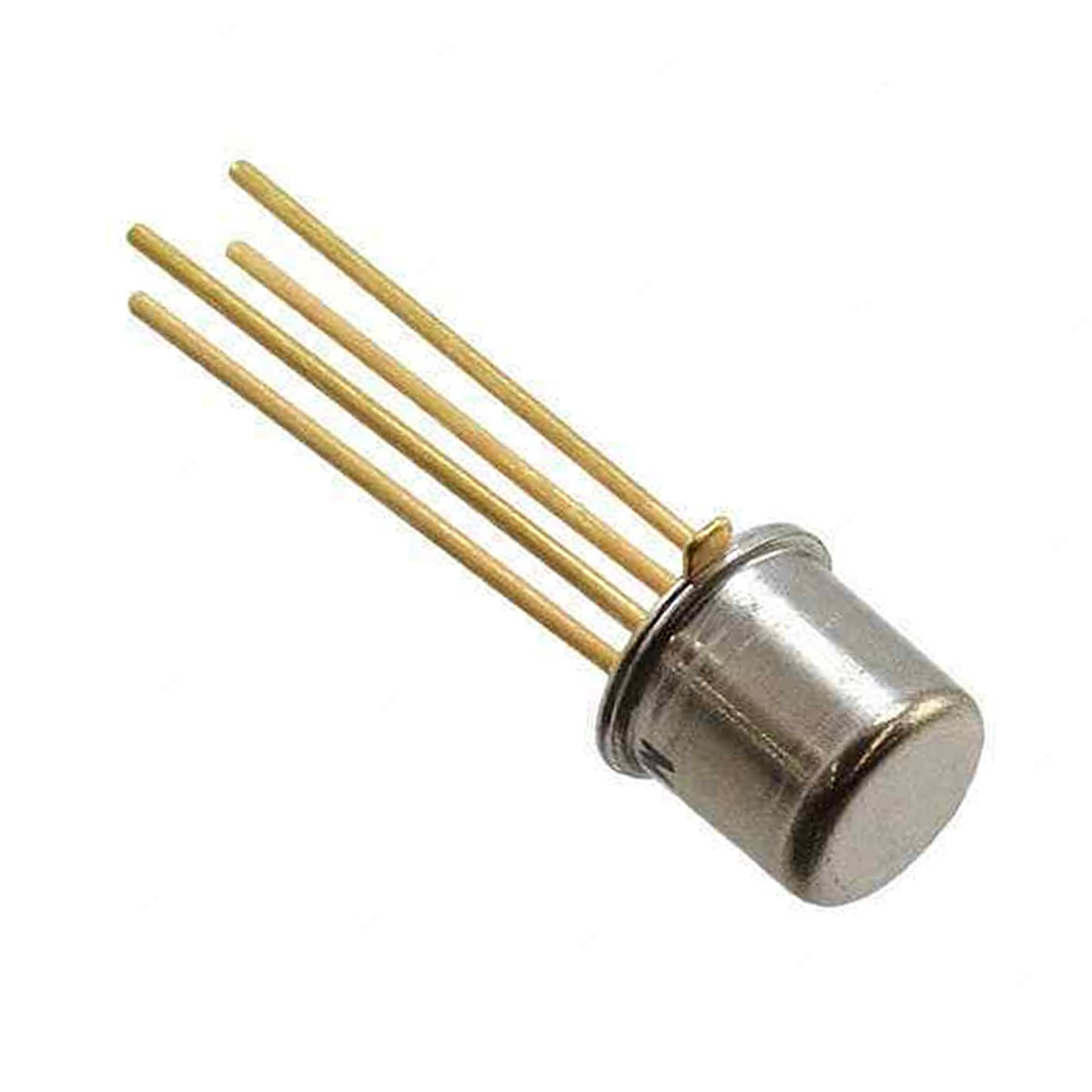

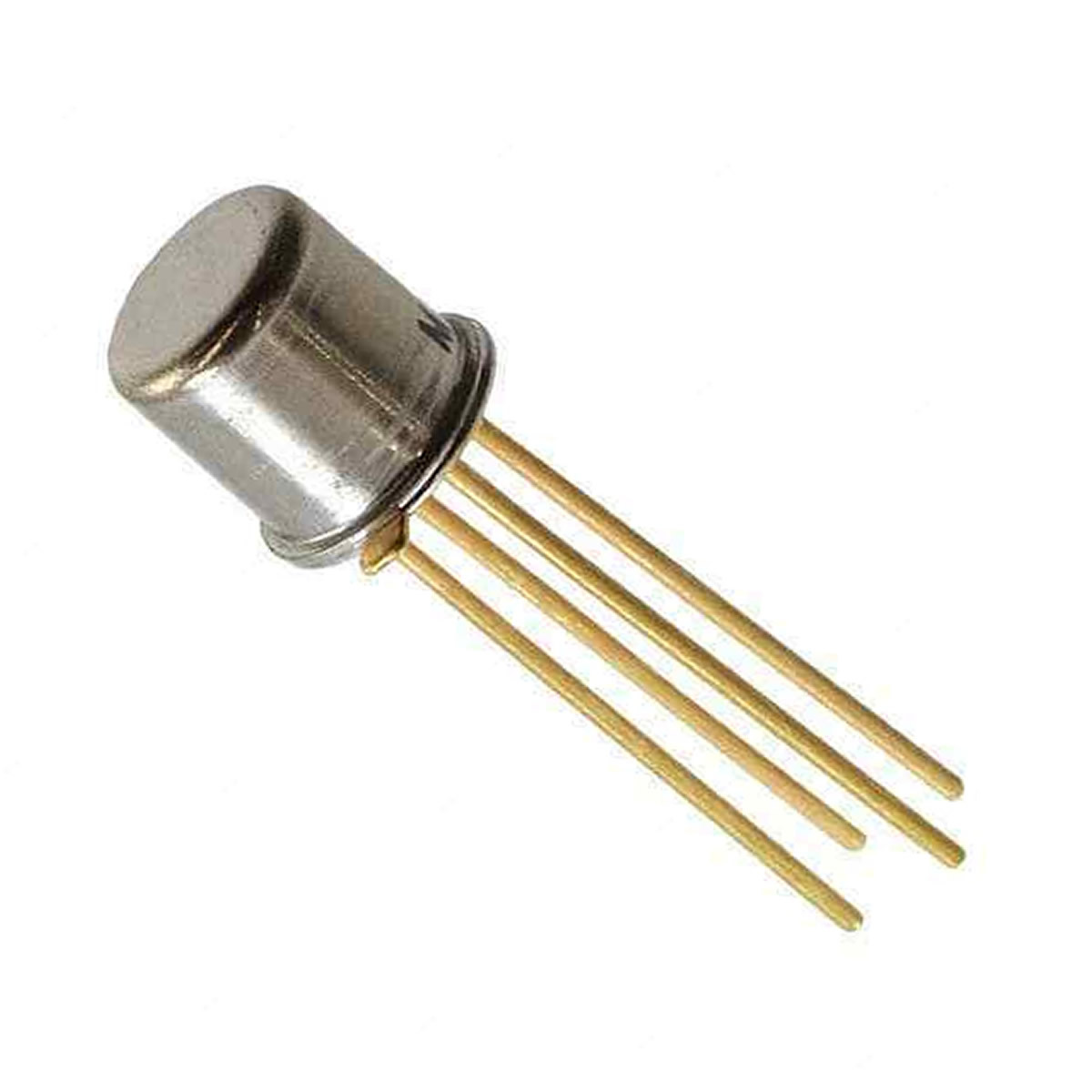

View detailed images (4)

AM1000H

SKU: AM1000H
AM1000H Integrated Circuit CASE: TO72-4 MAKE: Analog Devices - AMD
Product specifications
Type Integrated Circuit
Case TO72-4
Manufacturer Analog Devices - AMD
Ckts Per Dev. 1
Vcntl (Hi) (V) 10
Vcntl (Lo) (V) -20
Features Norm Closd
@Is (test) (A) 1.0m
PD Max. (W) 300m
Nom. Neg Supp 10
Nom. Pos. Supp 0.0
R(ds) On (Û) 30
Analog Sw. Cur. P-P Max. 10m
Sw. Volt P-P Max.(V) 40
Tech. JFET - Junction Field Effect Transistor
t(on) Max. (S) 100n
@Vd (test) (V) 10
Oper. Temp (°C) Min -55
Oper. Temp (°C) Max. 155
Pinout Equivalence Number 4-1
No. of Pins 4
Surface Mounted Yes/No NO
SKU 404101
