ASY32
View detailed images (4)

ASY32

SKU: ASY32

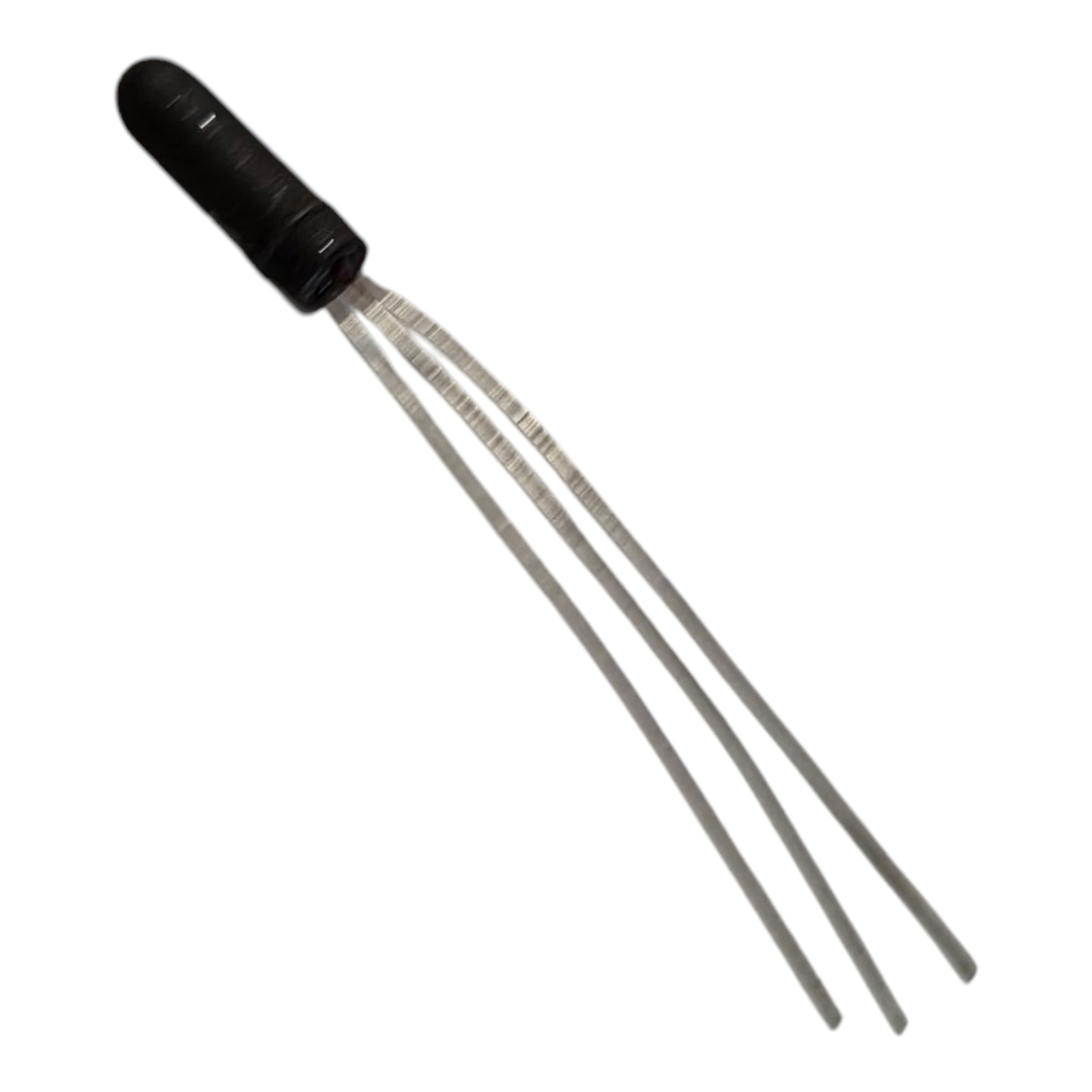

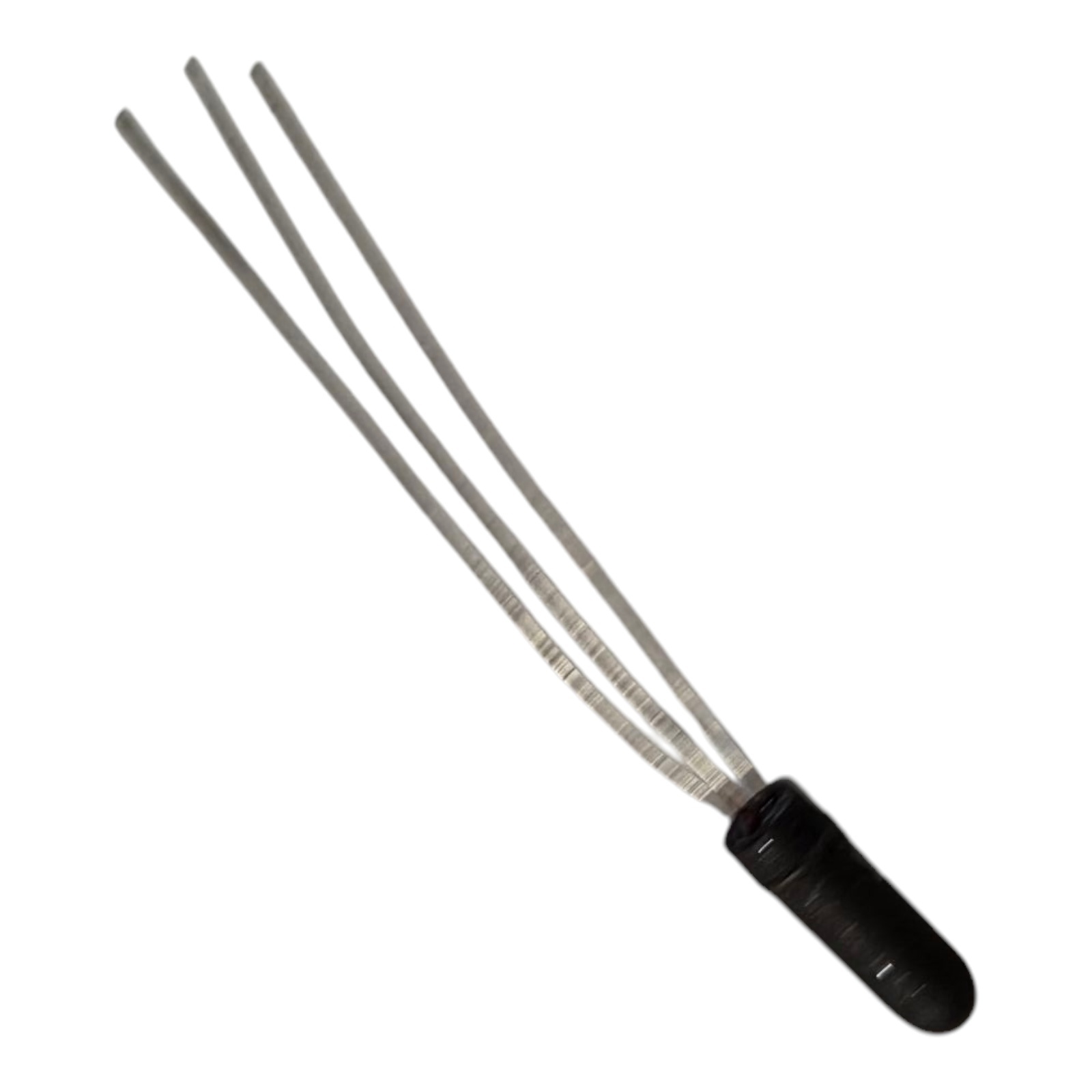

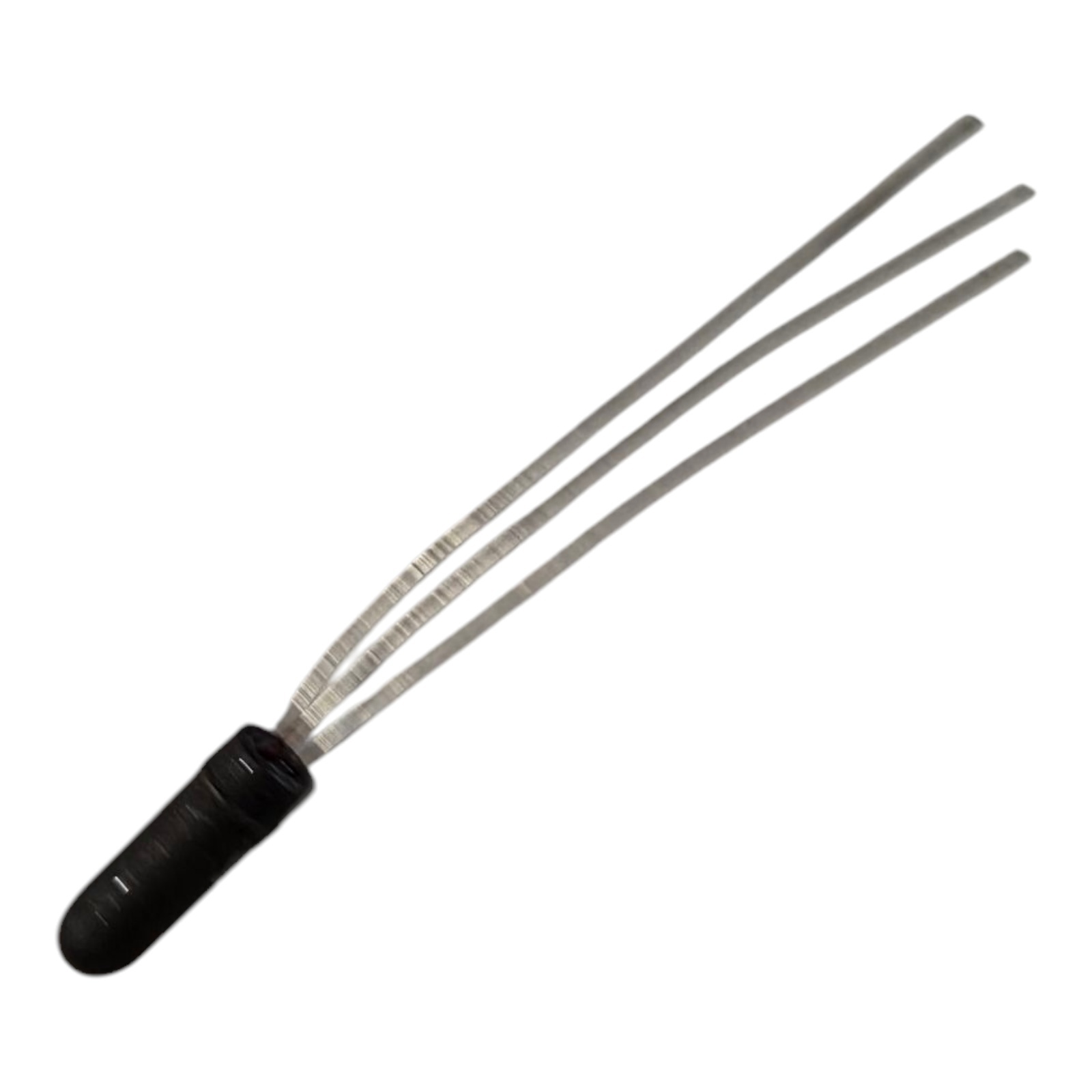

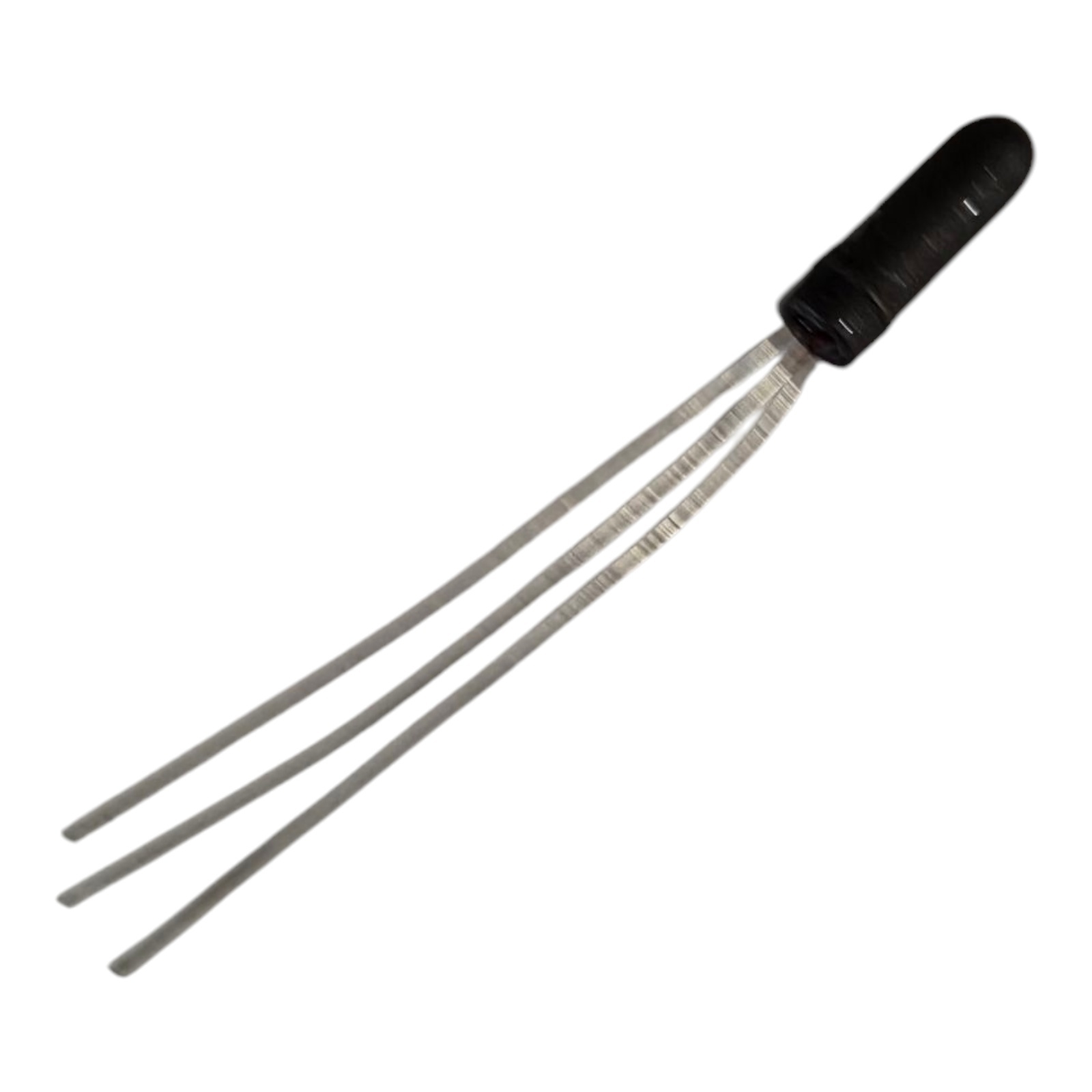

ASY32 Transistor Germanium PNP CASE: X01 MAKE: Astec Power
Price:
£14.39 Inc. VAT (£11.99 Ex. VAT)
£14.39 Inc. VAT (£11.99 Ex. VAT)
Qty
  • More pieces shipped in 14 days
?
Product specifications
Type Transistor Germanium PNP
Case X01
Manufacturer Astec Power
Vbr CBO 25
Vbr CEO 15
Max. PD (W) 125m
Derate (Amb) (W/°C) 2.5m
hfe 50
Ic Max. (A) 200m
Icbo Max. @Vcb Max. (A) 3.0u
Polarity PNP
Trans. Freq (Hz) Min. 6.0M
@VCE (test) (V) 0i
Oper. Temp (°C) Max. 75
@Ic (A) 20m
Pinout Equivalence Number N/A
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.125 W
Maximum Collector-Base Voltage |Vcb| 25 V
Maximum Collector-Emitter Voltage |Vce| 15 V
Maximum Emitter-Base Voltage |Veb| 20 V
Maximum Collector Current |Ic max| 0.1 A
Max. Operating Junction Temperature (Tj) 75 °C
Collector Capacitance (Cc) 16 pF
Transition Frequency (ft): 6 MHz
Forward Current Transfer Ratio (hFE), MIN 50
SKU 84002
