ASZ12

SKU: ASZ12

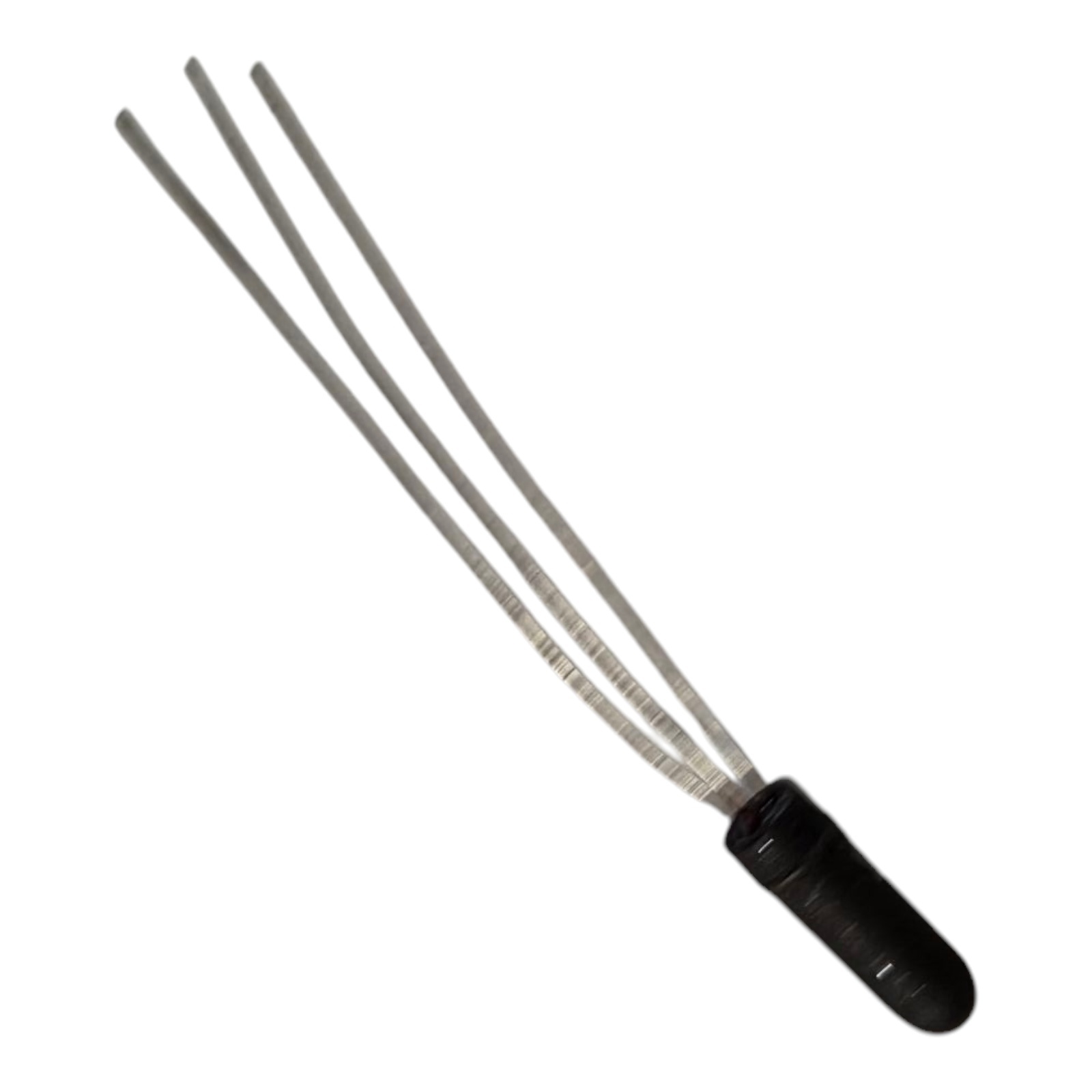

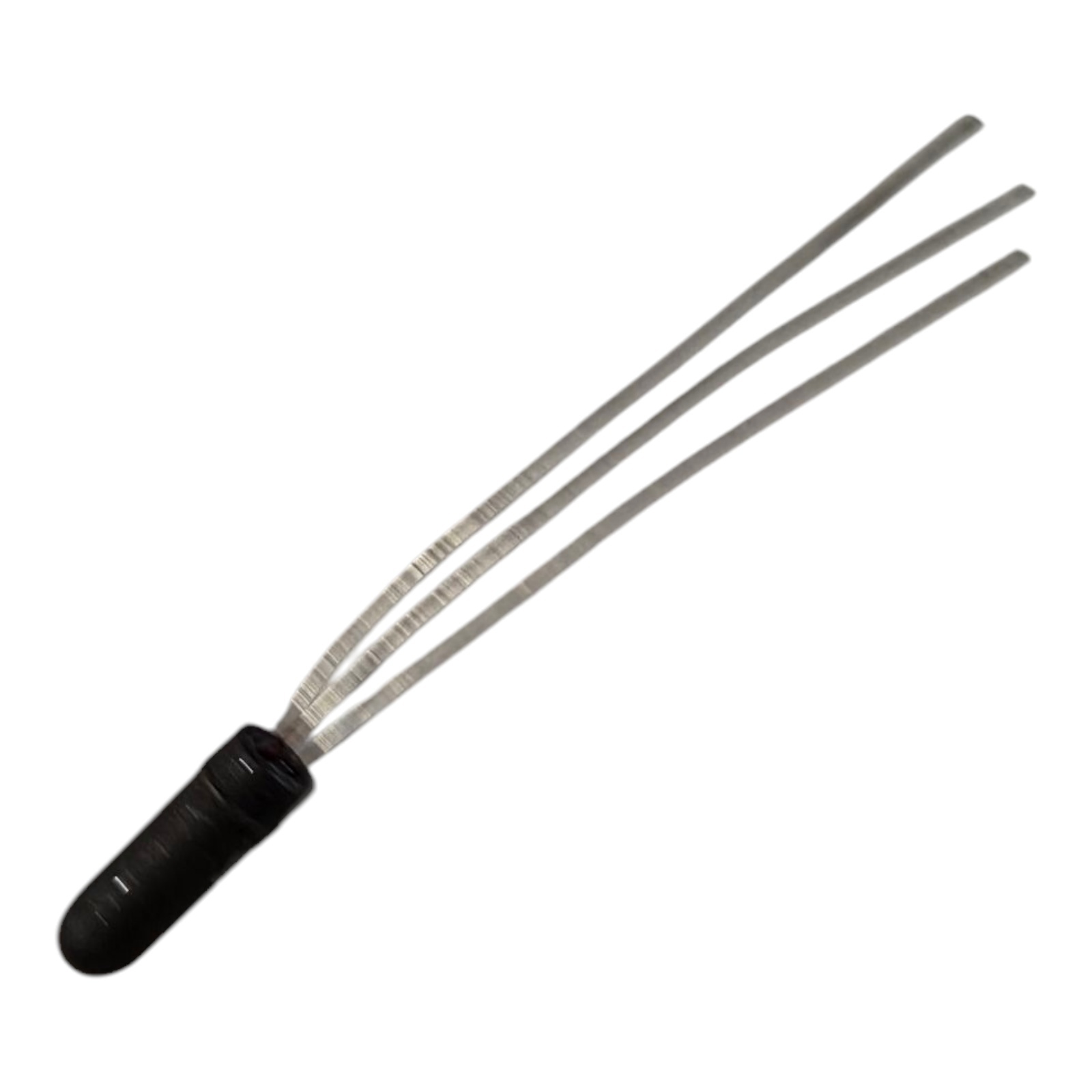

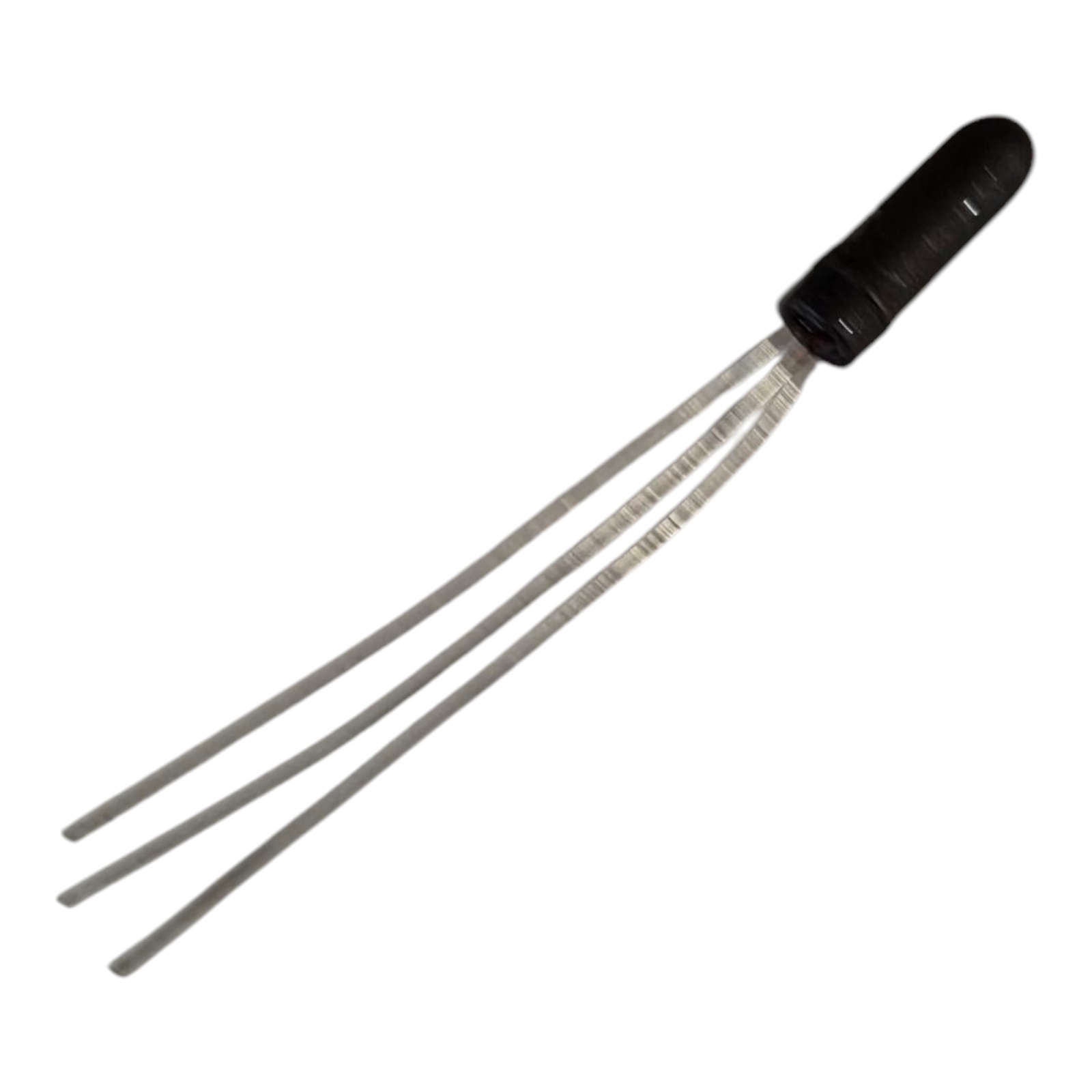

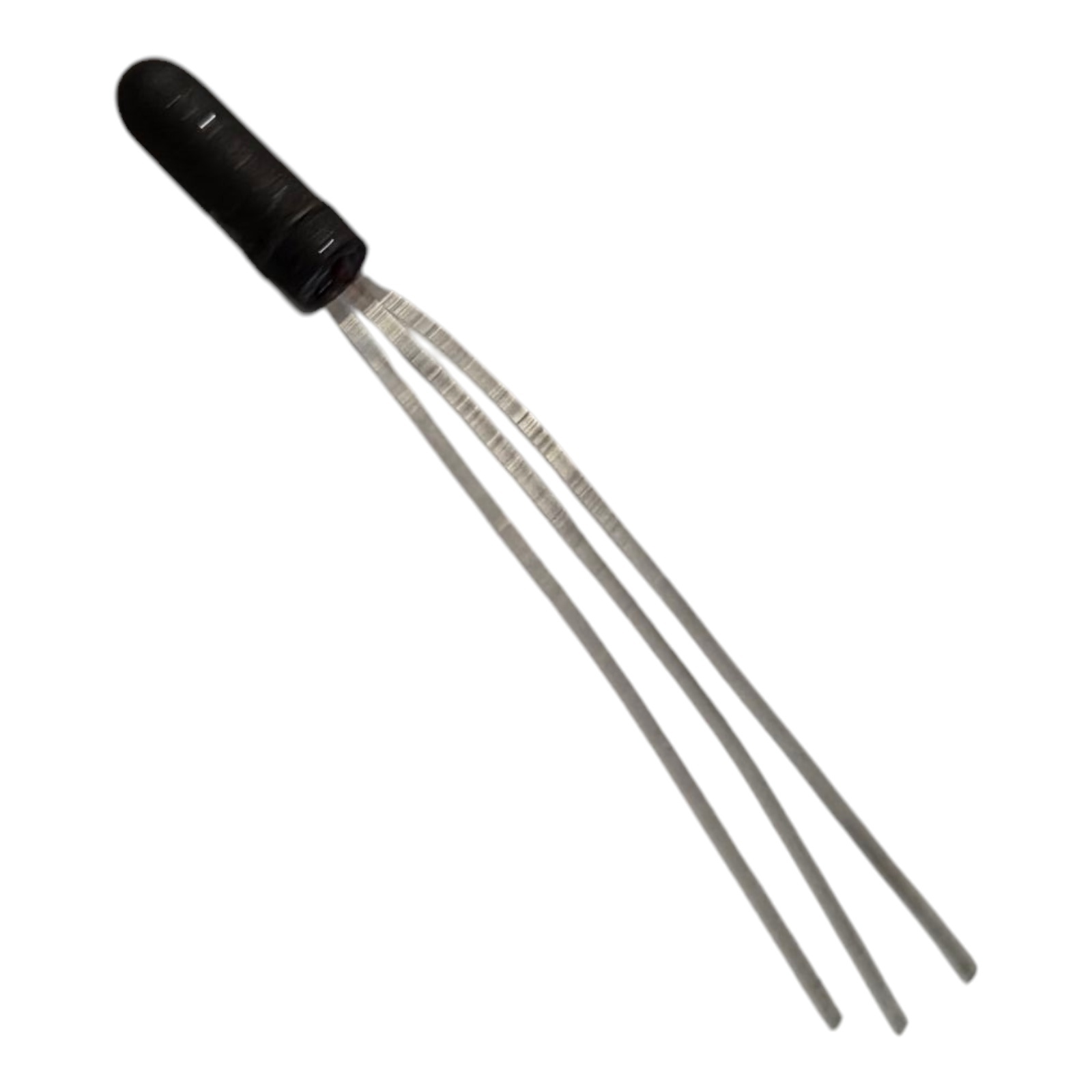

ASZ12 Transistor Germanium PNP CASE: X01 MAKE: Astec Power
+ VAT 20% for UK purchases
Product specifications
Type Transistor Germanium PNP
Case X01
Manufacturer Astec Power
Vbr CBO 20
Max. PD (W) 125m
C(ob) (F) 20p
Derate (Amb) (W/°C) 2.5m
Dyn. Zmax (Û) 18-
hfe 60
Ic Max. (A) 200m
Icbo Max. @Vcb Max. (A) 3.0u
Polarity PNP
PD Max. (W) 1.0
Nom. Ref. Volt 12
Test Current 10m
Tol. (%) 5
Trans. Freq (Hz) Min. 5.5M
@VCE (test) (V) 0i
Oper. Temp (°C) Max. 75
@Ic (A) 15m
Pinout Equivalence Number N/A
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.125 W
Maximum Collector-Base Voltage |Vcb| 20 V
Maximum Collector-Emitter Voltage |Vce| 12 V
Maximum Emitter-Base Voltage |Veb| 6 V
Maximum Collector Current |Ic max| 0.2 A
Max. Operating Junction Temperature (Tj) 75 °C
Collector Capacitance (Cc) 20 pF
Transition Frequency (ft): 5.5 MHz
Forward Current Transfer Ratio (hFE), MIN 60
SKU 744271
