BAV45

BAV45

SKU: BAV45

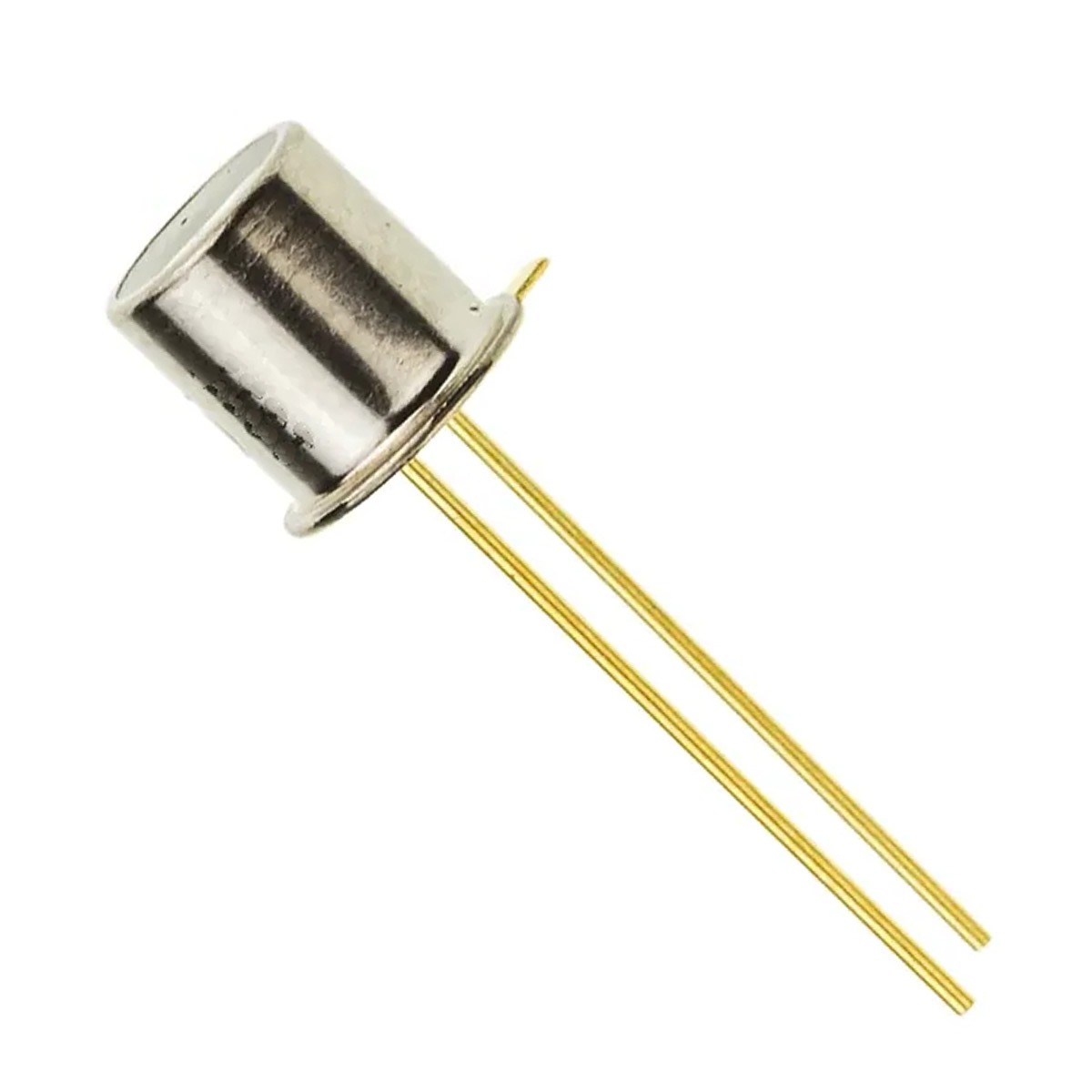

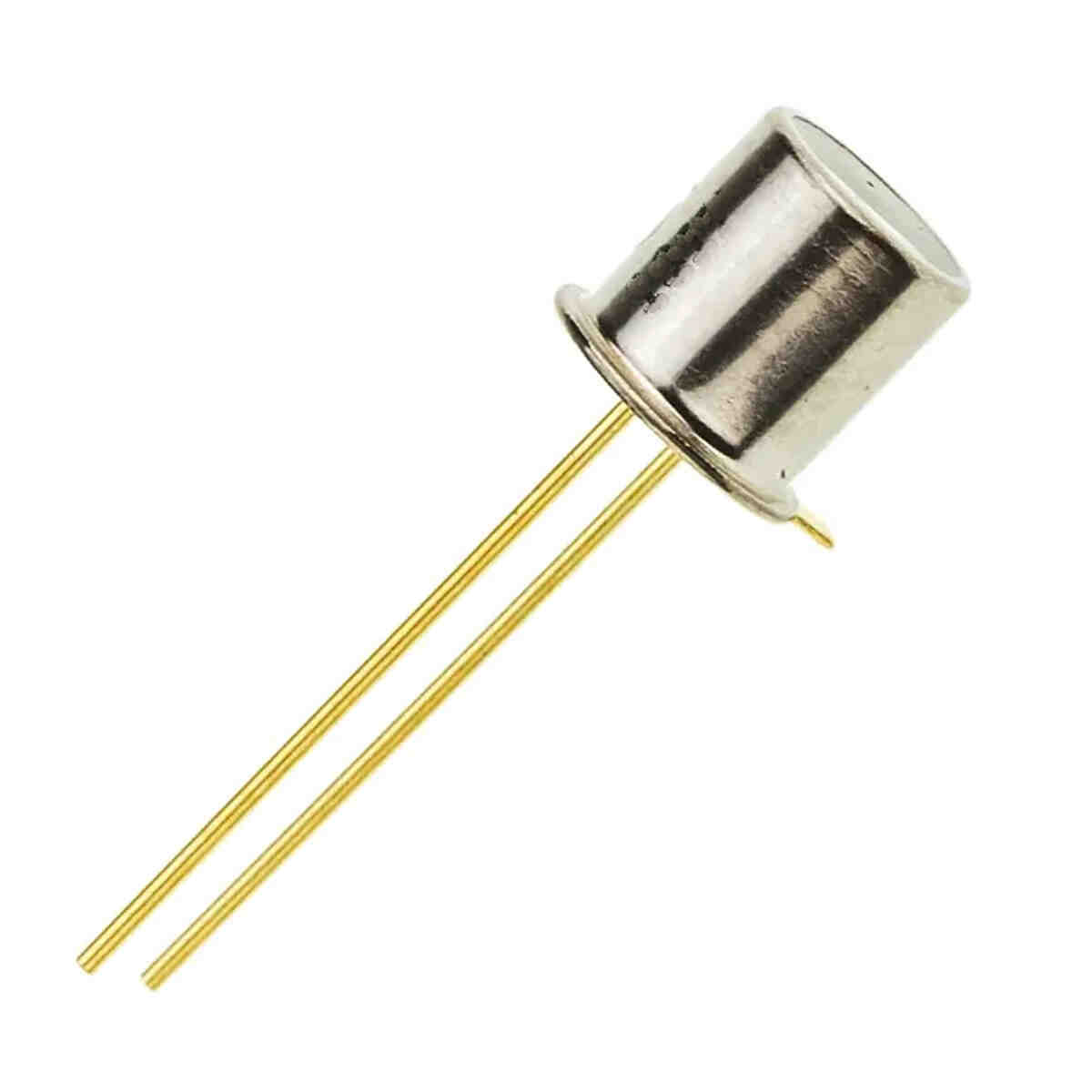

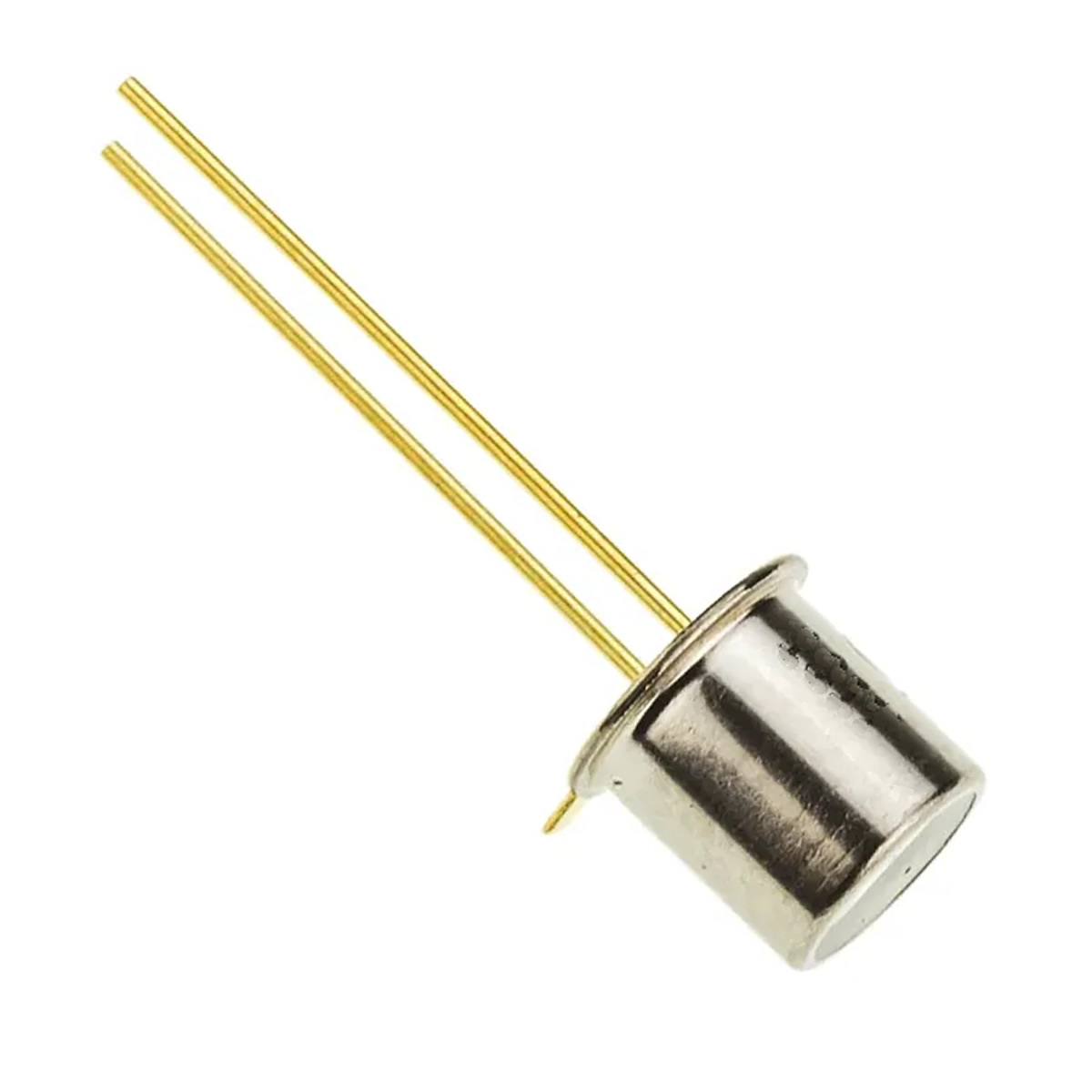

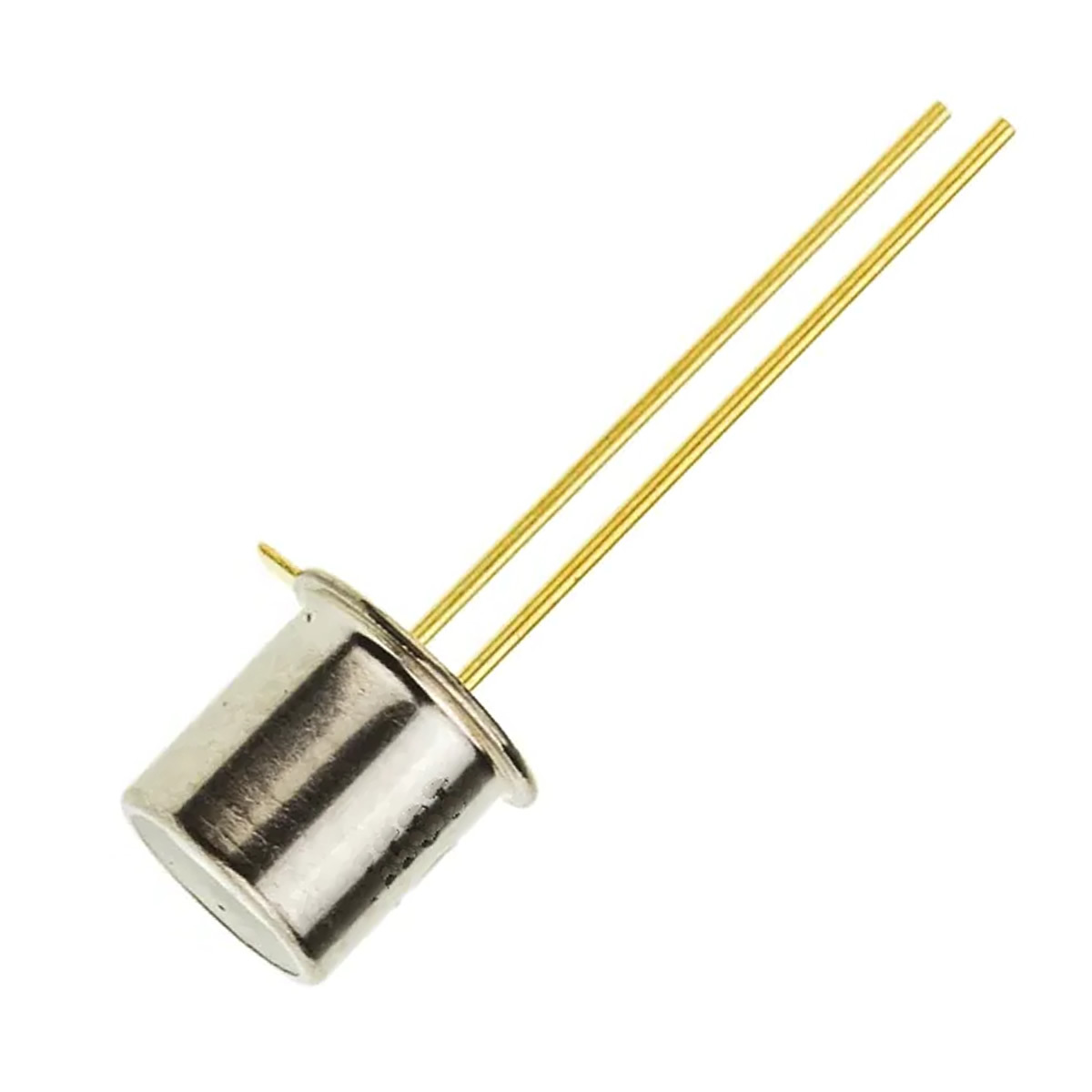

BAV45 Silicon Diode CASE: TO18-2 MAKE: NXP Semiconductors
Price:
£14.39 Inc. VAT (£11.99 Ex. VAT)
£14.39 Inc. VAT (£11.99 Ex. VAT)
Qty
  • 8 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Datasheet
BAV45 Datasheet
Product specifications
Type Silicon Diode
Case TO18-2
Manufacturer NXP Semiconductors
Ir @ Diff. Temp (A) 250p
Mat. Silicon Logic
VRRM 35
t(rr) (S) 350n
@Temp (test) (°C) 80
Vf Max. 1.0
Ir @25°C 5.0p
I(out) (If AVG) Max. 50m
@Volts (test) (V) 5.0
@If (test) 10m
@If (test) 10m
Oper. Temp (°C) Max. 125
@Ir (A) 10m
Surface Mounted Yes/No NO
SKU 91000
