BC130C
View detailed images (4)

BC130C

SKU: BC130C

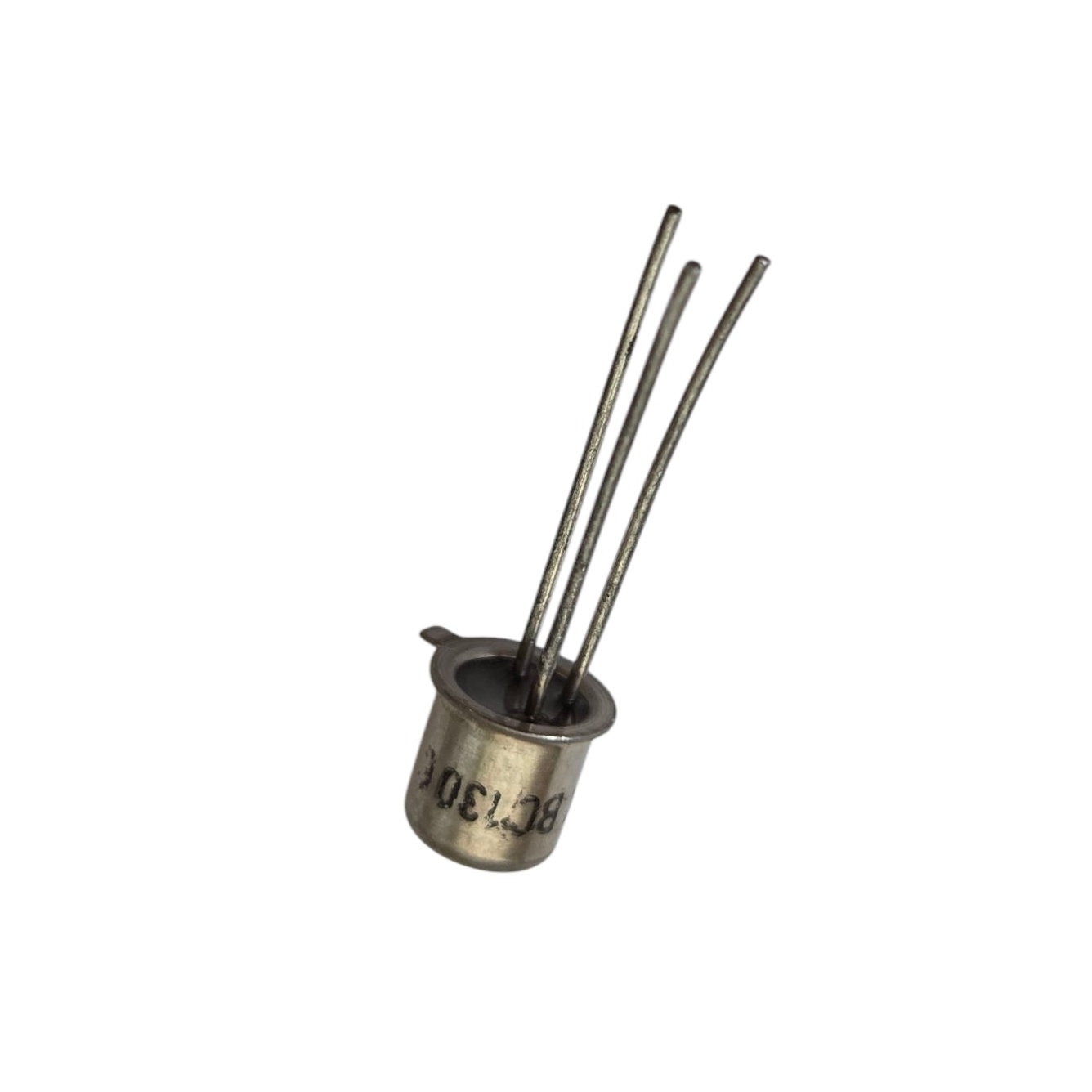

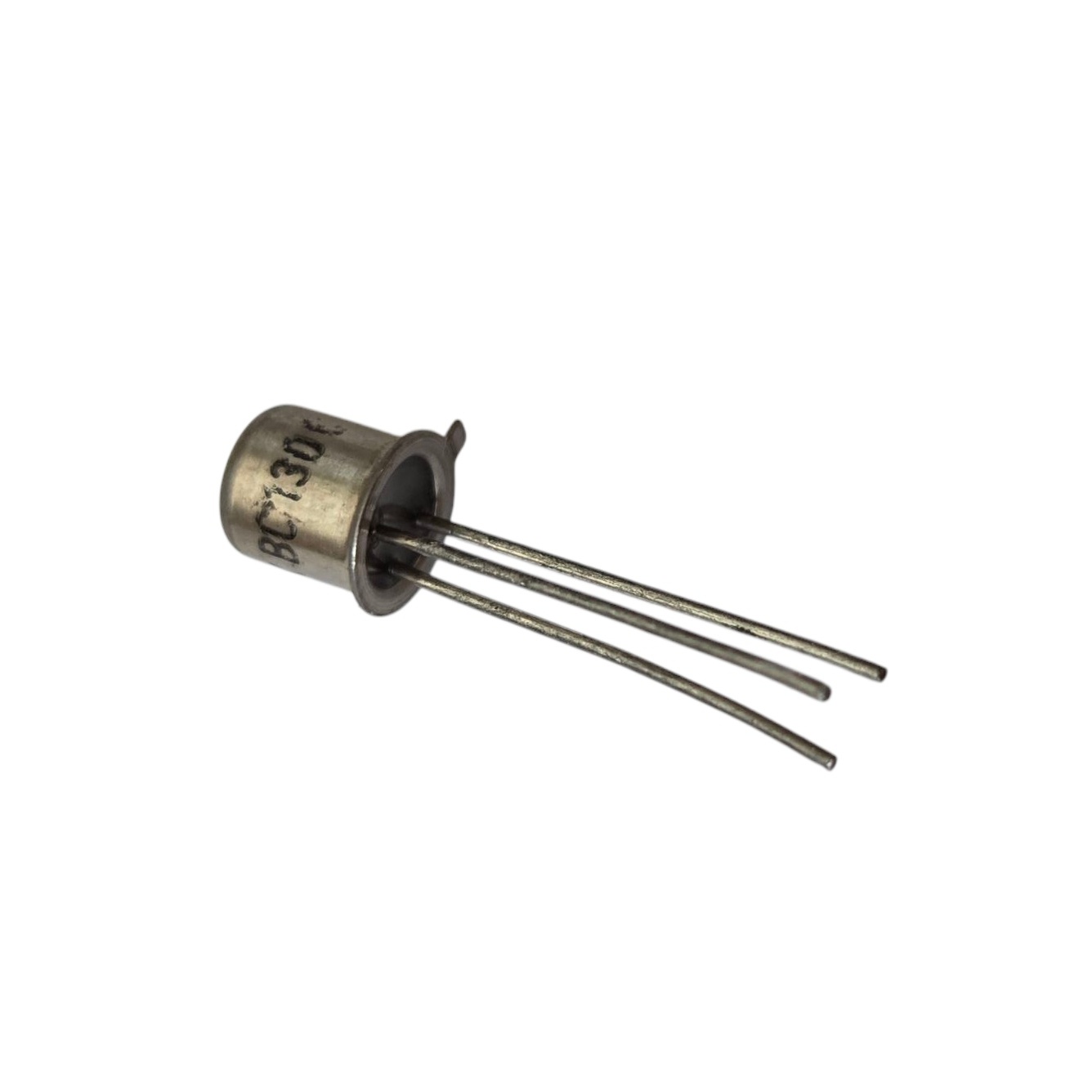

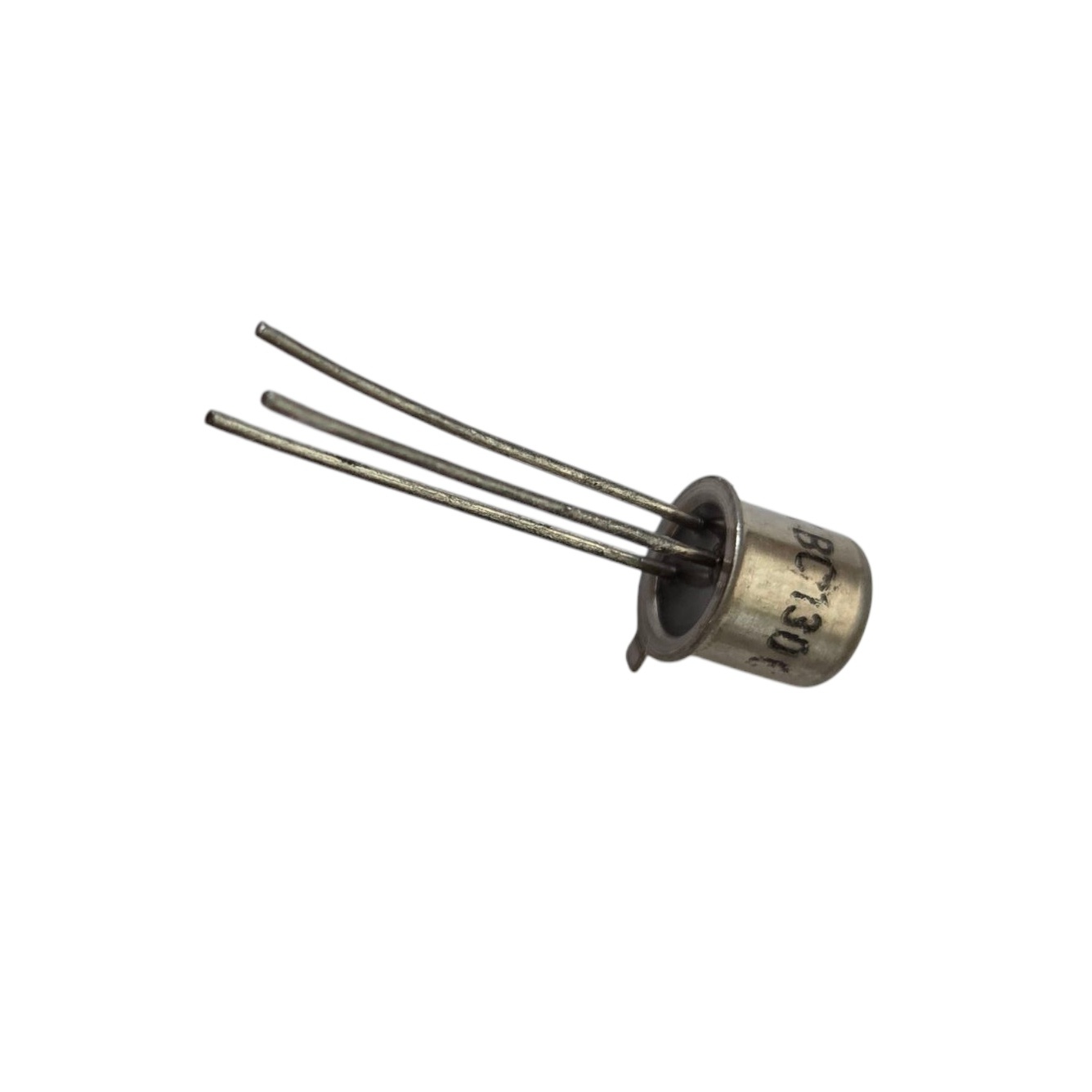

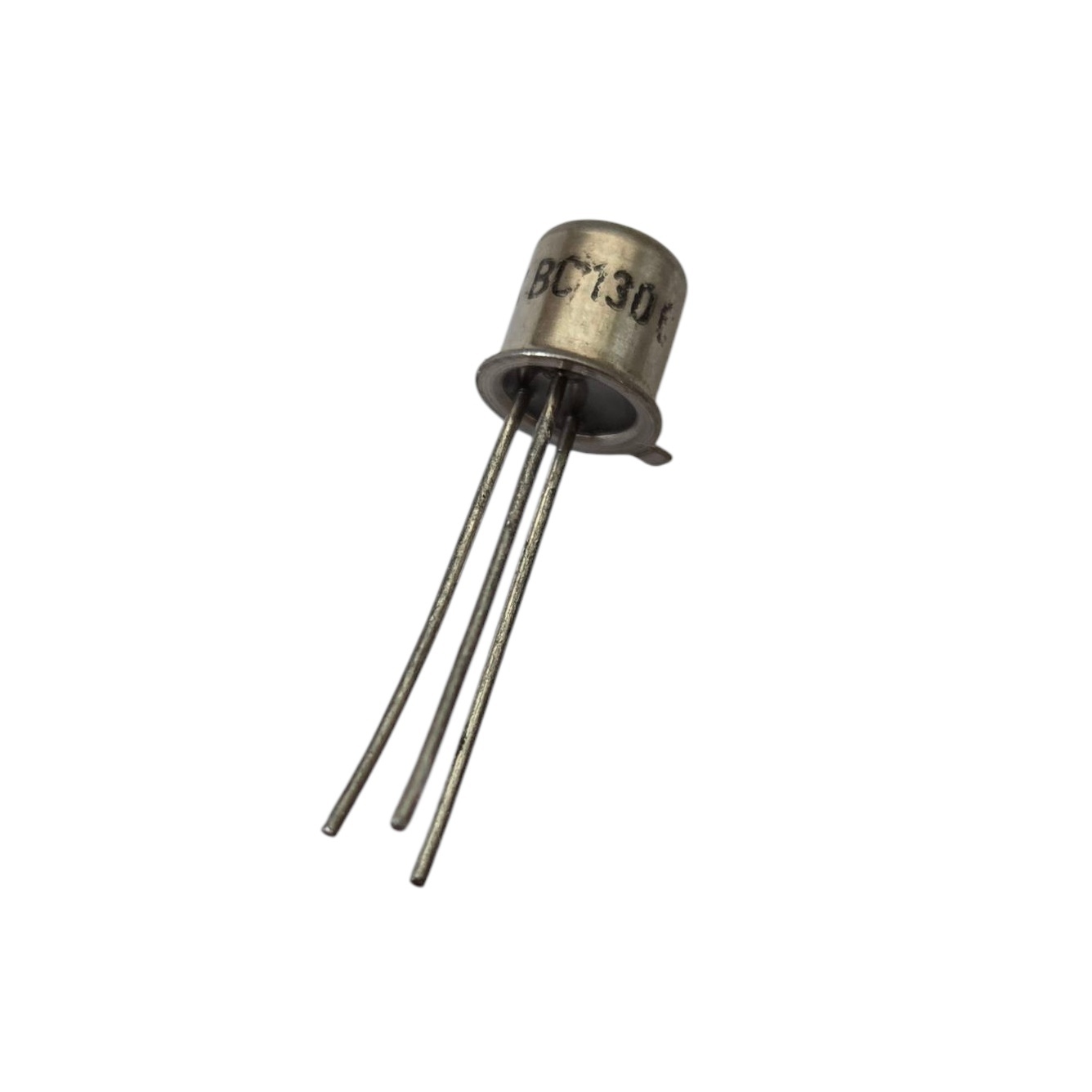

BC130C Transistor Silicon NPN CASE: TO18 MAKE: TFK
Price:
£14.39 Inc. VAT (£11.99 Ex. VAT)
£14.39 Inc. VAT (£11.99 Ex. VAT)
Qty
  • 50 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Product specifications
Type Transistor Silicon NPN
Case TO18
Manufacturer TFK
Vbr CBO 30
Vbr CEO 20
Max. PD (W) 135m
C(ob) (F) 4.5p
hfe 900
Polarity NPN
Trans. Freq (Hz) Min. 300M
@VCE (test) (V) 5.0
@Ic (A) 2.0
Pinout Equivalence Number 3-12
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.175 W
Maximum Collector-Base Voltage |Vcb| 25 V
Maximum Collector-Emitter Voltage |Vce| 20 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 0.1 A
Max. Operating Junction Temperature (Tj) 185 °C
Collector Capacitance (Cc) 6 pF
Transition Frequency (ft): 150 MHz
Forward Current Transfer Ratio (hFE), MIN 470
SKU 134753
