BC147A
View detailed images (5)

BC147A

SKU: BC147A

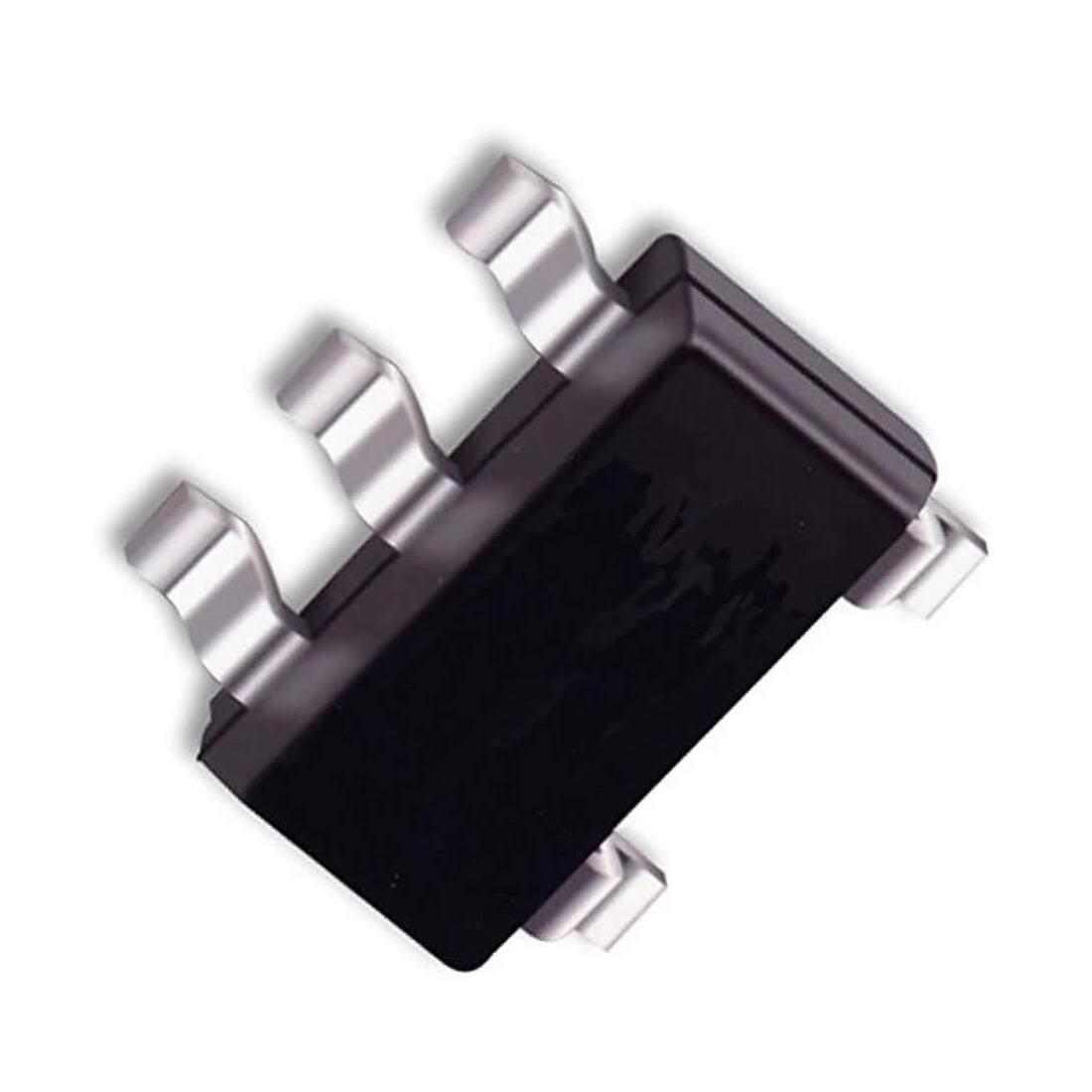

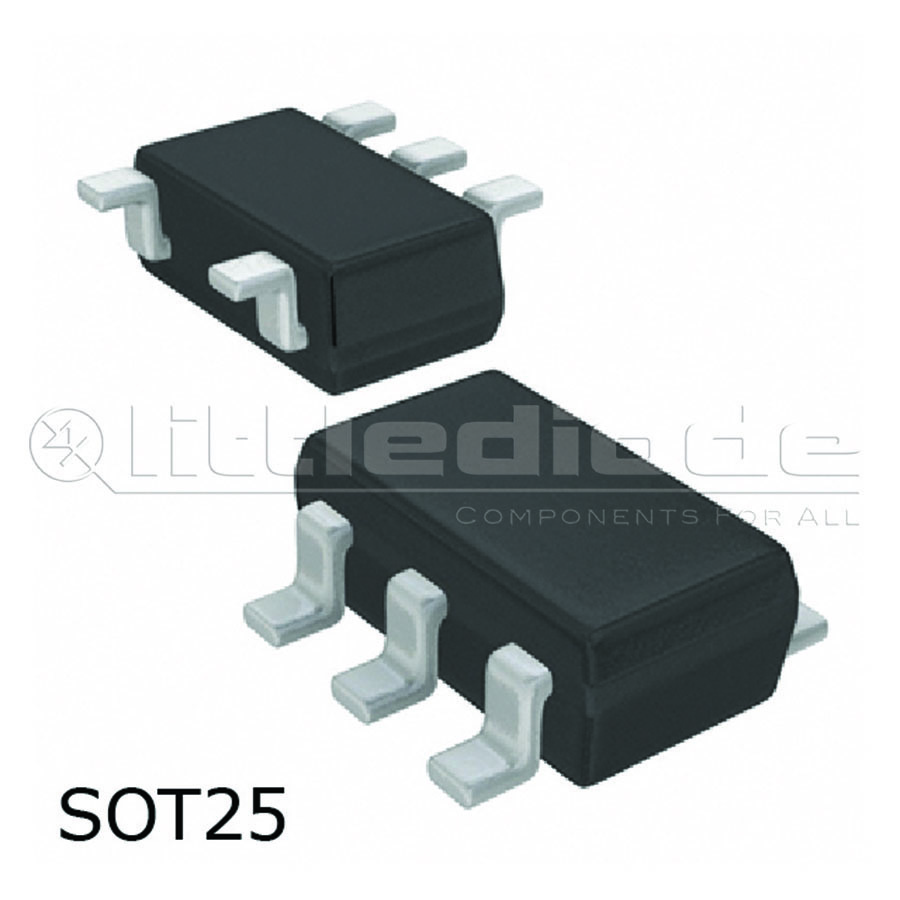

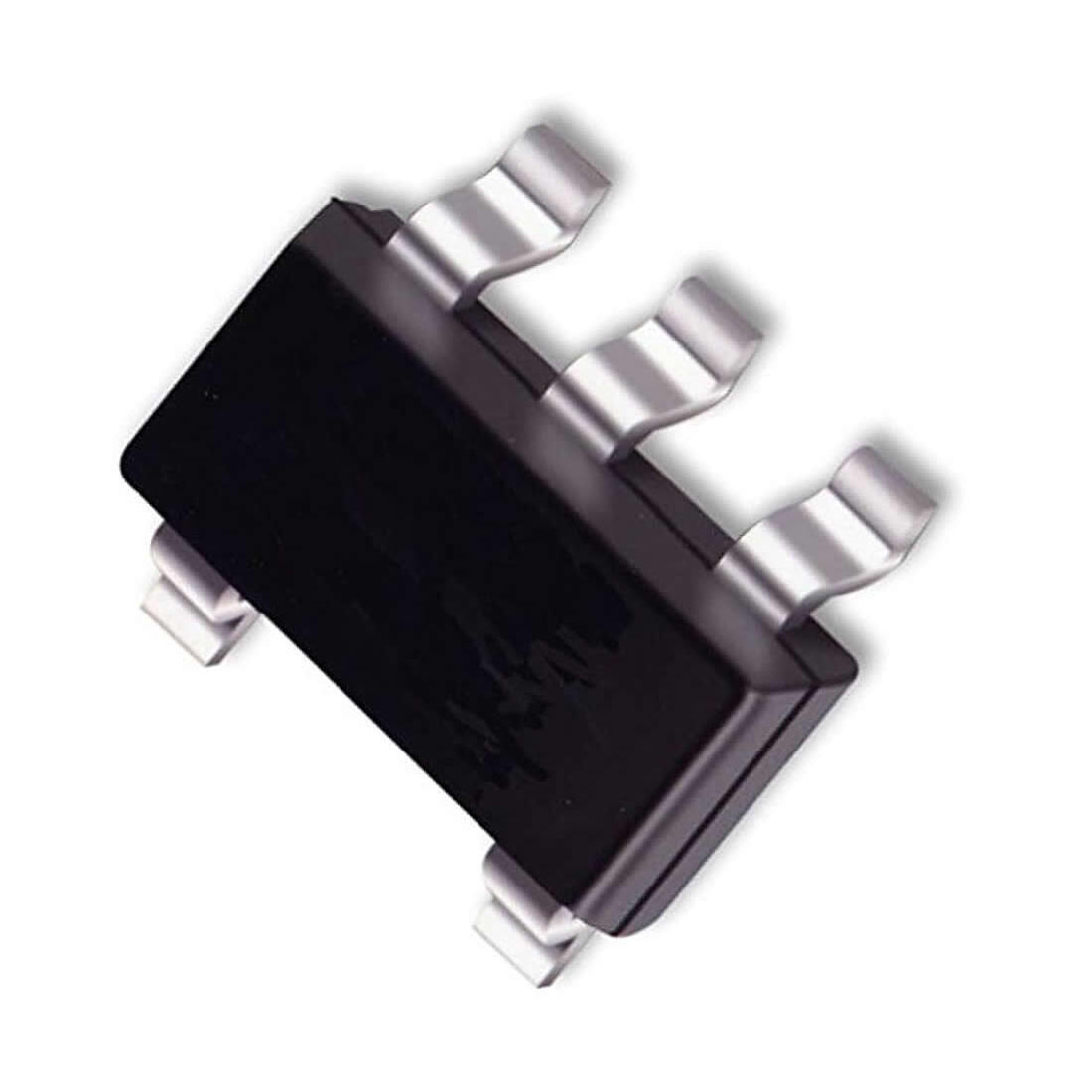

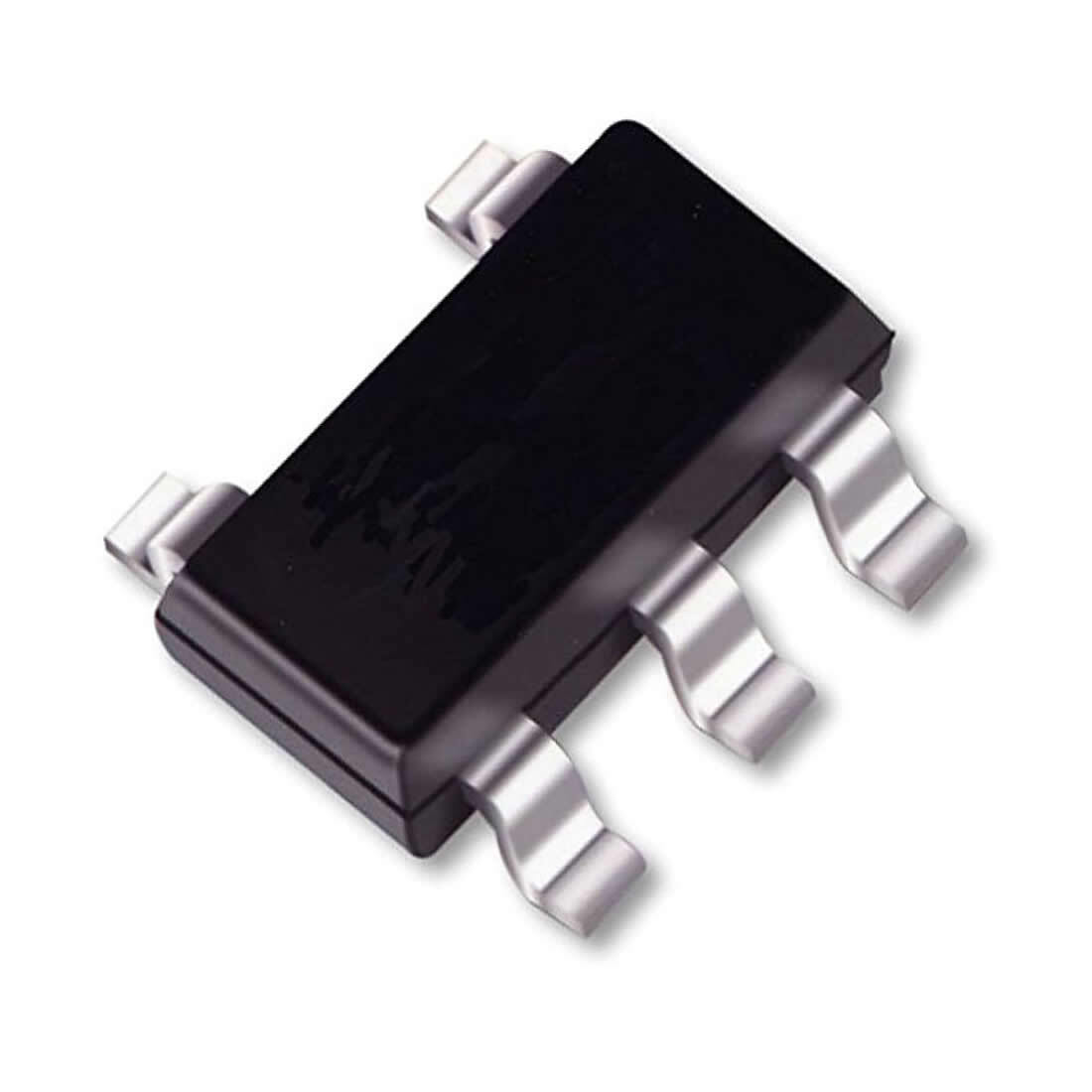

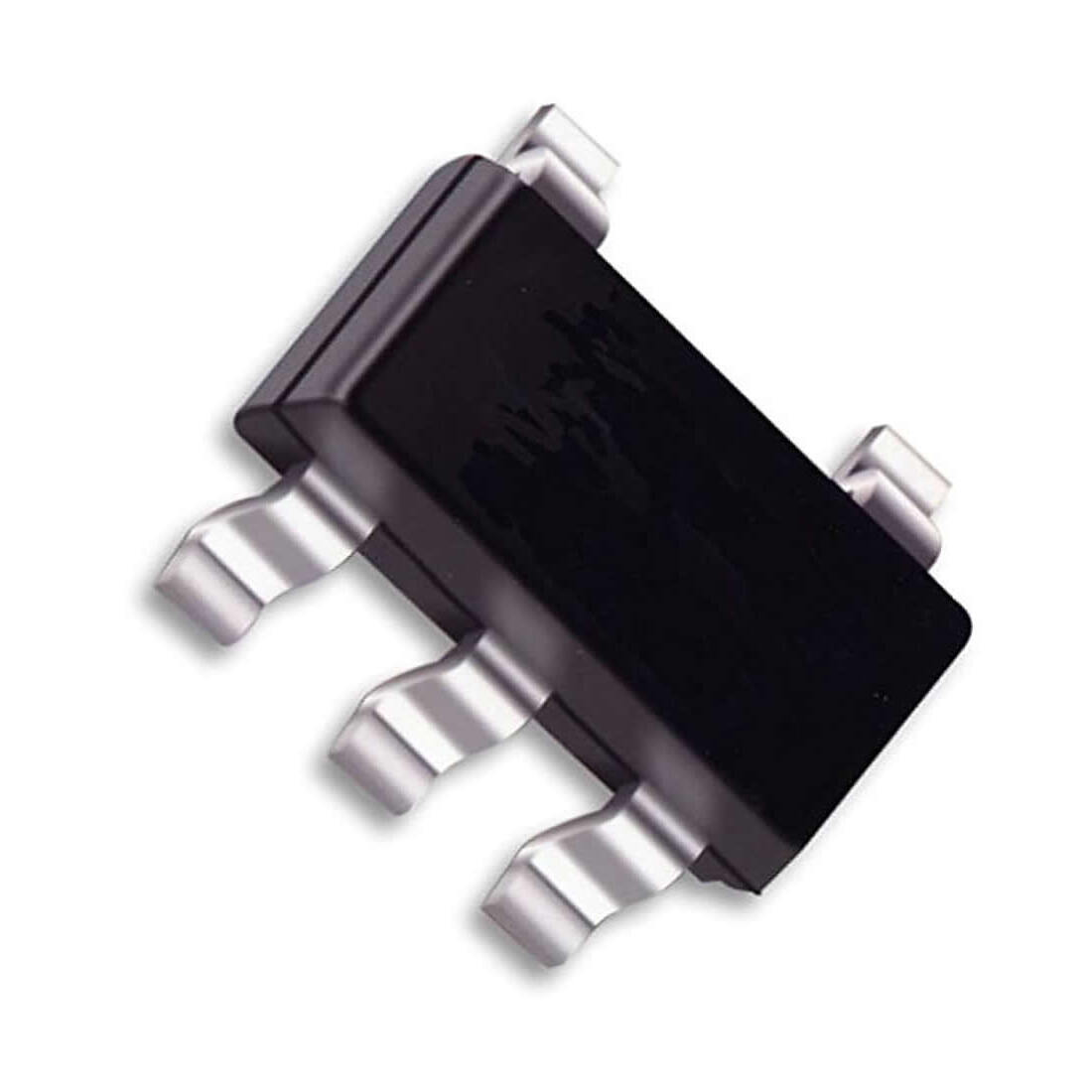

BC147A Transistor Silicon NPN CASE: SOT25 MAKE: Siemens Semiconductors
Price:
£5.75 Inc. VAT (£4.79 Ex. VAT)
£5.75 Inc. VAT (£4.79 Ex. VAT)
Qty
  • 19 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Product specifications
Type Transistor Silicon NPN
Case SOT25
Manufacturer Siemens Semiconductors
Vbr CBO 50
Vbr CEO 45
Max. PD (W) 350m
C(ob) (F) 2.5p
Derate (Amb) (W/°C) 3.5m
hfe 220
Ic Max. (A) 100m
Icbo Max. @Vcb Max. (A) 15n
Polarity NPN
Trans. Freq (Hz) Min. 300M
@VCE (test) (V) 5.0
Oper. Temp (°C) Max. 125
@Ic (A) 2.0m
Pinout Equivalence Number 3-12
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.25 W
Maximum Collector-Base Voltage |Vcb| 50 V
Maximum Collector-Emitter Voltage |Vce| 45 V
Maximum Emitter-Base Voltage |Veb| 6 V
Maximum Collector Current |Ic max| 0.2 A
Max. Operating Junction Temperature (Tj) 125 °C
Collector Capacitance (Cc) 5 pF
Transition Frequency (ft): 150 MHz
Forward Current Transfer Ratio (hFE), MIN 110
SKU 86938
