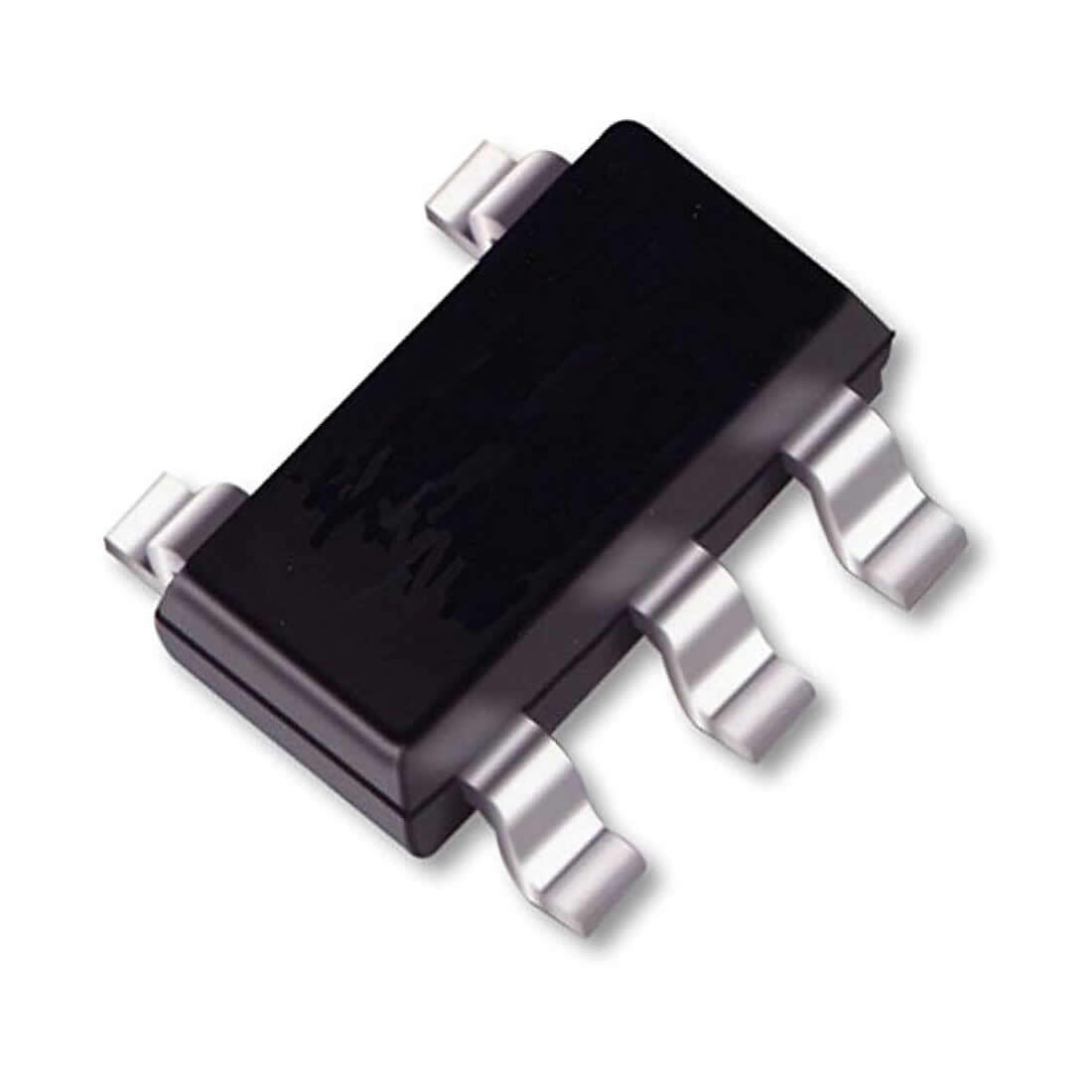

BC157B
View detailed images (5)

BC157B

SKU: BC157B
BC157B Transistor Silicon PNP CASE: SOT25 MAKE: Baldor
Price:
£5.75 Inc. VAT (£4.79 Ex. VAT)
£5.75 Inc. VAT (£4.79 Ex. VAT)
Qty
  • 19 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Product specifications
Type Transistor Silicon PNP

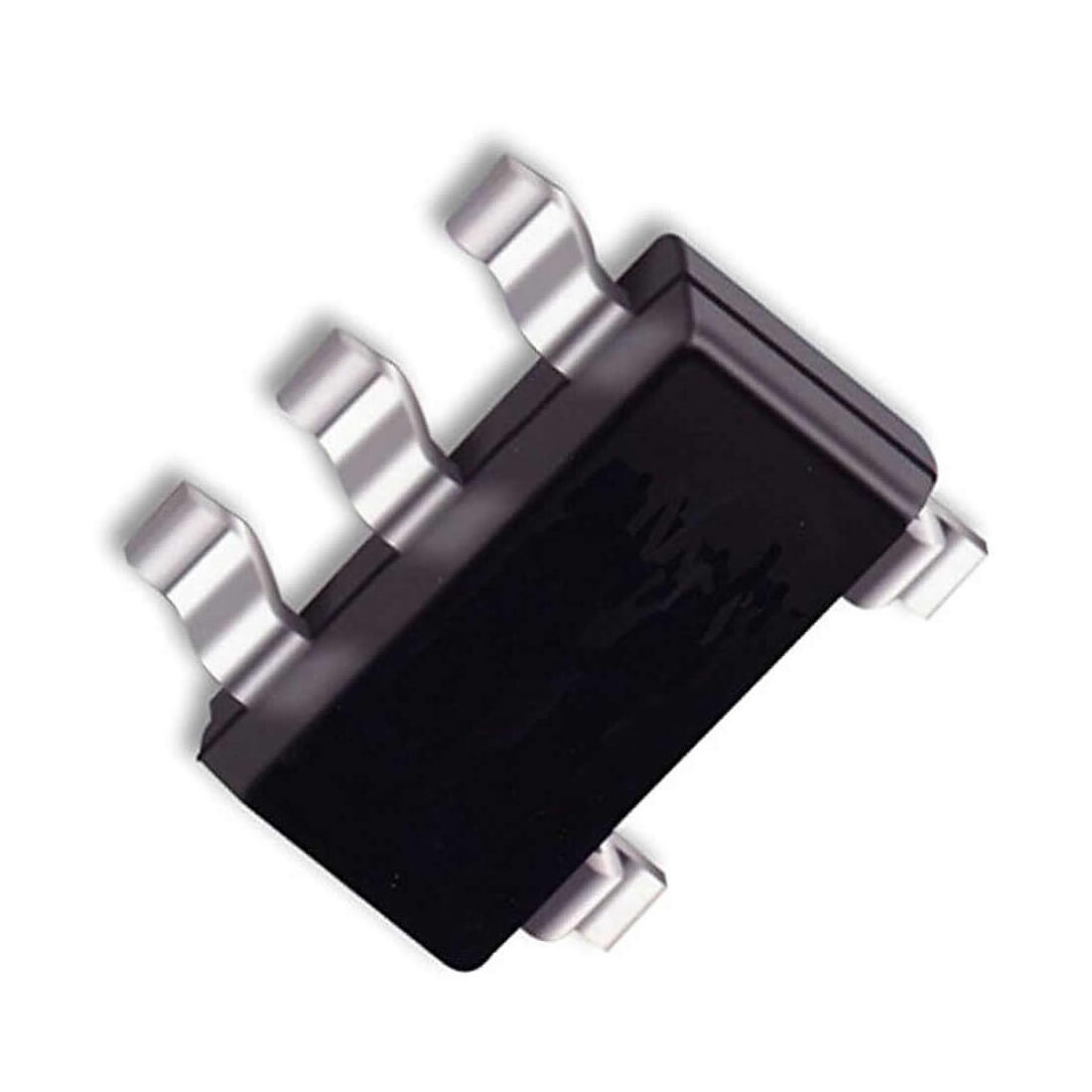

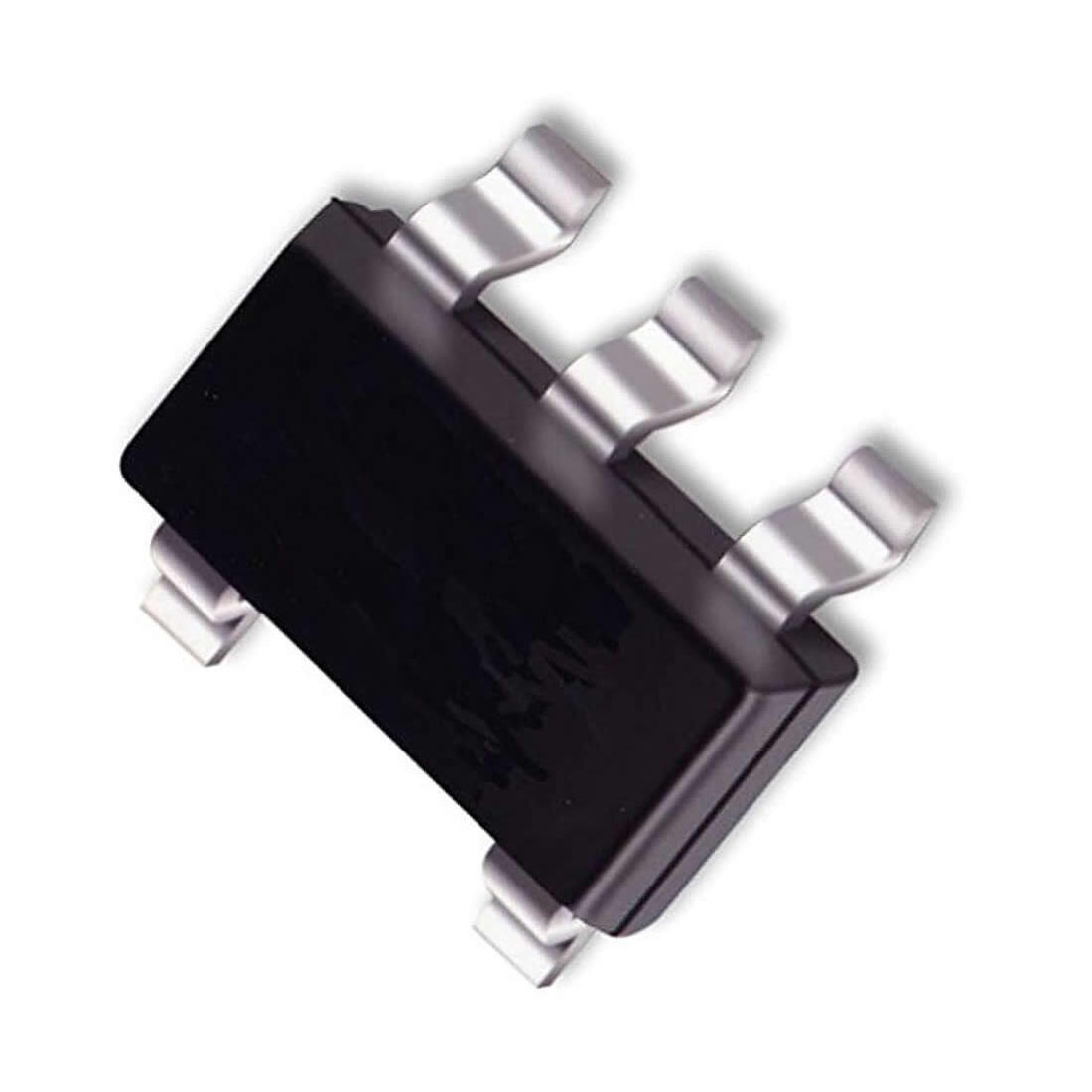

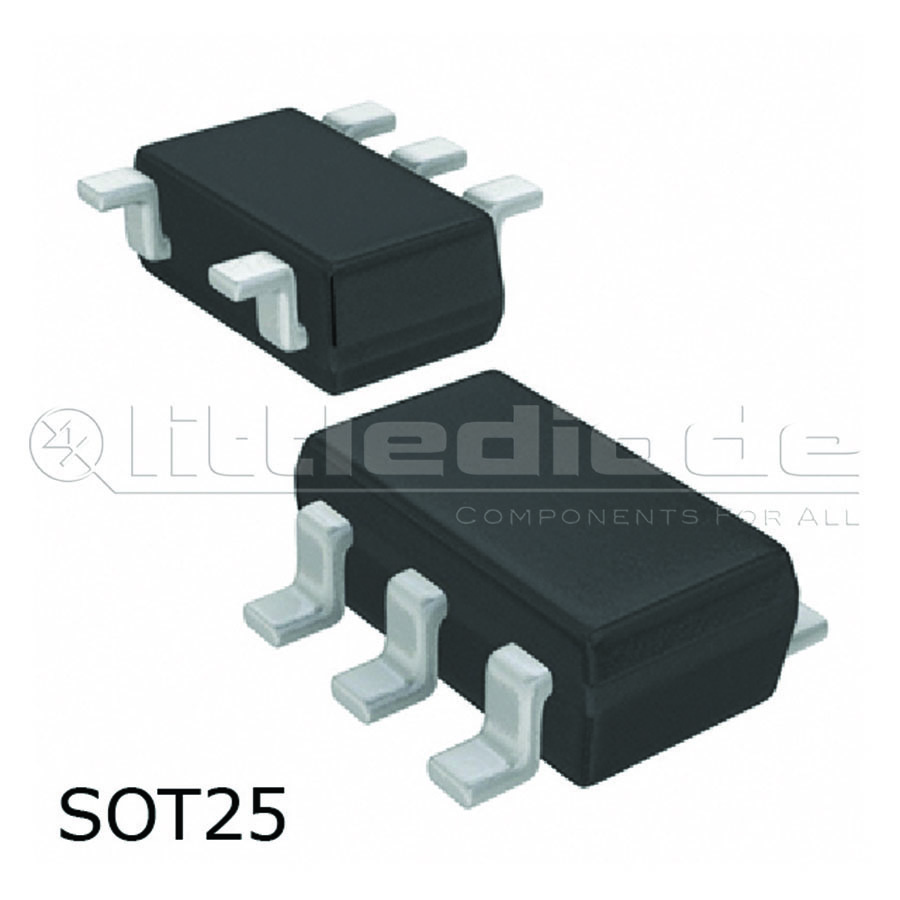

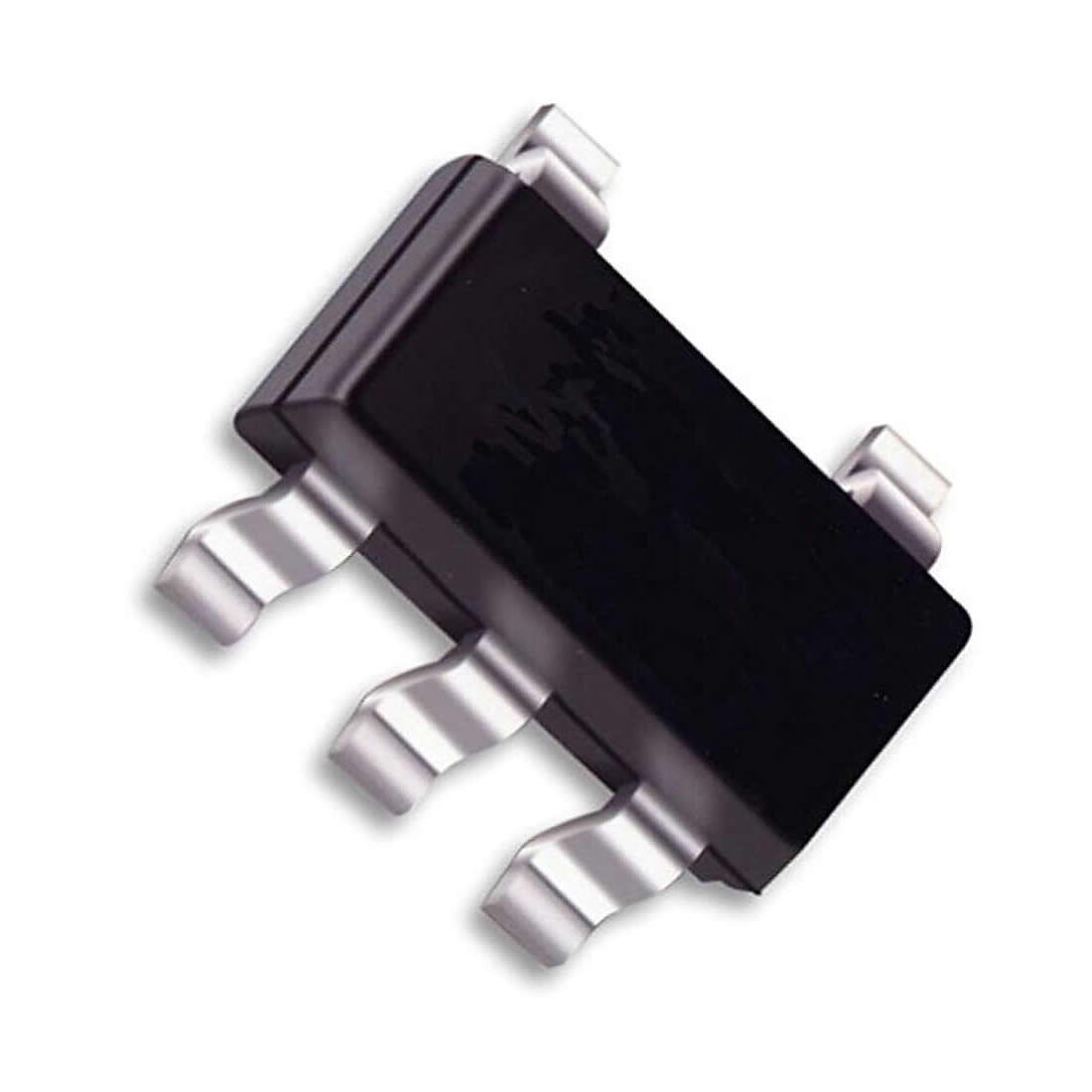

Case SOT25
Manufacturer Baldor
Vbr CEO 45
Max. PD (W) 300m
C(ob) (F) 6.0p
Derate (Amb) (W/°C) 2.4m
hfe 290
Ic Max. (A) 100m
Polarity PNP
Trans. Freq (Hz) Min. 130M
@VCE (test) (V) 5.0
Oper. Temp (°C) Max. 150
@Ic (A) 2.0m
Pinout Equivalence Number 3-12
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.3 W
Maximum Collector-Base Voltage |Vcb| 50 V
Maximum Collector-Emitter Voltage |Vce| 45 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 0.1 A
Max. Operating Junction Temperature (Tj) 125 °C
Collector Capacitance (Cc) 6 pF
Transition Frequency (ft): 130 MHz
Forward Current Transfer Ratio (hFE), MIN 180
SKU 86779
