BC182LB
View detailed images (4)

BC182LB

SKU: BC182LB

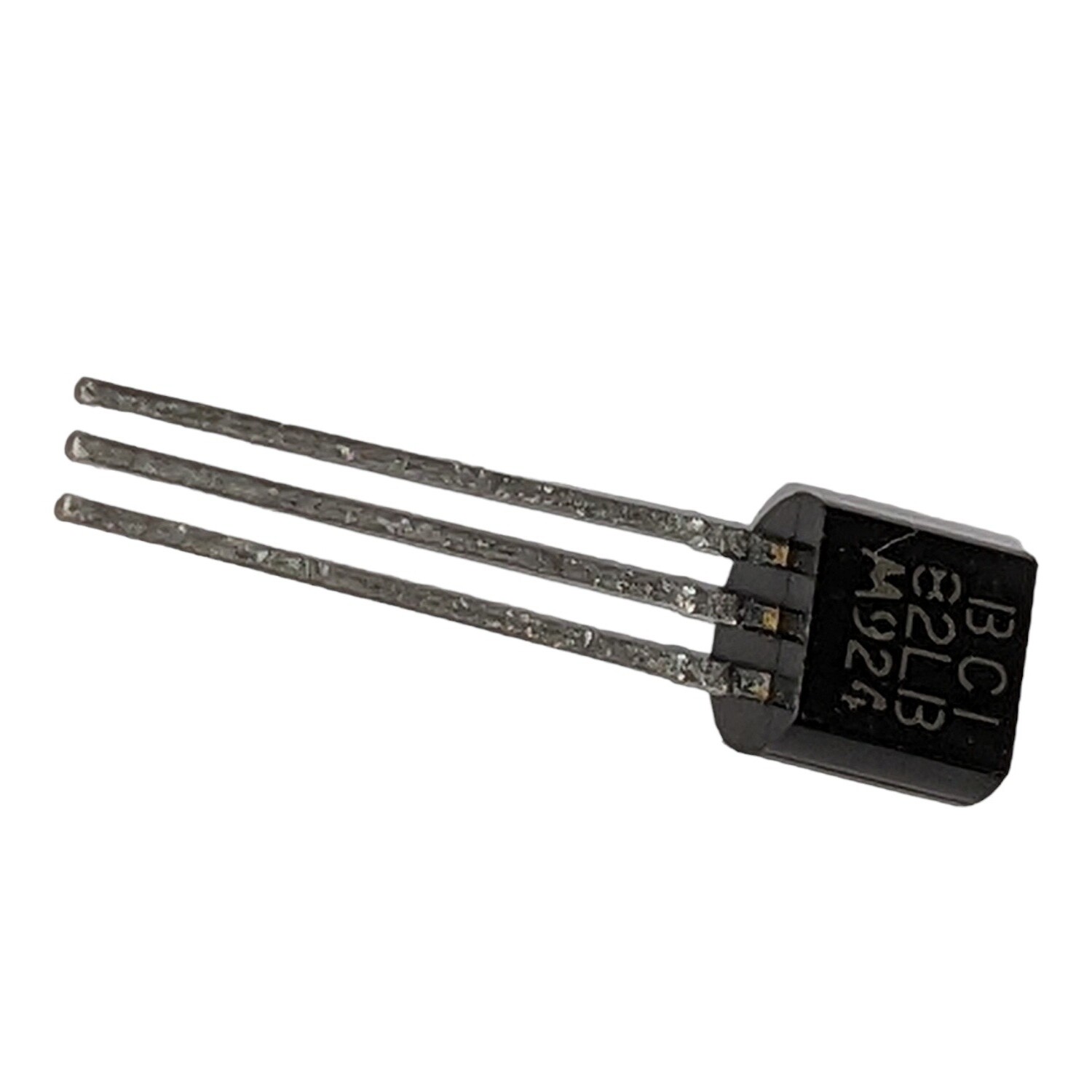

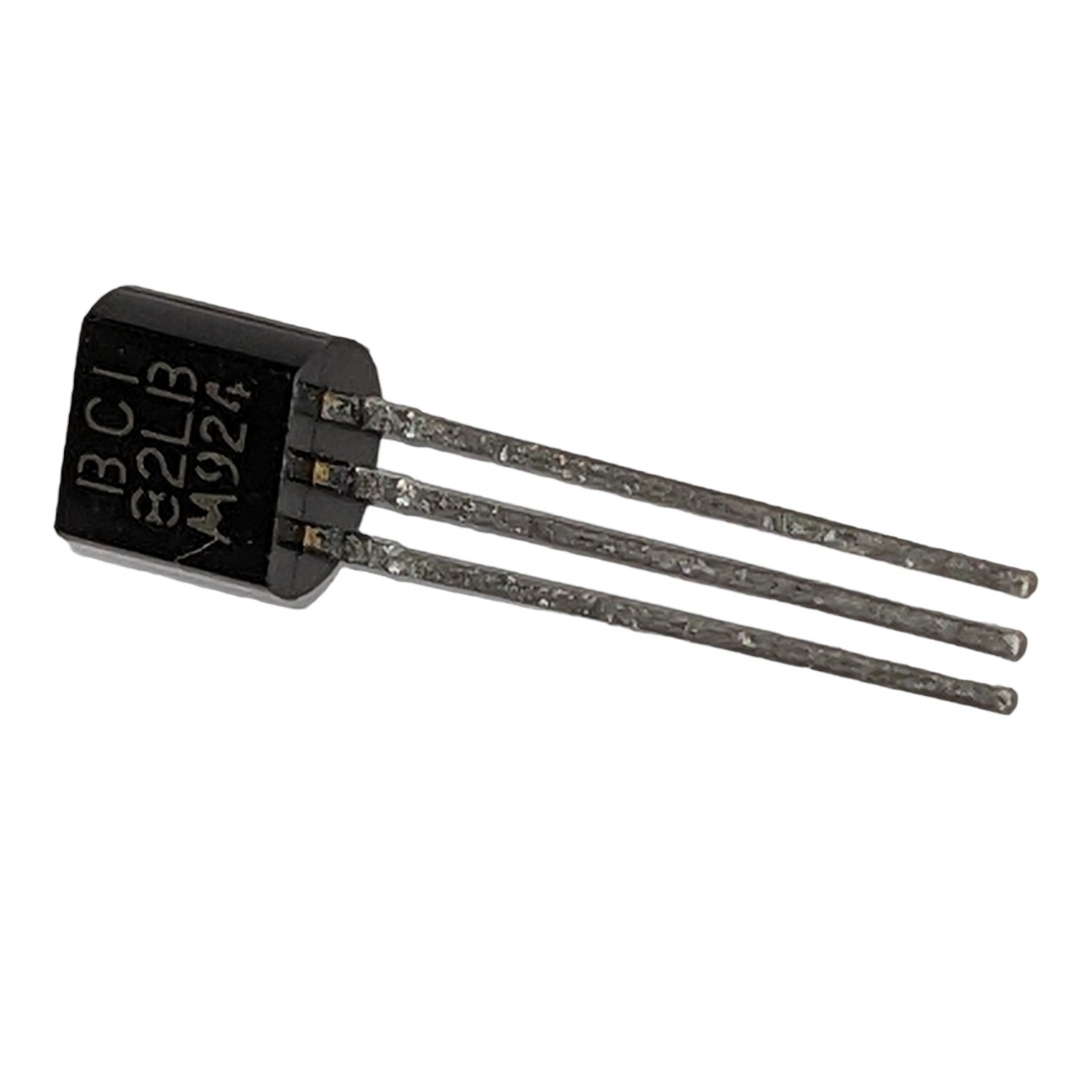

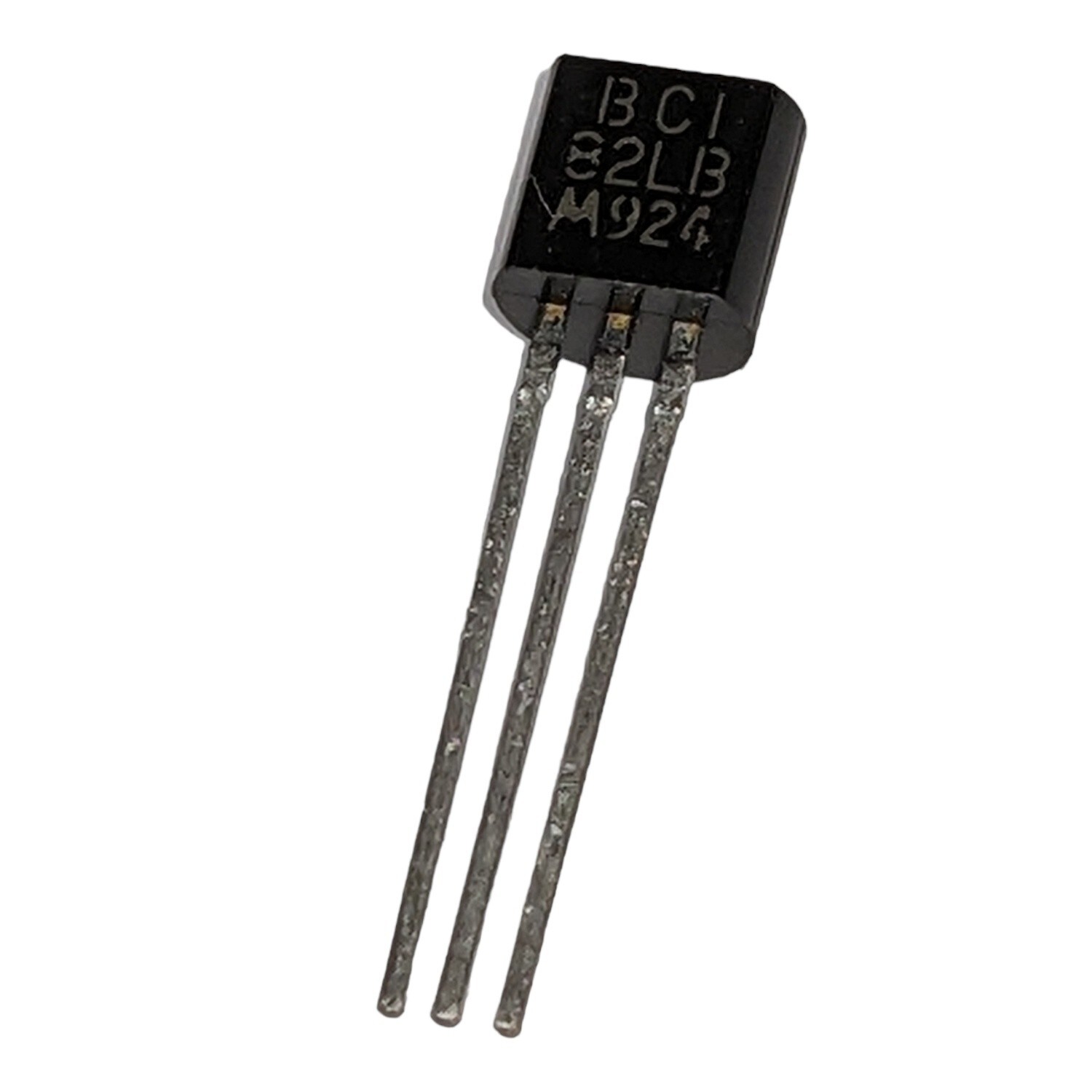

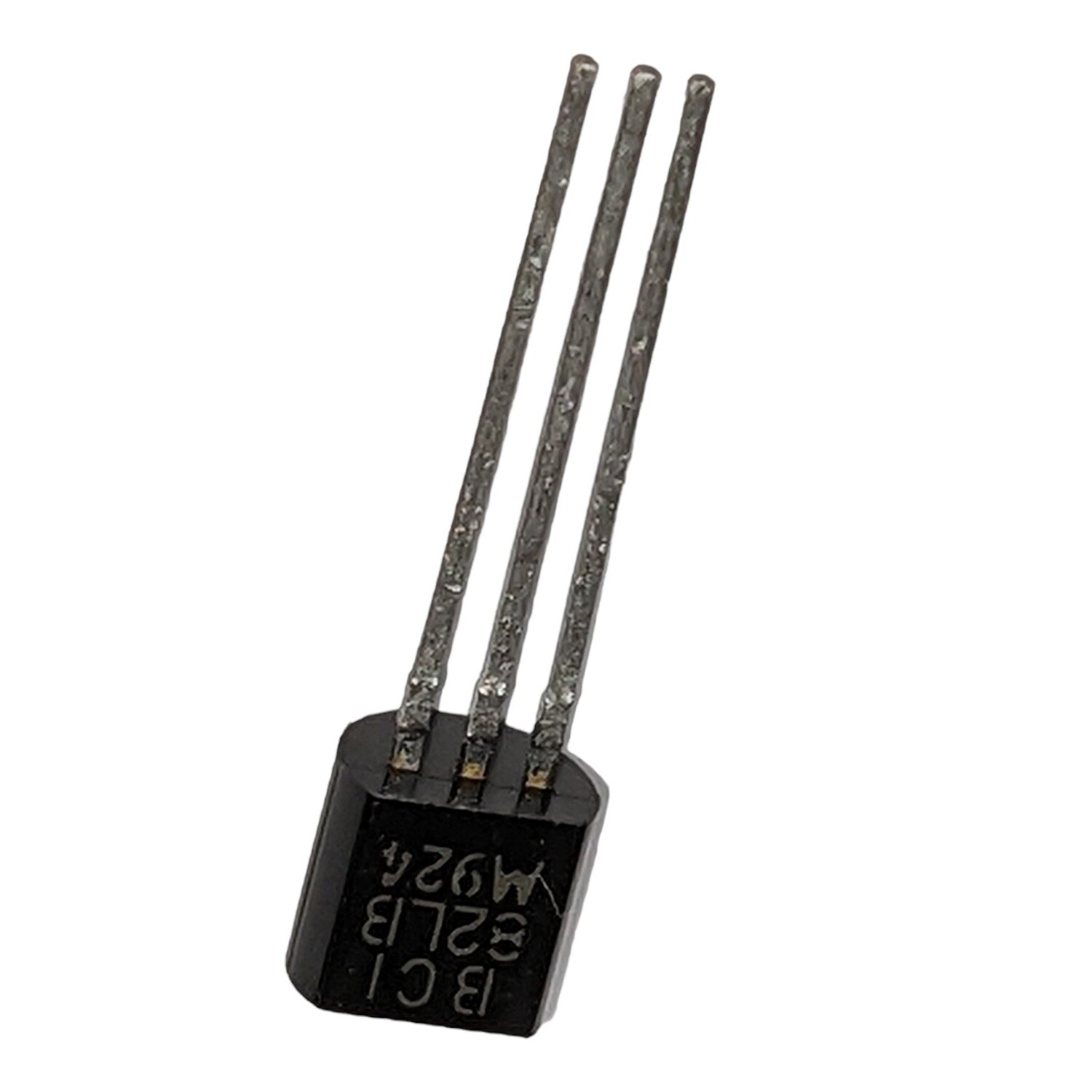

BC182LB Transistor Silicon NPN CASE: TO92 MAKE: Fairchild Semiconductor
Price:
£14.39 Inc. VAT (£11.99 Ex. VAT)
£14.39 Inc. VAT (£11.99 Ex. VAT)
Qty
  • 5224 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Product specifications
Equivalent BC182L
Type Transistor Silicon NPN
Case TO92
Manufacturer Fairchild Semiconductor
Vbr CBO 60
Vbr CEO 50
Max. PD (W) 500m
C(ob) (F) 7.0p
Derate (Amb) (W/°C) 2.4m
hfe 180
Ic Max. (A) 500m
Icbo Max. @Vcb Max. (A) 15n
Polarity NPN
Trans. Freq (Hz) Min. 150M
@VCE (test) (V) 5.0
Oper. Temp (°C) Max. 150
@Ic (A) 2.0m
Pinout Equivalence Number 3-12
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.3 W
Maximum Collector-Base Voltage |Vcb| 60 V
Maximum Collector-Emitter Voltage |Vce| 50 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 0.2 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 5 pF
Transition Frequency (ft): 150 MHz
Forward Current Transfer Ratio (hFE), MIN 240
SKU 85404
