BC56PA

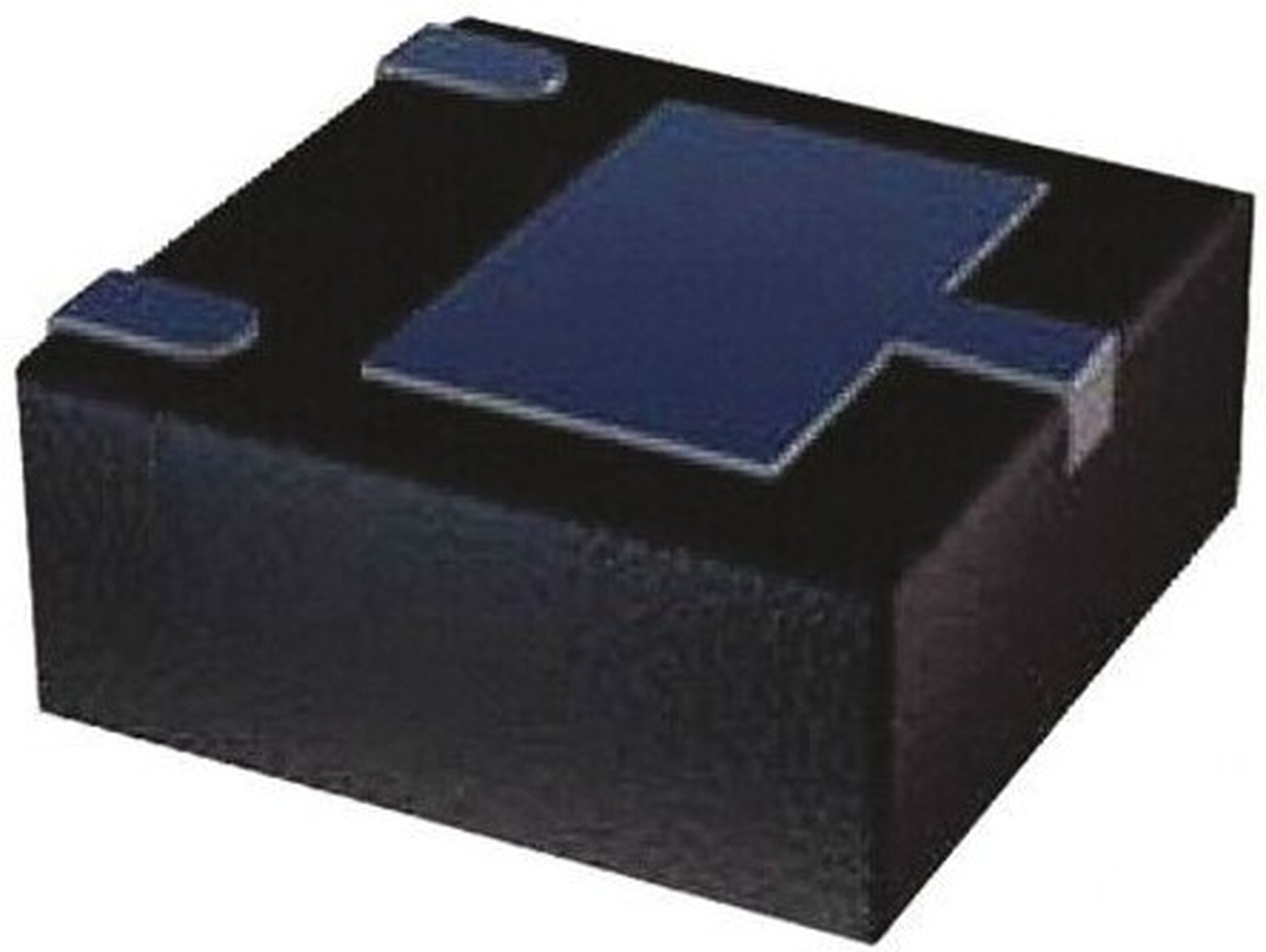

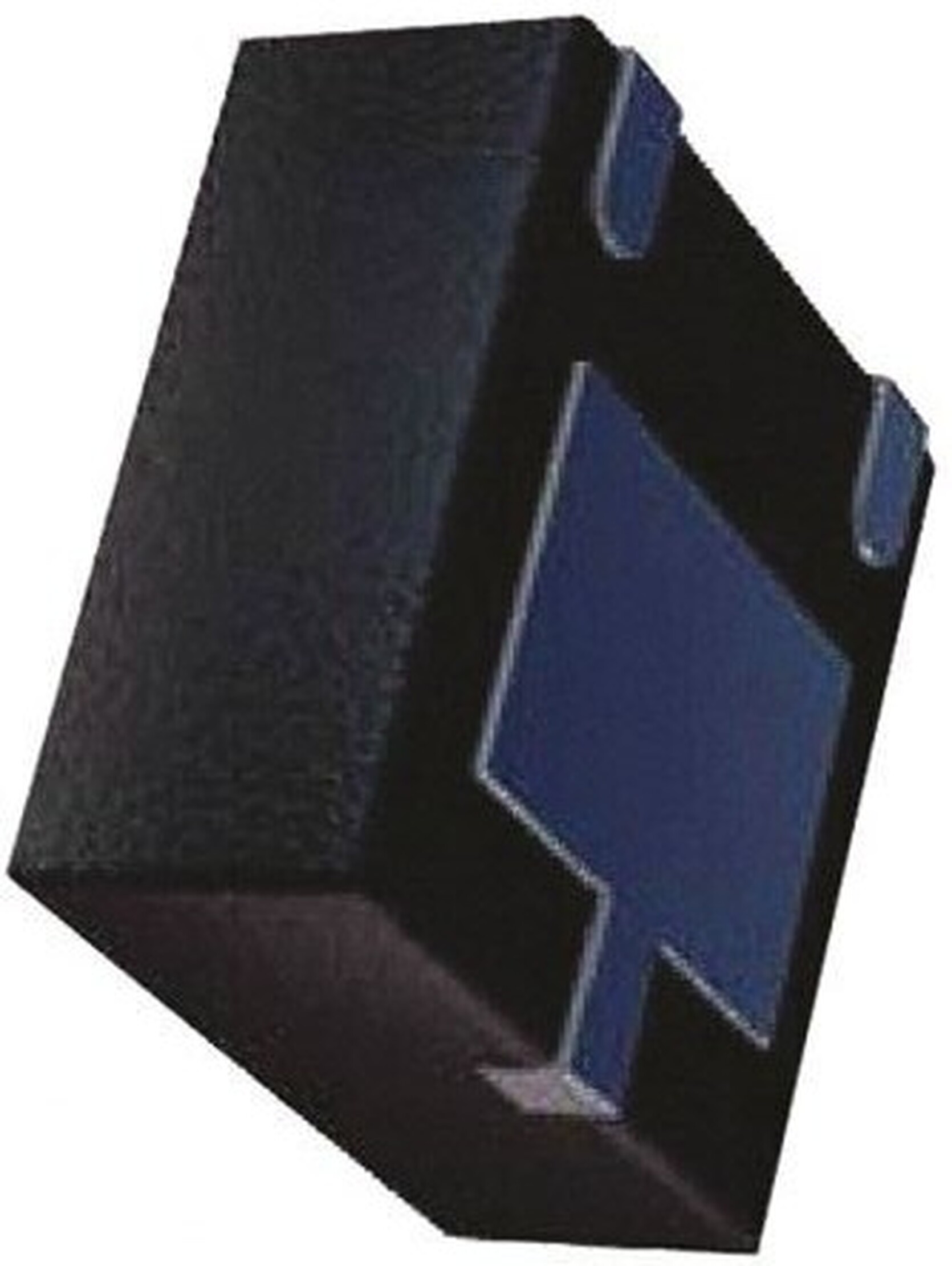

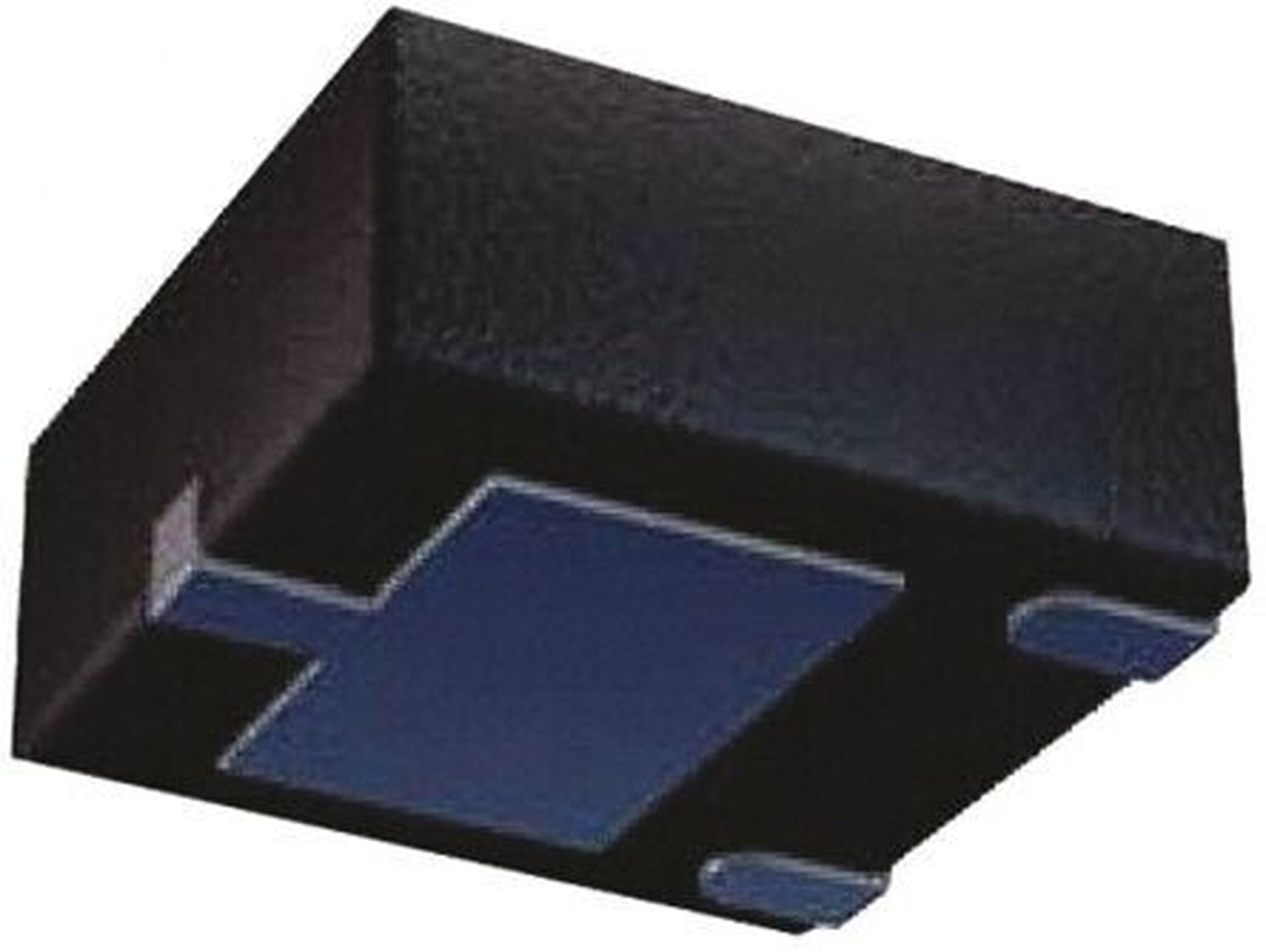

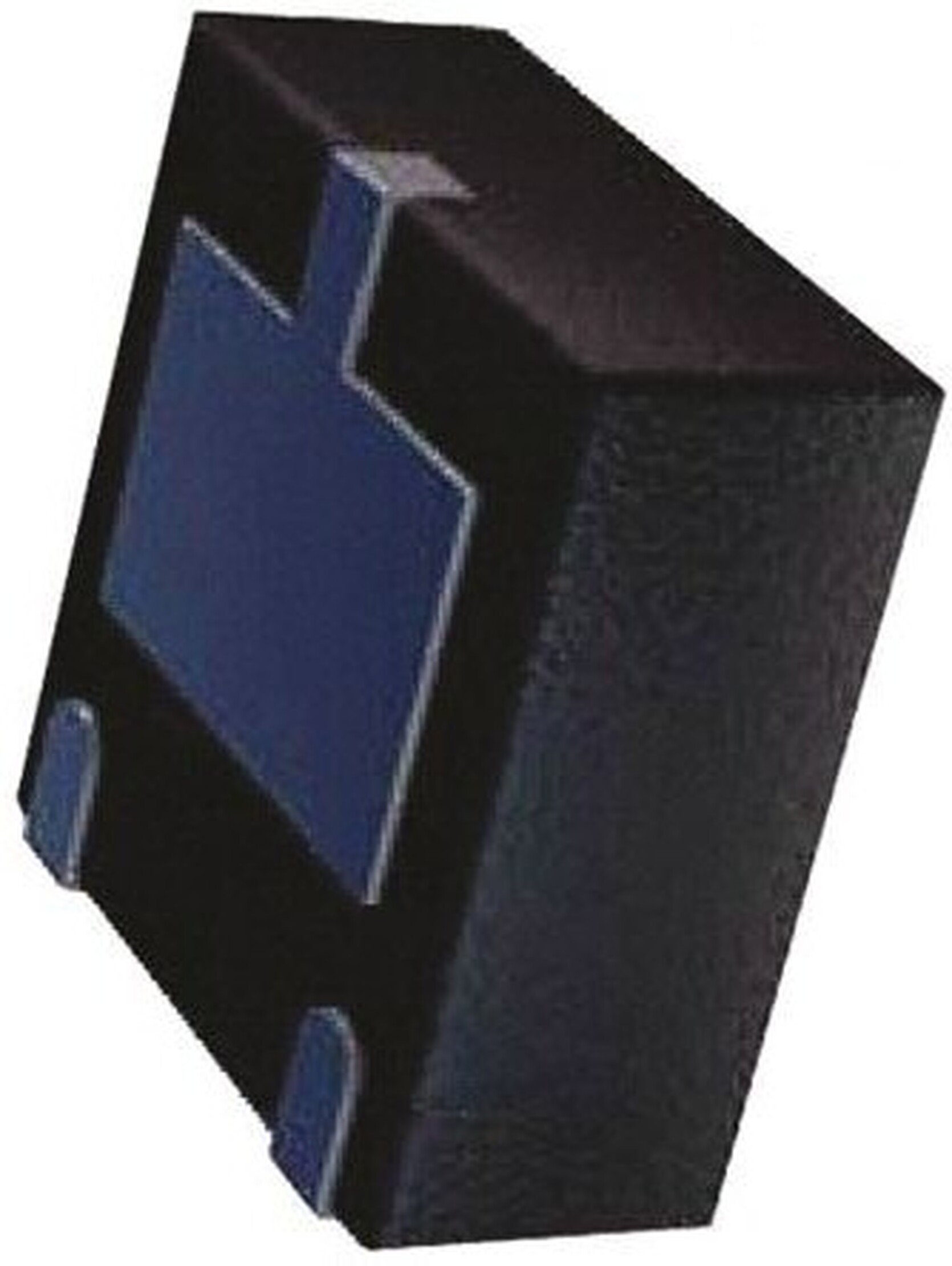

View detailed images (4)

BC56PA

SKU: BC56PA
BC56PA Transistor Silicon NPN CASE: SOT1061 MAKE: Generic
Datasheet
BC56PA Datasheet
Product specifications
Type Transistor Silicon NPN
Case SOT1061
Manufacturer NXP Semiconductors
Polarity NPN
Maximum Collector Power Dissipation (Pc) 0.42 W
Maximum Collector-Base Voltage |Vcb| 100 V
Maximum Collector-Emitter Voltage |Vce| 80 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 1 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 6 pF
Transition Frequency (ft): 100 MHz
Forward Current Transfer Ratio (hFE), MIN 63
SMD Transistor Code AZ
SKU 1425385
