BC846DS
View detailed images (4)

BC846DS

SKU: BC846DS

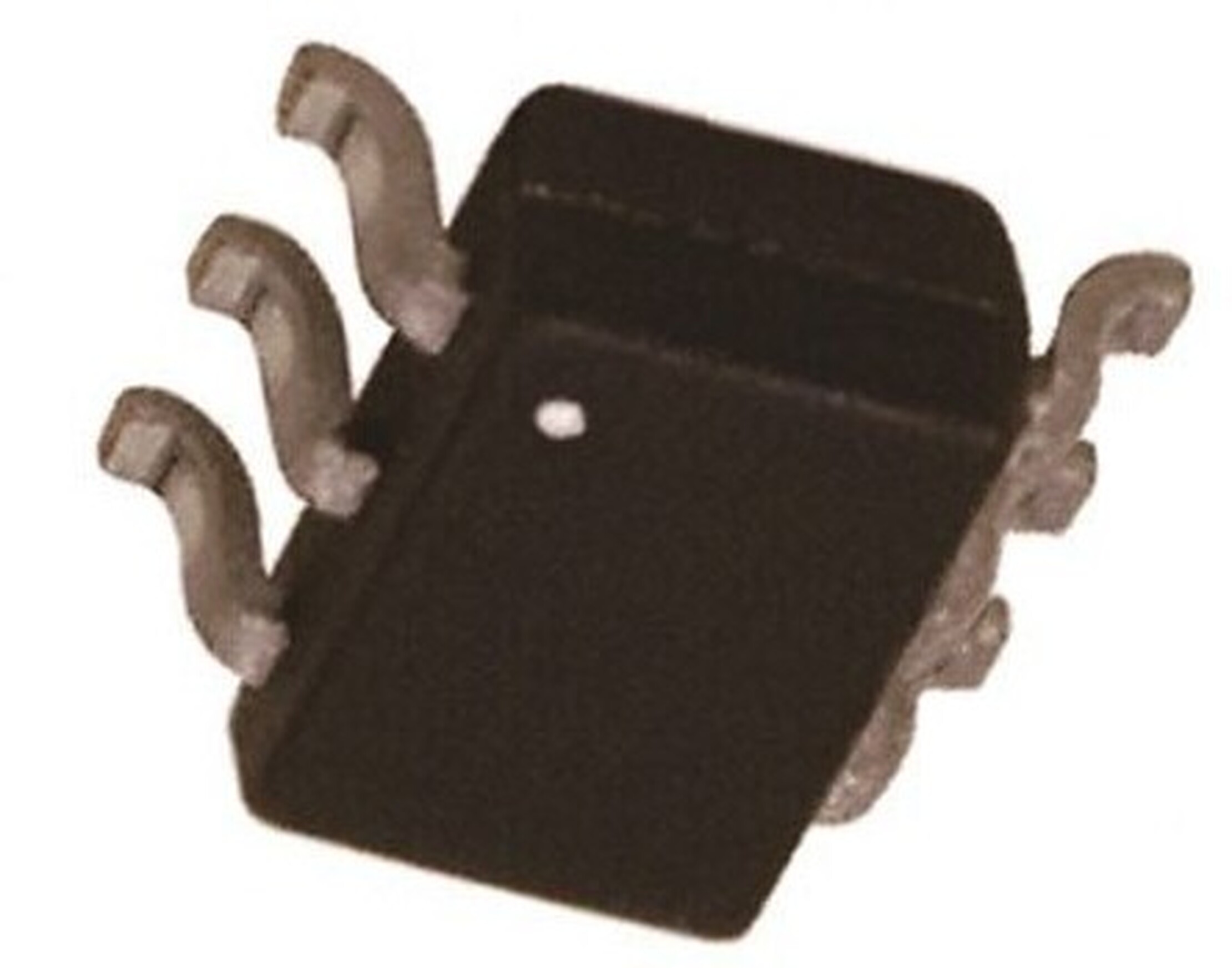

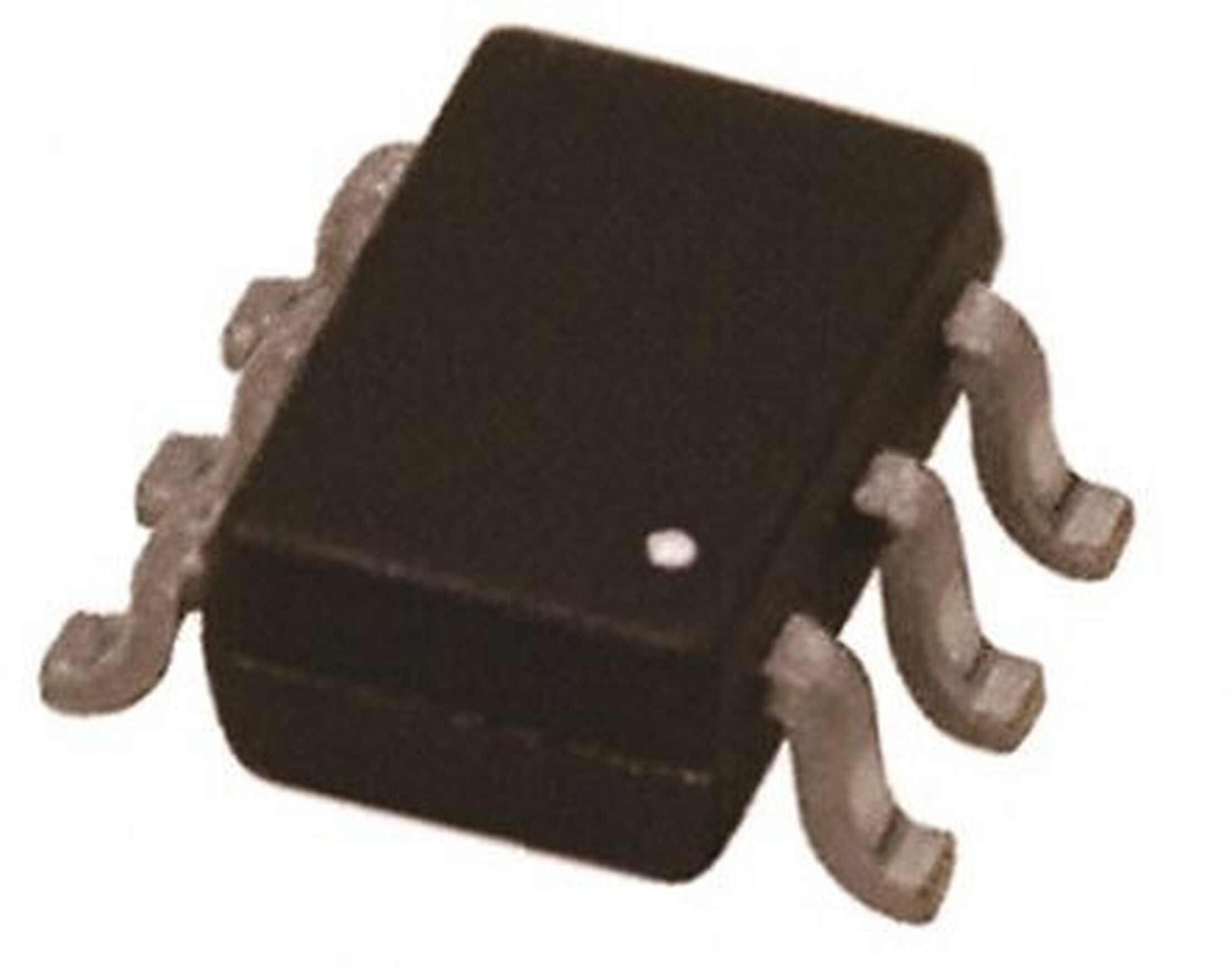

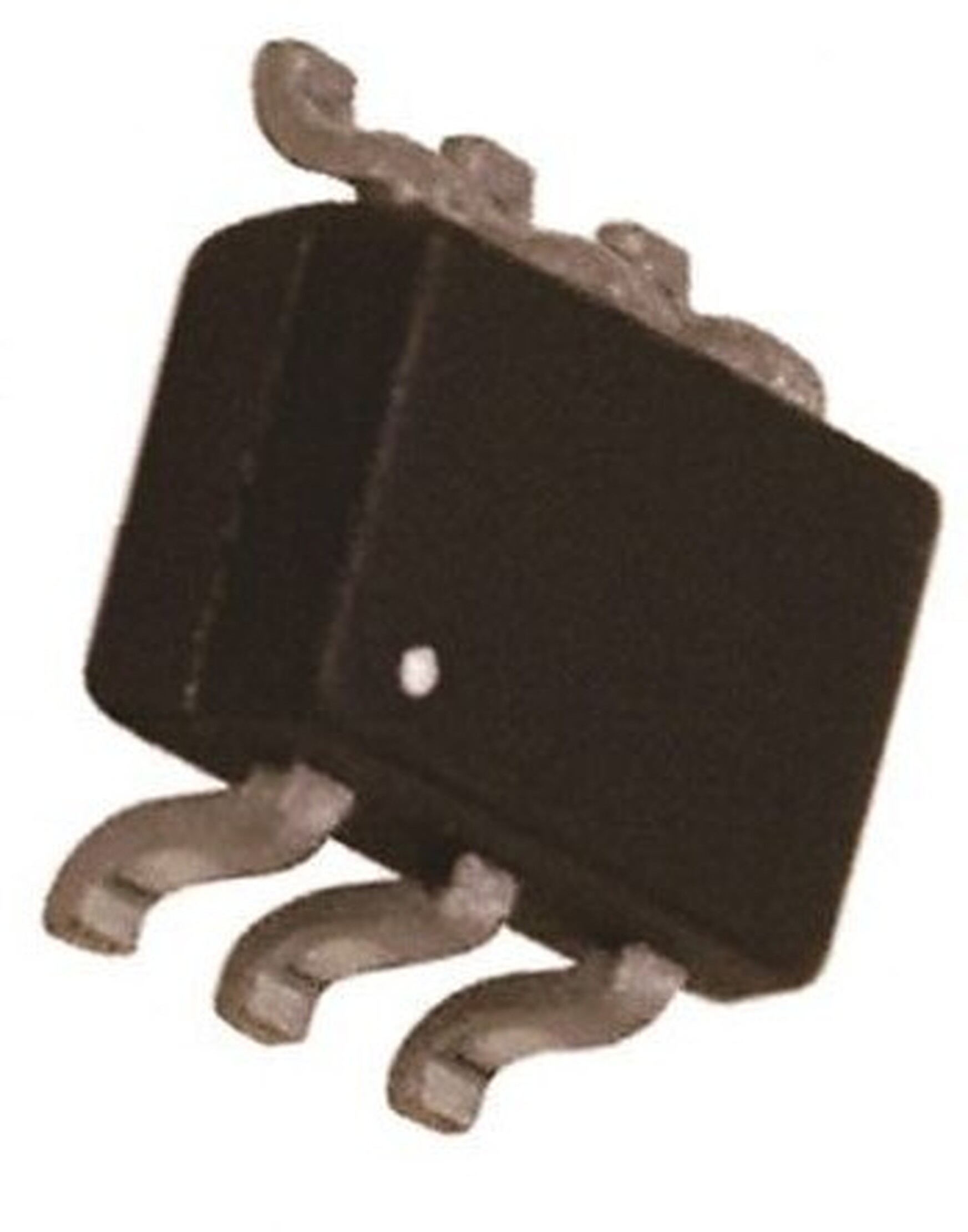

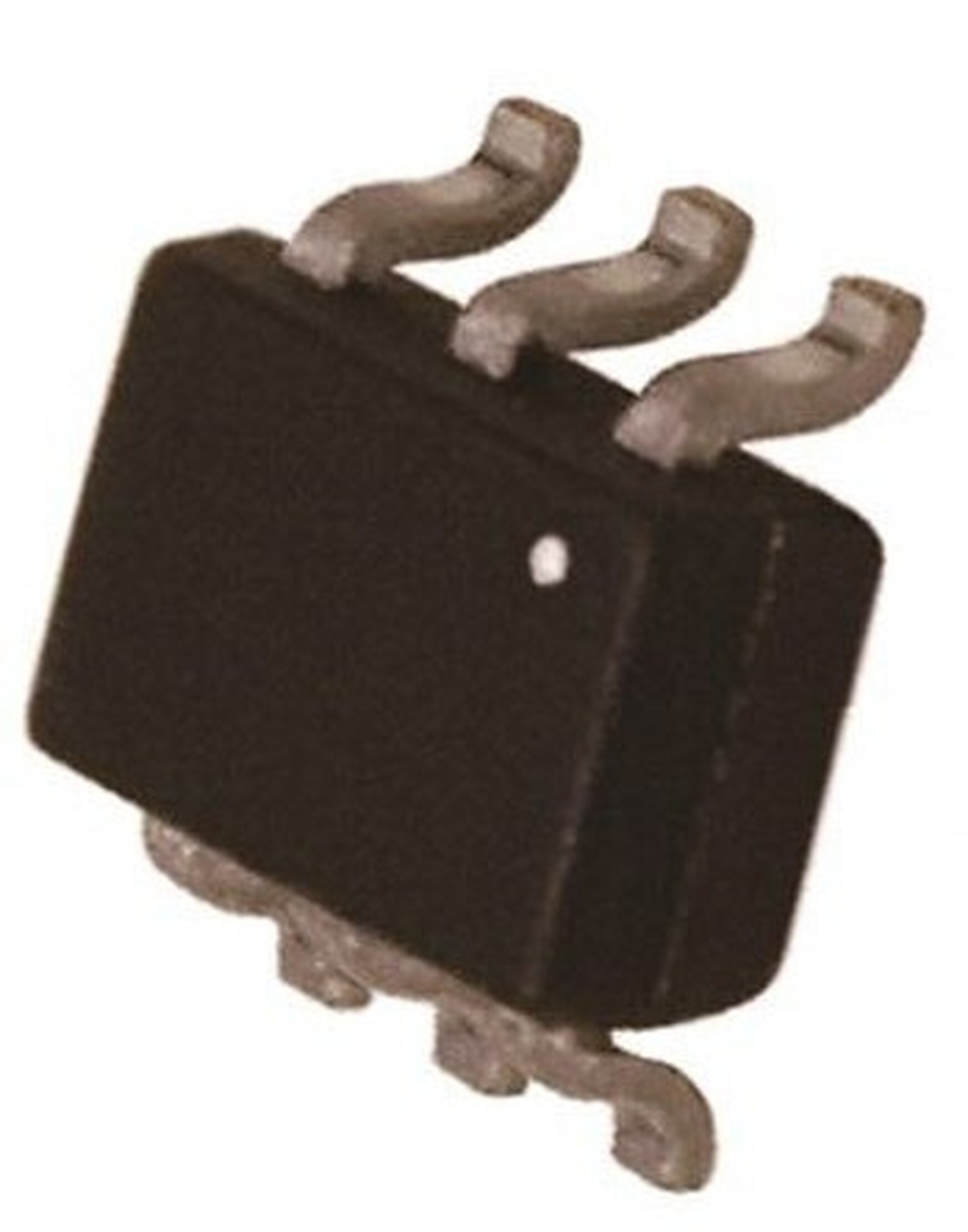

BC846DS Transistor Silicon NPN CASE: SOT457 MAKE: Generic
Datasheet
BC846DS Datasheet
Product specifications
Type Transistor Silicon NPN
Case SOT457
Manufacturer NXP Semiconductors
Polarity NPN
Maximum Collector Power Dissipation (Pc) 0.25 W
Maximum Collector-Base Voltage |Vcb| 80 V
Maximum Collector-Emitter Voltage |Vce| 65 V
Maximum Emitter-Base Voltage |Veb| 6 V
Maximum Collector Current |Ic max| 0.1 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 1.9 pF
Transition Frequency (ft): 100 MHz
Forward Current Transfer Ratio (hFE), MIN 200
SMD Transistor Code ZK
SKU 1425462
