BC847BM

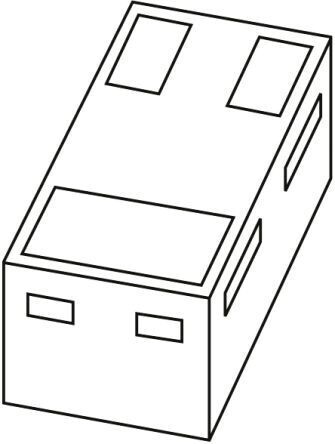

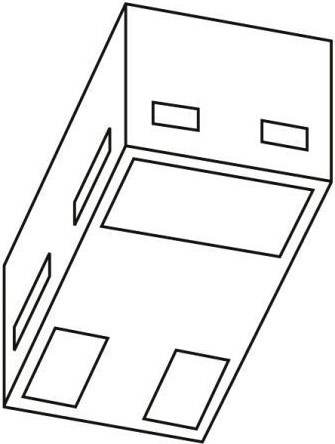

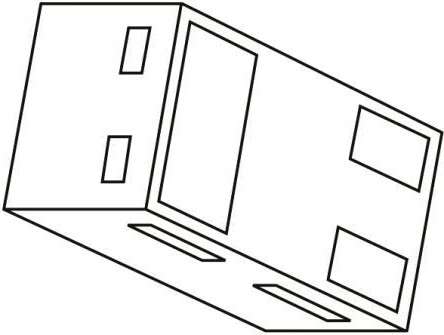

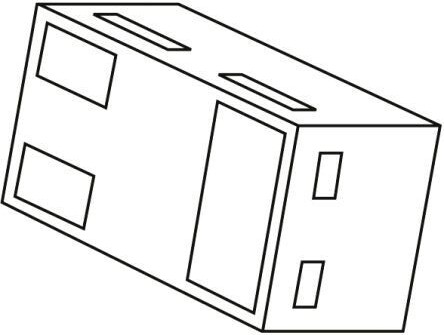

View detailed images (4)

BC847BM

SKU: BC847BM
BC847BM Transistor Silicon NPN CASE: SOT883 MAKE: Philips
+ VAT 20% for UK purchases
Product specifications
Type Transistor Silicon NPN
Case SOT883
Manufacturer Philips
Polarity NPN
Maximum Collector Power Dissipation (Pc) 0.15 W
Maximum Collector-Base Voltage |Vcb| 50 V
Maximum Collector-Emitter Voltage |Vce| 45 V
Maximum Emitter-Base Voltage |Veb| 6 V
Maximum Collector Current |Ic max| 0.1 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 1.5 pF
Transition Frequency (ft): 100 MHz
Forward Current Transfer Ratio (hFE), MIN 200
SMD Transistor Code D5_D5W
SKU 741628
