BCM847DS

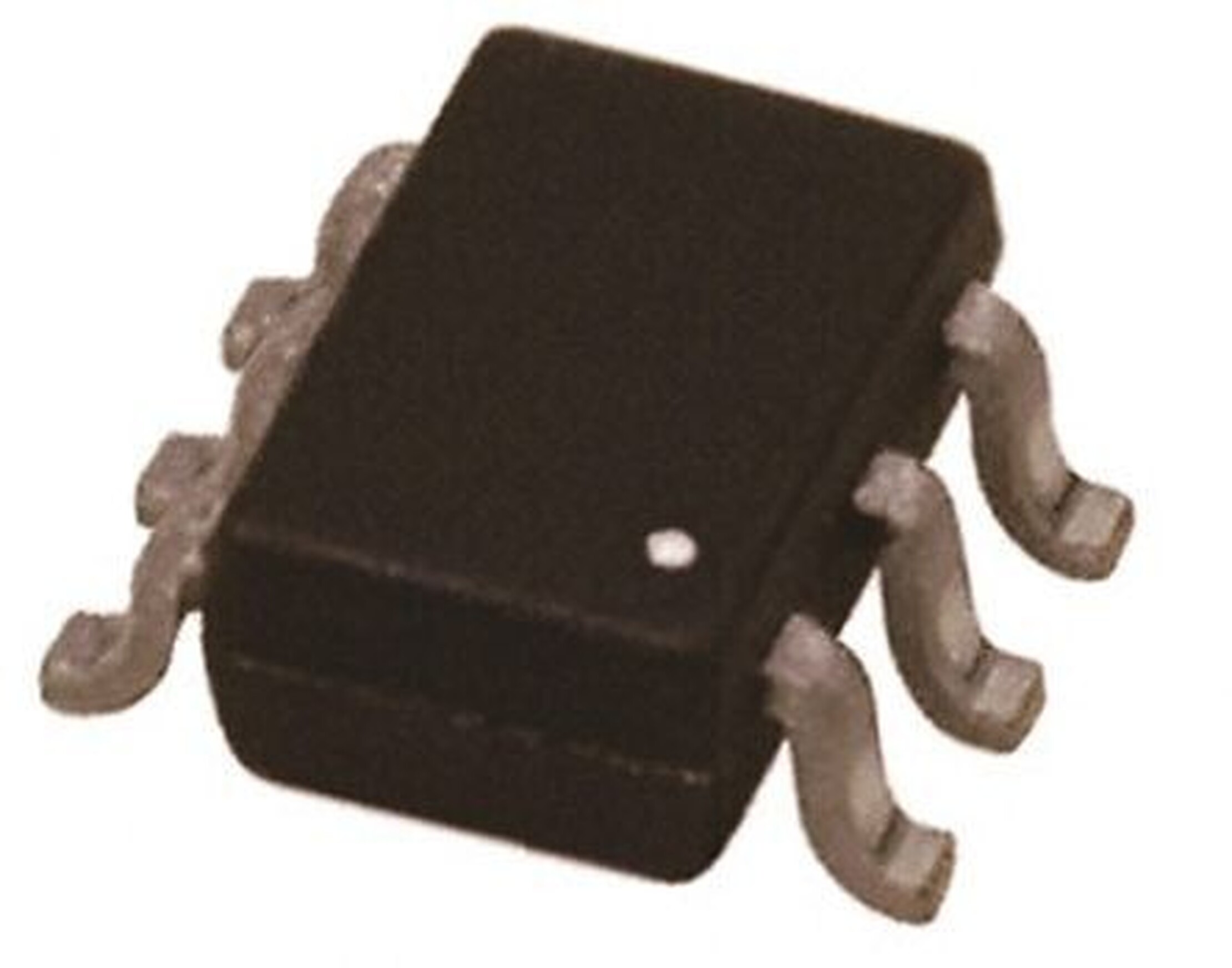

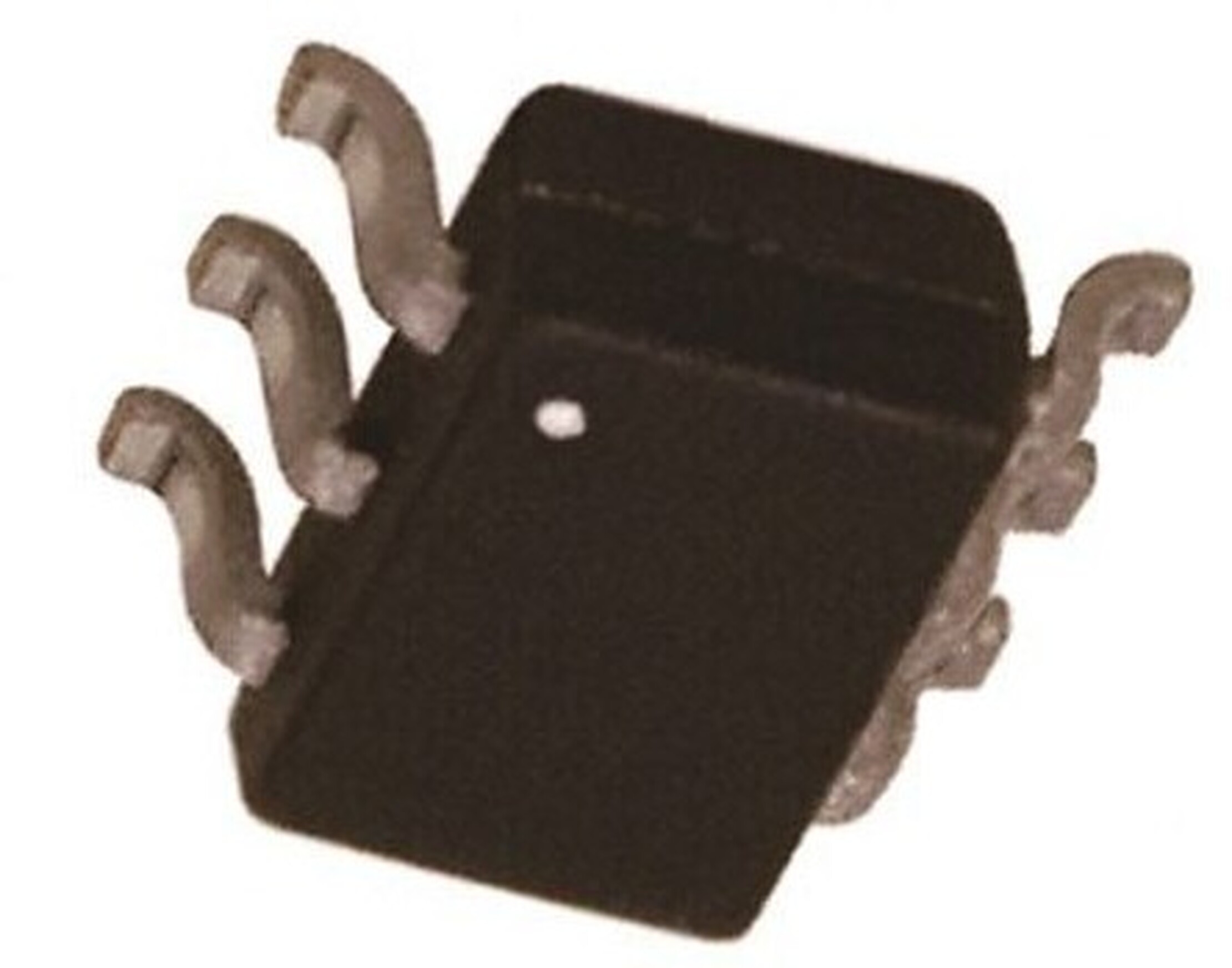

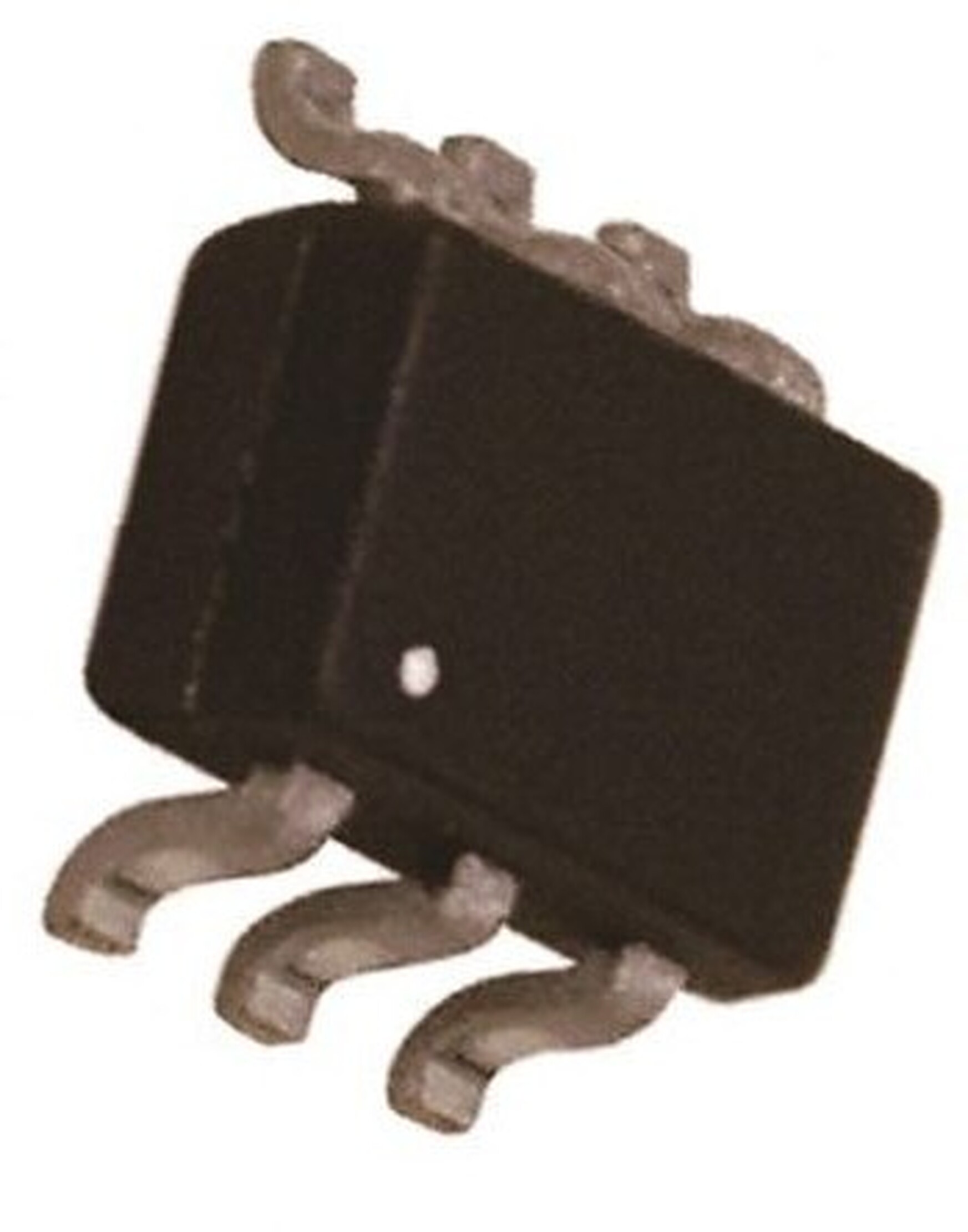

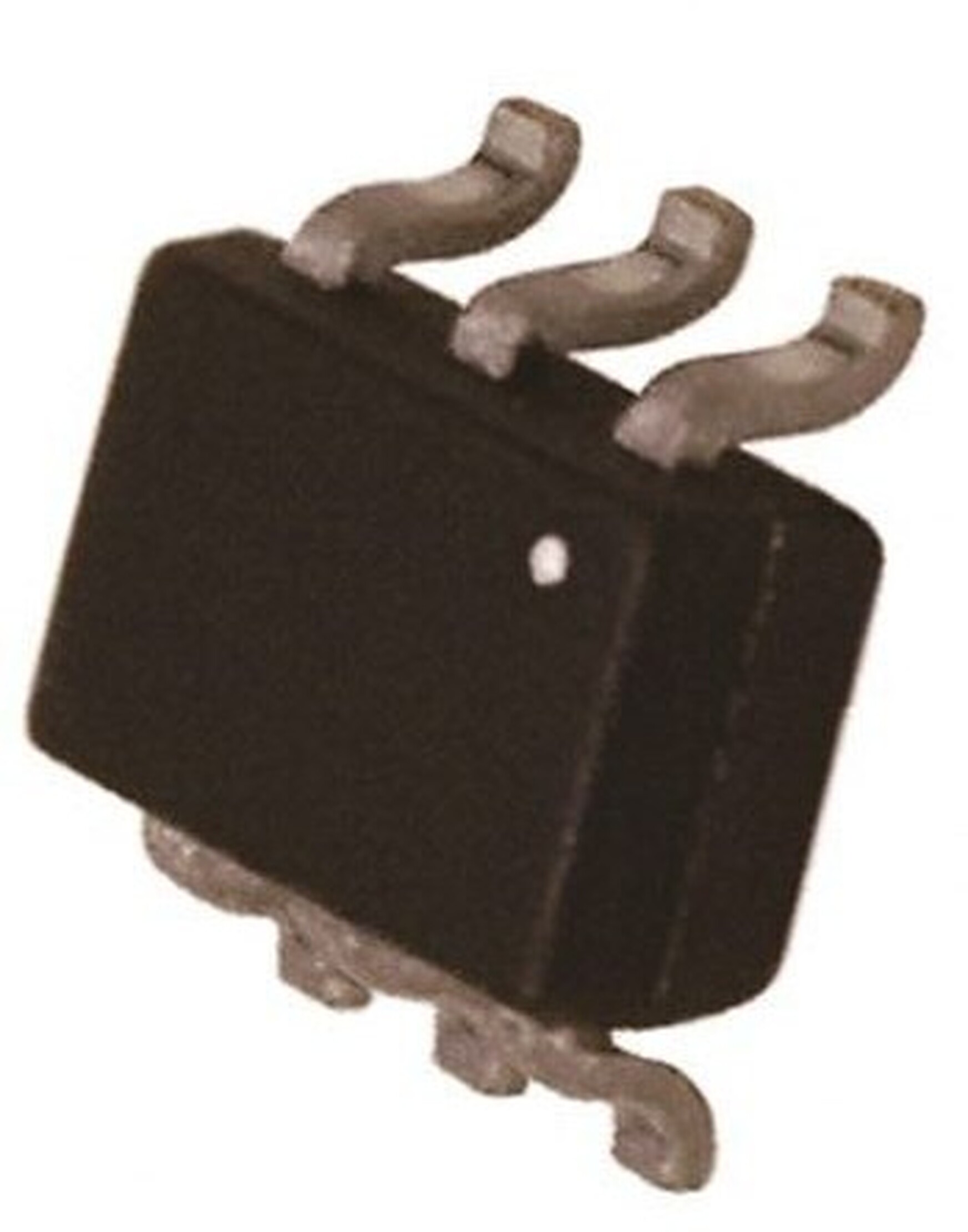

View detailed images (4)

BCM847DS

SKU: BCM847DS
BCM847DS Transistor Silicon NPN CASE: SOT457 MAKE: Infineon - Siemens
Datasheet
BCM847DS Datasheet
Product specifications
Type Transistor Silicon NPN
Case SOT457
Manufacturer Infineon - Siemens
Polarity NPN
Maximum Collector Power Dissipation (Pc) 0.25 W
Maximum Collector-Base Voltage |Vcb| 50 V
Maximum Collector-Emitter Voltage |Vce| 45 V
Maximum Emitter-Base Voltage |Veb| 6 V
Maximum Collector Current |Ic max| 0.1 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 1.5 pF
Transition Frequency (ft): 100 MHz
Forward Current Transfer Ratio (hFE), MIN 200
SMD Transistor Code R6
SKU 1425593
