BCP56-10
View detailed images (8)

BCP56-10

SKU: BCP56-10

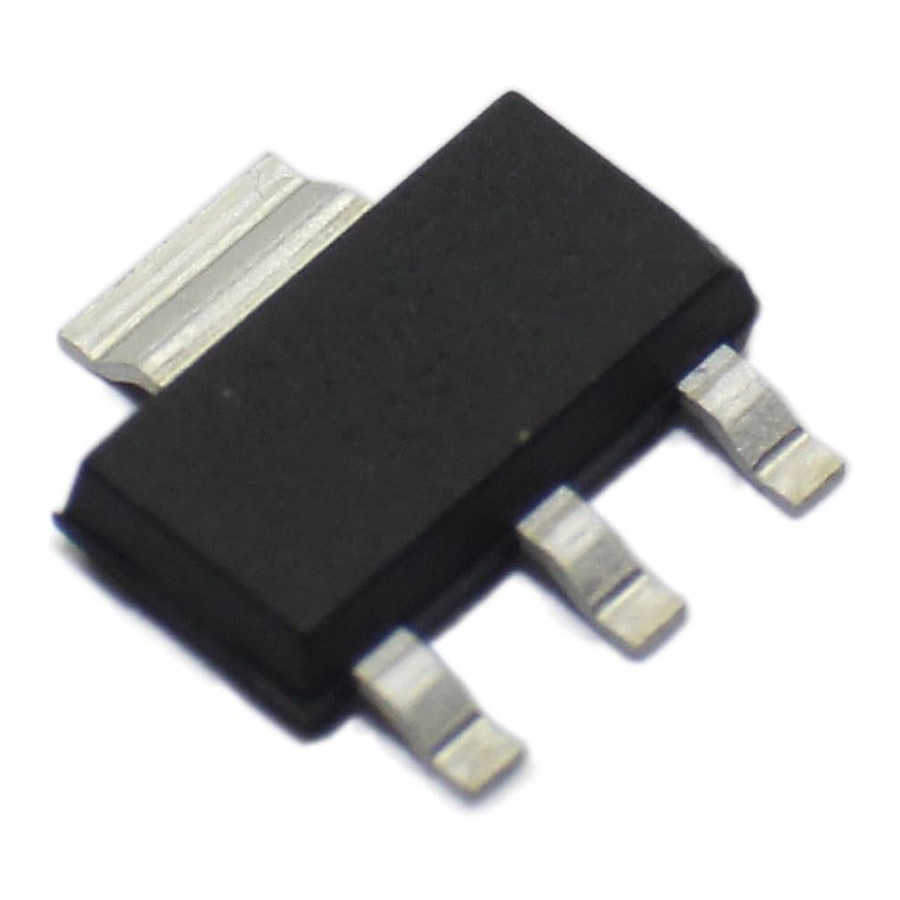

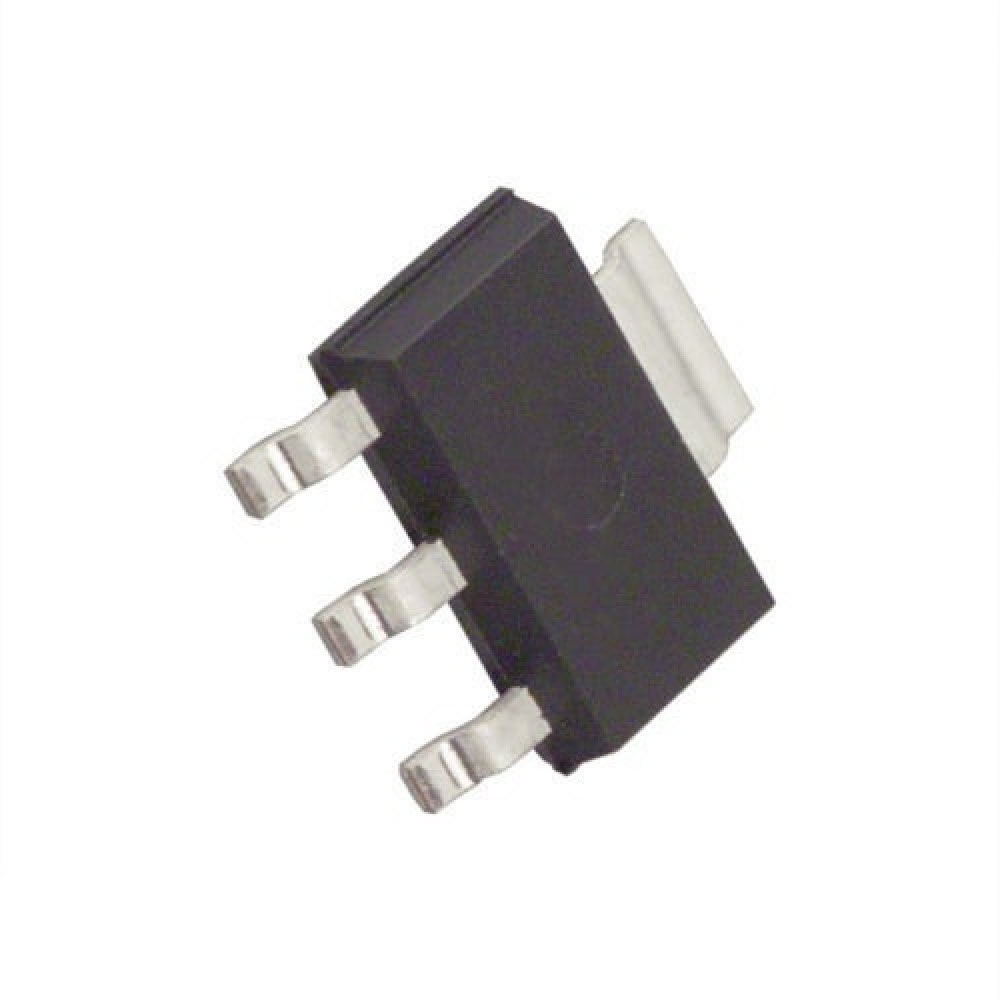

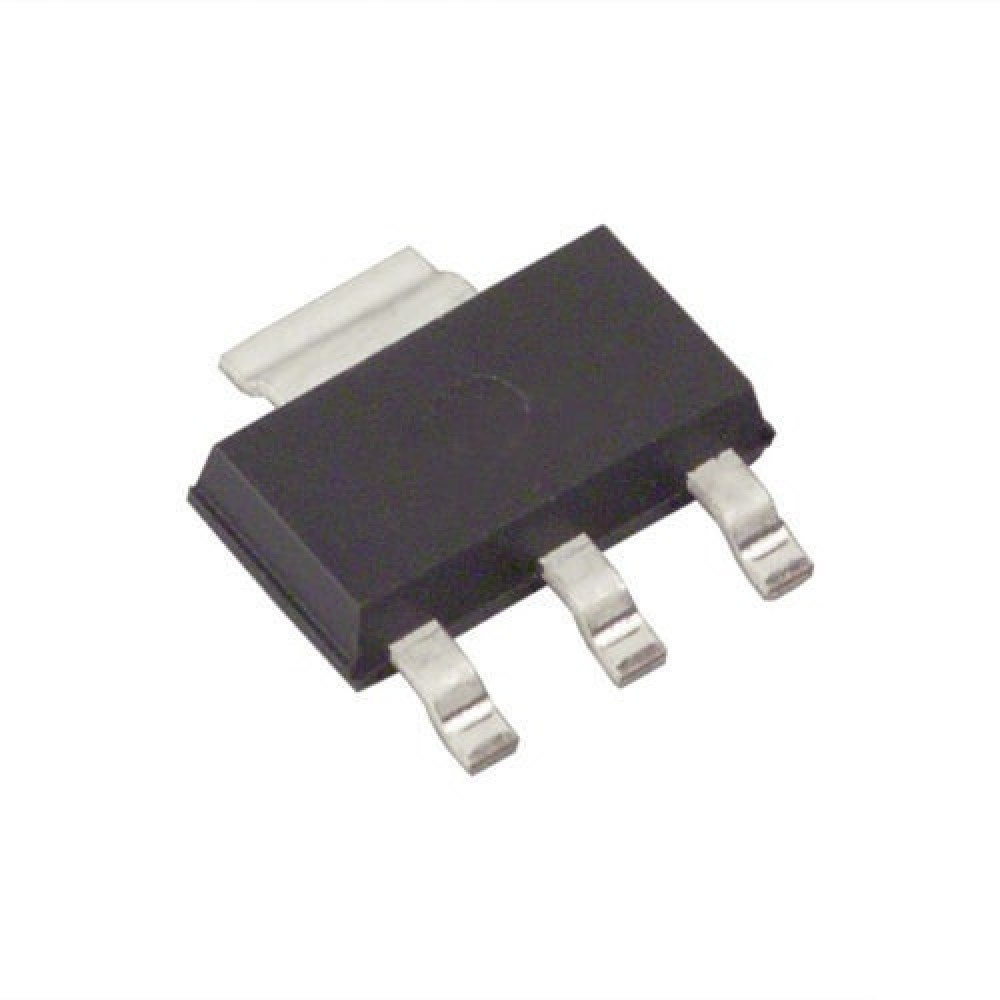

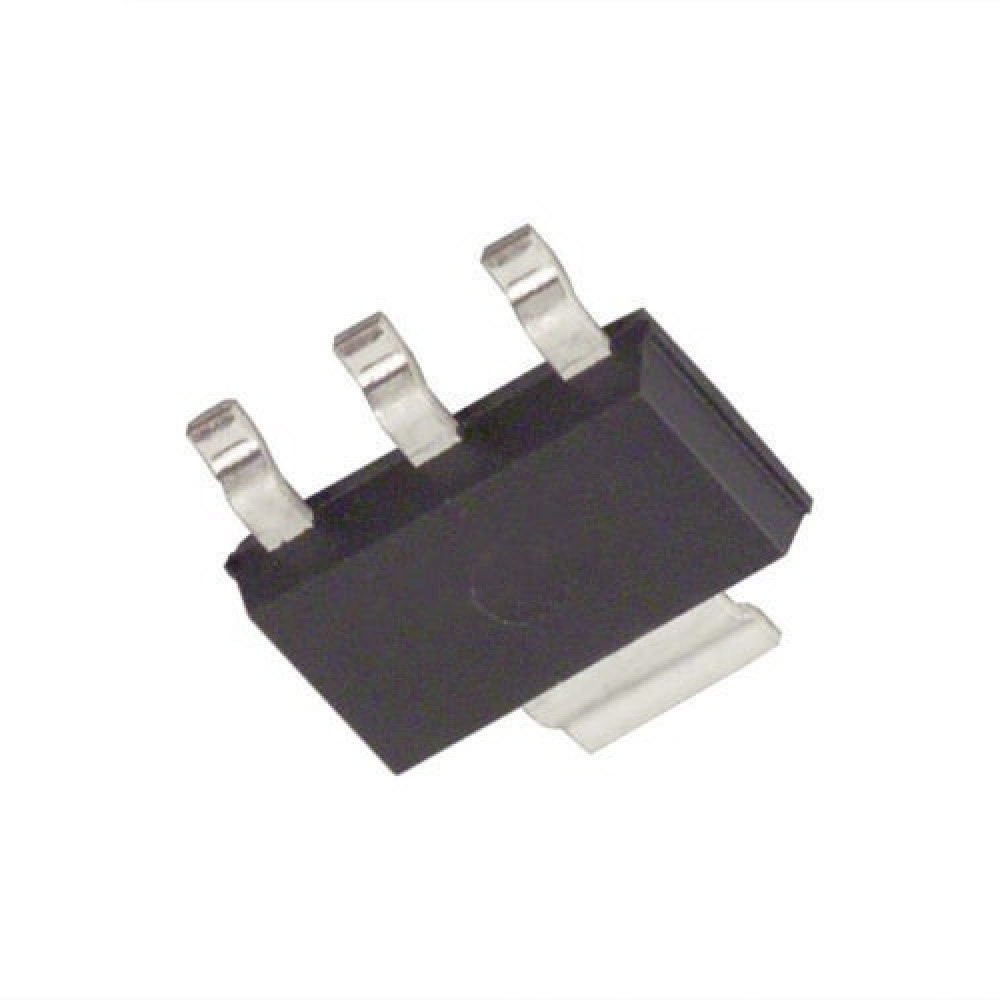

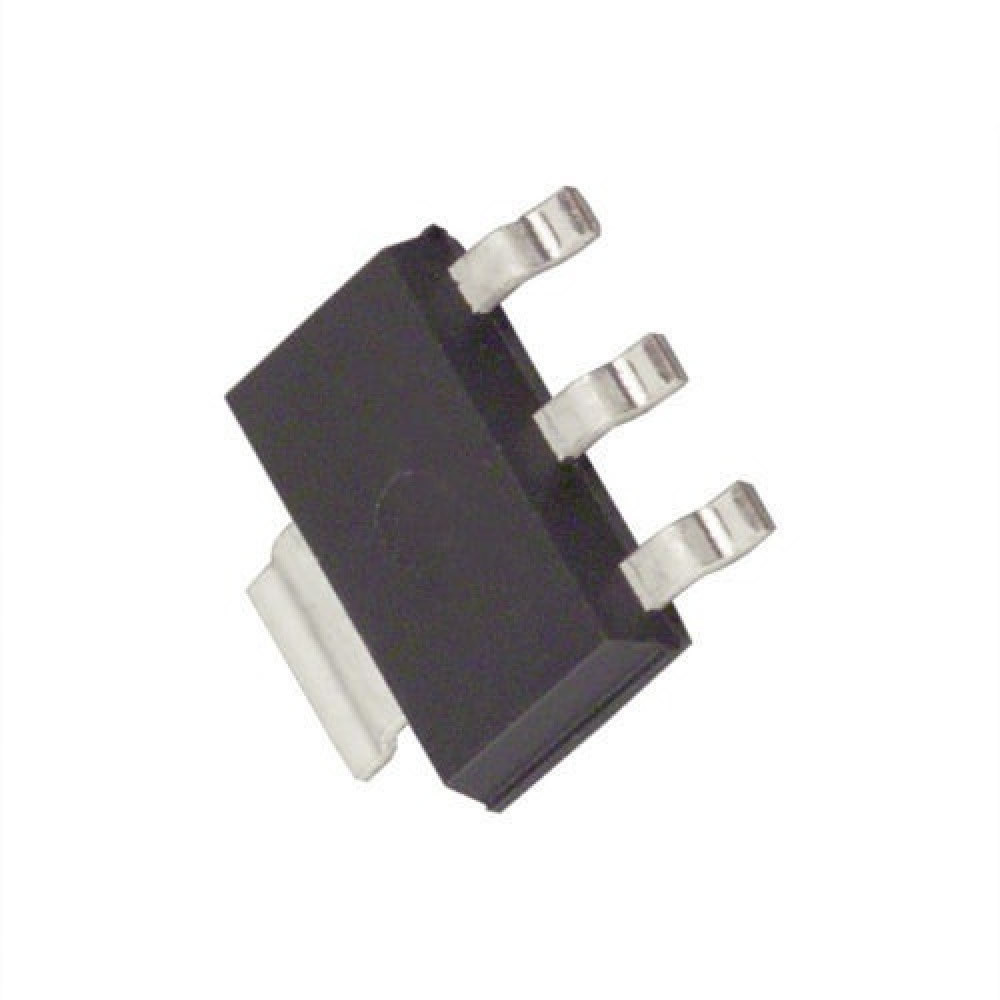

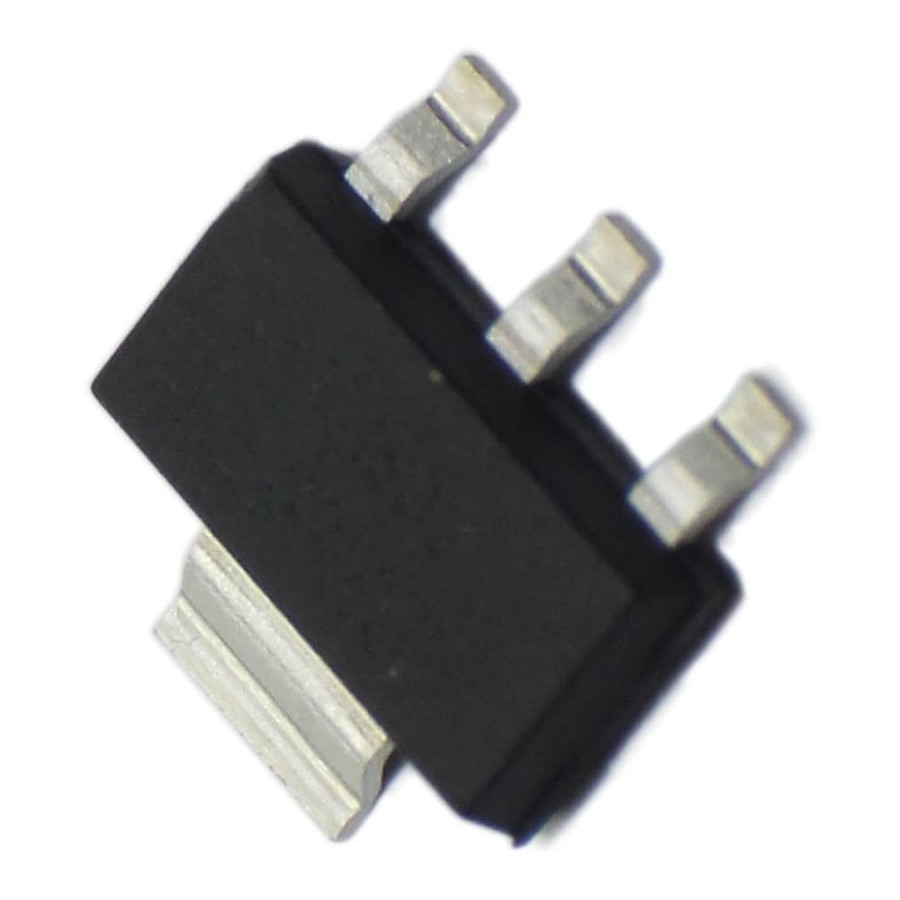

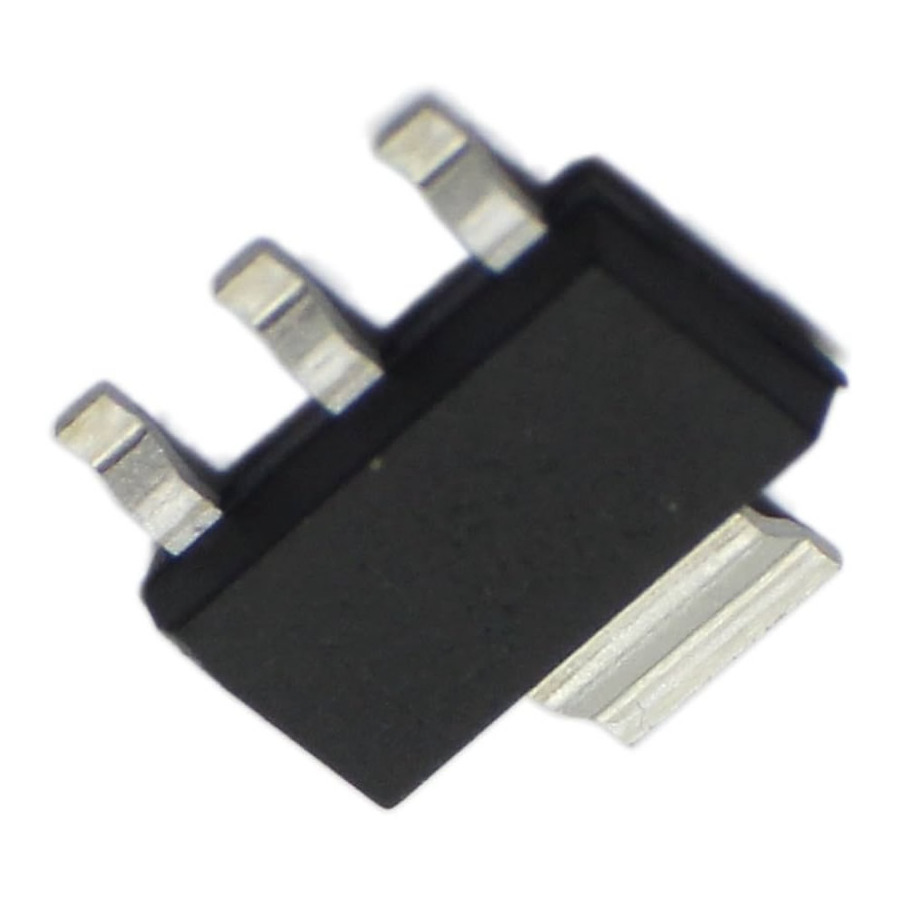

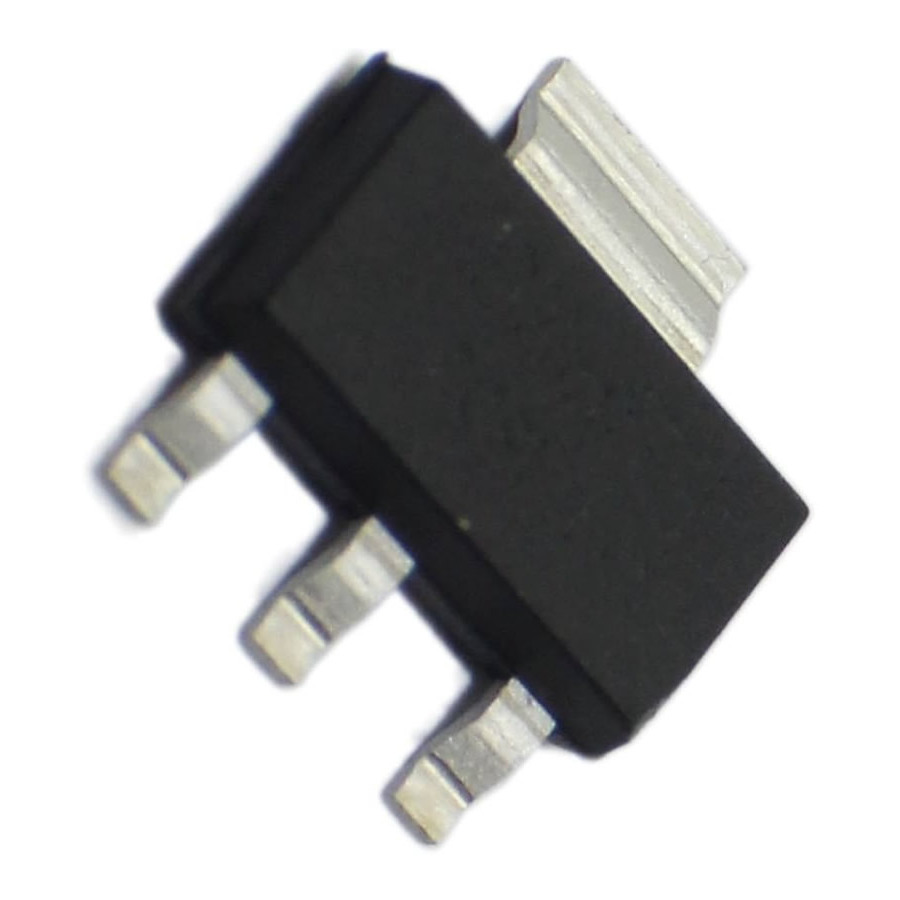

BCP56-10 Transistor Silicon NPN CASE: SOT223 MAKE: ON Semiconductor
Price:
£5.75 Inc. VAT (£4.79 Ex. VAT)
£5.75 Inc. VAT (£4.79 Ex. VAT)
Qty
  • More pieces shipped in 14 days
?
Datasheet
BCP56-10 Datasheet
Product specifications
Type Transistor Silicon NPN
Case SOT223
Manufacturer ON Semiconductor
Vbr CBO 100
Vbr CEO 80
Max. PD (W) 1.5
Max. hFE 160
Min hFE 63
Ic Max. (A) 1.0
@Ic (test) (A) 150m
Icbo Max. @Vcb Max. (A) 100n
Polarity NPN
Trans. Freq (Hz) Min. 130M
Oper. Temp (°C) Max. 150
@VCE (V) 2.0
Pinout Equivalence Number 4-105
Surface Mounted Yes/No YES
Maximum Collector Power Dissipation (Pc) 1.5 W
Maximum Collector-Base Voltage |Vcb| 100 V
Maximum Collector-Emitter Voltage |Vce| 80 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 1 A
Max. Operating Junction Temperature (Tj) 150 °C
Transition Frequency (ft): 130 MHz
Forward Current Transfer Ratio (hFE), MIN 63
SMD Transistor Code BH-10_BK
SKU 372272
