BCW31
View detailed images (4)

BCW31

SKU: BCW31

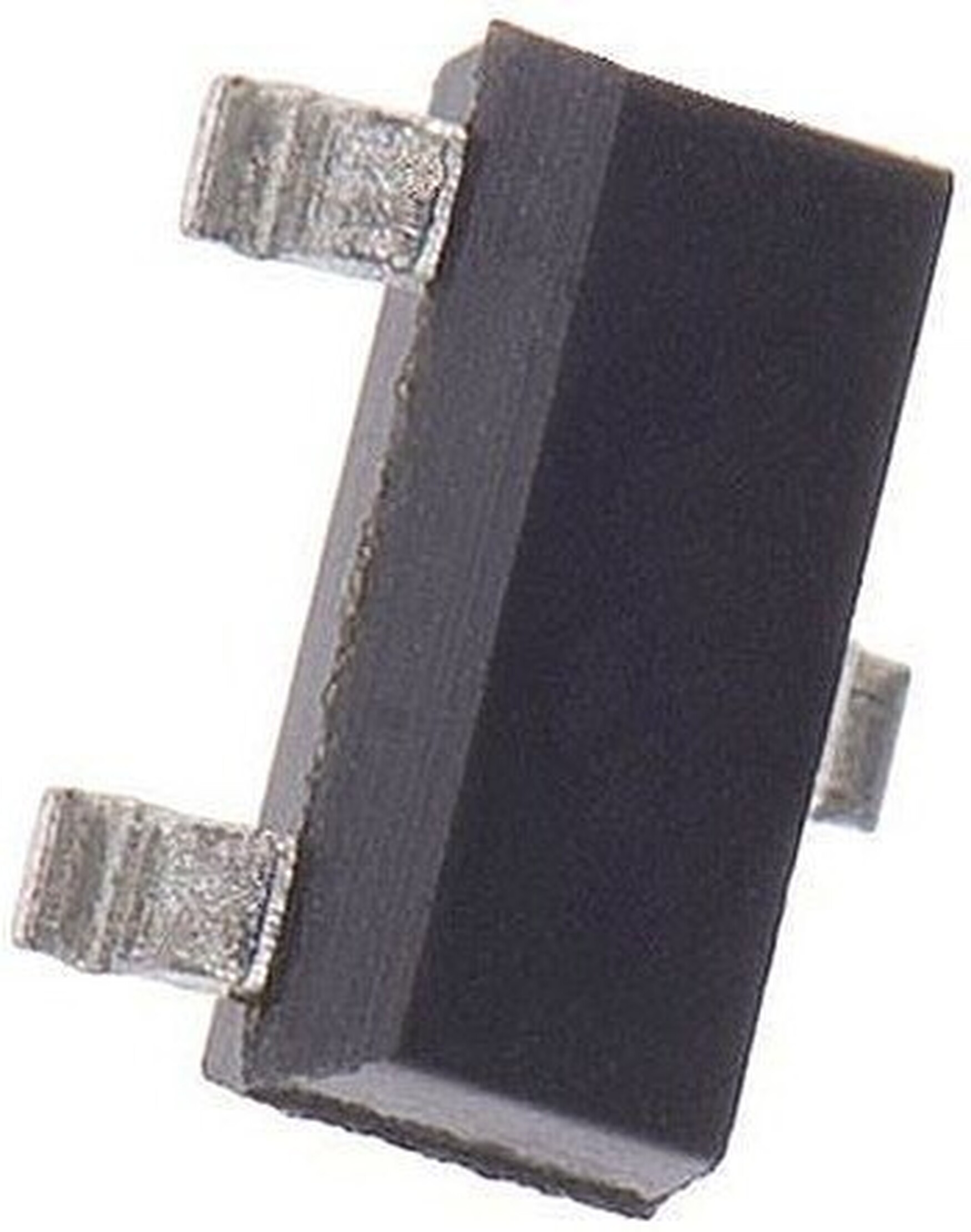

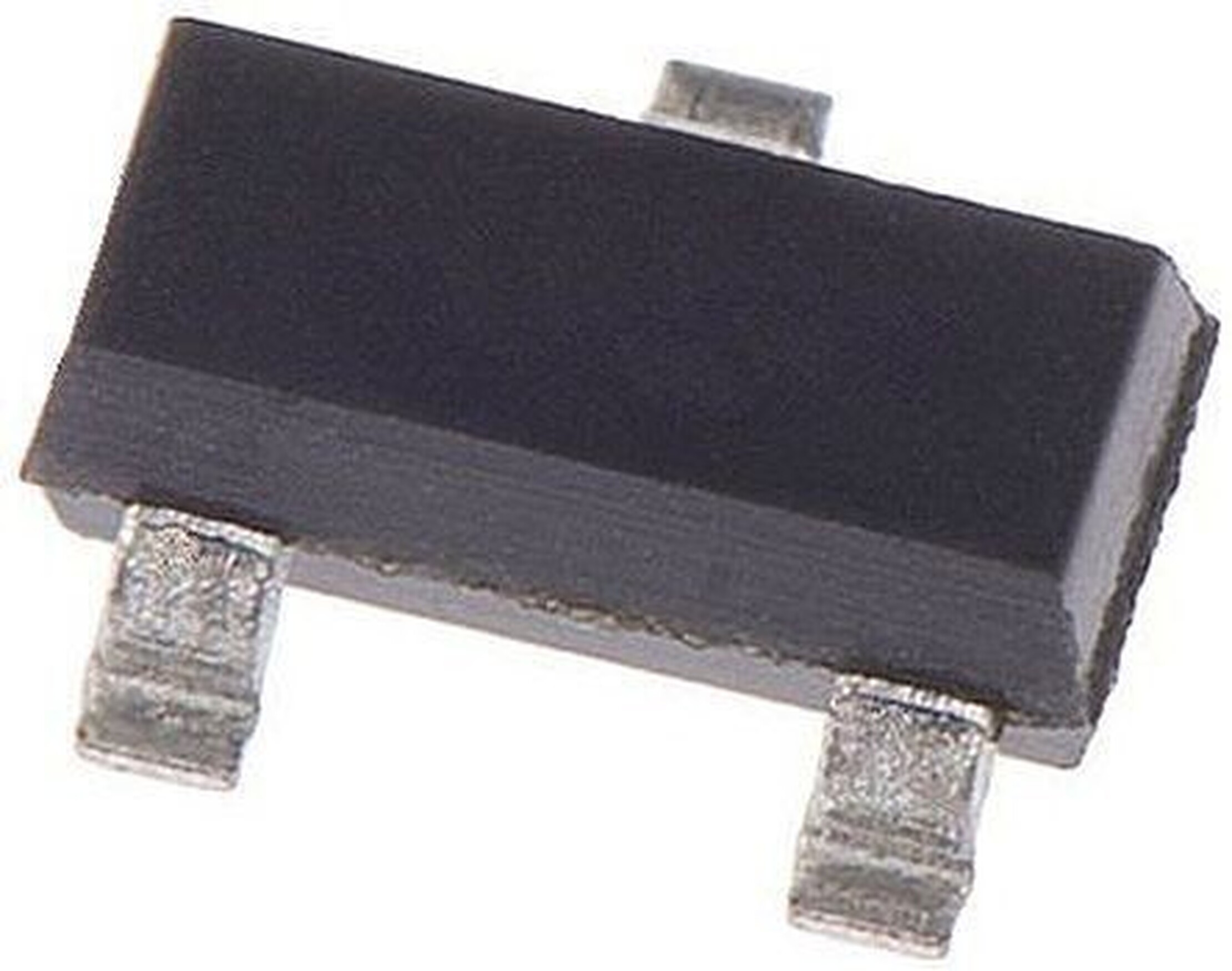

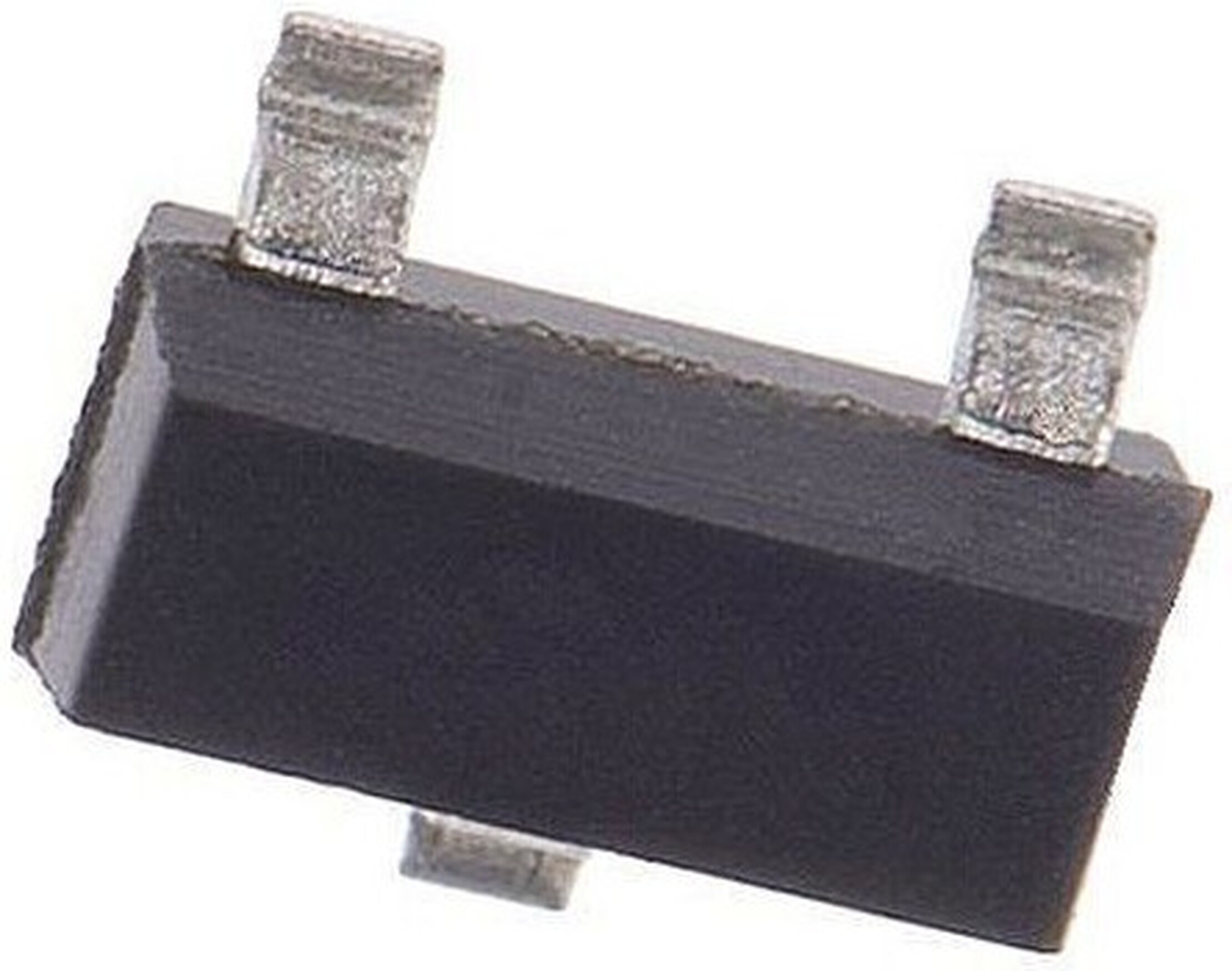

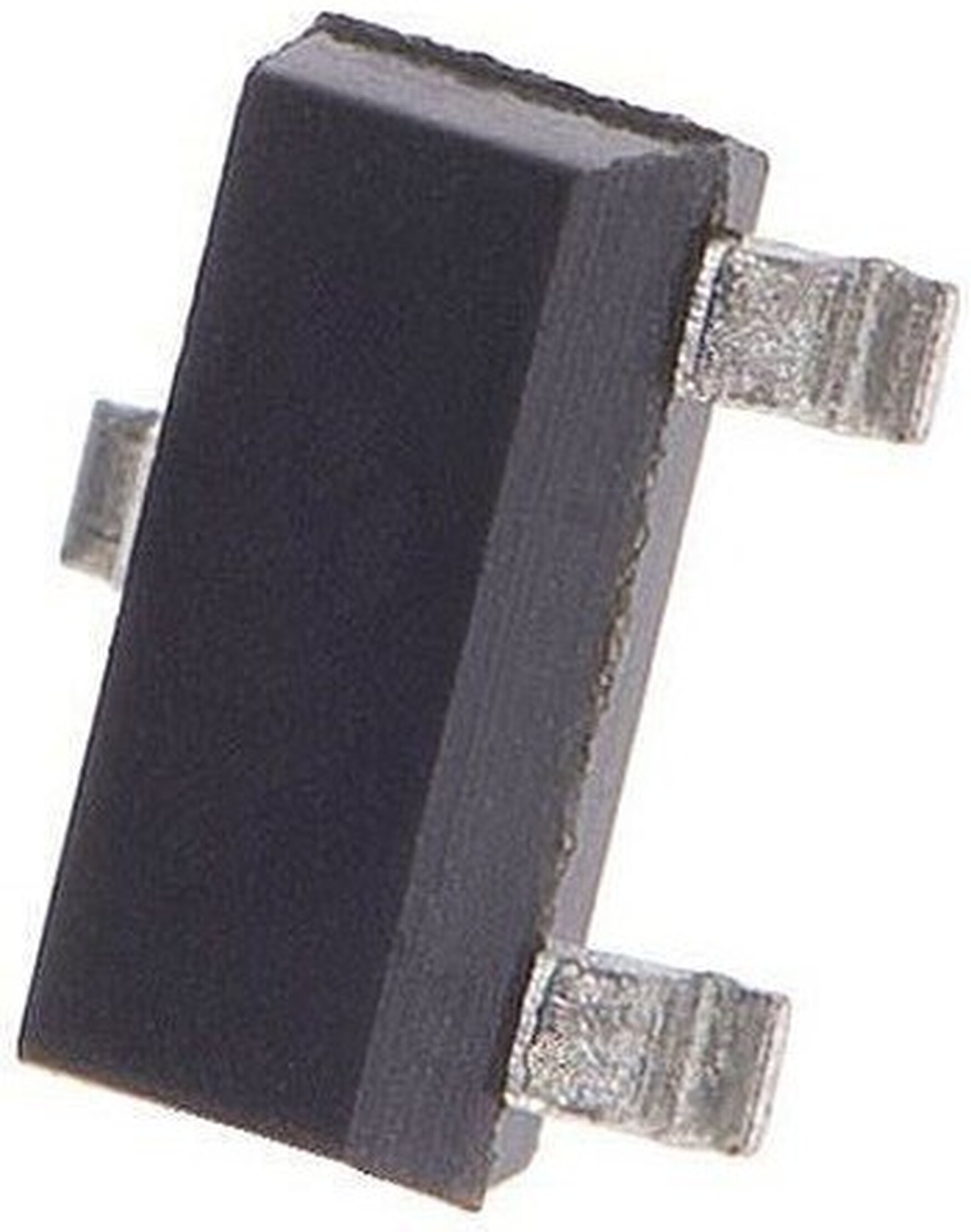

BCW31 Transistor Silicon NPN CASE: TO236 MAKE: NXP Semiconductors
Price:
£5.75 Inc. VAT (£4.79 Ex. VAT)
£5.75 Inc. VAT (£4.79 Ex. VAT)
Qty
  • More pieces shipped in 14 days
?
Datasheet
BCW31 Datasheet
Product specifications
Type Transistor Silicon NPN
Case TO236
Manufacturer NXP Semiconductors
Vbr CBO 32
Vbr CEO 32
Max. PD (W) 225m
C(ob) (F) 2.5p
Derate (Amb) (W/°C) 1.8m
Ic Max. (A) 100m
Icbo Max. @Vcb Max. (A) 100n
Polarity NPN
Trans. Freq (Hz) Min. 300M-
Oper. Temp (°C) Max. 150
Pinout Equivalence Number 3-12
Surface Mounted Yes/No YES
Maximum Collector Power Dissipation (Pc) 0.35 W
Maximum Collector-Base Voltage |Vcb| 30 V
Maximum Collector-Emitter Voltage |Vce| 20 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 0.1 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 4 pF
Transition Frequency (ft): 300 MHz
Forward Current Transfer Ratio (hFE), MIN 110
SMD Transistor Code D1_D1p_D1t_D1W_GD1
SKU 372277
