BCW70
View detailed images (5)

BCW70

SKU: BCW70
BCW70 Transistor Silicon PNP CASE: SOT353 MAKE: NXP Semiconductors
Price:
£5.75 Inc. VAT (£4.79 Ex. VAT)
£5.75 Inc. VAT (£4.79 Ex. VAT)
Qty
  • More pieces shipped in 14 days
?
Datasheet
BCW70 Datasheet
Product specifications
Type Transistor Silicon PNP

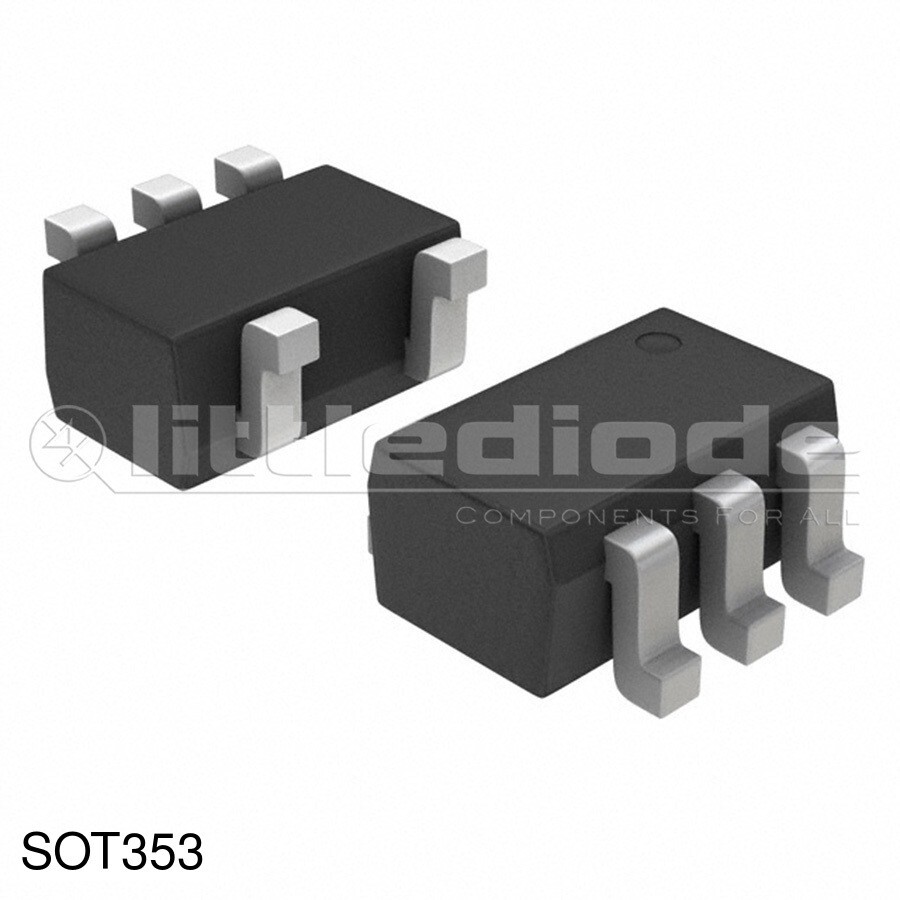

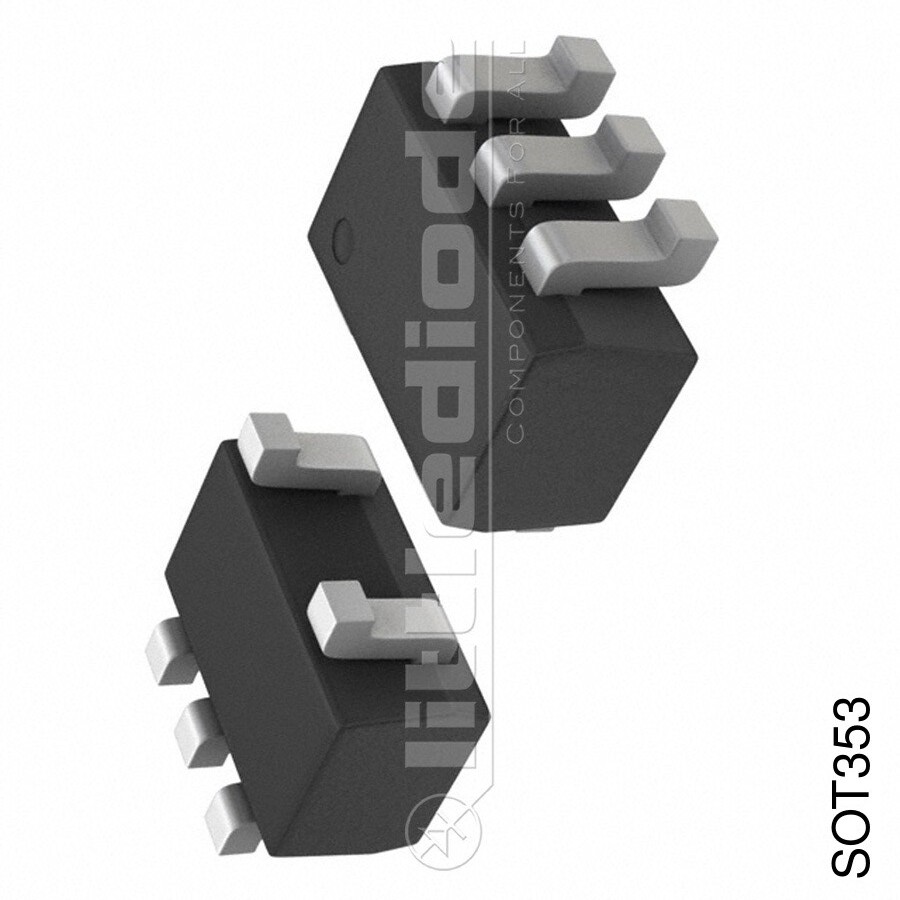

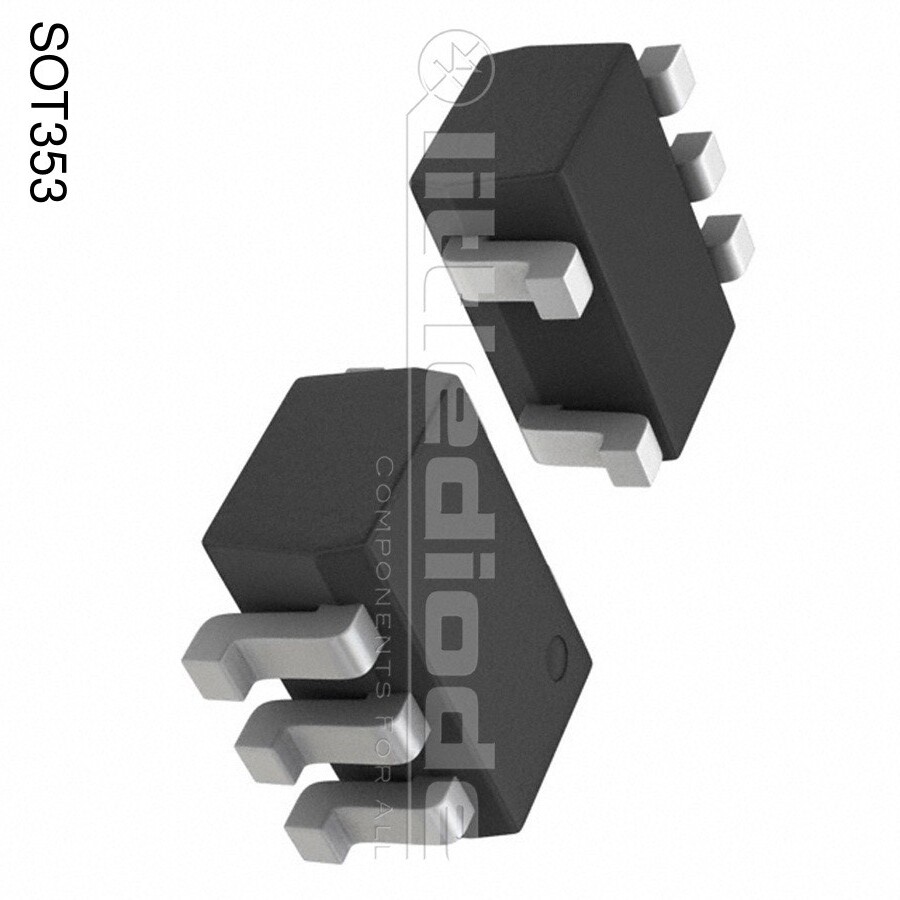

Case SOT353
Manufacturer NXP Semiconductors
Vbr CBO 50
Vbr CEO 45
Max. PD (W) 350m
C(ob) (F) 4.5p
Derate (Amb) (W/°C) 1.8m
Ic Max. (A) 100m
Icbo Max. @Vcb Max. (A) 100n
Polarity PNP
Trans. Freq (Hz) Min. 150M-
Oper. Temp (°C) Max. 150
Pinout Equivalence Number 3-12
Surface Mounted Yes/No YES
Maximum Collector Power Dissipation (Pc) 0.15 W
Maximum Collector-Base Voltage |Vcb| 50 V
Maximum Collector-Emitter Voltage |Vce| 45 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 0.2 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 7 pF
Transition Frequency (ft): 75 MHz
Forward Current Transfer Ratio (hFE), MIN 215
SMD Transistor Code GH2_H2_H2p_H2t_H2W
SKU 20061
