BCX20
View detailed images (4)

BCX20

SKU: BCX20

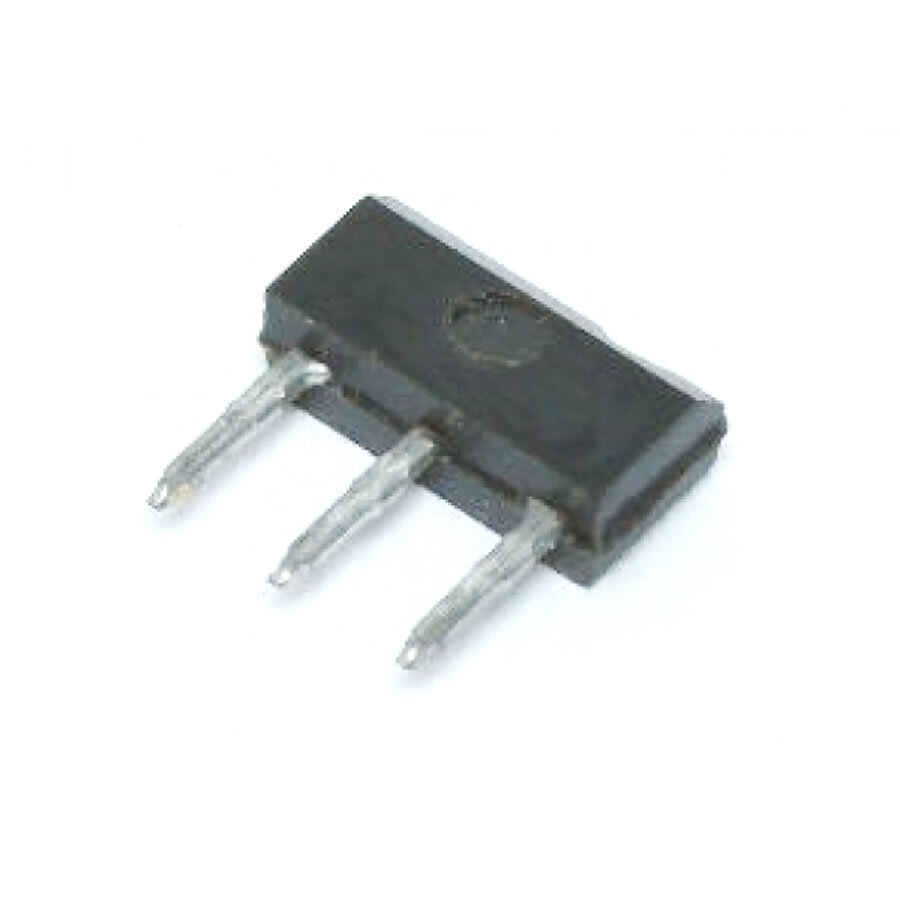

BCX20 Transistor Silicon NPN CASE: SOT33 MAKE: Allegro MicroSystems
Datasheet
BCX20 Datasheet
Product specifications
Type Transistor Silicon NPN
Case SOT33
Manufacturer Allegro MicroSystems
Vbr CBO 30
Vbr CEO 25
Max. PD (W) 425m
C(ob) (F) 5.0p
Derate (Amb) (W/°C) 1.8m
Ic Max. (A) 500m
Icbo Max. @Vcb Max. (A) 100n
Polarity NPN
Trans. Freq (Hz) Min. 200M-
Oper. Temp (°C) Max. 150
Pinout Equivalence Number 3-12
Surface Mounted Yes/No YES
Maximum Collector Power Dissipation (Pc) 0.31 W
Maximum Collector-Base Voltage |Vcb| 30 V
Maximum Collector-Emitter Voltage |Vce| 25 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 1 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 8 pF
Transition Frequency (ft): 50 MHz
Forward Current Transfer Ratio (hFE), MIN 100
SMD Transistor Code GU2_U2_U2p_U2t
