BCY11

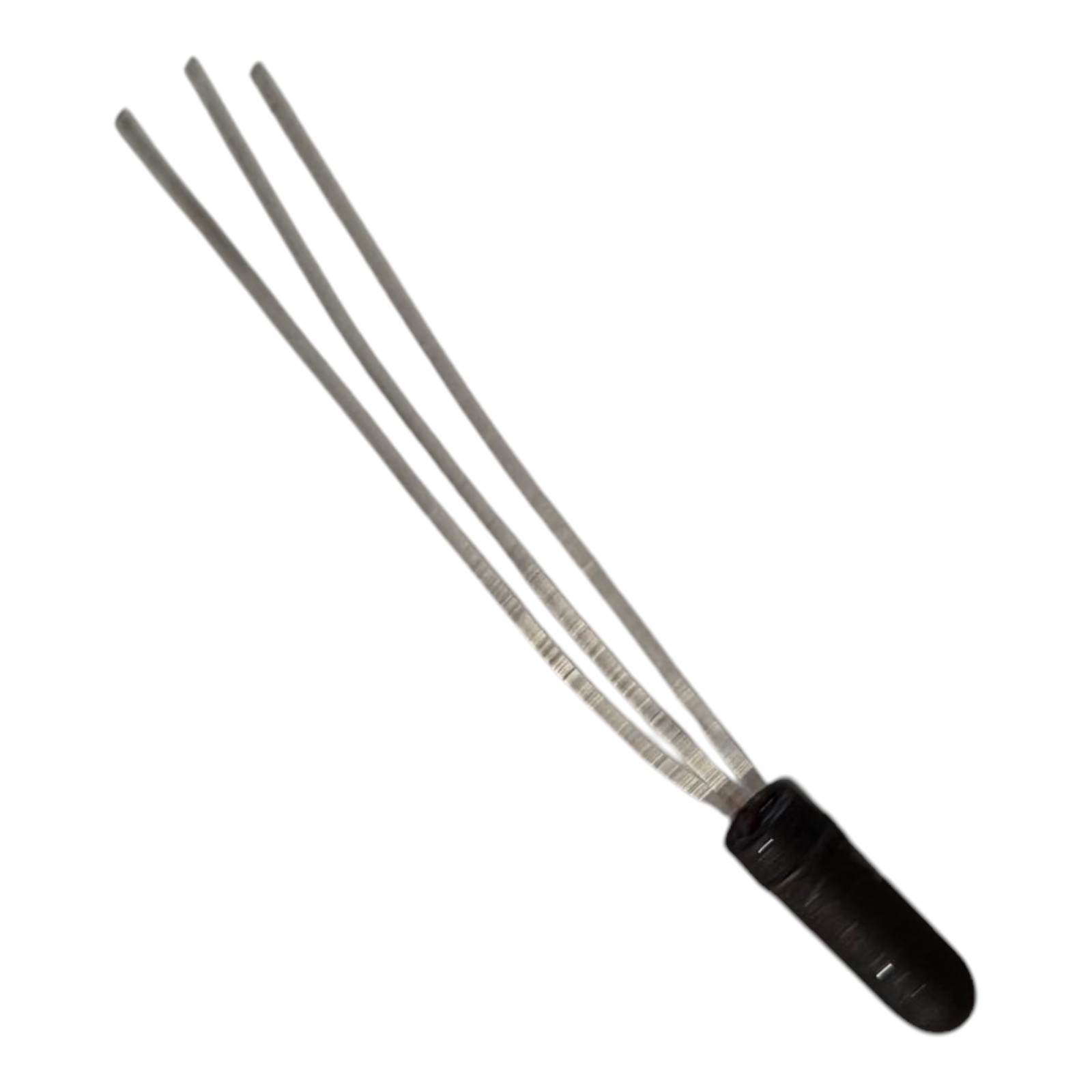

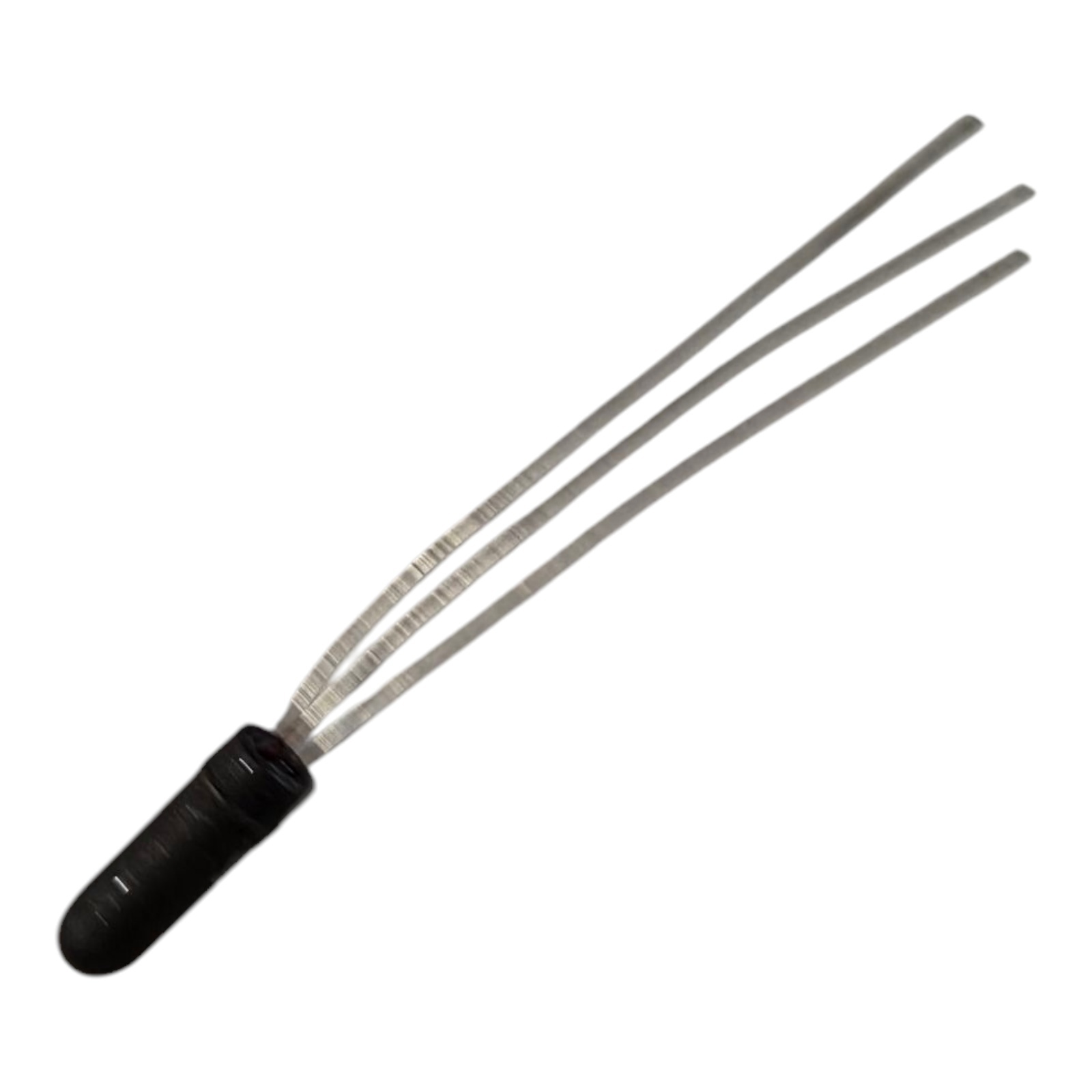

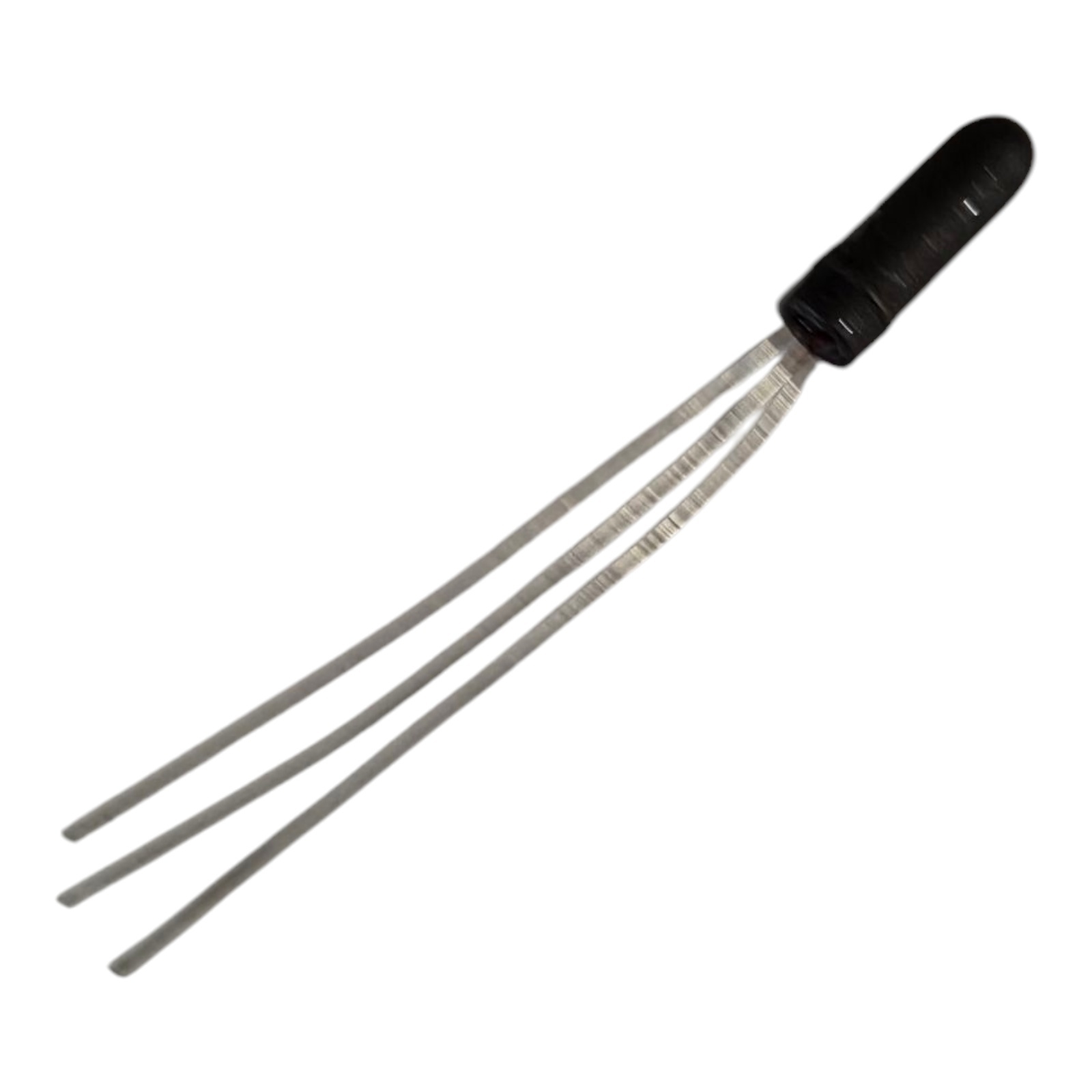

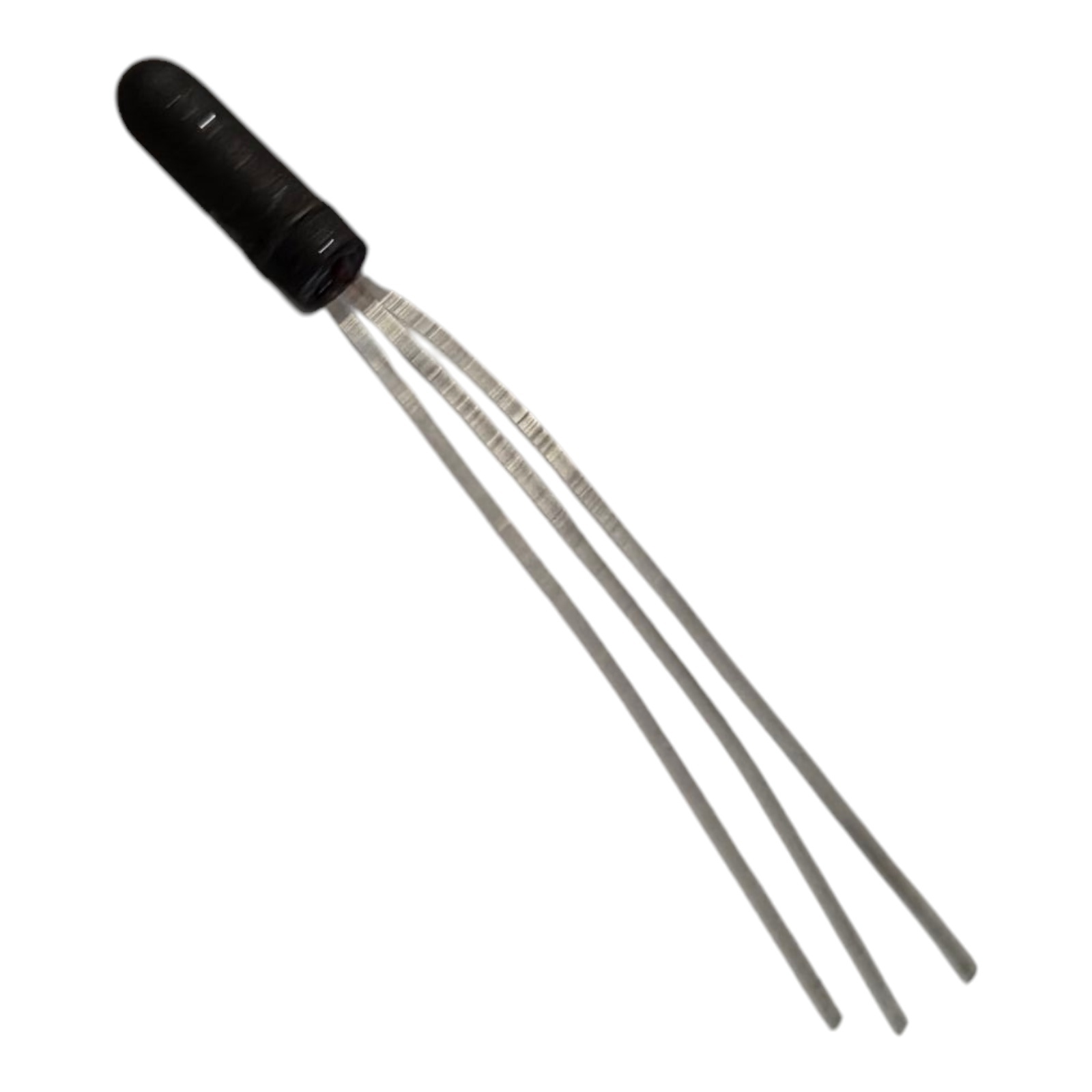

View detailed images (4)

BCY11

SKU: BCY11
BCY11 Transistor Silicon PNP CASE: X01 MAKE: Philips
Price:
£23.99 Inc. VAT (£19.99 Ex. VAT)
£23.99 Inc. VAT (£19.99 Ex. VAT)
Qty
  • More pieces shipped in 14 days
?
Product specifications
Type Transistor Silicon PNP
Case X01
Manufacturer Philips
Vbr CBO 60
Vbr CEO 60
Max. PD (W) 415m
Derate (Amb) (W/°C) 2.5m
hfe 40
Ic Max. (A) 250m
Icbo Max. @Vcb Max. (A) 100n
Polarity PNP
Trans. Freq (Hz) Min. 1.5M
@VCE (test) (V) 6.0
Oper. Temp (°C) Max. 150
@Ic (A) 10m
Pinout Equivalence Number 3-17
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.415 W
Maximum Collector-Base Voltage |Vcb| 60 V
Maximum Collector-Emitter Voltage |Vce| 60 V
Maximum Emitter-Base Voltage |Veb| 12 V
Maximum Collector Current |Ic max| 0.025 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 50 pF
Transition Frequency (ft): 1 MHz
Forward Current Transfer Ratio (hFE), MIN 10
SKU 135706
