BD295
View detailed images (12)

BD295

SKU: BD295

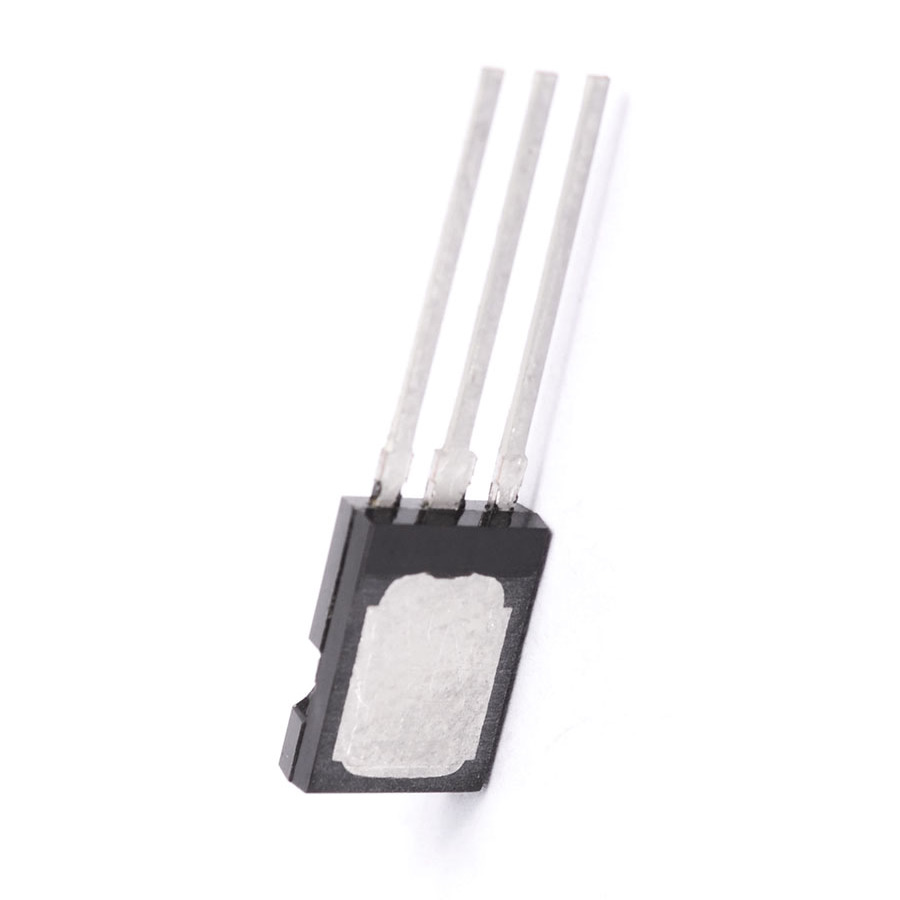

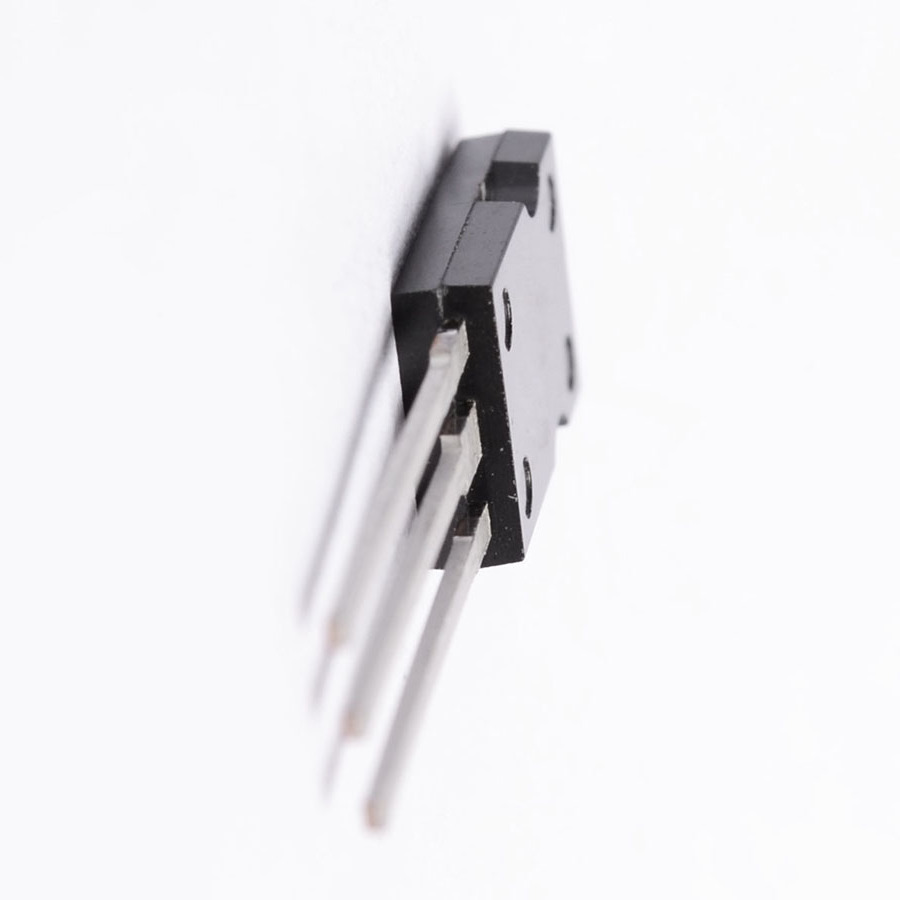

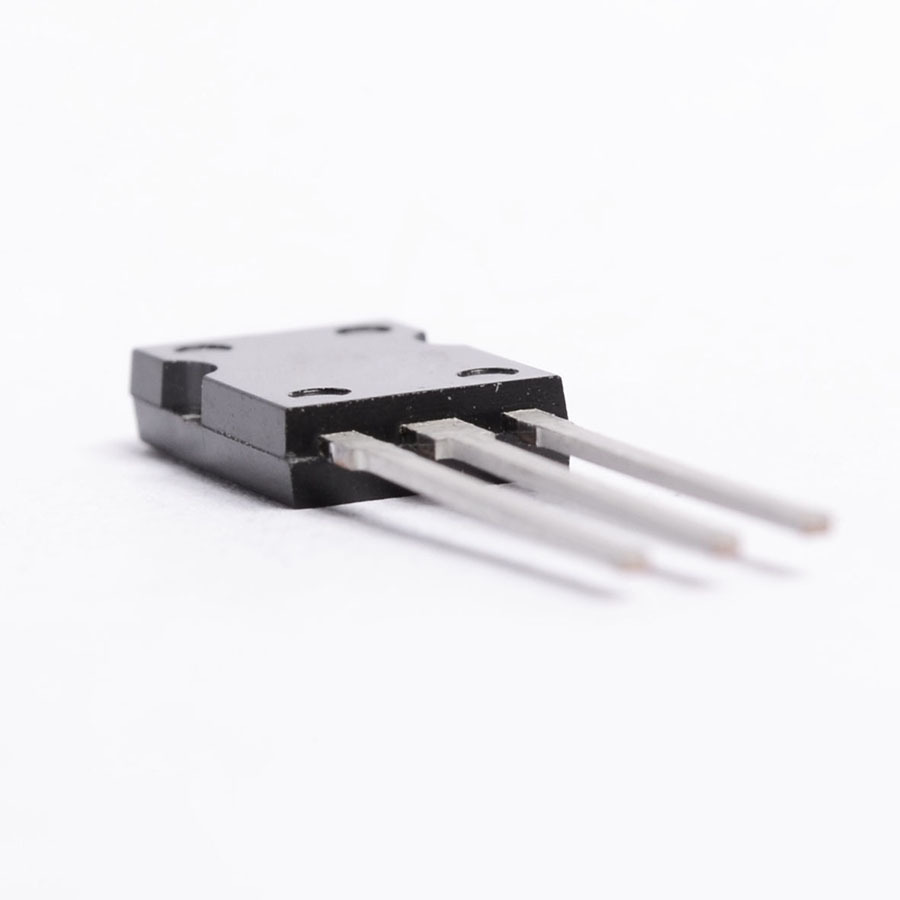

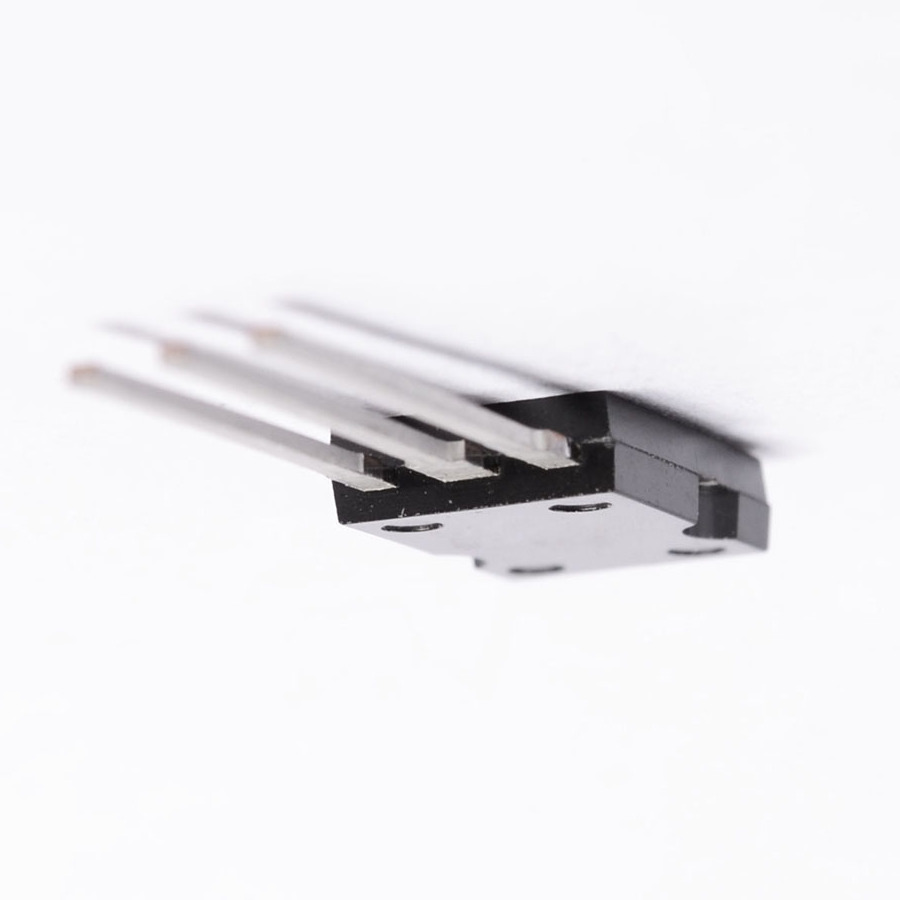

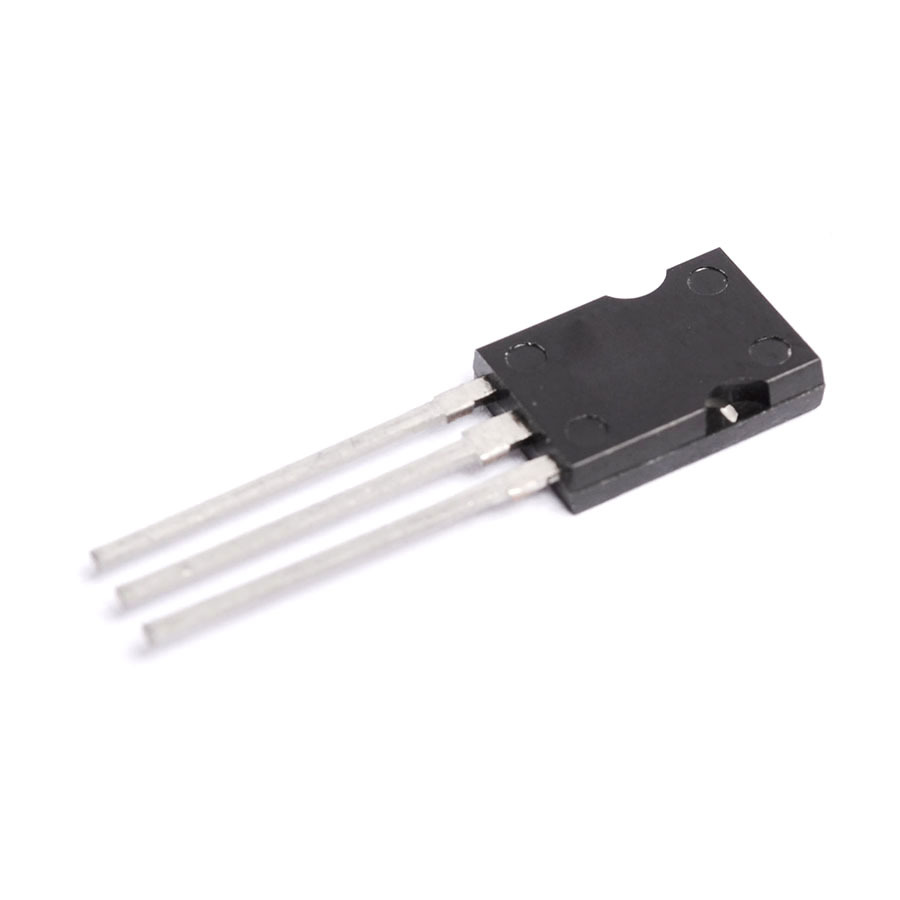

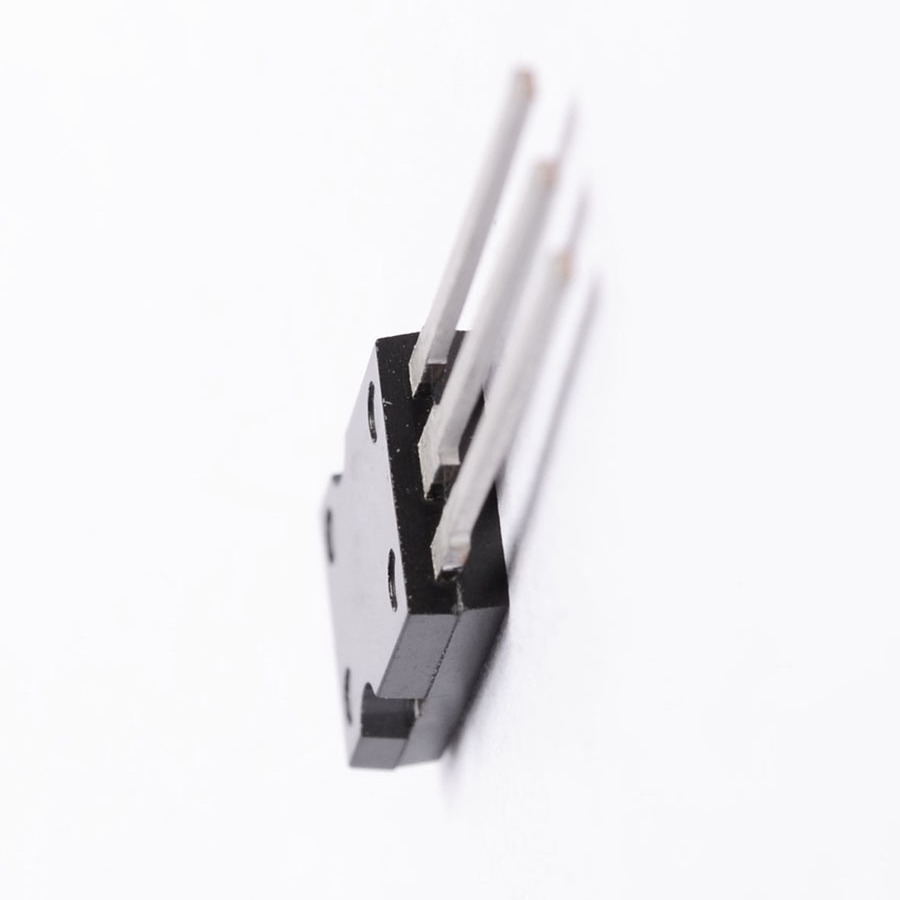

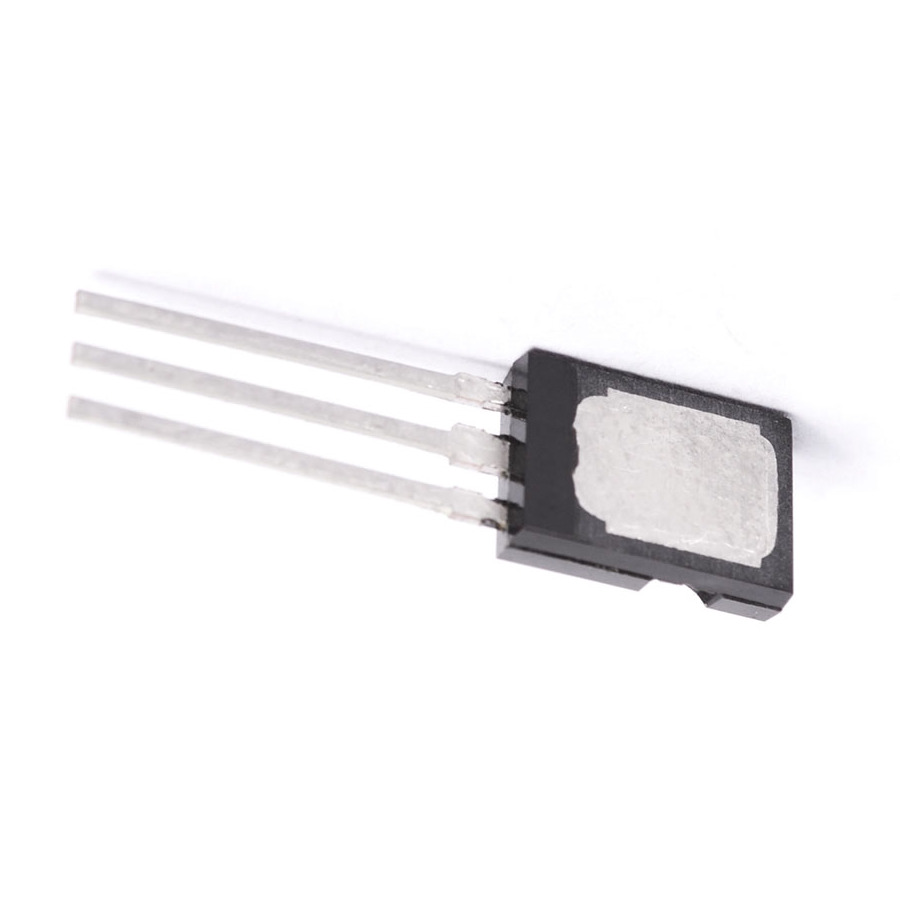

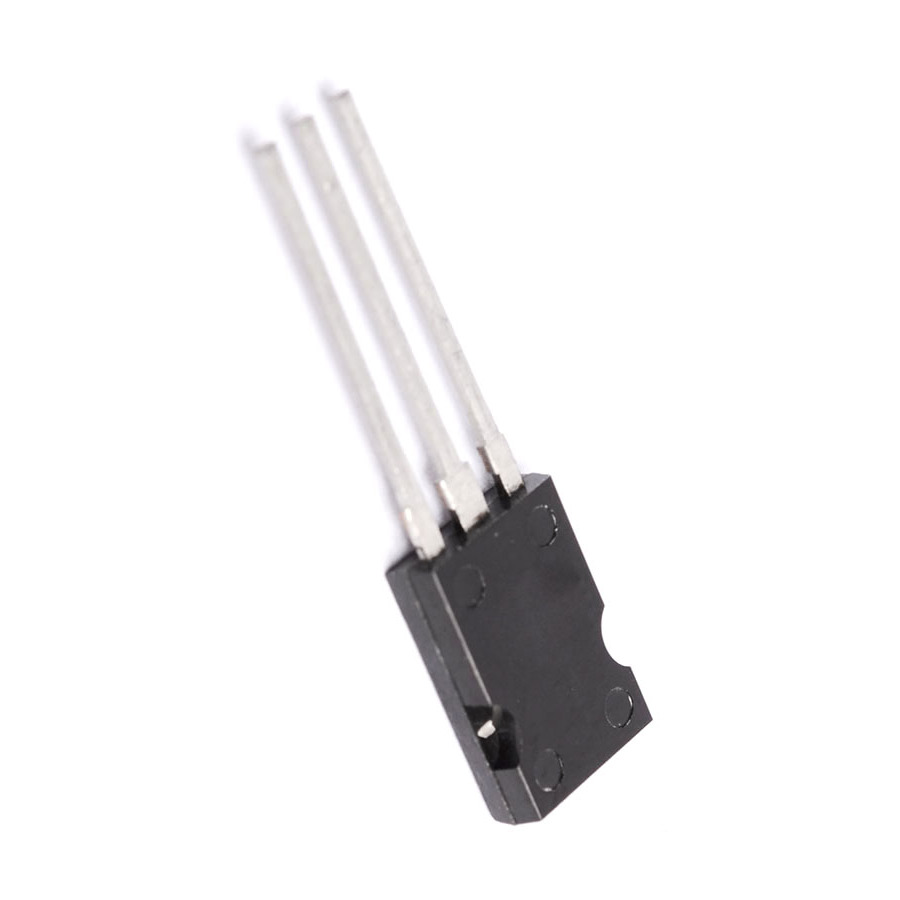

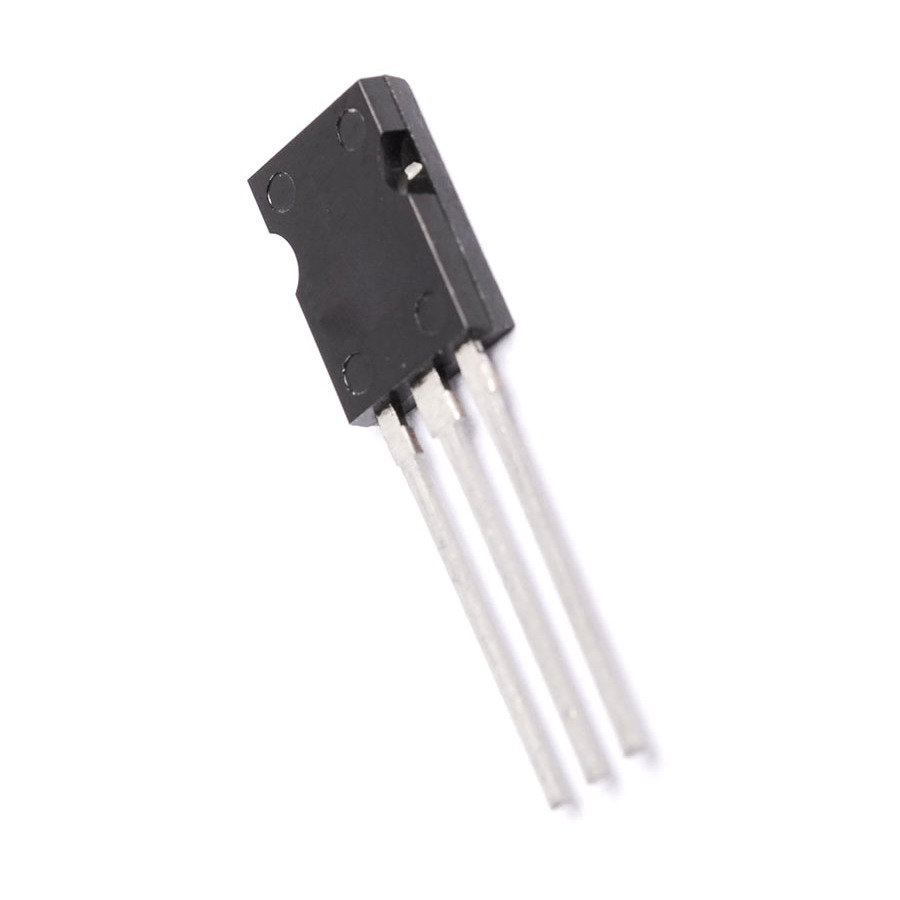

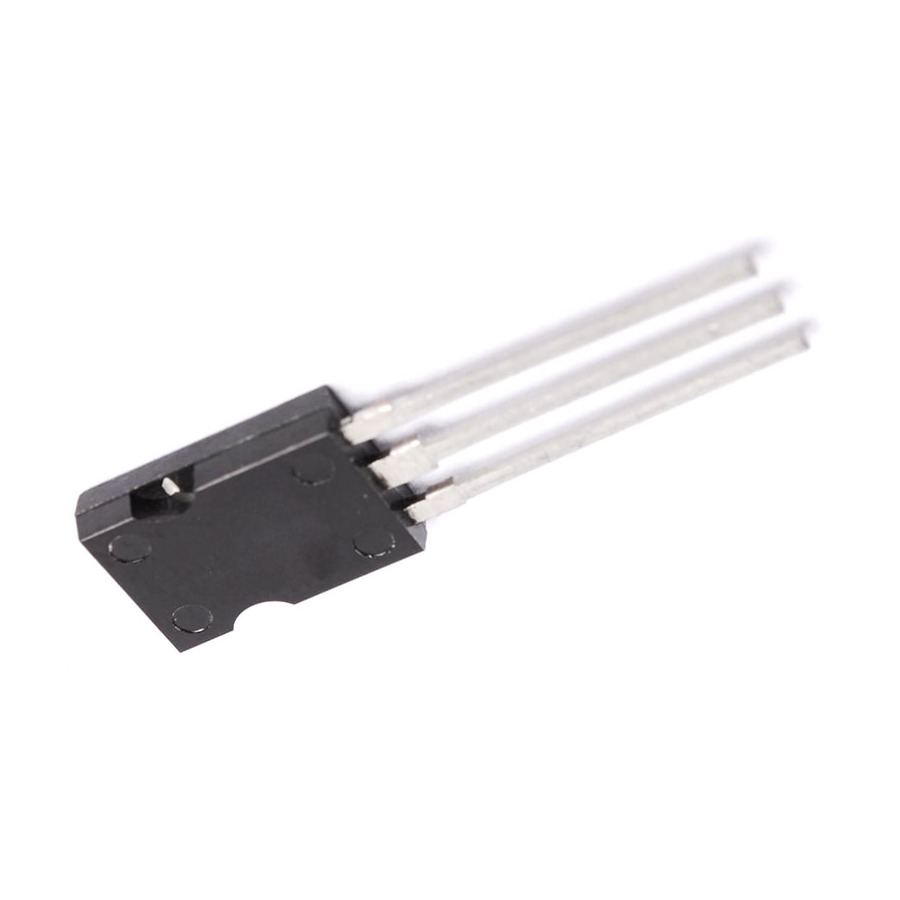

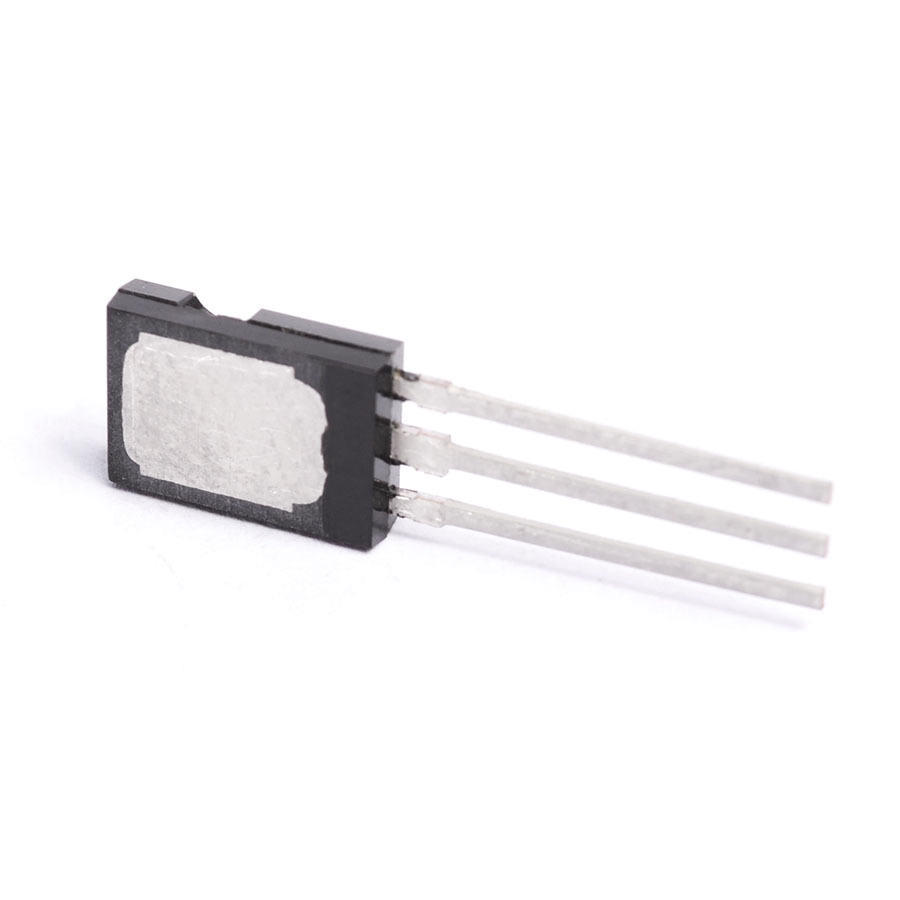

BD295 Transistor Silicon NPN CASE: SOT82 MAKE: NXP Semiconductors
Price:
£5.75 Inc. VAT (£4.79 Ex. VAT)
£5.75 Inc. VAT (£4.79 Ex. VAT)
Qty
  • 2 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Product specifications
Type Transistor Silicon NPN
Case SOT82
Manufacturer NXP Semiconductors
Vbr CBO 80
Vbr CEO 80
Max. PD (W) 60
Min hFE 30
Ic Max. (A) 6.0
@Ic (test) (A) 2.0
Icbo Max. @Vcb Max. (A) 1.0m
Polarity NPN
Derate Above 25°C 480m
Trans. Freq (Hz) Min. 3.0M
Oper. Temp (°C) Max. 140
@VCE (V) 2.0
Pinout Equivalence Number 3-37
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 60 W
Maximum Collector-Base Voltage |Vcb| 80 V
Maximum Collector-Emitter Voltage |Vce| 80 V
Maximum Collector Current |Ic max| 10 A
Max. Operating Junction Temperature (Tj) 150 °C
Transition Frequency (ft): 3 MHz
Forward Current Transfer Ratio (hFE), MIN 25
SKU 313722
