BD438
View detailed images (4)

BD438

SKU: BD438

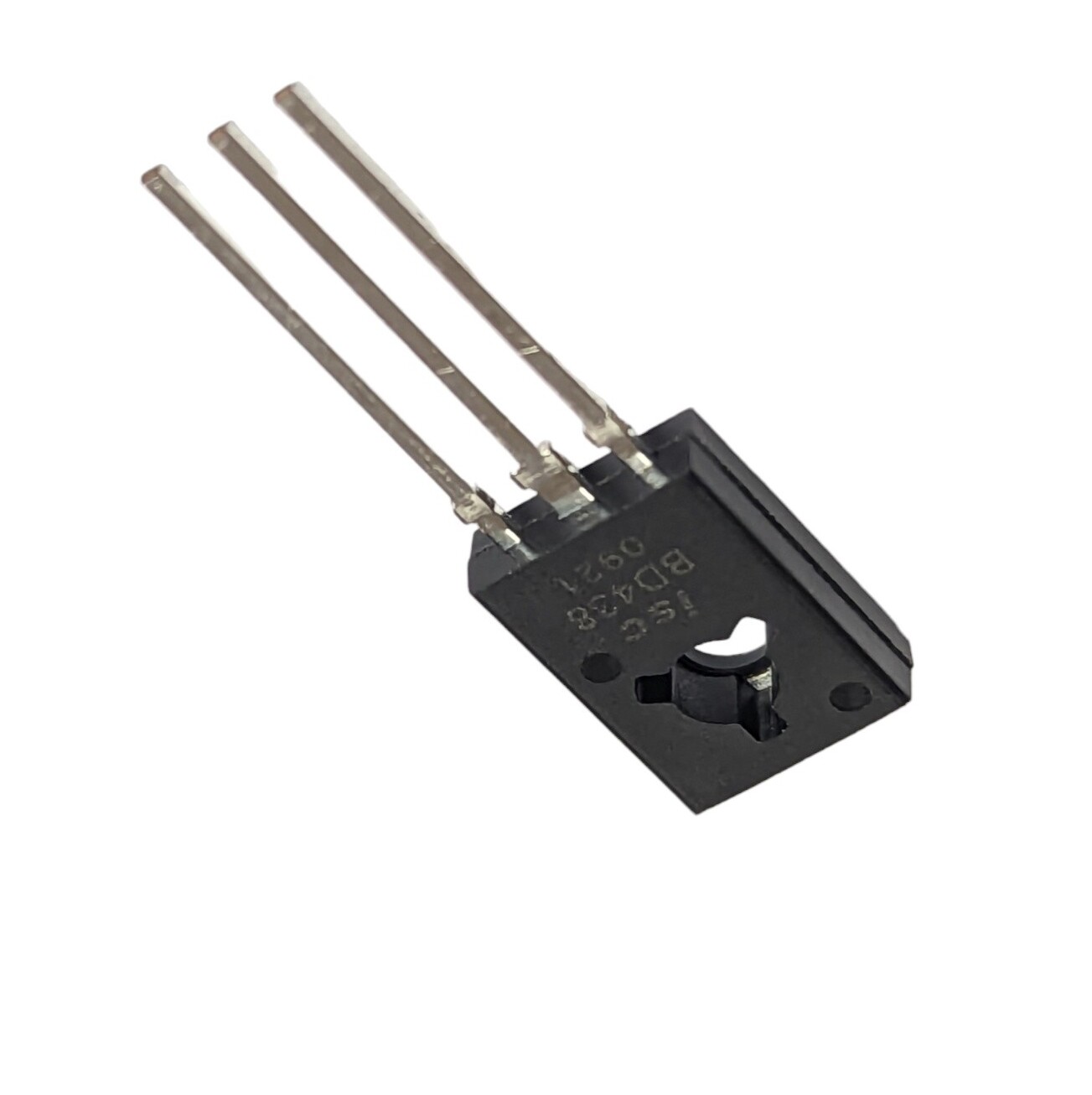

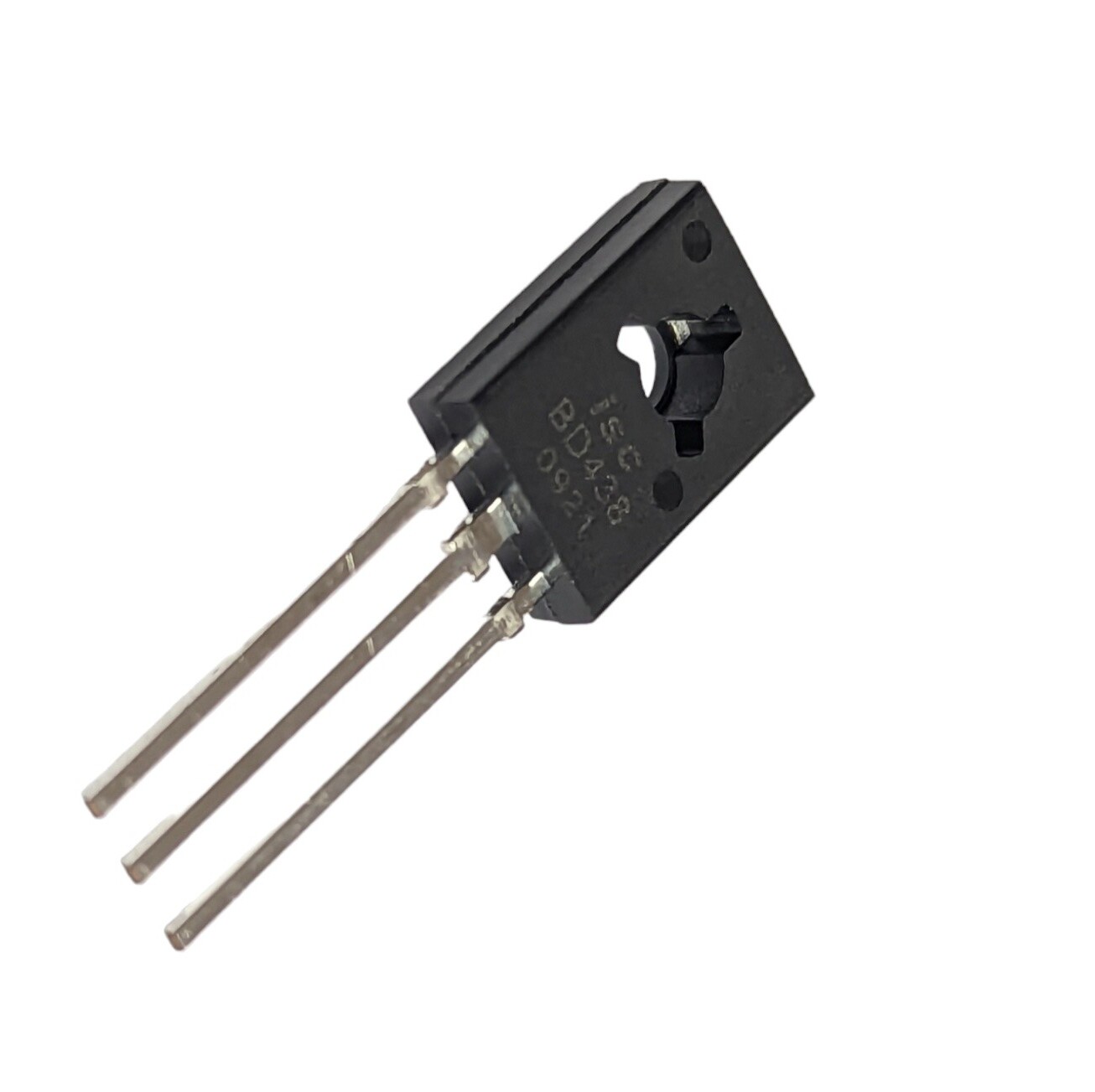

BD438 Transistor Silicon PNP CASE: TO126 MAKE: Inchange Semiconductor - ISC
Price:
£5.75 Inc. VAT (£4.79 Ex. VAT)
£5.75 Inc. VAT (£4.79 Ex. VAT)
Qty
  • Last 269 pieces Ready to Ship
  • More pieces shipped in 14 days
?
Datasheet
BD438 Datasheet
Product specifications
Type Transistor Silicon PNP
Case TO126
Manufacturer Inchange Semiconductor - ISC
Vbr CBO 45
Vbr CEO 45
Max. PD (W) 36
Derate (Amb) (W/°C) 288m
Min hFE 25
Ic Max. (A) 4.0
@Ic (test) (A) 10m
Icbo Max. @Vcb Max. (A) 50u
Polarity PNP
R(sat) (Û) 300m
Trans. Freq (Hz) Min. 7.0M
Oper. Temp (°C) Max. 150
@VCE (V) 5.0
Pinout Equivalence Number 3-10
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 36 W
Maximum Collector-Base Voltage |Vcb| 45 V
Maximum Collector-Emitter Voltage |Vce| 45 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 4 A
Max. Operating Junction Temperature (Tj) 150 °C
Transition Frequency (ft): 3 MHz
Forward Current Transfer Ratio (hFE), MIN 40
SKU 16796
