BD695A

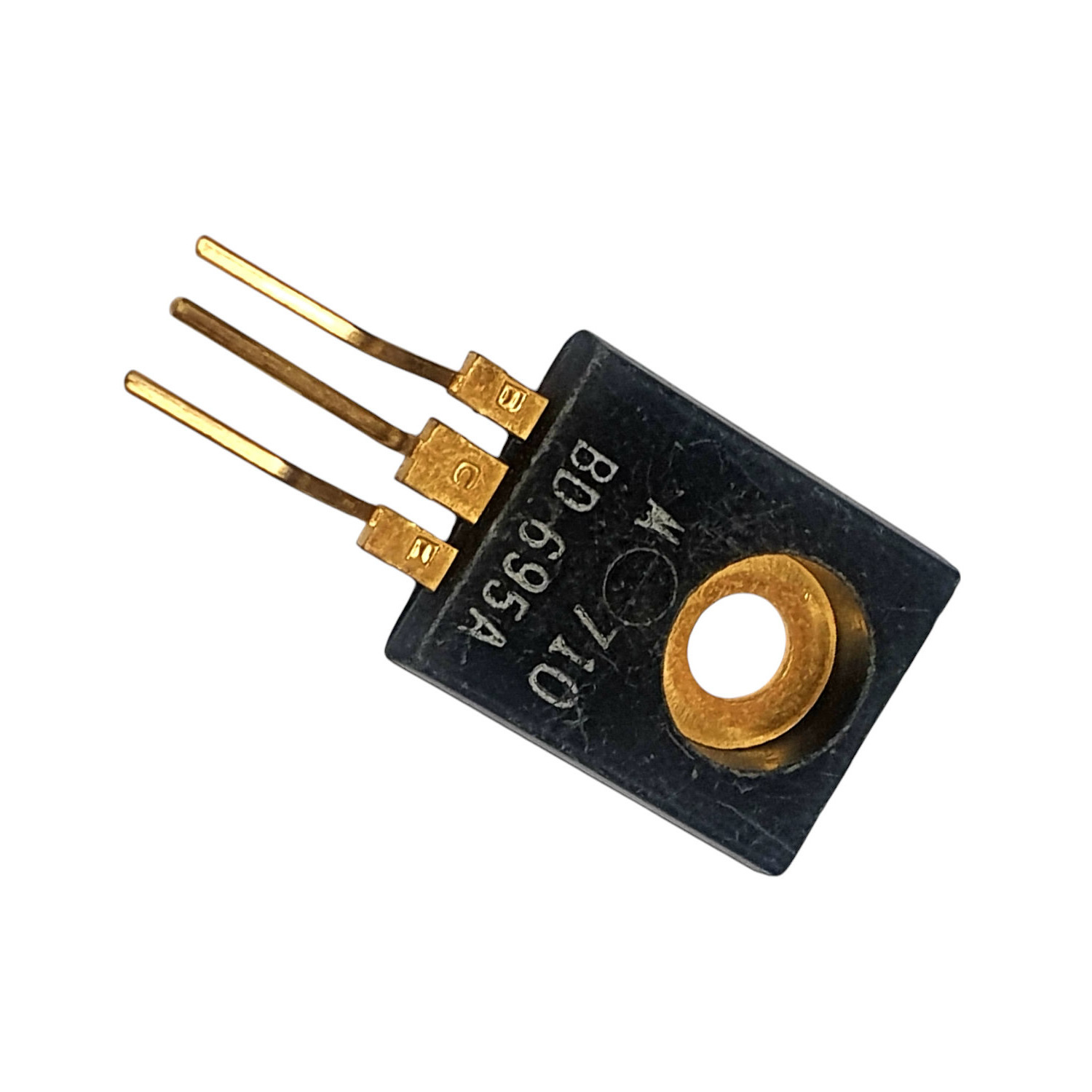

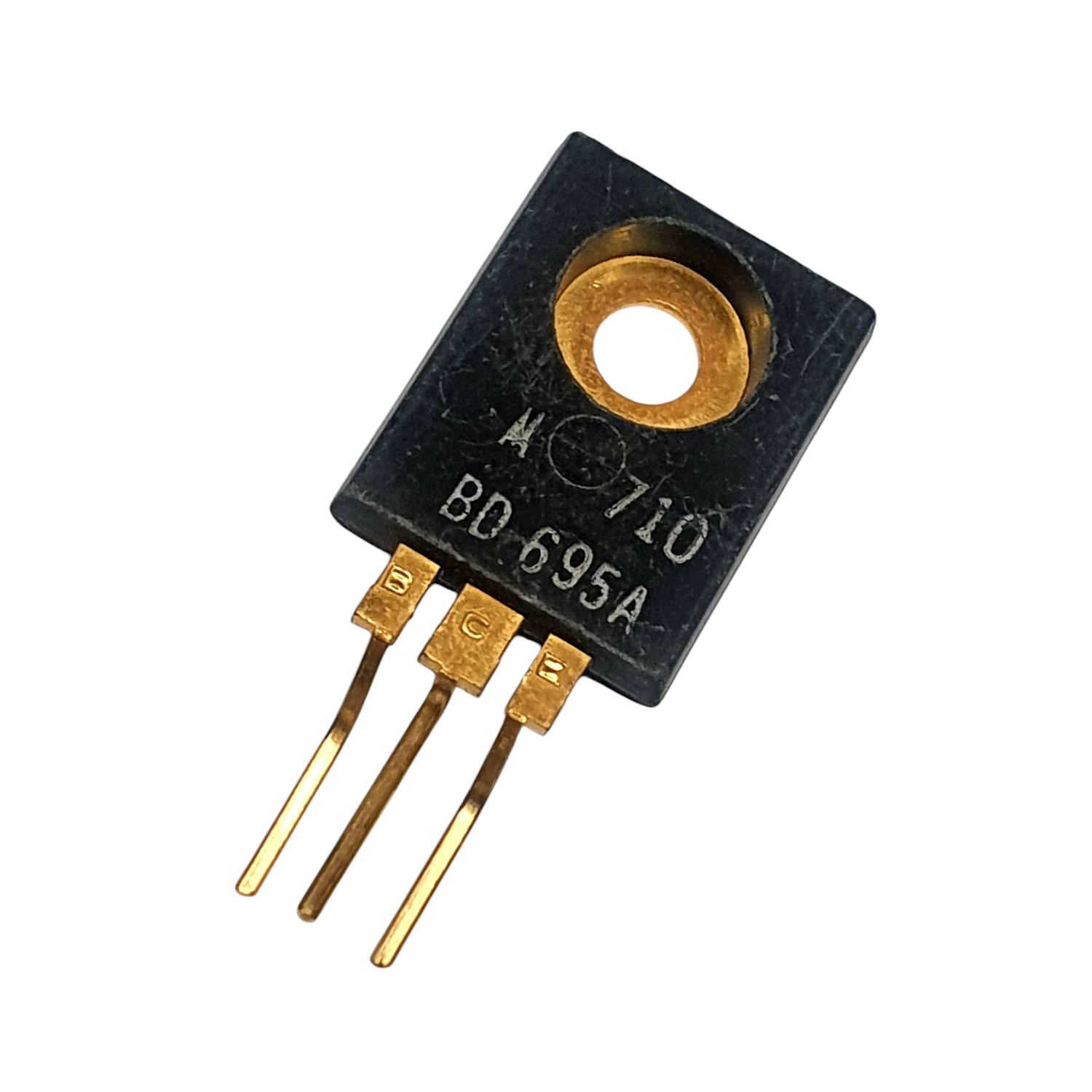

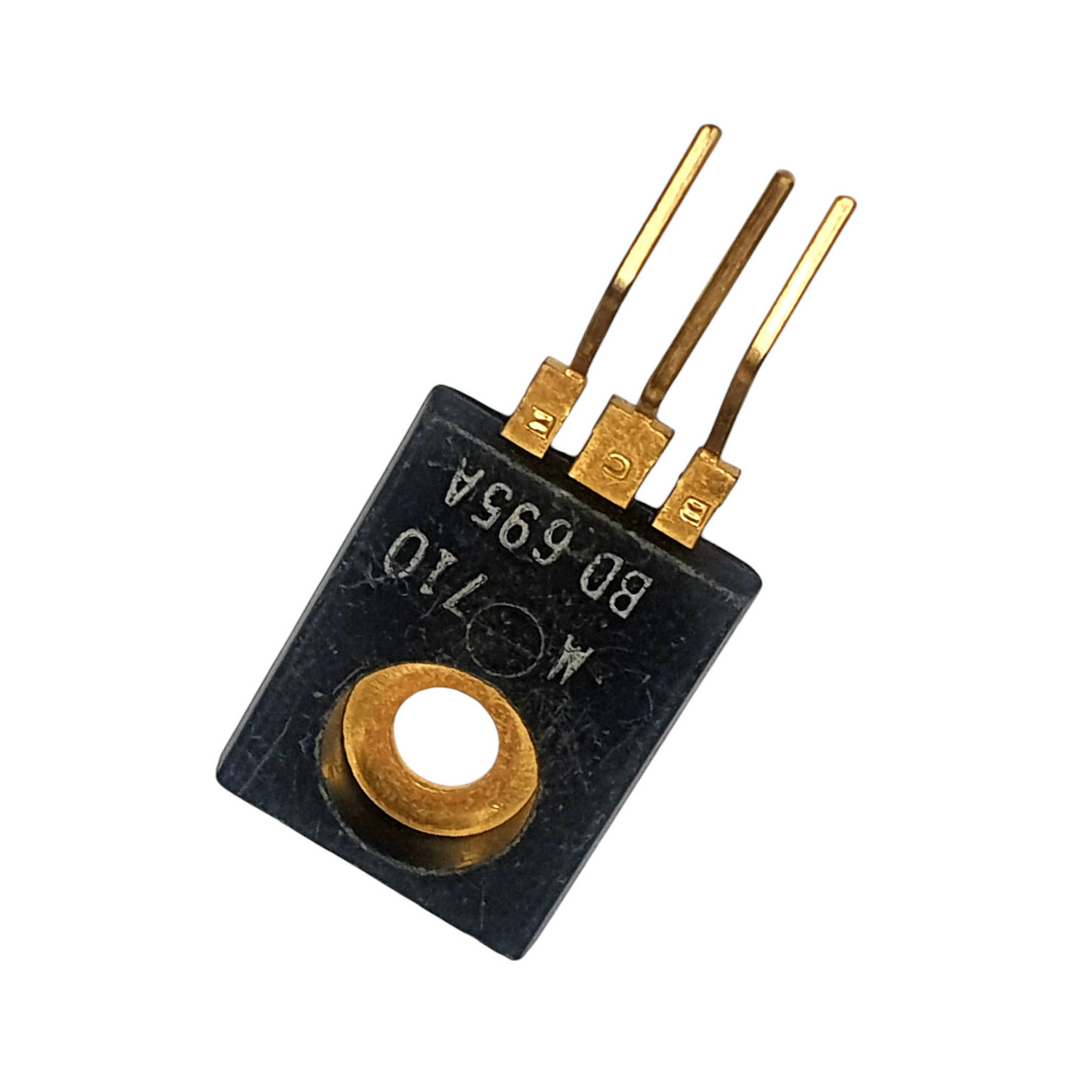

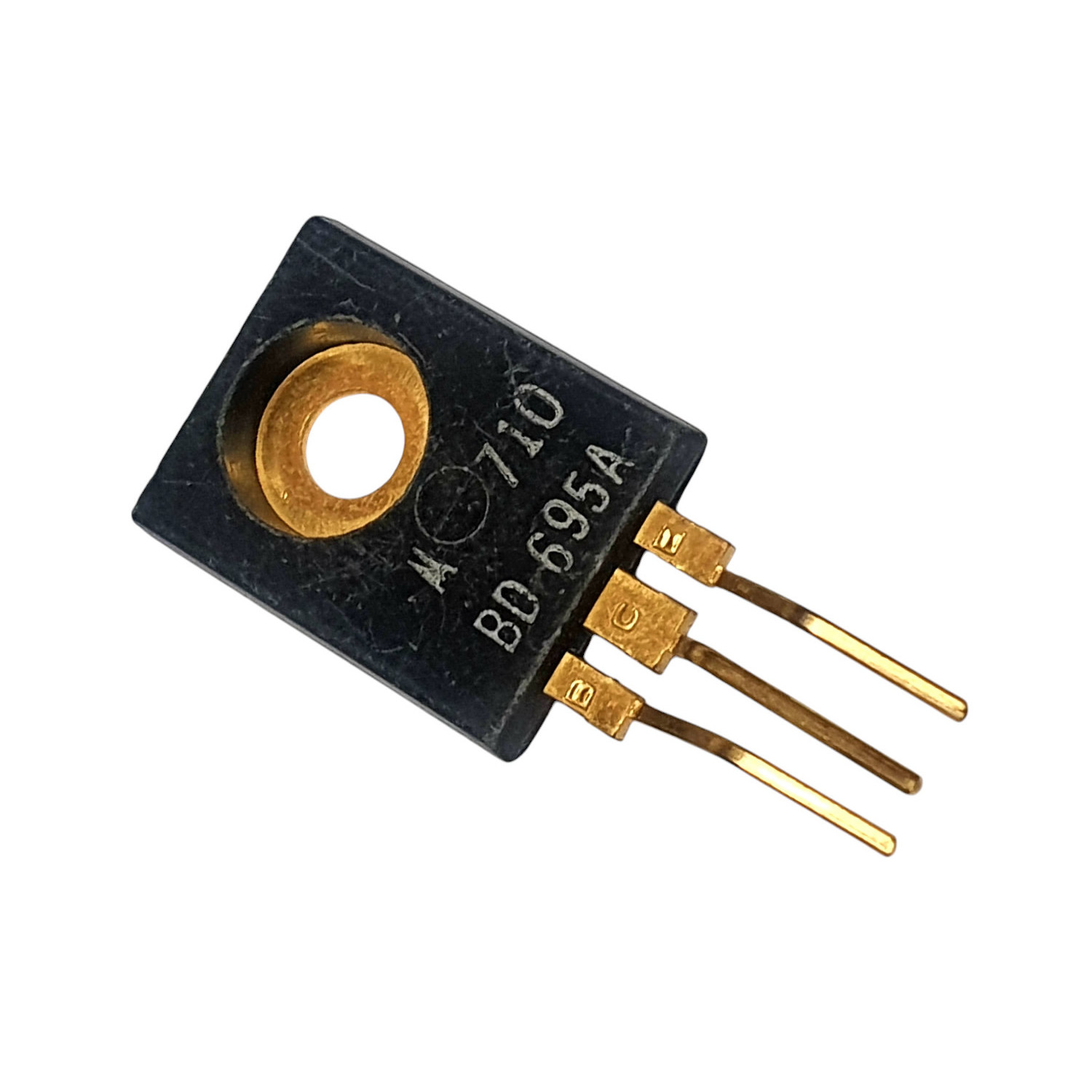

View detailed images (4)

BD695A

SKU: BD695A
BD695A Transistor Silicon NPN CASE: TO220X MAKE: Motorola Semiconductor
Price:
£14.39 Inc. VAT (£11.99 Ex. VAT)
£14.39 Inc. VAT (£11.99 Ex. VAT)
Qty
  • 1 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Product specifications
Type Transistor Silicon NPN
Case TO220X
Manufacturer Motorola Semiconductor
Vbr CEO 45
Max. PD (W) 70
Min hFE 750
Ic Max. (A) 8.0
@Ic (test) (A) 4.0
Icbo Max. @Vcb Max. (A) 200u
Mat. Silicon Logic
Polarity NPN
R(sat) (Û) 700m
Derate Above 25°C 560m
Trans. Freq (Hz) Min. 1.0M
@VCE (test) 3.0
Oper. Temp (°C) Max. 150
Pinout Equivalence Number 3-35
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 70 W
Maximum Collector-Base Voltage |Vcb| 45 V
Maximum Collector-Emitter Voltage |Vce| 45 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 8 A
Max. Operating Junction Temperature (Tj) 150 °C
Transition Frequency (ft): 1 MHz
Forward Current Transfer Ratio (hFE), MIN 750
SKU 84728
