BDX77F

SKU: BDX77F

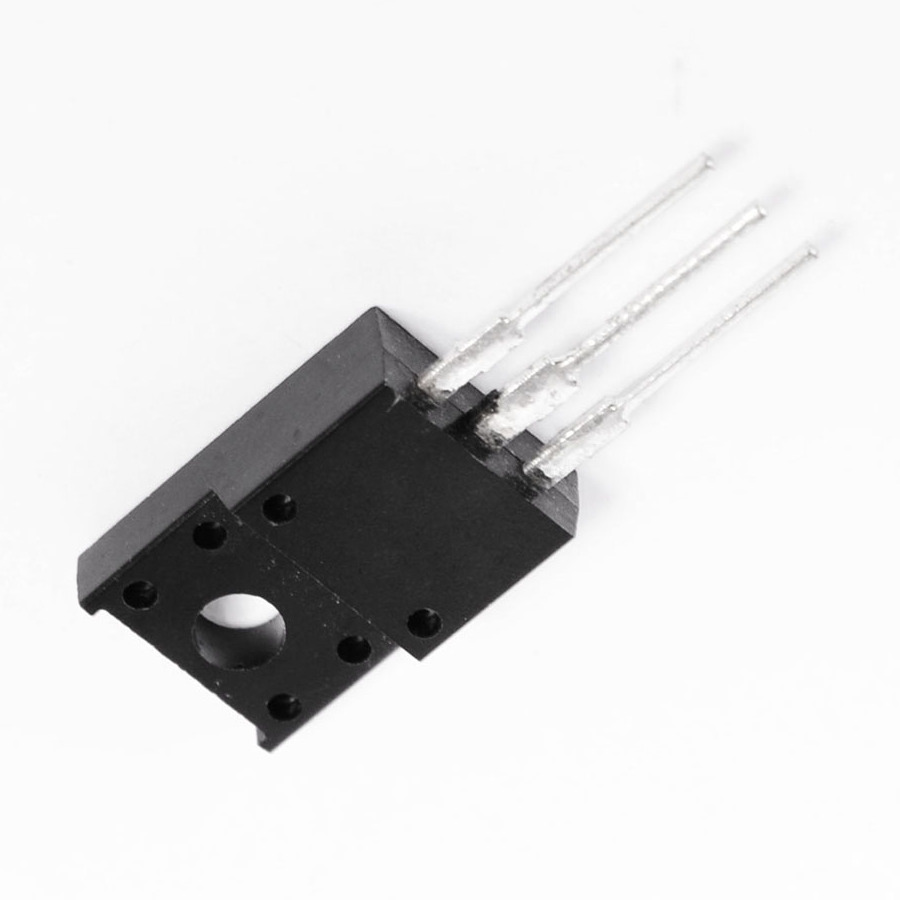

BDX77F Transistor Silicon NPN CASE: SOT186 MAKE: Philips
Product specifications
Type Transistor Silicon NPN
Case SOT186
Manufacturer Philips
Vbr CBO 100
Vbr CEO 80
Max. PD (W) 32
Min hFE 30
Ic Max. (A) 8.0
@Ic (test) (A) 3.0
Icbo Max. @Vcb Max. (A) 200m
Polarity NPN
Trans. Freq (Hz) Min. 7.0M
Oper. Temp (°C) Max. 150
@VCE (V) 2.0
Pinout Equivalence Number 3-17
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 20 W
Maximum Collector-Base Voltage |Vcb| 100 V
Maximum Collector-Emitter Voltage |Vce| 80 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 8 A
Max. Operating Junction Temperature (Tj) 150 °C
Transition Frequency (ft): 7 MHz
Forward Current Transfer Ratio (hFE), MIN 30
SKU 561888
